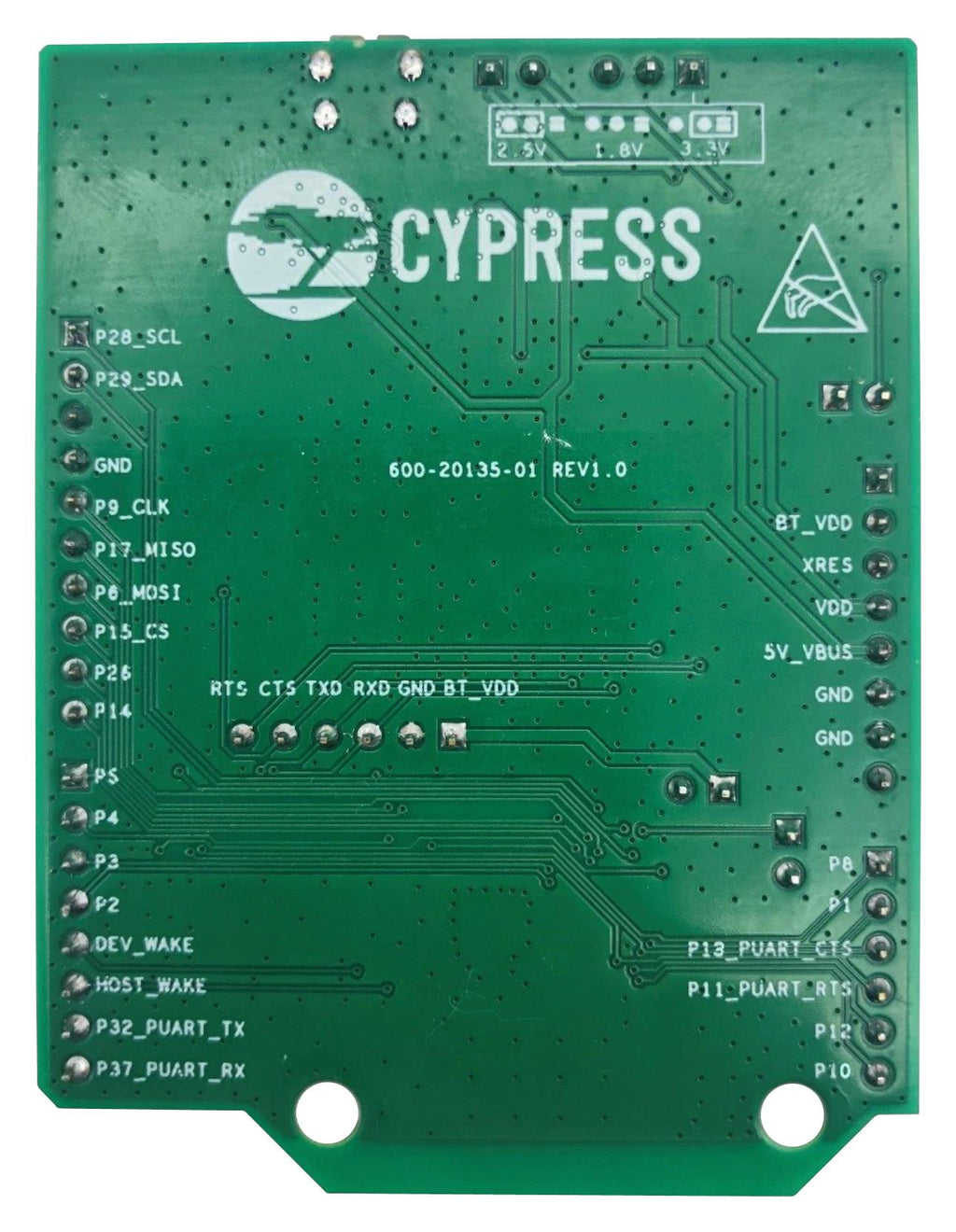

Infineon CYBT-253059-EVAL Evaluation Board CYW20820 Bluetooth Low Energy Module SoC Wireless Communication New

CYBT-253059-EVAL is a Bluetooth® & Bluetooth® LE 5.0 module evaluation kit enables evaluation, prototyping, and development of a wide array of IoT applications using the AIROC� CYBT-253059-02 module. This Evaluation Kit (CYBT-253059-EVAL) includes an Infineon in-house AIROC� Bluetooth® Module hosting the AIROC� CYW20820 that is globally certified and has PCB antenna integrated, rapidly reducing time-to-market. The AIROC� CYBT-253059-EVAL is supported in the AIROC� Bluetooth® SDK within ModusToolbox� Software and Tools with copious code examples and documentation enablement for Bluetooth® LE data transfer, and Bluetooth® Mesh use cases. CYBT-253059-EVAL can be used as a standalone evaluation kit or combined with Arduino-compatible shields. The CYBT-253059-02 WICED Module is a fully integrated, fully certified, 11.0 mm x 11.0 mm x 1.70 mm, programmable, Bluetooth® Smart Ready module designed to reduce your time-to-market.

• Supports Bluetooth protocols including GAP, GATT, SMP, RFCOMM, SDP, BLE Mesh protocol
• Eval board with integrated serial flash
• Input/output interfaces for communications and programming
• Various sensors like the light sensor, thermistor and LEDs
• External headers for debugging and connectivity
• Interfaces to USB power or to a coin cell
• PCB trace antenna and integrated PA/LNA
• 24MHz crystal oscillator

Contents

1 X module Arduino evaluation board (CYBT-223059-EVAL ) with on-board AIROC™ module (CYBT-223059-02), 1 X USB cable for USB - UART programming convenient user buttons, Bluetooth and Bluetooth module.

Other details

Brand	INFINEON
Part Number	CYBT-253059-EVAL
Quantity	Each
User Manual EN
