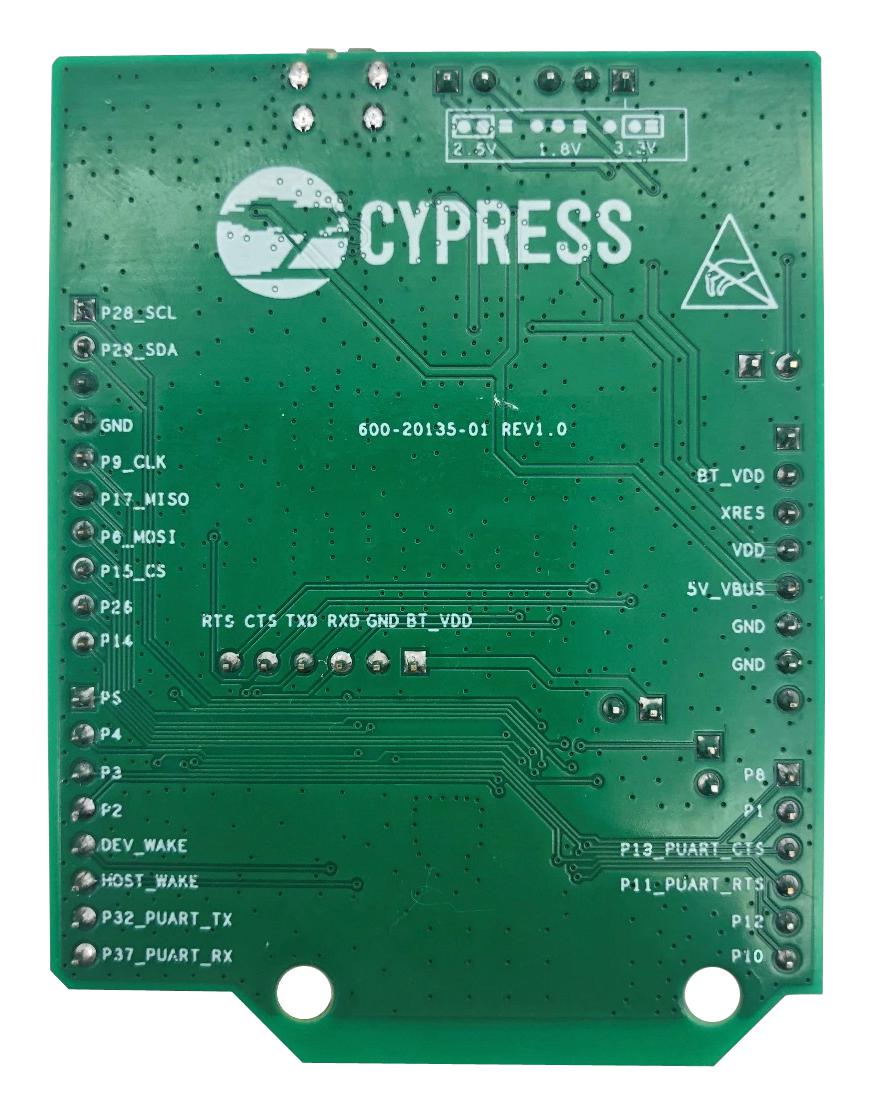

Infineon CYBT-223058-EVAL Evaluation Board CYW20819 Bluetooth Low Energy Module Wireless Communication New

CYBT-223058-EVAL is a Bluetooth® & Bluetooth® LE 5.0 module evaluation kit enables evaluation, prototyping, and development of a wide array of IoT applications using the AIROC� YBT-223058-02 module. The AIROC� CYBT-223058-02 Bluetooth® Module is globally certified, and has an integrated PCB trace antenna, rapidly reducing the time-to-market. The Infineon AIROC� CYBT-223058-EVAL Evaluation Kit is supported in the AIROC� Bluetooth® SDK v3.2 or later within ModusToolbox� Software and Tools with many code examples for various use cases. CYBT-223058-EVAL can be used as a standalone evaluation kit or can be combined with Arduino-compatible shield. The CYBT-223058-02 WICED Module is a fully integrated, fully certified, 11.0 mm x 11.0 mm x 1.70 mm, programmable, Bluetooth®Smart Ready module designed to reduce your time-to-market.

• Supports Bluetooth protocols including GAP, GATT, SMP, RFCOMM, SDP, BLE Mesh protocol
• Eval board with integrated serial flash
• Input/output interfaces for communications and programming
• Various sensors like the light sensor, thermistor and LEDs
• External headers for debugging and connectivity
• Interfaces to USB power or to a coin cell
• PCB trace antenna and integrated PA/LNA
• 24MHz crystal oscillator

Contents

1 X module Arduino evaluation board (CYBT-223058-EVAL ) with on-board AIROC™ module (CYBT-223058-02), 1 X USB cable for USB - UART programming convenient user buttons, Bluetooth and Bluetooth module.

Other details

Brand	INFINEON
Part Number	CYBT-223058-EVAL
Quantity	Each
User Manual EN
