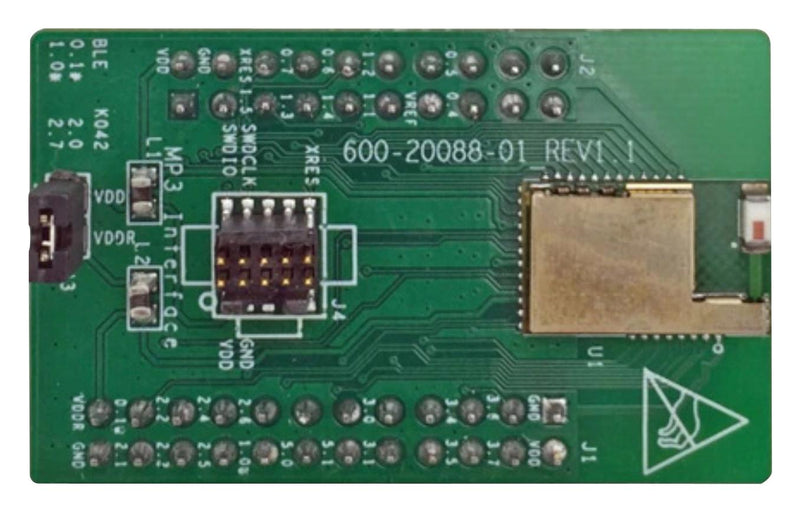

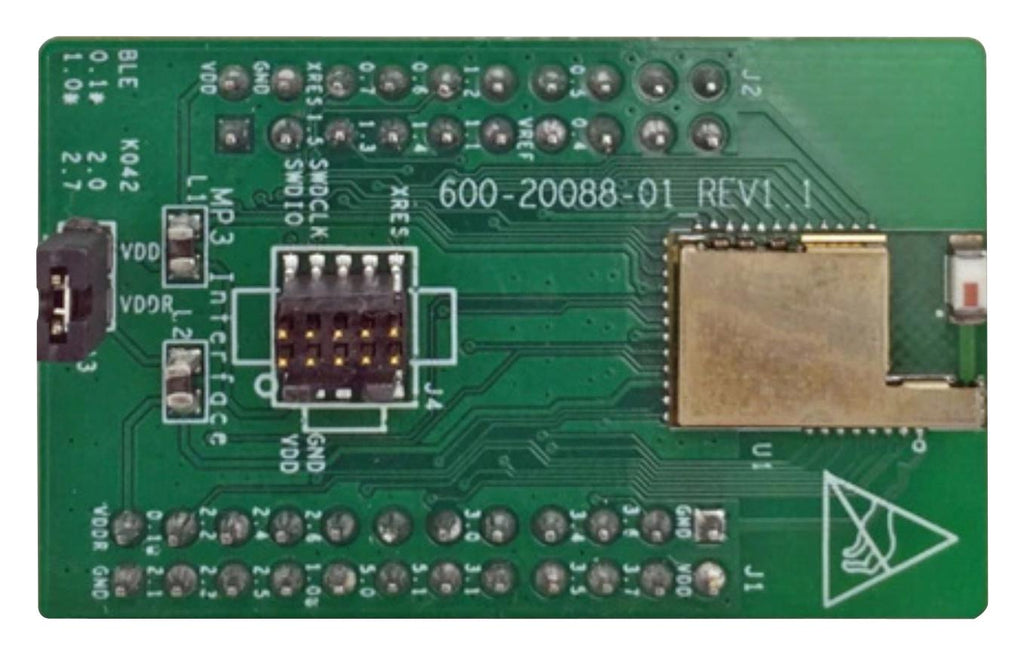

CYBLE-224116-EVAL is a EZ-BLE PSoC� evaluation board enables you to evaluate and develop applications with the CYBLE-224116-01 EZ-BLE PSoC� XT/XR BT 4.2 module. The EZ-BLE PSoC module is a fully-integrated, fully-certified, 9.5 mm x 15.4 mm x 1.8 mm, programmable, Bluetooth® Smart module designed to reduce your time-to-market. The CYBLE-224116-EVAL board can be used with the Bluetooth Low Energy Pioneer Kit (CY8CKIT-042-BLE) and PSoC� Creator to develop BLE applications. To enable easy prototyping the evaluation board routes the GPIOs of the on-board EZ-BLE PSoC XT/XR BT 4.2 Module to the CAPSENSE� slider, RGB LED, switches, PSoC� 5 LP and FRAM on the BLE Pioneer Baseboard.
- Can also be programmed and debugged with the CY8CKIT-002 and PSoC� Creator
Other details
| Brand |
INFINEON |
| Part Number |
CYBLE-224116-EVAL |
| Quantity |
Each |
| User Manual EN |
 |
