| ₹ 13215.1 includes GST and import duties. | |
| B2B customers can avail ₹ 2015.3 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

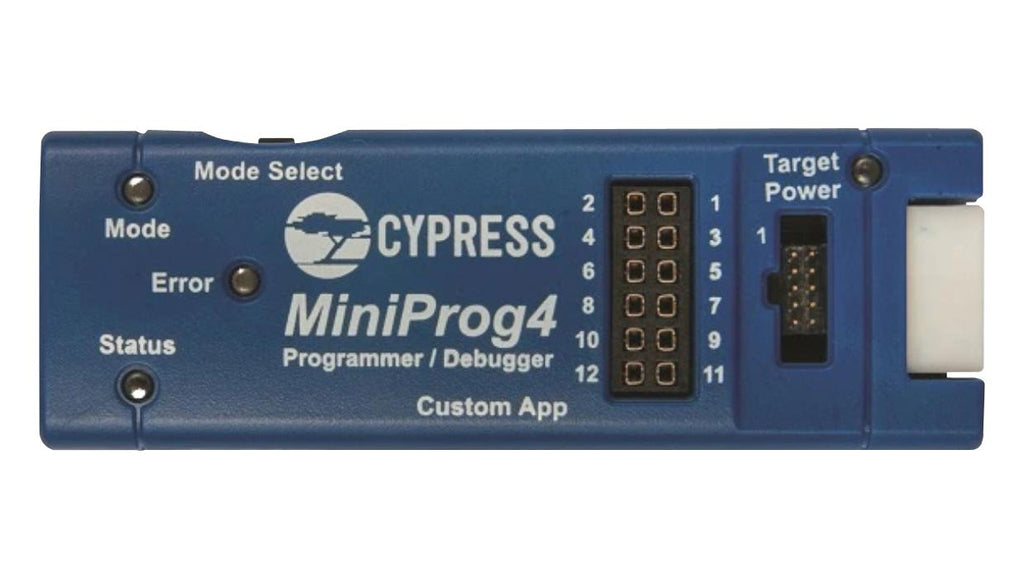

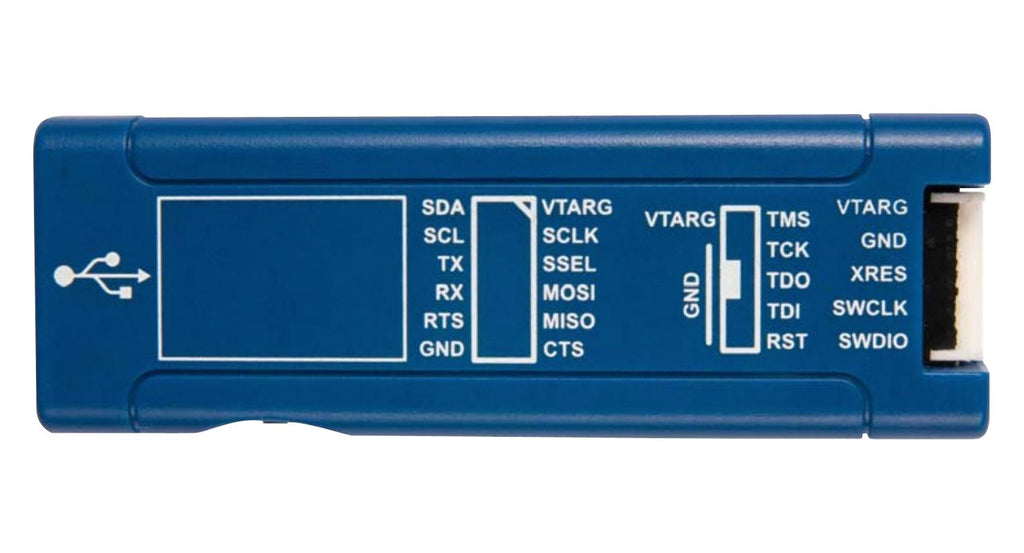

CY8CKIT-005-A is a MiniProg4 program and debug kit. This is an all-in-one development programmer and debugger for PSoC� 4, PSoC� 5LP, and PSoC� 6 MCU devices. Use MiniProg4 as a programmer or debug probe for supported devices. CY8CKIT-005-A is 100% compatible with all tools that supported the original MiniProg4 CY8CKIT-005, with additional JTAG programming and debugging functionality. The MiniProg4 Program and Debug Kit (CY8CKIT-005-A) uses: CMSIS-DAP interface over Serial Wire Debug (SWD) protocol - CMSIS-DAP V2.0.0 and V1.2.0, fast USB interface supports both bulk and HID transfers, JTAG programming and debugging (added feature on Miniprog4 CY8CKIT-005-A). MiniProg4 also provides USB-I2C, USB-SPI and USB-UART bridging functionality. MiniProg4 bridging capabilities are used by tools like CAPSENSE� Tuner and the Device Firmware Upgrade Tool, delivered with ModusToolbox� IDE.
- MiniProg4 is supported by ModusToolbox�, PSoC� Creator, PSoC� programmer, and bridge control panel
Contents

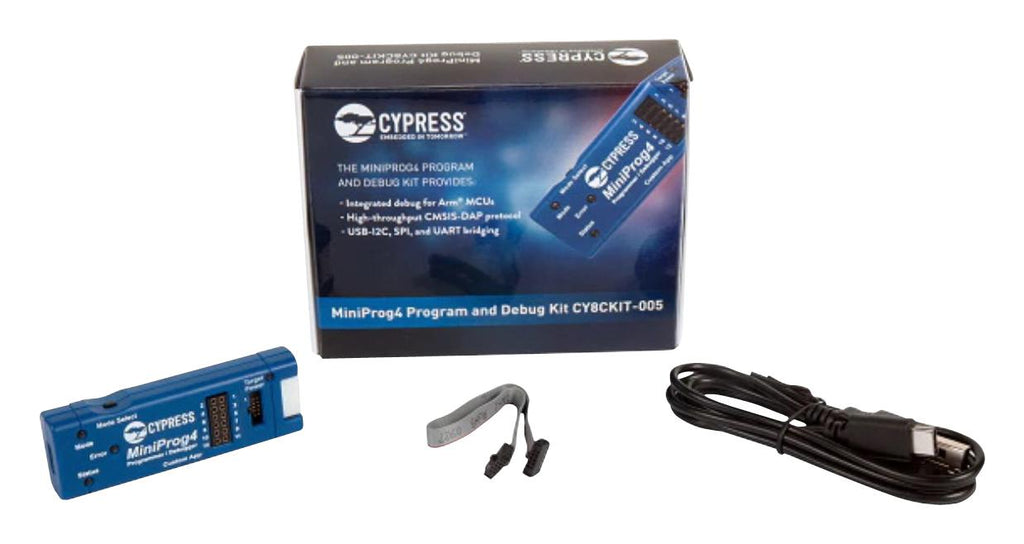

MiniProg4 programmer/debugger, 10-pin ribbon cable, USB Type-A to Type-C cable, Quick start guide.
Product details
Other details
| Brand | INFINEON |
| Part Number | CY8CKIT-005-A |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 12950.8 |
| 3-5 | ₹ 12818.65 |
| 5-10 | ₹ 12554.35 |
| 10+ | ₹ 12290.04 |
Bulk discount will be automatically applied during checkout based on quantity.
