CY8C624ALQI-S2D42 PSoC® 6 MCU is a high-performance, ultra-low-power and secured MCU platform, purpose-built for IoT applications. This product line, based on the PSoC 6 MCU platform, is a combination of a dual CPU microcontroller with low-power flash technology, digital programmable logic, high-performance analogue-to-digital conversion and standard communication and timing peripherals. Base features include Arm CM4/CM0+, DC-DC converter, QSPI SMIF, 12bit SAR ADC, 2 LPCOMPs, 13 SCBs, 32 TCPWMs, 2 I2S, 2 PDM, 2 SD host controllers, USB-FS.
- 150/50MHz CM4 CPU speed (LP/ULP), 100/25MHz CM0+ CPU speed (LP/ULP), 2048KB flash
- FLEX power modes, 1024KB SRAM
- 32bit dual CPU subsystem, low power 1.7V to 3.6V operation
- CapSense, crypto, 53 GPIO
- Standard firmware, performance line
- Industrial temperature range
- Cryptography accelerator, security built into platform architecture
- Segment LCD drive supports up to 101 segments and up to 8 commons

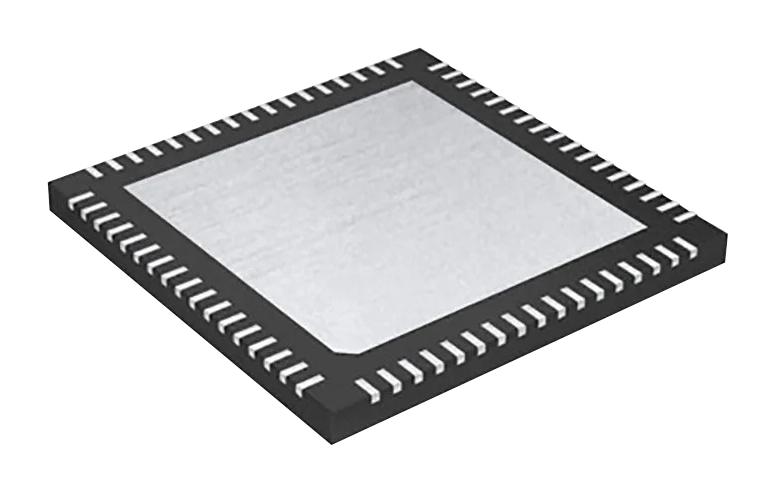

- QFN-68 package
- Quad-SPI (QSPI)/serial memory interface (SMIF)
Other details
| Brand |
INFINEON |
| Part Number |
CY8C624ALQI-S2D42 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
