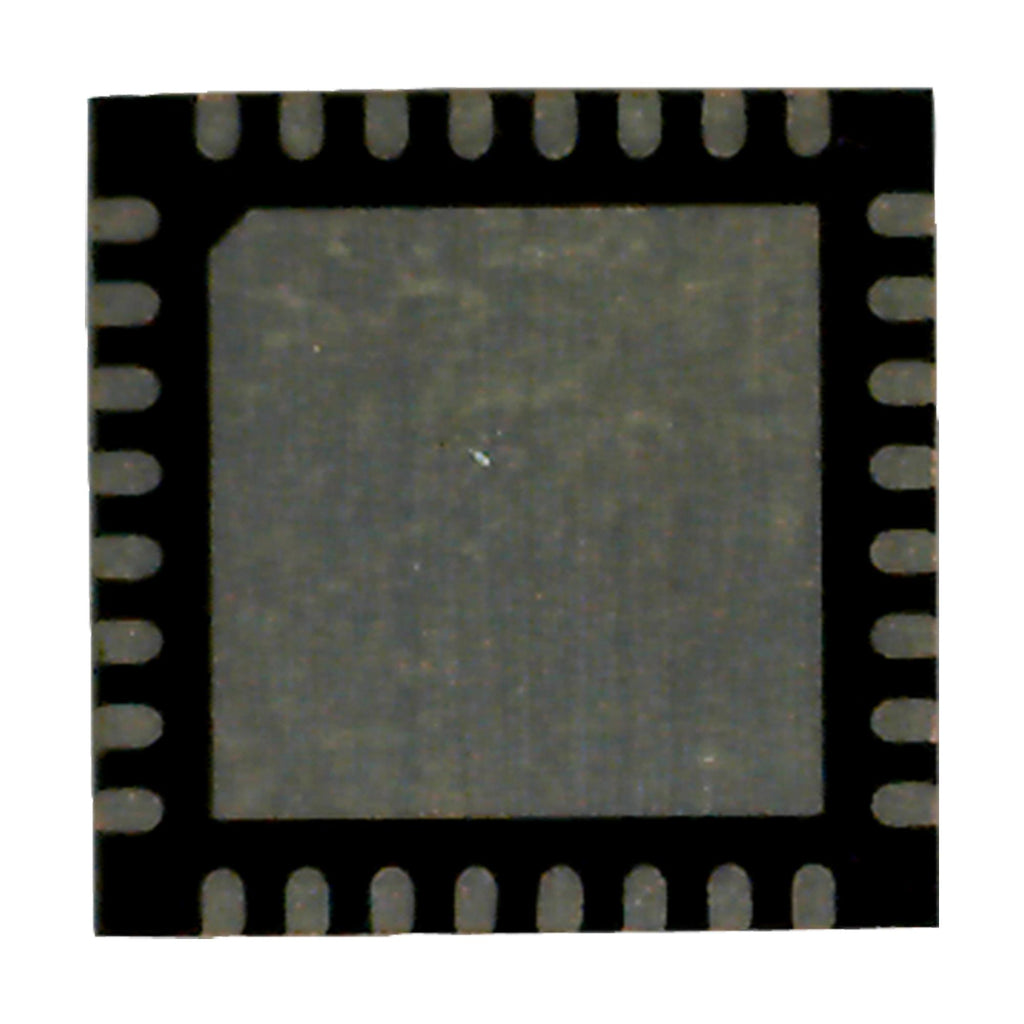

CY8C4024LQI-S402 is a PSoCâ�¢ 4 MCU. PSoCâ�¢ 4 is a scalable and reconfigurable platform architecture for a family of programmable embedded system controllers with an Arm® Cortex®-M0+ CPU. It combines programmable and reconfigurable analog and digital blocks with flexible automatic routing. The PSoCâ�¢ 4000S product family is a member of the PSoCâ�¢ 4 platform architecture. It is a combination of a microcontroller with standard communication and timing peripherals, a capacitive touch-sensing system (CAPSENSEâ�¢) with best-in-class performance, programmable general-purpose continuous-time and switched-capacitor analog blocks, and programmable connectivity. PSoCâ�¢ 4000S product is upward compatible with members of the PSoCâ�¢ 4 platform for new applications and design needs.
- 48MHz Arm® Cortex®-M0+ CPU with single-cycle multiply, 16KB of flash with read accelerator
- Single-slope 10-bit ADC function provided by capacitance sensing block
- Two current DACs (IDACs) for general-purpose or capacitive sensing applications on any pin
- Two low-power comparators that operate in deep sleep low-power mode
- Programmable logic blocks allowing boolean operations to be performed on port inputs and outputs
- Deep Sleep mode with operational analog and 2.5µA digital system current
- LCD segment drive capability on GPIOs, timing and pulse-width modulation
- Five 16-bit timer/counter/pulse-width modulator (TCPWM) blocks
- Temperature range from -40°C to 85°C
Product details
| Product Range:
PSOC 4 Family CY8C40xx Series Microcontrollers
|
| Device Core:
ARM Cortex-M0+
|
| Data Bus Width:
32 bit
|
| Operating Frequency Max:
24MHz
|
| Program Memory Size:
16KB
|
| No. of Pins:
32Pins
|
| IC Case / Package:
QFN-EP
|
| No. of I/O's:
27I/O's
|
| Interfaces:
I2C, SPI, UART
|
| RAM Memory Size:
2KB
|
| ADC Channels:
1Channels
|
| ADC Resolution:
10Bit
|
| Supply Voltage Min:
1.71V
|
| Supply Voltage Max:
5.5V
|
| Operating Temperature Min:
-40°C
|
| Operating Temperature Max:
85°C
|
| IC Mounting:
Surface Mount
|
| MCU Family:
PSoC 4
|
| MCU Series:
CY8C40xx
|
| Qualification:
-
|
Other details
| Brand |
INFINEON |
| Part Number |
CY8C4024LQI-S402 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
