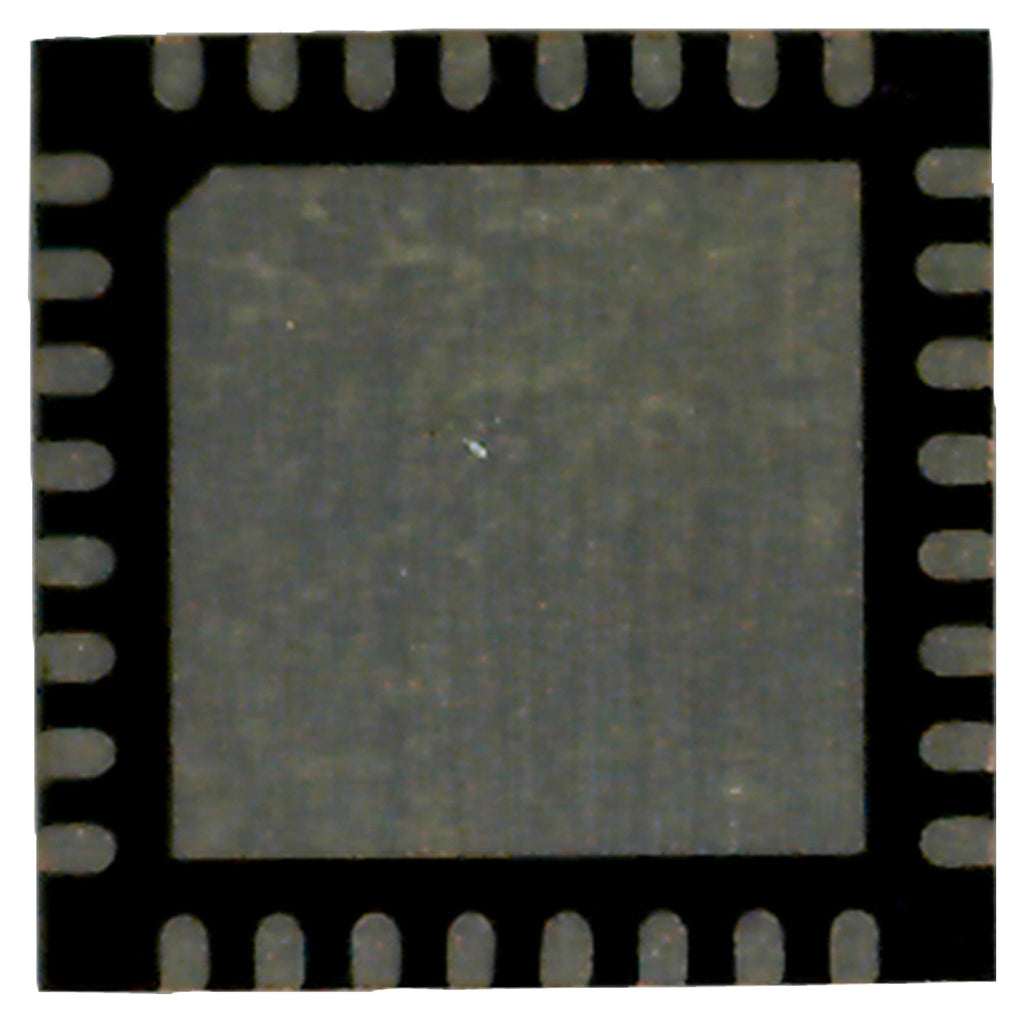

INFINEON CY8C24423A-24LTXI MCU, 8BIT, 24MHZ, QFN-EP-32

CY8C24423A-24LTXI is a PSoC® programmable system-on-chip MCU. This PSoC family consists of many programmable system-on-chips with on-chip controller devices. This device is designed to replace multiple traditional MCU-based system components with a low-cost single-chip programmable device. PSoC device includes configurable blocks of analogue and digital logic, and programmable interconnects. This architecture makes it possible for you to create customized peripheral configurations that match the requirements of each individual application. Additionally, a fast CPU, flash program memory, SRAM data memory, and configurable I/O are included in a range of convenient pinouts and packages. The PSoC architecture consists of four main areas: PSoC core, digital system, analogue system, and system resources.

• 4Kbytes flash, 256bytes SRAM, switch mode pump, 4 digital blocks
• 6 analogue blocks, 24 digital I/O pins, 10 analogue inputs, 2 analogue outputs
• Operating voltage range from 2.4V to 5.25V, low power at high speed
• Programmable gain amplifiers (PGAs), programmable filters and comparators
• Cyclical redundancy check (CRC) and pseudo random sequence (PRS) modules
• Optional external oscillator upto 24MHz, internal oscillator for watchdog and sleep
• In-system serial programming (ISSP), partial flash updates, flexible protection modes
• Watchdog and sleep timers, user-configurable low-voltage detection (LVD)
• Free development software (PSoC Designer�), complex breakpoint structure
• Operating temperature range from -40°C to +85°C, 32-pin QFN package
