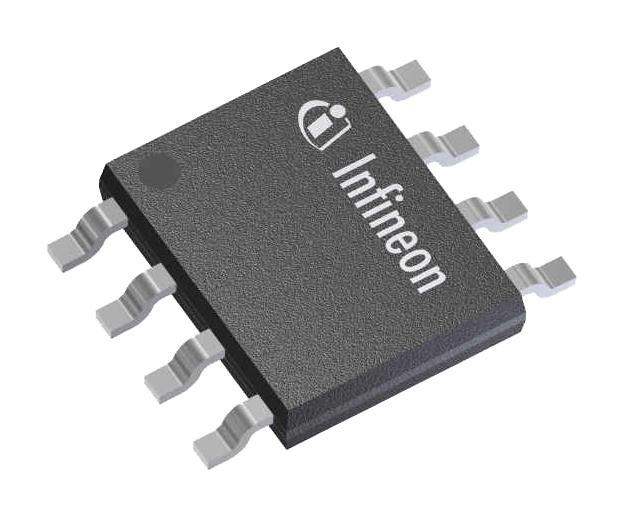

HITFET� +24V BTT3050EJ is a 50mohm smart low-side power switch within a PG-TDSO-8 package providing embedded protective functions. The power transistor is built by a N-channel vertical power MOSFET. BTT3050EJ is monolithically integrated, automotive qualified and optimized for 24V automotive applications. Suitable for resistive and inductive loads.
- Qualified for automotive applications, product validation according to AEC-Q100
- Single channel device optimized for 24V applications
- Electrostatic discharge protection (ESD)
- Overcurrent, active clamping and overtemperature protection
- Overtemperature latch shutdown
- Supply pin undervoltage protection
- Dedicated status signal
- Slew-rate control to adjust switching speed
- PWM switching capability of 20KHz (duty cycle 10%-90%)
- Nominal load current is 4A
Other details
| Brand |
INFINEON |
| Part Number |
BTT3050EJXUMA1 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Manufacturer Catalogue EN |
|
