Description

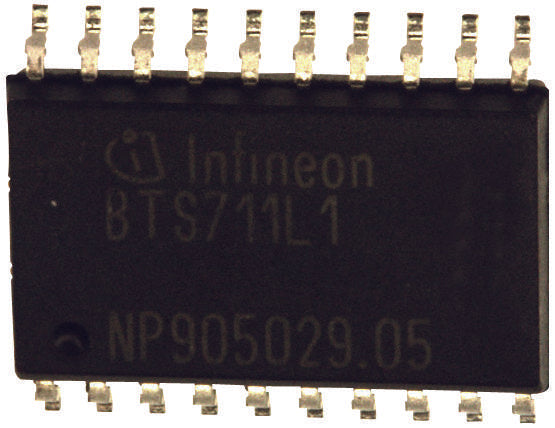

The BTS711L1 is a high-side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions. It is placed between the supply and load in order to control the application.
- Short-circuit protection with latch
- Overload protection
- Current limitation
- Thermal shutdown with restart
- Overvoltage protection
- Loss of ground protection
- Loss of Vbb protection
- Fast demagnetizing of inductive loads
- Electrostatic discharge (ESD) protection
- Open drain diagnostic output
- Open load detection in ON-state
- 12 or 24V capable
- Single or multi channel
Applications
Automotive, Logistics, Agriculture
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Load Switch Type: High Side |
| Input Voltage: 16V |
| Current Limit: 7.5A |
| On State Resistance: 0.042ohm |
| Distribution Switch Case Style: SOP |
| No. of Pins: 20Pins |
| Thermal Protection: Yes |
| On / Enable Input Polarity: Active High |
| No. of Outputs: 4Outputs |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Automotive Qualification Standard: AEC-Q100 |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | INFINEON |
| Part Number | BTS711L1XUMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
