Description
Product Overview

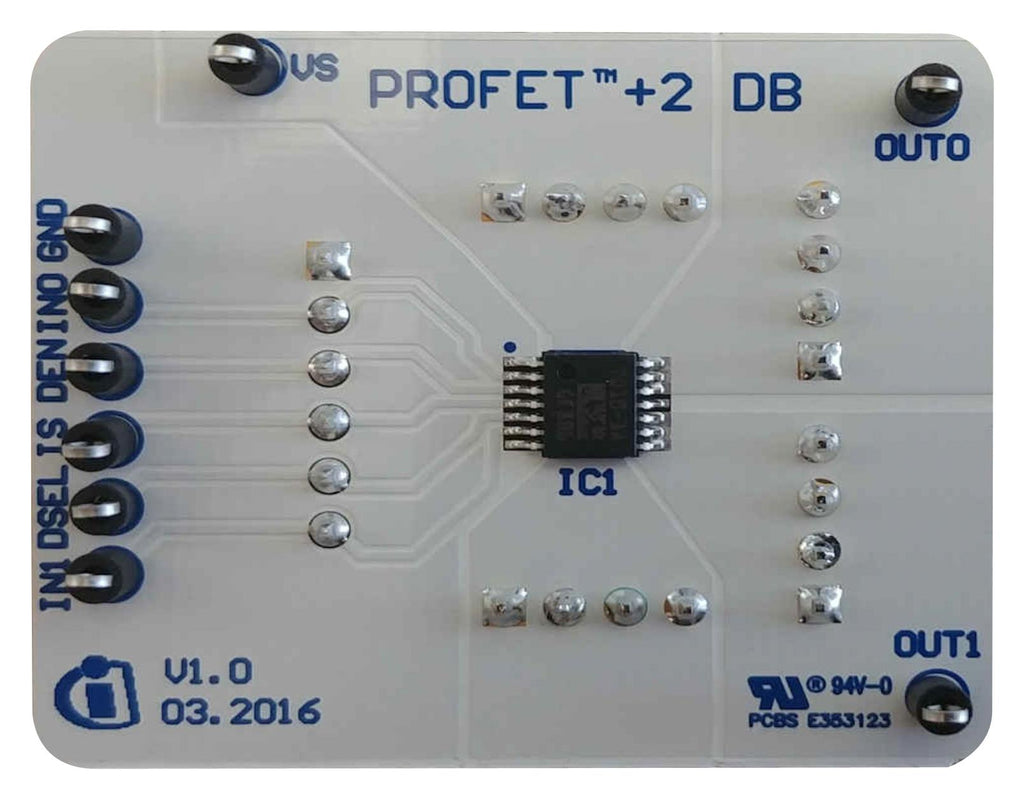

BTS70121EPADAUGHBRDTOBO1 is a SMART7 PROFET+2 12V BTS7012-1EPA daughter board. This daughterboard comes with 1 high-side switch of BTS7012-1EPA and is compatible with the PROFET�+2 12V motherboard. The motherboard in combination with the daughterboard is capable to drive typical automotive loads. Typical applications include body applications, lighting and power distribution.
- Operating voltage range 3.1-28V with 3.3V and 5V compatible logic input
- Protection: current tripping, over-temperature, overvoltage, load
- Diagnosis: load current sense output
- Optimized for design flexibility across family by pin to pin and external components compatibility
- Miniaturization /shrink of the PCB area
- 50% reduced internal operating current consumption
- Simplified & cost efficient ground network
- Current sense accuracy (kILIS) ? 5% at nominal load current
- Benchmark cranking voltage capability able to work down to 3.1V
- Smaller package size for area savings and very low output leakage current (? 0.5?A up to 85°C)
Product details
Other details
| Brand | INFINEON |
| Part Number | BTS70121EPADAUGHBRDTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 6433.08 |
| 3-5 | ₹ 6367.44 |
| 5-10 | ₹ 6236.15 |
| 10+ | ₹ 6104.86 |
Bulk discount will be automatically applied during checkout based on quantity.
