Description

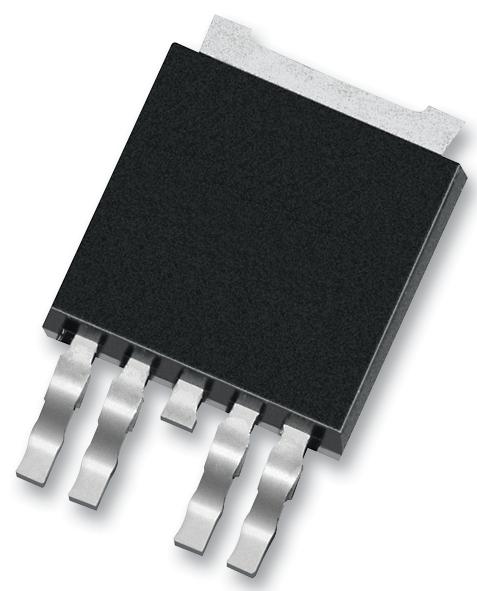

The BTS452R is a PROFET� high-side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions. It is placed between the supply and load in order to control the application.
- Overload protection
- Current limitation
- Short-circuit protection
- Thermal shutdown with restart
- Overvoltage protection
- Shutdown when under-voltage
- Fast demagnetization of inductive loads
- Reverse battery protection with external resistor
- Open drain diagnostic output for over-temperature and short circuit
- Open load detection in OFF - state with external resistor
- CMOS compatible input
- Very low standby current
- 12 or 24V capable
- Single channel
Automotive, Power Management, Motor Drive & Control, Logistics, Agriculture
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | INFINEON |
| Part Number | BTS452RATMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Simulation Model EN | |
| Application Note EN | |
