Description

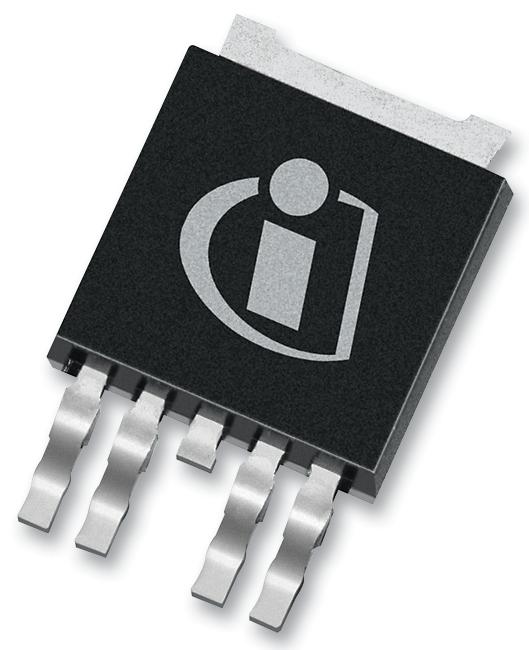

The BTS443P is a high-side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions. N-channel vertical power FET with charge pump, current controlled input and diagnostic feedback with load current sense, integrated in Smart SIPMOS® chip on chip technology. Providing embedded protective functions.
- Short-circuit protection
- Current limitation
- Overload protection
- Overvoltage protection
- Loss of ground protection
- Loss of Vbb protection
- Charged inductive loads
- Very low standby current
- Fast demagnetisation of inductive loads
- Optimized static electromagnetic compatibility (EMC)
Applications
Automotive, Power Management, HVAC
Product details
Other details
| Brand | INFINEON |
| Part Number | BTS443PAUMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 579.87 |
| 3-5 | ₹ 573.95 |
| 5-10 | ₹ 562.12 |
| 10+ | ₹ 550.28 |
Bulk discount will be automatically applied during checkout based on quantity.
