| ₹ 442.41 includes GST and import duties. | |
| B2B customers can avail ₹ 67.47 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The BTS3160D is a latching single channel low-side Power Switch providing embedded protective functions. The power transistor is build by an N-channel vertical power MOSFET. The device is controlled by a control chip in Smart Power Technology. The device is able to switch all kind of resistive, inductive and capacitive loads. For lamp loads the lamp-inrush-current, eight- to ten-times the nominal current, has to be considered. The maximal inrush current has to be below the minimum short circuit shutdown current.
- Logic level input compatible to 3.3 or 5V micro controllers
- Supply by V bb line, down to 6V
- Very low over all leakage current
- Providing digital fault information
- Electrostatic discharge protection (ESD)
- Thermal shutdown with latch
- Green product
- AEC qualified
Motor Drive & Control, Power Management
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | INFINEON |
| Part Number | BTS3160DAUMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

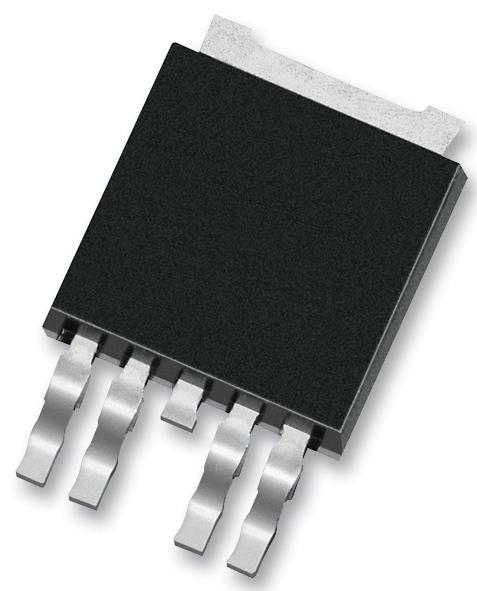

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 433.56 |
| 3-5 | ₹ 429.14 |
| 5-10 | ₹ 420.29 |
| 10+ | ₹ 411.44 |
Bulk discount will be automatically applied during checkout based on quantity.
