Single channel smart high-side power switch. Suitable for driving all types of resistive, inductive and capacitive loads. Most suitable for driving loads with PWM frequency from 0Hz (DC operation) up to 33KHz and above, drives valves, coil and motors with inrush current up to 60A.
- AEC qualified
- Optimized for PWM frequencies of approx. 25KHz
- 3.3V and 5V compatible logic inputs
- Advanced analogue load current sense signal
- Designed for easy current sense calibration
- Embedded diagnosis features (e.g. open load in ON and OFF state)
- Embedded protection functions (e.g. over current shutdown, over temperature shutdown)
- Infineon® INTELLIGENT LATCH
- Infineon® SMART CLAMPING
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
INFINEON |
| Part Number |
BTF500601TEAAUMA1 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

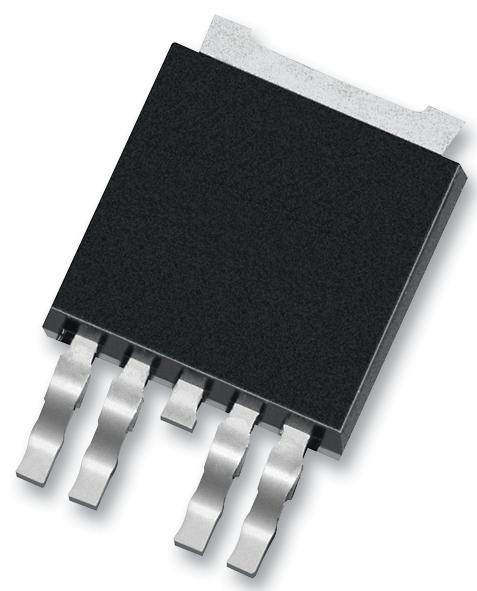

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
