Description

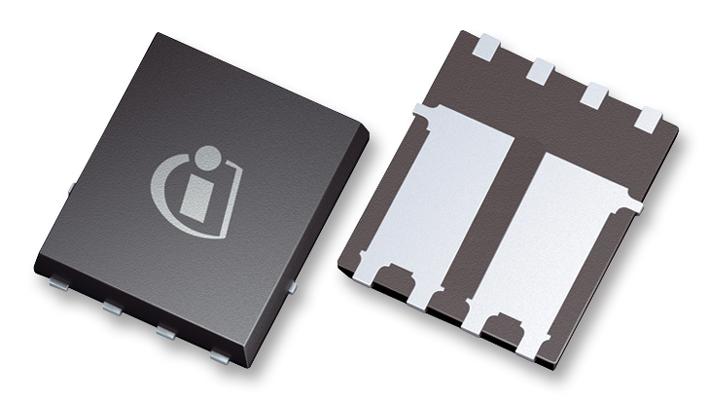

This is a BSZ036NE2LSATMA1 Power MOSFET , N Channel, 25 V, 40 A, 0.003 ohm, TSDSON, Surface Mount product from INFINEON with the model number BSZ036NE2LSATMA1
Product details
| Channel Type | N Channel |
| Drain Source Voltage Vds | 25V |
| Continuous Drain Current Id | 40A |
| Drain Source On State Resistance | 0.003ohm |
| Transistor Case Style | TSDSON |
| Transistor Mounting | Surface Mount |
| Rds(on) Test Voltage | 10V |
| Gate Source Threshold Voltage Max | 2V |
| Power Dissipation | 37W |
| No. of Pins | 8Pins |
| Operating Temperature Max | 150°C |
| Product Range | - |
| Qualification | - |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | INFINEON |
| Part Number | BSZ036NE2LSATMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
