Description

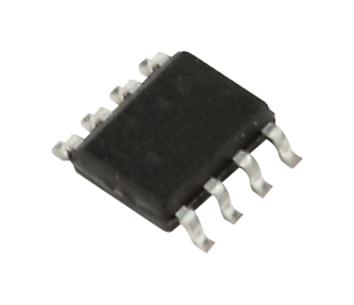

The BSP762T is a N-channel high-side vertical power FET Switch with charge pump, ground referenced CMOS compatible input and monolithically integrated in smart SIPMOS® technology. It is providing embedded protective functions and it is CMOS compatible input.
- Overload protection
- Current limitation
- Short-circuit protection
- Thermal shutdown with restart
- Overvoltage protection
- Fast demagnetization of inductive loads
- Reverse battery protection with external resistor
- Loss of GND and loss of VBB protection
- ESD protection
- Very low standby current
Applications
Industrial, Computers & Computer Peripherals, Automotive
Warnings
ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Load Switch Type: High Side |
| Input Voltage: 10V |
| Current Limit: 7A |
| On State Resistance: 0.1ohm |
| Distribution Switch Case Style: SOIC |
| No. of Pins: 8Pins |
| Thermal Protection: Yes |
| On / Enable Input Polarity: Active High |
| No. of Outputs: 1Outputs |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Automotive Qualification Standard: AEC-Q100 |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | INFINEON |
| Part Number | BSP762TXUMA1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
