Description

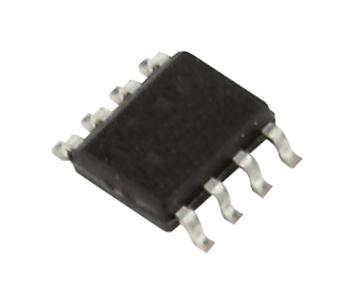

The BSP752T is a high-side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions. The negative voltage clamped at output with inductive loads and it has reverse battery protection with external resistor.
- Overload protection
- Current limitation
- Short-circuit protection
- Thermal shutdown with restart
- Overvoltage protection
- Fast demagnetization of inductive loads
- CMOS compatible input
- ESD protection
Applications
Automotive, Lighting, Industrial
Warnings
ESD sensitive device, take proper precaution while handling the device. Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Load Switch Type: High Side |
| Input Voltage: 52V |
| Current Limit: 6.5A |
| On State Resistance: 0.2ohm |
| Distribution Switch Case Style: SOIC |
| No. of Pins: 8Pins |
| Thermal Protection: Yes |
| On / Enable Input Polarity: Active High |
| No. of Outputs: 1Outputs |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 150°C |
| Product Range: - |
| Automotive Qualification Standard: AEC-Q100 |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | INFINEON |
| Part Number | BSP752TXUMA1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
