- Optima's � P3 power transistor
- Single P channel, enhancement mode
- Qualified according to JEDEC for target applications
- 100% avalanche tested
- Specially suitable for notebook applications (Vgs = 25V)
- Applications include battery management and load switching
- Normal level, logic level or super logic level
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Channel Type:
P Channel
|
| Drain Source Voltage Vds:
30V
|
| Continuous Drain Current Id:
78.6A
|
| Drain Source On State Resistance:
0.0061ohm
|

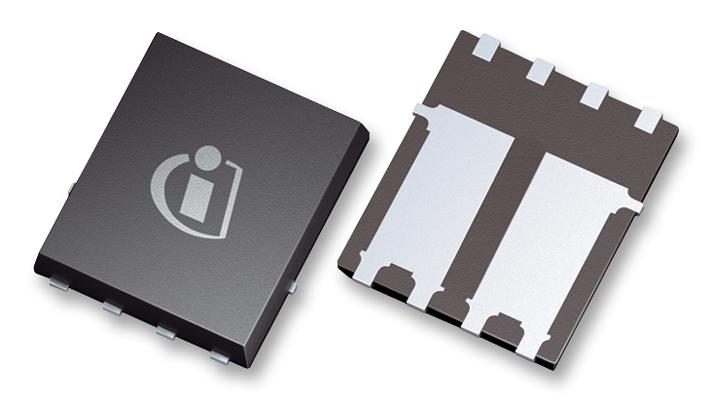

| Transistor Case Style:
TDSON
|
| Transistor Mounting:
Surface Mount
|
| Rds(on) Test Voltage:
10V
|
| Gate Source Threshold Voltage Max:
2.5V
|
| Power Dissipation:
69W
|
| No. of Pins:
8Pins
|
| Operating Temperature Max:
150°C
|
| Product Range:
OptiMOS P3
|
| Qualification:
AEC-Q101
|
| MSL:
MSL 1 - Unlimited
|
Other details
| Brand |
INFINEON |
| Part Number |
BSC084P03NS3GATMA1 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
