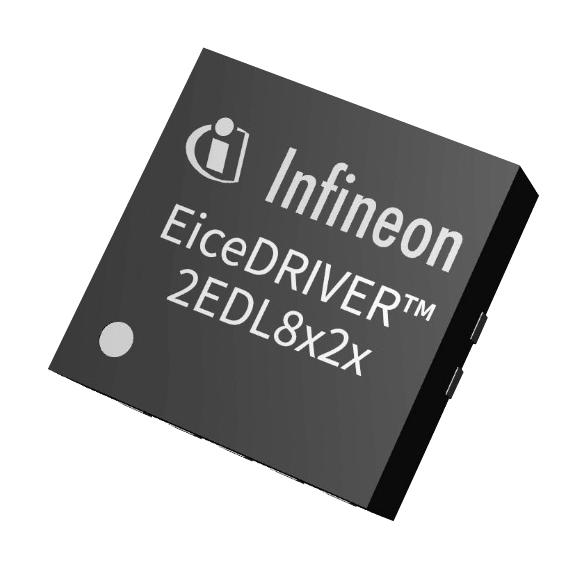

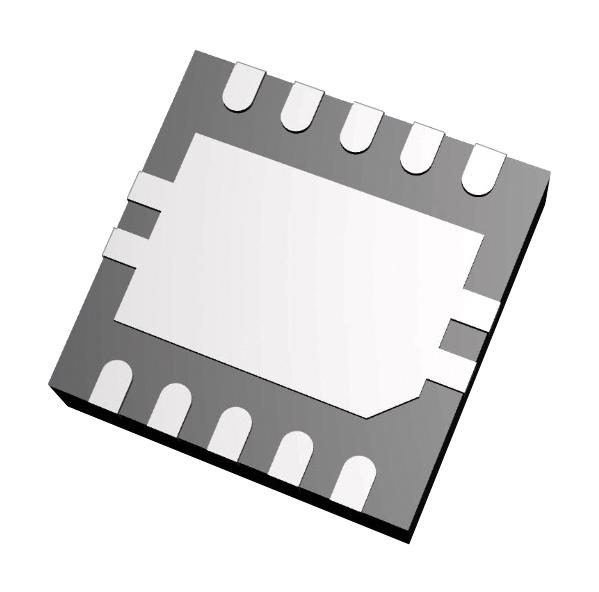

2EDL8123G3CXTMA1 is an EiceDRIVERT� high-side and low-side driver designed for advanced switching converters such as in telecom and datacom applications. Device takes in differential input with built-in hysteresis for enhanced noise immunity. It's inherent shoot-through protection ensures the robustness of the system. It has an integrated 120 V boot-strap diode as well as a precise channel-to-channel propagation delay matching <6 ns that ensures volt-second balance and avoids magnetic core saturation. Potential applications includes DC-to-DC converter, isolated bus converter, synchronous rectification for SMPS, class-D audio amplifiers. Qualified for industrial applications according to the relevant tests of JEDEC47/20/22.
- Operating junction temperature range from -40 to 150°C
- Level-shift high-side low-side dual channel driver
- Differential input for superb robustness with inherent shoot-through protection
- Strong 5A high side / 6A low side sink current capability, 120V on-chip bootstrap diode
- 3A source current capability for both high side and low side drivers
- VDD/VHB under voltage lockout (UVLO), -8V to 15V input pin common mode rejection
- Input pin capability of -10V to 20V for increased robustness
- Output pin reverse current capability of -5A, support operating frequency up to 1MHz
- 8V to 17V supply voltage operating range
- Fast propagation delay, <6ns delay matching
