| ₹ 220.98 includes GST and import duties. | |
| B2B customers can avail ₹ 33.7 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

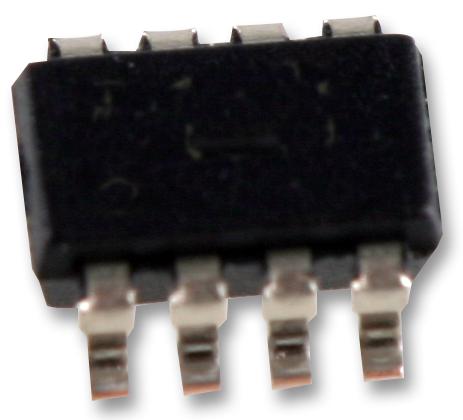

The 1EDI60I12AFXUMA1 is a 1EDI EiceDRIVER compact separate output variant for IGBT in 8 pin DSO package. This galvanically isolated single channel IGBT driver provides minimum output currents up to 6A at separated output pins. The input logic pins operate on a wide input voltage range from 3V to 15V using CMOS threshold levels to support even 3.3V microcontroller. The data transfer across isolation barrier is realized by coreless transformer technology. It is used in AC and brushless DC motor drives, high voltage DC/DC converter and DC/AC-inverter, induction heating resonant application, UPS-systems, welding and solar.
- Input to output isolation voltage up to 1200V
- For high voltage power IGBTs
- Suitable for operation at high ambient temperature range from -40°C to 125°C
- Switching frequency of 1MHz
- Common mode transient immunity is 100KV/µs
- High level output peak current (source) is 10A at IN+ = high, IN- = low, VVCC2 = 15V
- Low level output peak current (sink) is 9.4A at IN+ = Low, IN- = Low, VVCC2 = 15V
Power Management
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | INFINEON |
| Part Number | 1EDI60I12AFXUMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 216.56 |
| 3-5 | ₹ 214.35 |
| 5-10 | ₹ 209.93 |
| 10+ | ₹ 205.51 |
Bulk discount will be automatically applied during checkout based on quantity.
