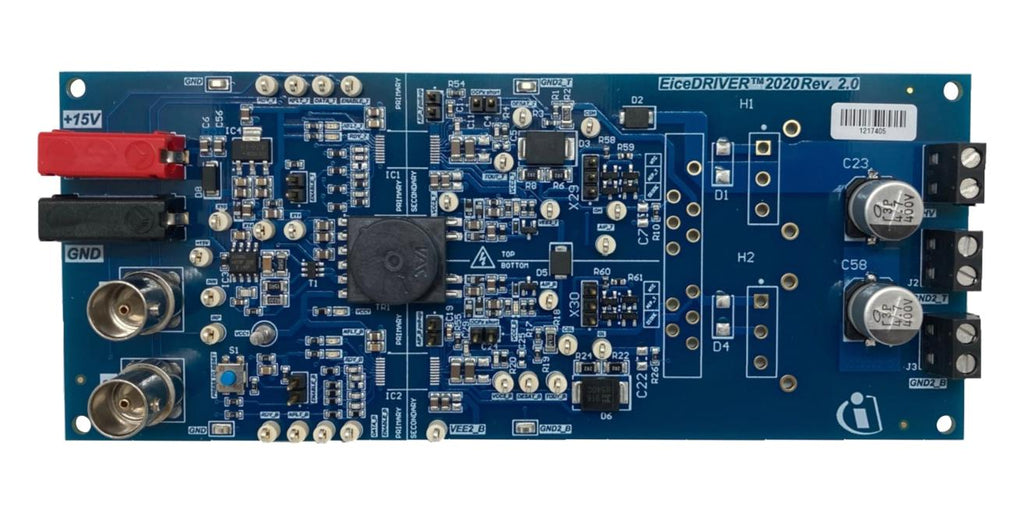

1EDI30XXASEVALBOARDTOBO1 is a EiceDRIVER� 1EDI30xxAS evaluation board. EiceDRIVER� gate driver 1EDI302xAS/1EDI303xAS evaluation board is a versatile evaluation platform for the EiceDRIVER� gate driver 1EDI302xAS/1EDI303xAS family. EiceDRIVER� gate driver 1EDI302xAS/1EDI303xAS is a high voltage IGBT/SiC-MOSFET driver for automotive motor drives with a power above 5KW. The device is based on Infineon's Coreless Transformer (CT) technology, providing galvanic insulation between the low voltage domain and the high voltage domain.
- Single channel isolated IGBT/SiC-MOSFET driver for IGBT/SiC-MOSFET power switches up to 1200 V
- 11.5 A peak current rail-to-rail output
- DESAT protection
- Active miller clamp
- ASC pin for PMSM motor drive application
- Integrated protection features
Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
INFINEON |
| Part Number |
1EDI30XXASEVALBOARDTOBO1 |
| Quantity |
Each |
| User Manual EN |
 |
