Description
Product Overview

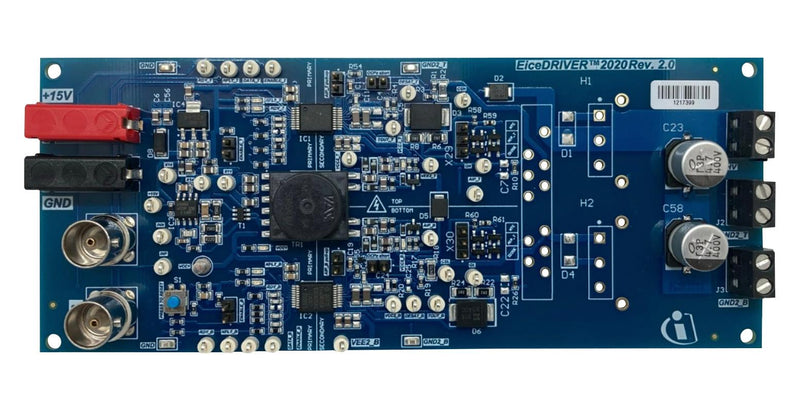

1EDI302XASEVALBOARDTOBO1 is an eval board that has been designed to ease the performance evaluation of EiceDRIVER� 1EDI302xAS gate driver which is suitable for IGBT based applications. This 1EDI302xAS is a high-voltage IGBT/SiC-MOSFET driver for automotive motor drives with a power above 5KW. The device is based on Infineon's Coreless Transformer (CT) technology, providing galvanic insulation between the low and high-voltage domain. The primary logic of the device supports 5V and 3.3V. The high-voltage domain (secondary side) can drive IGBT/Sic power switches directly or an external booster stage. Short propagation delay and controlled internal tolerances lead to minimal distortion of the PWM signal. The device features a high output stage current of typically 10A. The integrated Miller clamping stage with typically 10A allows unipolar supply of the IGBT/SiC-MOSFET power switch. Suitable for main inverter, DCDC, OBC, Powertrain inverter for CAV and industrial drives applications.
- Product variant: 1EDI3020AS, 1EDI3021AS, 1EDI3023AS
- Easy product performance evaluation to shorten development schedules and accelerate your TTM
- Seamless product evaluation and strong design support via online simulation and evaluation boards
Product details
Other details
| Brand | INFINEON |
| Part Number | 1EDI302XASEVALBOARDTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 19125.51 |
| 3-5 | ₹ 18930.36 |
| 5-10 | ₹ 18540.04 |
| 10+ | ₹ 18149.72 |
Bulk discount will be automatically applied during checkout based on quantity.
