Description

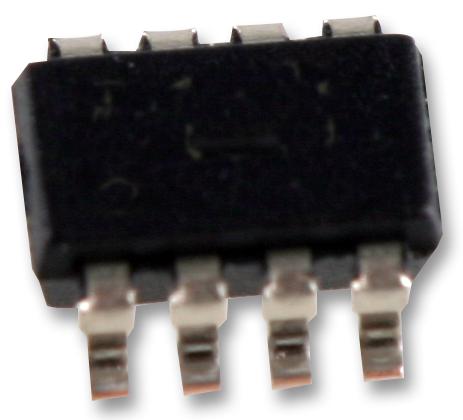

The 1EDI20I12AFXUMA1 is a 1EDI EiceDRIVER compact separate output variant for IGBT in 8 pin DSO package. This galvanically isolated single channel IGBT driver provides minimum output currents up to 6A at separated output pins. The input logic pins operate on a wide input voltage range from 3V to 15V using CMOS threshold levels to support even 3.3V microcontroller. The data transfer across isolation barrier is realized by coreless transformer technology. It is used in AC and brushless DC motor drives, high voltage DC/DC converter and DC/AC-inverter, induction heating resonant application, UPS-systems, welding and solar.
- Input to output isolation voltage up to 1200V
- 4.1A typical peak current at rail to rail outputs
- For high voltage power IGBTs
- Suitable for operation at high ambient temperature range from -40°C to 125°C
- Switching frequency of 1MHz
- High level output peak current (source) is 4A at IN+ = high, IN- = low, VVCC2 = 15V
- Low level output peak current (sink) is 3.5A at IN+ = Low, IN- = Low, VVCC2 = 15V
Applications
Power Management
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| No. of Channels: 1Channels |
| Driver Configuration: High Side |
| Power Switch Type: IGBT, SiC MOSFET |
| No. of Pins: 8Pins |
| IC Case / Package: DSO |
| Input Type: - |
| Source Current: - |
| Sink Current: - |
| Supply Voltage Min: 3.5V |
| Supply Voltage Max: 15V |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| Input Delay: 300ns |
| Output Delay: 300ns |
| Product Range: EiceDRIVER 1EDI |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | INFINEON |
| Part Number | 1EDI20I12AFXUMA1 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
