Description
IndiPRO Tools R4DPEC Overview
Power your DJI Ronin 4D camera using a separately available V-mount battery with this V-Mount Battery Power System from IndiPro Tools. The plate can be used as an alternative to the TB50 batteries to utilize higher capacity batteries, and it easily integrates with all of the Ronin 4D accessories, so it doesn't interfere with your rig setup.

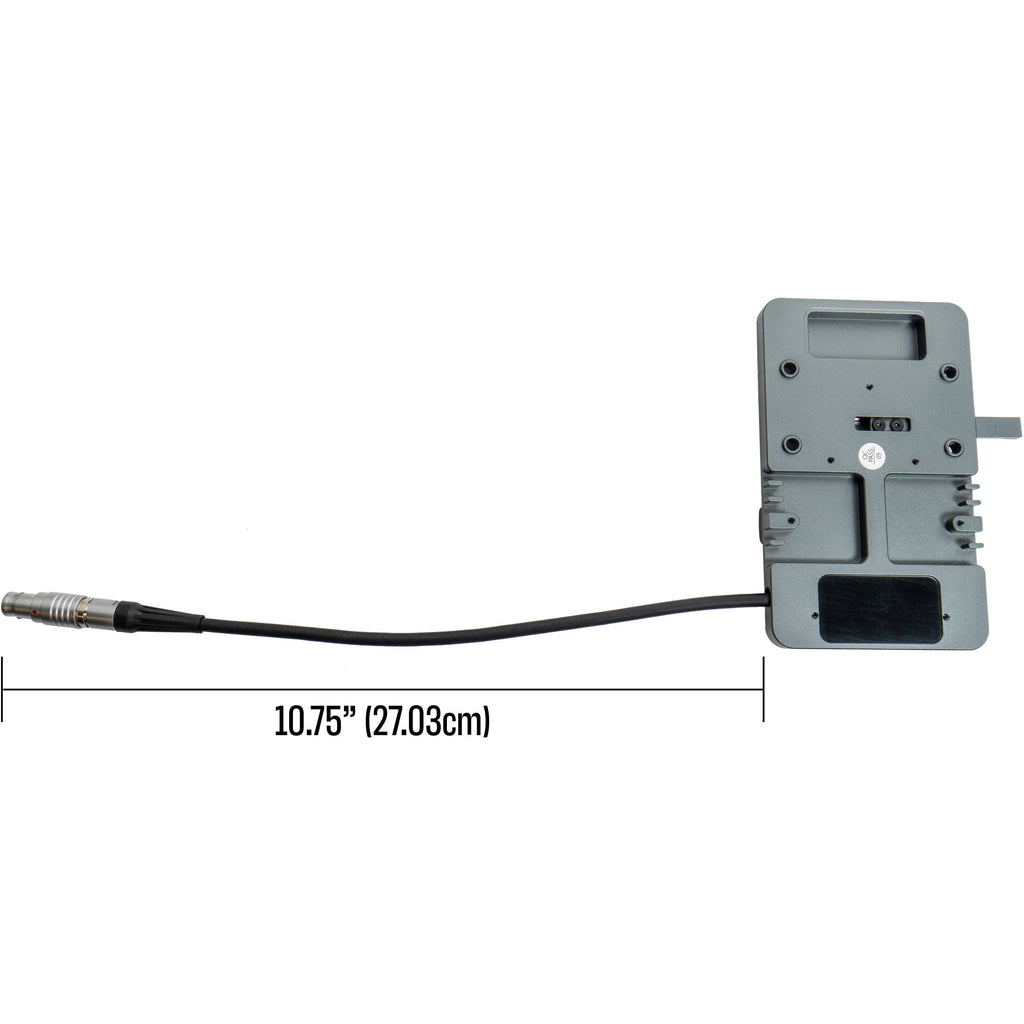

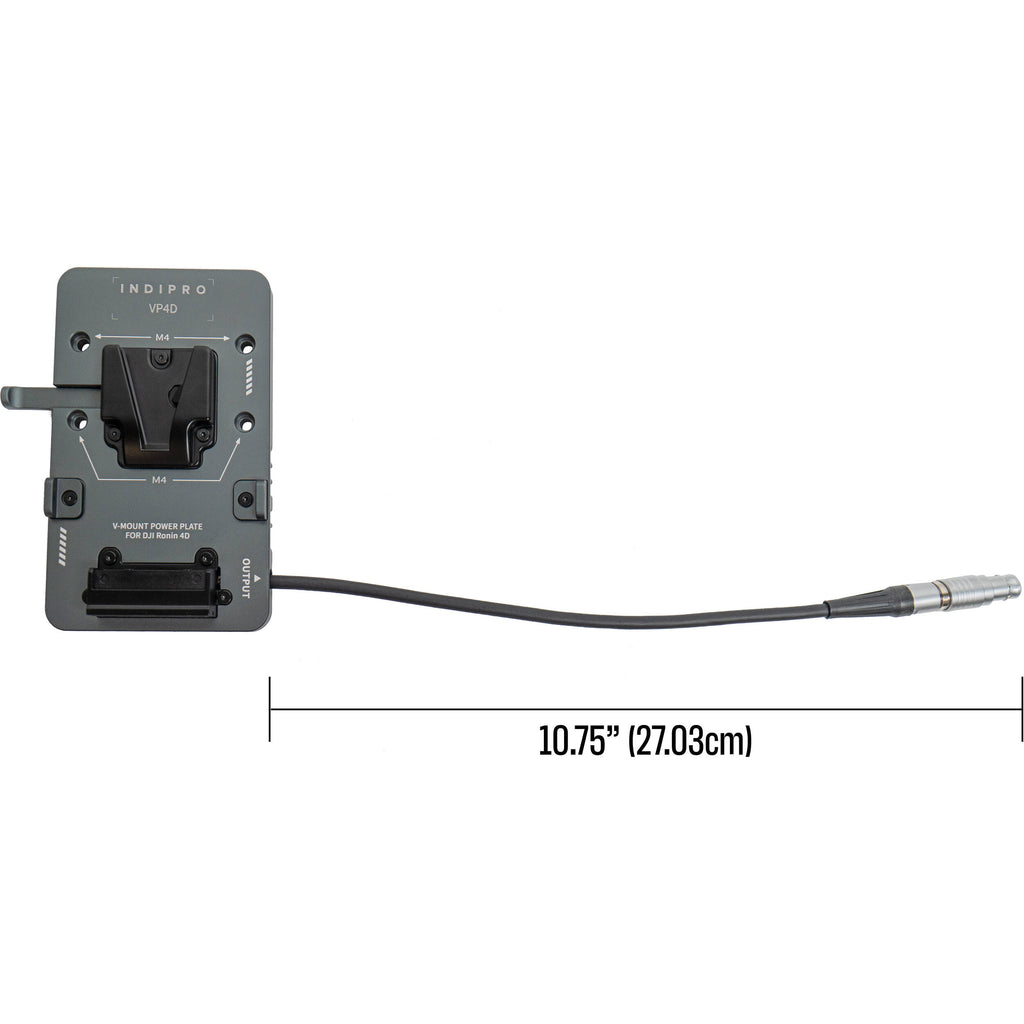

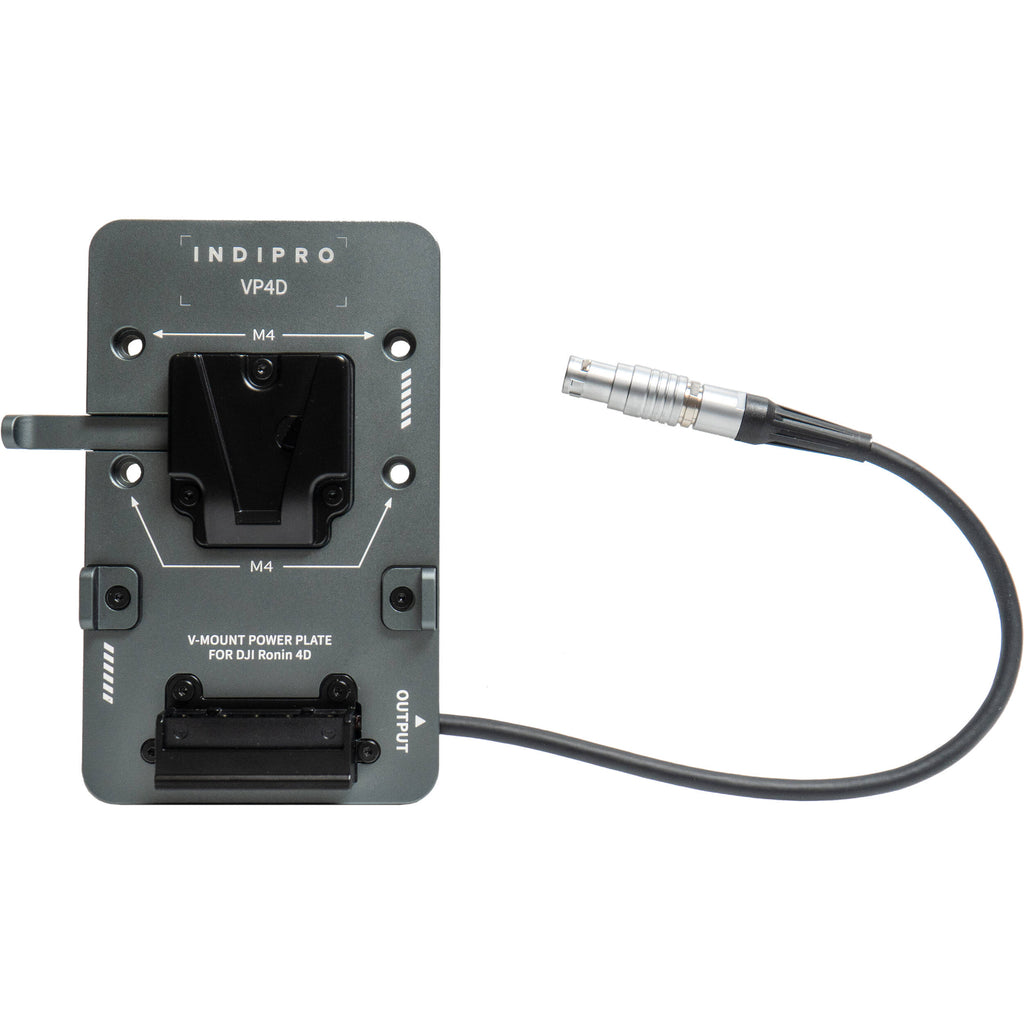

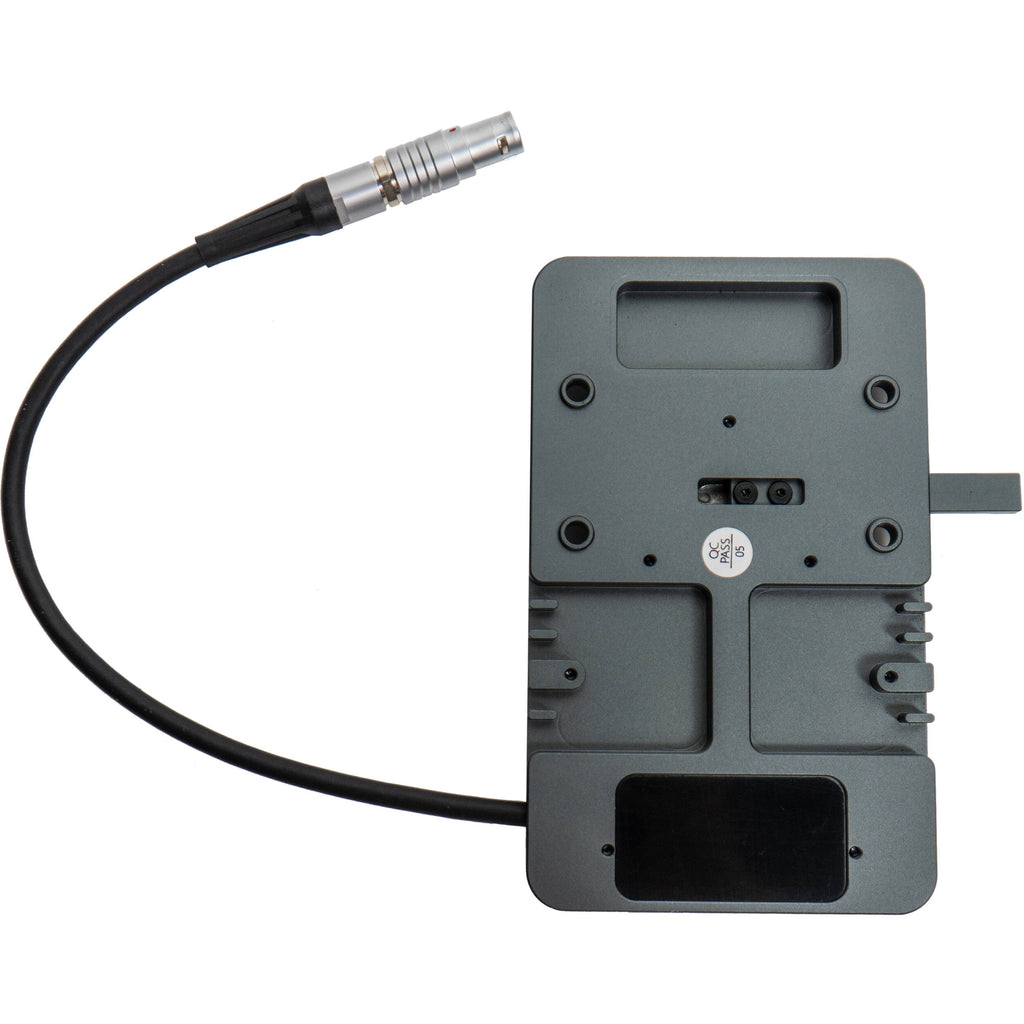

The system consists of a V-mount battery plate with an integrated 9" long tail cable that plugs into the 6-pin DC input port of the camera to provide ample power for operation. The plate installs using its four M4 threads.
Battery Compatibility
The plate seamlessly supports a variety of 14.4V V-mount batteries, offering versatile power options to suit various shooting needs. It is recommended for use with batteries capable of sustaining at least 15A continuous current (180W at 12V) for reliable performance.
Durable Construction
The plate features a sleek, hollow aluminum structure with efficient heat dissipation, ensuring optimal performance.
Cable Connector
The extended 9" long 6-pin 1B DC cable features a straight-angle connector, provides 12-30 VDC power output, and ample length for improved accessibility to power your camera.
Accessory Compatibility
The system is fully compatible with DJI Ronin 4D accessories, including the Transmission Plate, SDI/XLR modules, and the Ronin Video Transmitter, ensuring seamless integration.
Mounting
Four M4 standard screw holes provide a quick, easy installation with two or four screws.
UPC: 704674273974
Items Included
- IndiPRO Tools V-Mount Battery Power System for DJI Ronin 4D
- Limited 1-Year Manufacturer Warranty
Not Included
-
BatteriesEssential
Additional Resources
No additional resources available
IndiPRO Tools R4DPEC Specs
| Quantity |
1
|
General
| Compatibility |
DJI Ronin 4D Cinema Camera
|
Power
| Power Source |
Battery
|
| Power I/O |
Not Specified by Manufacturer
|
| DC Input Power |
14.4 VDC at 15 A
|
| Maximum Power Output |
Not Specified by Manufacturer
|
| Power Input |
V-Mount Plate
|
| Power Output |
1 x 6-Pin 1B LEMO-Type, 12 to 30 VDC
|
Physical
| Mounting |
4x M4 Thread
|
| Color |
Gray
|
| Material of Construction |
Aluminum
|
| Cable Length |
9" / 22.9 cm
|
| Dimensions |
5.2 x 3.1 x 0.3" / 132 x 80 x 8 mm
|
| Weight |
8.8 oz / 249.4 g
|
Packaging Info
| Package Weight |
0.805 lb
|
| Box Dimensions (LxWxH) |
7.3 x 6.9 x 2"
|
