IndiPRO Tools INSDIC Overview

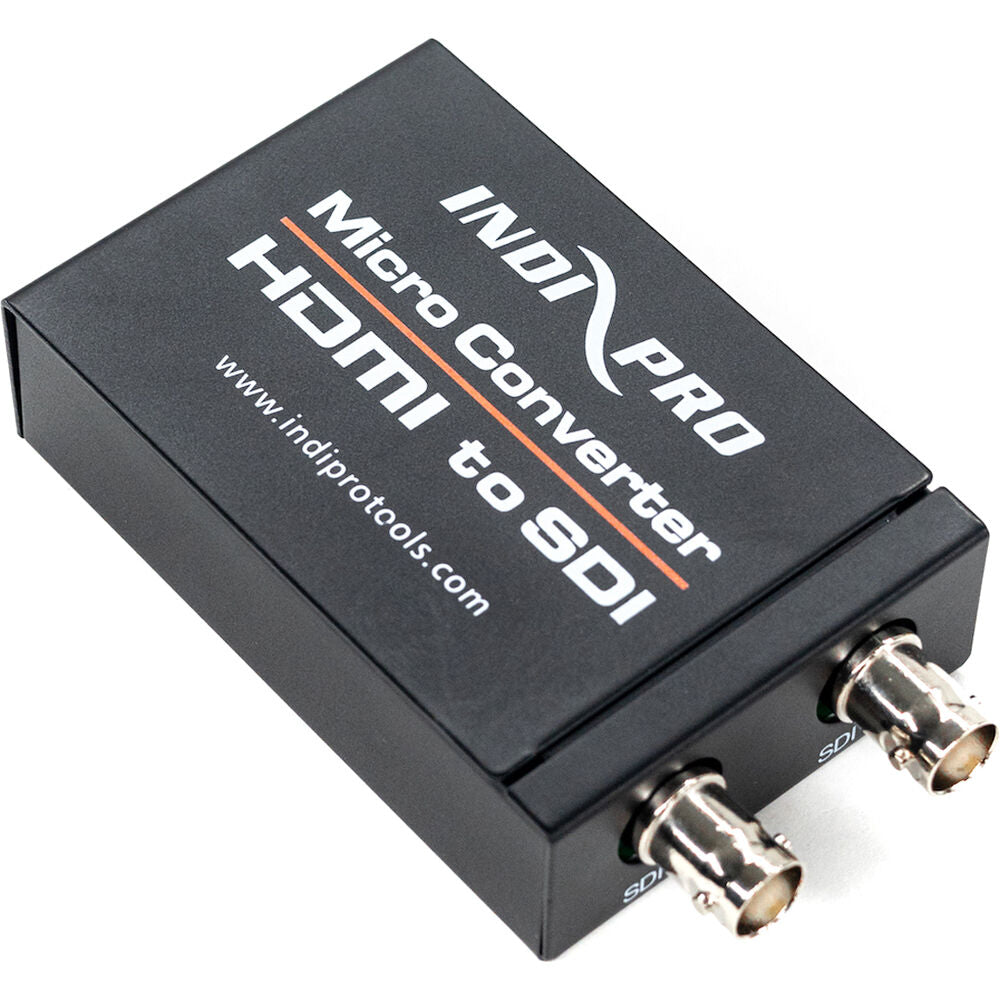

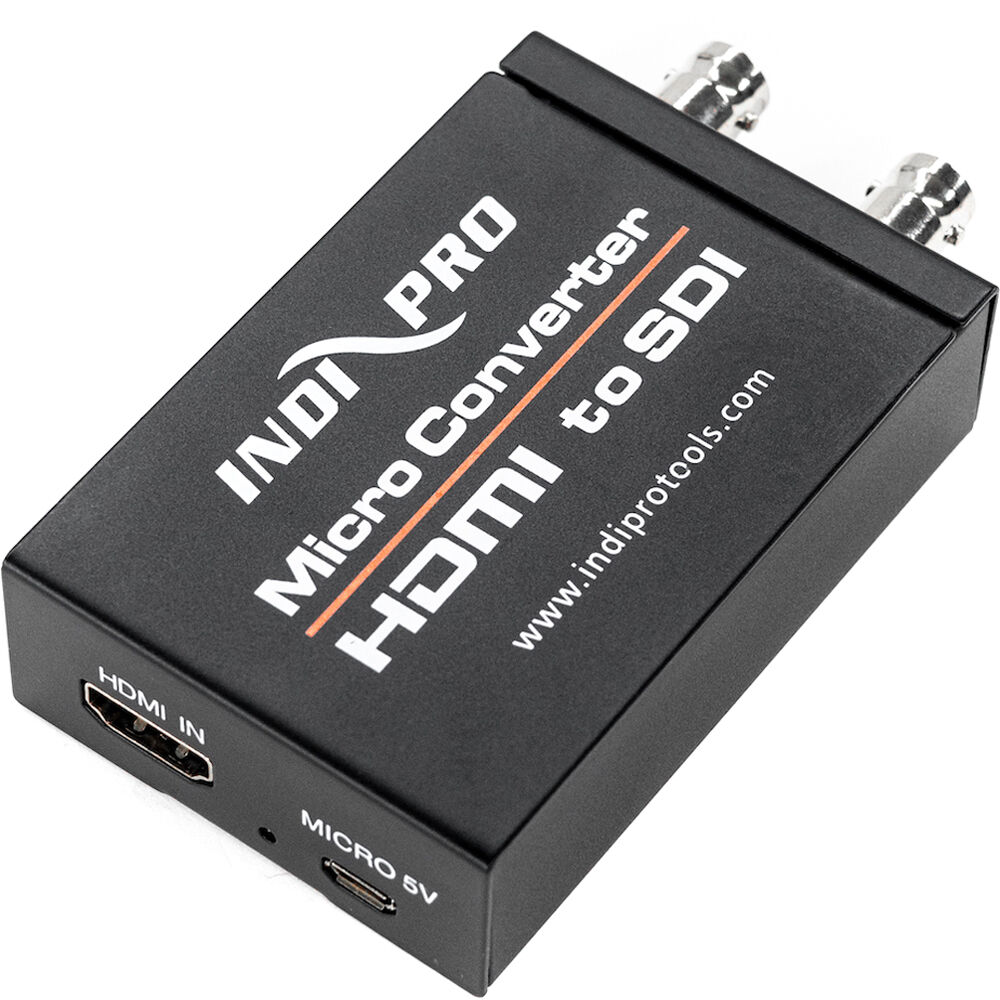

The IndiPRO Tools HDMI 3G/HD/SD-SDI Converter is a sturdy, all metal converter that easily transforms your HDMI input to two 3G-SD/HD/SDI outputs for use with devices that support SDI inputs or for the purpose of extending the HDMI signal for longer cable runs. The unit, which handles an incoming signal of 1080p60 and can output up to the same resolution, performs signal re-clocking for added stability on the longer runs and may be powered from a laptop, a projector, or other device that can supply it USB power using the included Micro USB Type-B cable. An AC power adapter is also included to enable powering from an AC outlet.

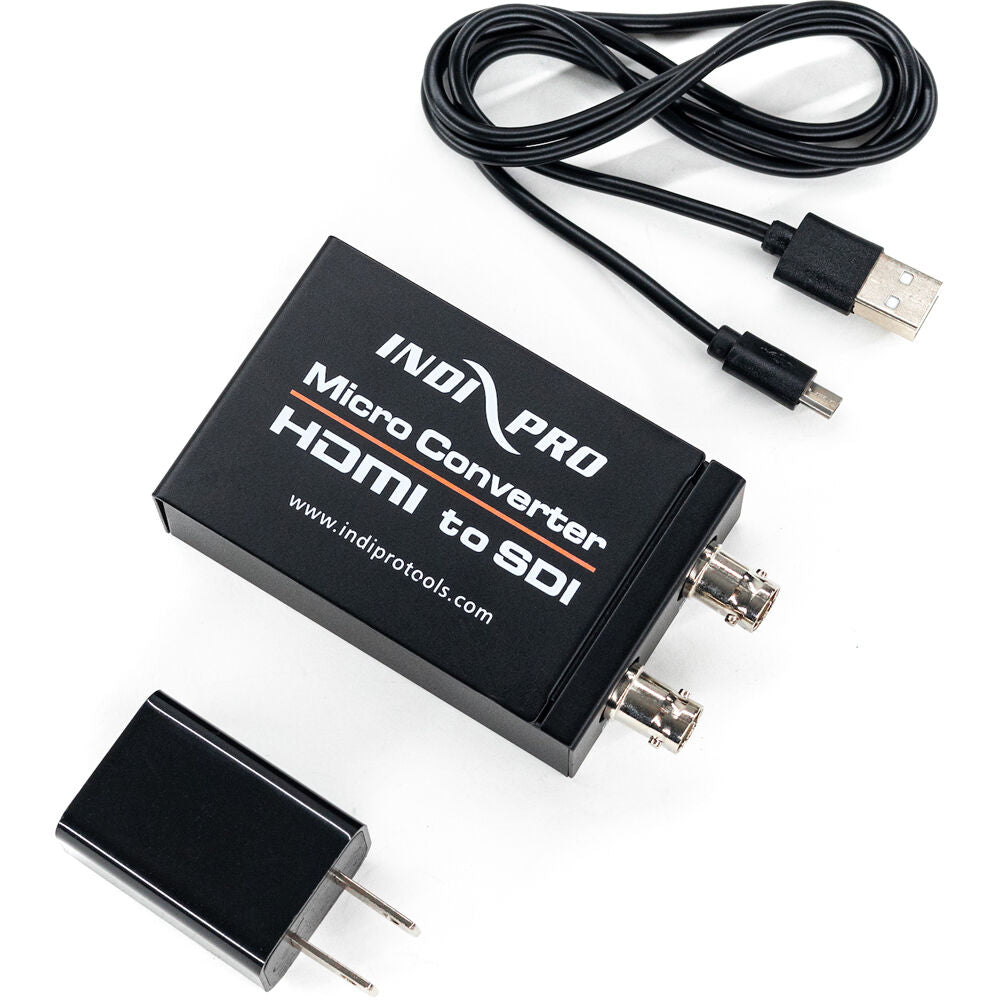

In the Box
- IndiPRO Tools HDMI 3G/HD/SD-SDI Converter
- Power Adapter
- Micro USB Type-B Cable
IndiPRO Tools INSDIC Specs

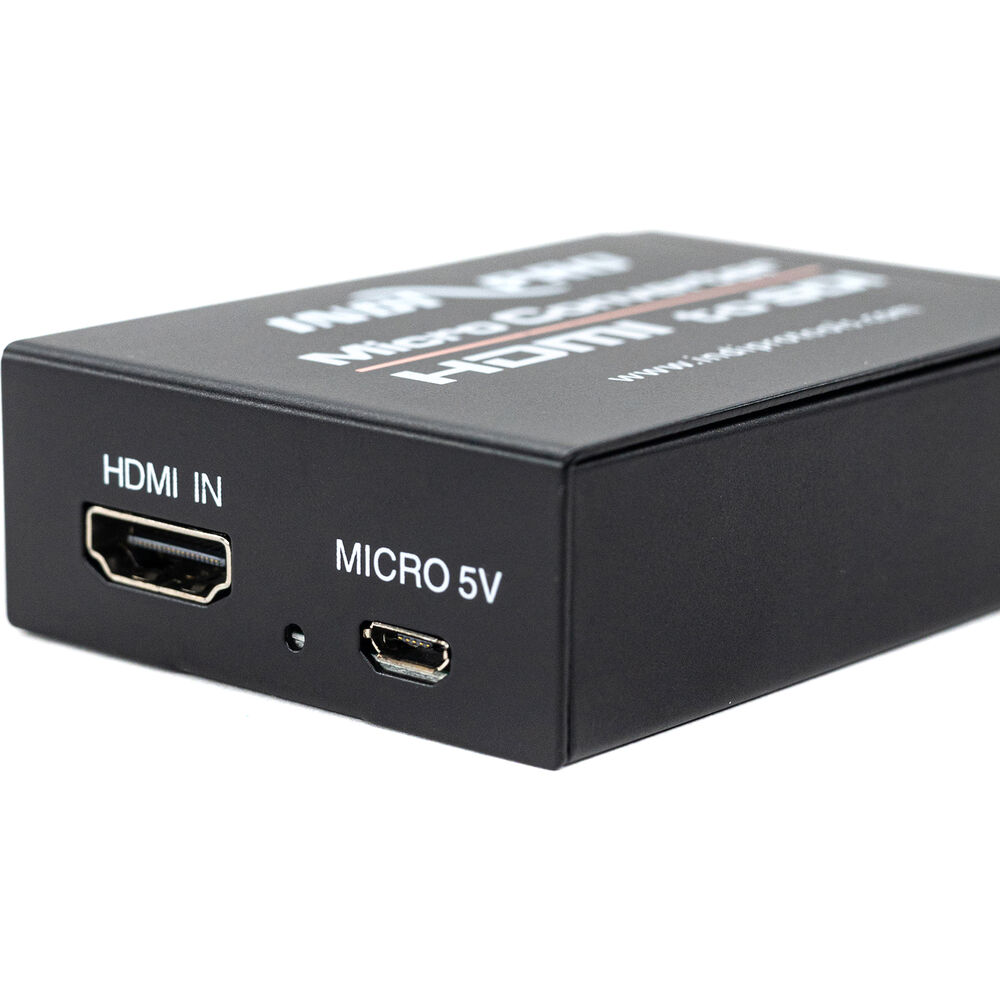

Video Inputs |
1 x HDMI Female |
Audio Inputs |
None |

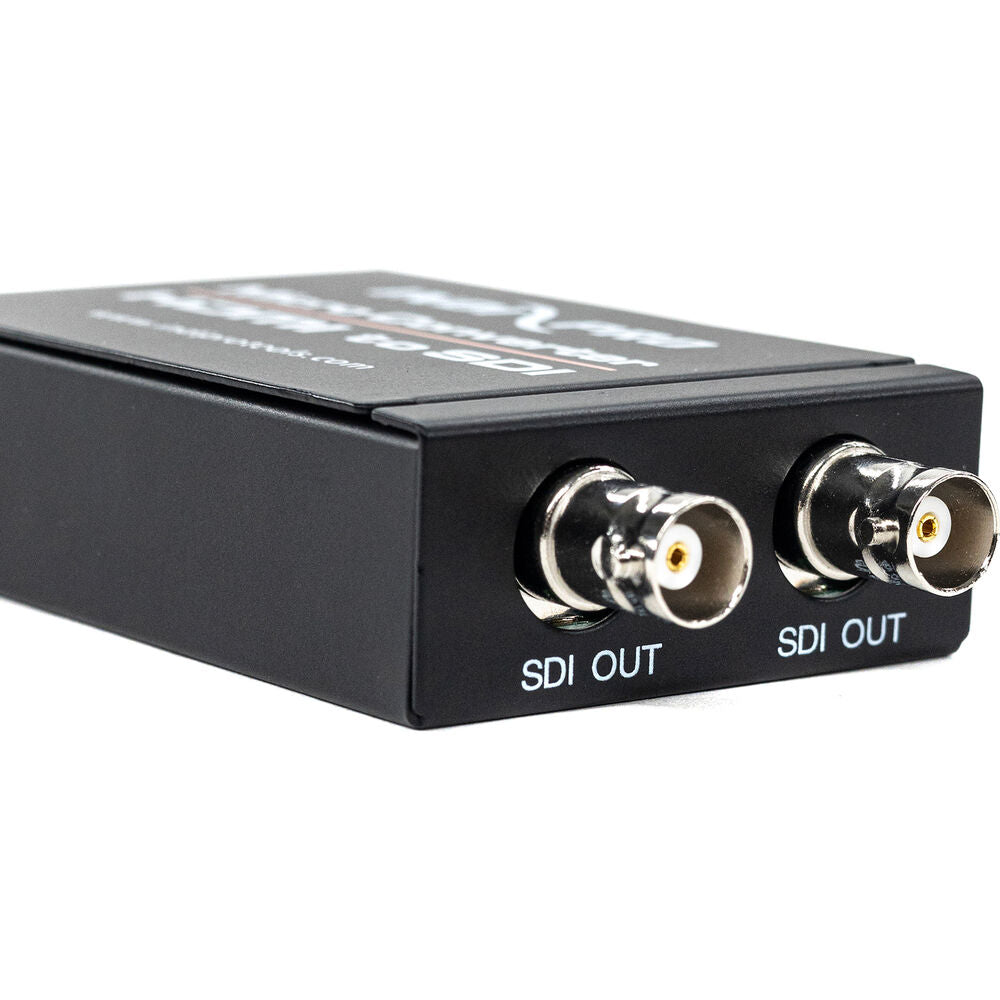

Video Outputs |
2 x BNC (3G-SDI) Female |
Audio Outputs |
None |
Other I/O |
1 x Micro-USB Input |
Expansion Slots |
None |
Input Video Format |
HDMI 1080p up to 60 fps |
Output Video Format |
SDI 1080p up to 60 fps |
Embedded Audio |
HDMI/SDI |
Standards
HDR Compatibility |
Not Specified by Manufacturer |
Power
Power I/O |
1 x Micro-USB (5 VDC) Input |
Power Consumption |
Power Supply: 100 to 240 VAC |
Packaging Info
Package Weight |
0.45 lb |
Box Dimensions (LxWxH) |
4.7 x 4.3 x 2.4" |
