Description
- SMT-Enabled LEDs
- Visible Light for IP Network Cameras
- Input Power via 9' (3 m) Cable
- IEEE802.3af Compliant
- Built-in Photocell (IR On / Off)
- Photocell Following Contact
- Telemetry Input for Remote Switching
- IP67 Weatherproof Rating
- Silver Anodized Finish

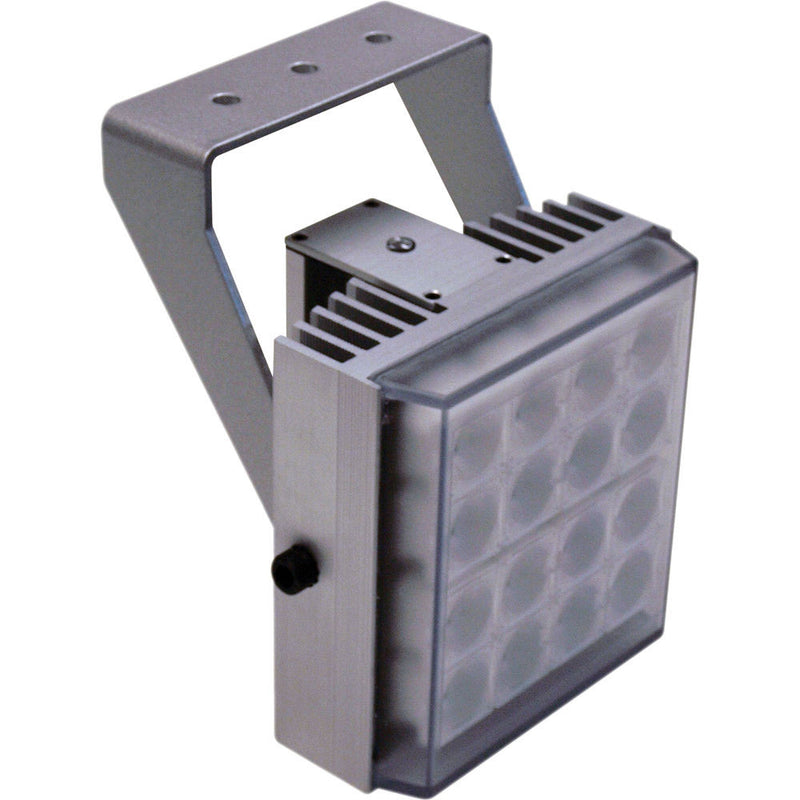

The Iluminar WL220-30-POE Medium-Range White Light Illuminator (115' / 35 m, 30�) is a visible light illuminator for IP network cameras. This illuminator features high power SMT (Surface Mount Technology)-enabled LEDs with current-limited integral control circuitry, which provide illumination at a distance of 115' (35 m) and at a 30� illumination angle. This illuminator has a built-in photocell and features both photocell following contact and telemetry input for remote switching connection interface. This IP67-rated illuminator is protected from ingress of dust and water (for immersion up to 1 m). Moreover, resistance to vandalism makes this illuminator ideal for outdoor applications. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140�F (-50 to 60�C).
- Medium-range white light illuminator with SMT LED technology
- Illuminates up to a distance of 115' (35 m) and at a 30� illumination angle
- For use with IP network cameras
- Energy efficient with low power consumption of 26 W
- Built-in photocell with IR on / off
- Photocell following contact and telemetry input for remote switching
- Powder-coated stainless steel wall mount with silver finish
- IP67 weatherproof rating
- Wall Mounting Bracket
- M6 Allen Key
- 5-Year Warranty
| General | |
|---|---|
| Illumination | Angle: 30� Distance: 115' (35 m) Adjustable via potentiometer |
| HOV | 62' (19 m) |
| Number of SMT LEDs | 16 |
| Construction | Material: Robust, high quality aluminum extrusion Front Window: Polycarbonate, facilitates high transmittance, protective (vandal-proof), and clear |
| Power Connector | IP67 rated RJ45 Cat5e-compliant connector |
| Interface Connector | Photocell following contact & remote telemetry input |
| Pressure Equalization Vent | Prevents thermal expansion & pressure cycling |
| Photocell | Adjustment via potentiometer |
| Operating Temperature | -58 to 140�F (-50 to 60�C) |
| Mount | Material: Stainless steel Adjustable via M6 Allen key (included) |
| Electrical | |
|---|---|
| PoE | IEEE802af-compliant interface Power classification (class 0) |
| Consumption | 26 W |
| Lighting Output | |
|---|---|
| Lumen Output | 1856 lumen |
| Wavelength | Visible Spectrum: 400 to 750 nm |
| Color Temperature | 6500 K |
| Color Rendering Index | 74-80+ |
| Certifications | |
|---|---|
| Safety | Electrical Safety: EN60598:2004 Laser Eye Safety: EN60825-1 |
| Weatherproof Rating | IP IP67 in accordance with EN60529:1992 |
| Certification | EMC: EN61000, FCC part 15.107 15.108 Class B WEEE (Waste Electrical & Electronic Equipment European) directive 202/96/EC RoHS (Restriction of Hazardous Substances European) directive 202/95/ECc |
| Dimensions | 4.49 x 4.33 x 3.07" (114 x 110 x 78 mm) |
| Weight | 2.3 lb (1.05 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 4.0 lb |
| Box Dimensions (LxWxH) | 12.0 x 8.0 x 8.0" |
