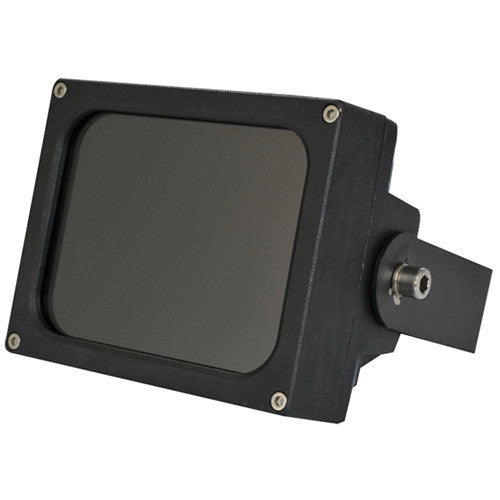

The black powder coated IRC200 Series Medium-Range IR Illuminator from Iluminar is designed to provide IR lighting for true day/night CCTV systems. It employs twelve 850nm IR LEDs that provide illumination up to 132' (40m). This IP66-rated illuminator is vandal-resistant and can be installed outdoors. Its die-cast aluminum housing and tempered glass panel provide protection from harsh weather conditions and rapid temperature variations ranging from -40 to 122�F (-40 to 50�C). The illuminator features dual power input (12 VDC or 24 VAC) and automatic IR on/off via built-in photocell.
- Medium range IR illuminator for true day/night CCTV cameras
- Illumination distance up to 132' (40m) and illumination angle of 30�
- 850nm wavelength
- Low power consumption of 24W
- IP66-rated weatherproof
- Automatic IR on/off via built-in photocell
- Dual power input (12 VDC or 24 VAC)
- Black powder coated stainless steel wall mount
In the Box
Iluminar IRC200 Series Medium-Range IR Illuminator (850nm, 30�, Black)
- M6 Allen Key
- Limited 2-Year Warranty
| IR LEDs |
| Number of LEDs | 12 |
| Wavelength | 850 nm (semi-covert); faint red glow visible on illuminator only (no visible light) |
| Illumination Angle | 30� |
| Illumination Distance | Up to 132' (40 m) Tested using Sony 1/3" CCD camera with 0.01 lux. Distance may vary due to camera and lens specifications. |
| Electrical |
| Input Voltage | 12 VDC or 24 VAC |
| Input Current | 1.2 A @ 24 VAC or 2.5 A @ 12 VDC |
| Power Consumption | 24 W |
| Certifications |
| Safety | Electrical Safety: EN60598:2004
Laser Eye Safety EN60825-1 |
| IP Rating | IP66 in accordance with EN60529:1992 |
| EMC | EN61000, FCC part 15.107, 15.108 class B |
| Others | WEEE 202/96/EC, RoHS 202/95/EC |
| General |
| Construction | Die-cast aluminum |
| Front Window | Tempered glass panel |
| Power Cable | 17.6" (45.0 cm) |
| Operating Temperature | -40 to 122�F (-40 to 50�C) |
| Mount | Stainless steel wall mount adjustable via M6 Allen key (included) |
| Dimensions | 5.4 x 4.4 x 3.5" (13.7 x 11.1 x 8.9 cm) |
| Weight | 12.9 oz (365.0 g) |
