Description

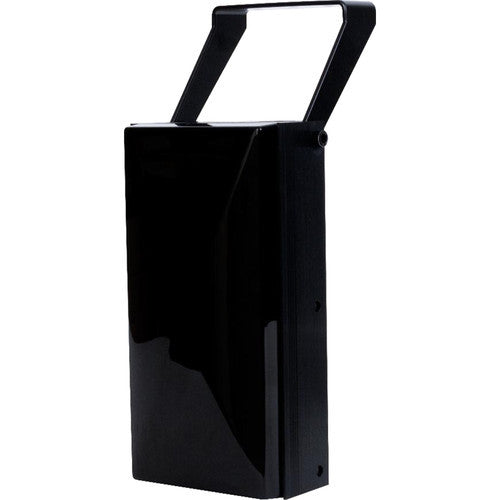

The IR919 Series Long Range IR Illuminator from Iluminar emits infrared illumination, which is invisible to the human eye but can be seen by a night vision camera with its IR cut filter removed. The illuminator has a 120� light distribution angle that provides an HOV of 682� and a range of 197�.
The IR919 illuminator is designed to provide IR lighting for CCTV systems. With an IP67 rating, the illuminator is weatherproof and can be used outdoors. The hardened housing provides protection from harsh weather conditions and rapid temperature variations (-58 to 140�F). This semi-covert camera is not effected by light pollution and has a longer range (197�) than visible light illuminators due to its higher wavelength.
- Long range IR illuminator
- SMT LED technology
- Range of 197'
- 120� light distribution angle
- 850nm wavelength
- Semi covert illuminator with visible faint red glow
- Low power consumption (52W)
- Long life
- IP67 weatherproof rating
- Built-in photocell IR on/off
- Telemetry input for remote switching
- 24 VAC input
- Limited 5-Year Warranty
| Electronics | High efficiency surface mount high-power LEDs with advanced current limited integral control circuitry |
| Number of SMT LEDs | 32 |
| Front Window | Polycarbonate high transmittance protective IR filter |
| Construction | Aluminum extrusion |
| HOV | 682' (208 m) |
| Angle | 120� |
| Range | 197' (60 m) |
| Power Cable | 9' (3 m) |
| Interface Connector | Photocell following contact & remote telemetry input |
| Pressure Equalization Vent | Prevents thermal expansion & pressure cycling |
| Photocell | Adjustment via pot |
| Illumination | Adjustable via pot |
| Operating Temperature | -58 to 140�F (-50 to 60�C) |
| Wavelength | 850 nm |
| Electrical | 24 VAC |
| Input Current | 2.2 A at 24 VAC |
| Consumption | 52 W |
| Mount | Black powder-coated stainless steel wall mount. Adjustable via M6 Allen key (included) |
| Safety | EN60598:2004: Electrical Safety EN60825-1: Laser Eye Safety |
| IP | IP67, in accordance with EN60529:1992 |
| EMC | EN61000, FCC part 15.107, 15.108 Class B |
| WEEE | Waste Electrical & Electronic Equipment European directive 202/96/EC |
| RoHS | Restriction of Hazardous Substances European directive 202/95/EC |
| Dimensions | 8.4 x 4.3 x 3.1" (21 x 11 x 7.8 cm) |
| Weight | 3.9 lb (1.75 kg) |
