Description
- Provides IR Lighting to CCTV Systems
- 16 SMT-Enabled LEDs
- Built-In Photocell (IR On / Off)
- 850nm Wavelength
- Illumination Distance up to 164'
- 89' Horizontal Field of View
- IP67 Weatherproof Rating

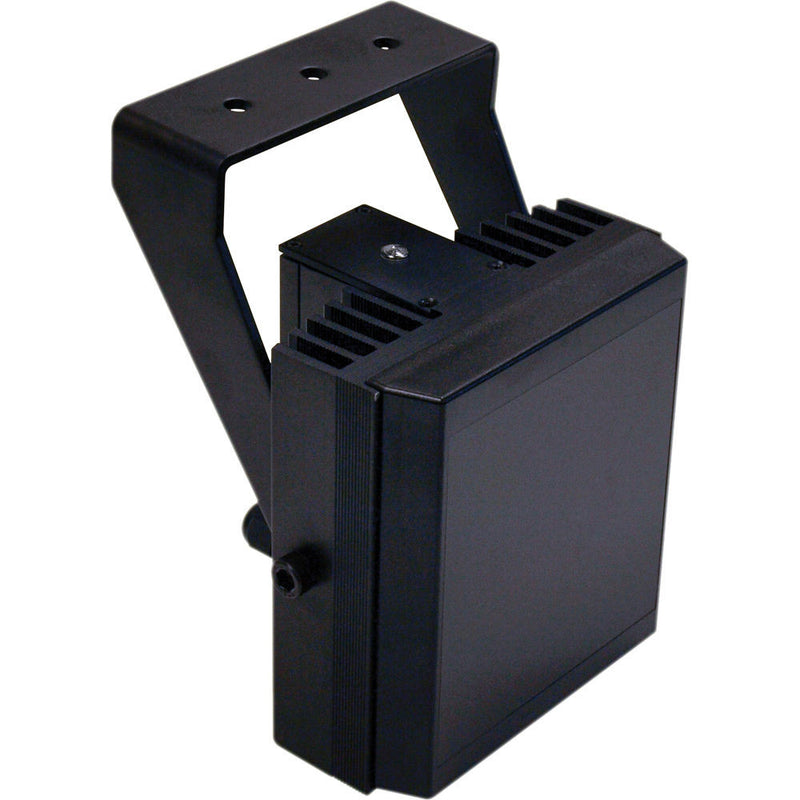

The black 850nm IR312 Series Medium-Range IR Illuminator from Iluminar is designed to provide IR lighting for CCTV systems. This illuminator has a range of up to 164' (50m) and offers an illumination angle of 30�. The IP67-rated and vandal-proof IR illuminator can be used outdoors. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140?F (-50 to 60?C).
- Medium-range IR illuminator with SMT LED technology
- Illumination distance up to 164' (50m) and illumination angle up to 30�
- 850nm wavelength
- 89' (27m) horizontal field of view
- Low power consumption of 26W
- IP67 weatherproof rating
- Built-in photocell (IR on/off)
- Photocell following contact
- Telemetry input for remote switching
- Pressure equalization vent prevents thermal expansion & pressure cycling
- Black anodized finish
- Black powder-coated stainless steel wall mount
In the Box
Iluminar IR312 Series Medium-Range IR Illuminator (850nm, Black)
- M6 Allen Key
- Limited 5-Year Warranty
| Illumination Angle | 30� |
| Illumination Distance | 164' (50 m) |
| Horizontal Field-of-View | 89' (27 m) |
| Wavelength | 850 nm (semi-covert) Faint red glow visible on the illuminator only (no visible light) |
| Electronics | High-efficiency surface mount high-power LEDs with advanced current limited integral control circuitry |
| Number of SMT LEDs | 16 |
| Photocell | Adjustment via potentiometer |
| Illumination | Adjustment via potentiometer |
| Mount | Black, powder-coated stainless steel wall mount Adjustable via M6 Allen key (included) |
| Construction | Robust aluminum extrusion |
| Front Window | Polycarbonate high transmittance protective (vandal-proof) IR filter |
| Interface Connector | Photocell following contact & remote telemetry input |
| Power Cable | 9' (3 m) |
| Input Voltage | 12 to 32 VDC or 24 VAC |
| Input Current | 1.2 A at 24 VAC |
| Power Consumption | 26 W |
| IP Rating | IP67 in accordance with EN60529:1992 |
| Certifications | Safety: EN60598:2004 Electrical Safety EN60825-1 Laser Eye Safety EMC: EN61000, FCC part 15.107 15.108 Class B WEEE directive 202/96/EC RoHS directive 202/95/EC |
| Operating Temperature | -58 to 140?F (-50 to 60?C) |
| Dimensions | 4.49 x 4.33 x 3.07" (11.40 x 11.00 x 7.80 cm) |
| Weight | 2.3 lb (1.05 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 4.0 lb |
| Box Dimensions (LxWxH) | 12.0 x 8.0 x 8.0" |
