Description
- Provides IR Lighting to IP Cameras
- 16 SMT-Enabled LEDs
- Built-In Photocell (IR On / Off)
- 940 nm Wavelength
- Illuminates Distance up to 148' (45 m)
- IP67 Weatherproof Rating

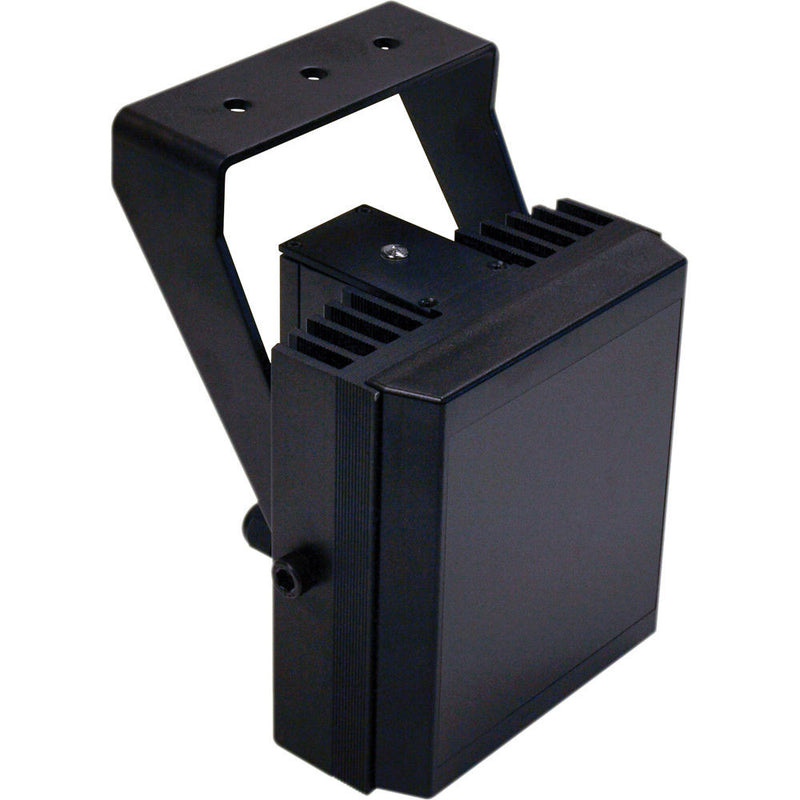

The Iluminar IR312-C10-PoE Medium-Range IR Illuminator is designed to provide dedicated lighting for IP cameras via PoE (Power over Ethernet)-enabled network infrastructure. This IP67-rated IR illuminator is resistant to ingress of dust and water, and thus ideal for outdoor applications. It is also vandal resistant. The hardened housing provides protection from harsh weather conditions and rapid temperature variations ranging from -58 to 140?F (-50 to 60?C).
- Medium-range IR illuminator
- Features 16 SMT (Surface Mount Technology)-enabled LEDs
- Illumination distance up to 148' (45 m)
- 940 nm wavelength
- Low power consumption (26 W)
- IP67 weatherproof rating
- Built-in photocell (IR on / off)
- Provides photocell following contact and telemetry input for remote operation
- Robust and high quality aluminum extrusion
- Black anodized finish
In the Box
Iluminar IR312-C10-PoE Medium-Range IR Illuminator
- 5-Year Warranty
| General | |
|---|---|
| Electronics | High efficiency surface mount high power LEDs with advanced current limited integral control circuitry |
| Number of SMT LEDs | 16 |
| Construction | High quality aluminum extrusion |
| Front Window | Polycarbonate, facilitates high transmittance, protective (vandal-proof) IR filter |
| Power | Cable and Connector: IP67 rated RJ45 Cat5e-compliant connector |
| Interface Connector | Photocell following contact & remote telemetry input |
| Pressure Equalization Vent | Prevents thermal expansion & pressure cycling |
| Photocell | Adjustment via potentiometer |
| Illumination | Adjustment via potentiometer |
| Mount | Black, powder-coated stainless steel wall mount. Adjustable via M6 Allenkey (included) |
| Operating Temperature | -58 to 140?F (-50 to 60?C) |
| Angle | 10? |
| Distance | 148' (45 m) |
| HOV | 26' (8 m) |
| Electrical | |
|---|---|
| Input Voltage | 12 to 32 VDC or 24 VAC |
| PoE | IEEE802.3af compliant |
| Consumption | 26 W |
| Wavelength | Optional (C): 940 nm (covert) No visible glow from illuminator - ideal for transportation or high security applications |
| Certifications | Safety (electrical, laser eye), IP, EMC, WEEE, RoHS |
| Dimensions | 4.49 x 4.33 x 3.07" (114 x 110 x 78 mm) |
| Weight | 2.3 lb (1.05 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 4.0 lb |
| Box Dimensions (LxWxH) | 12.0 x 8.0 x 8.0" |
