Ikelite 200DL Overview
-
1Description
-
2Pre-Dive Checks
-
3Construction
-
4Lens Support
-
5Wi-Fi Connectivity

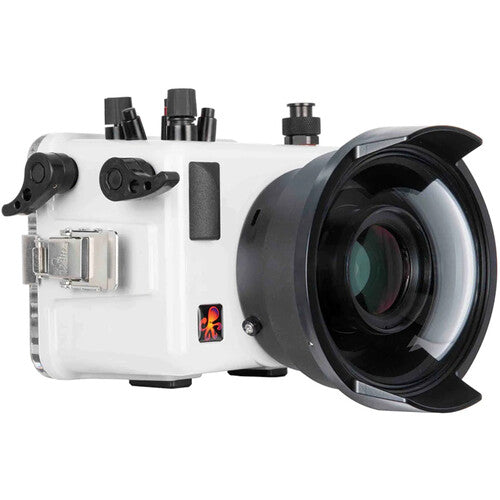

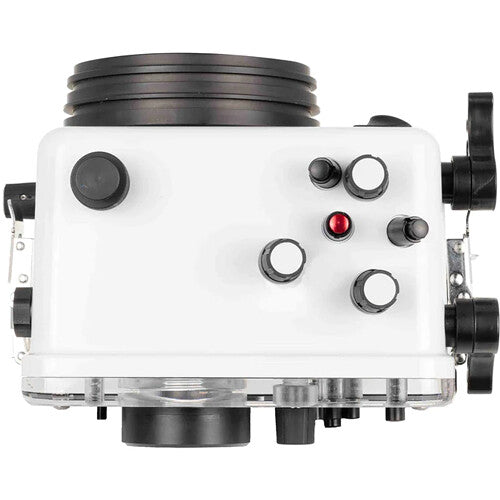

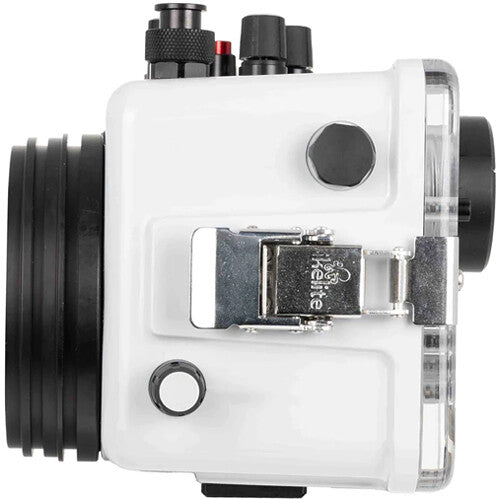

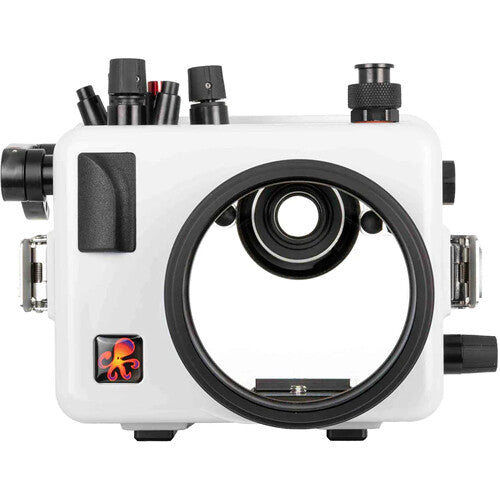

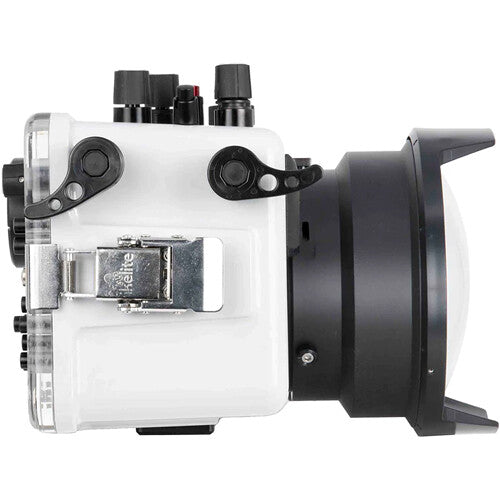

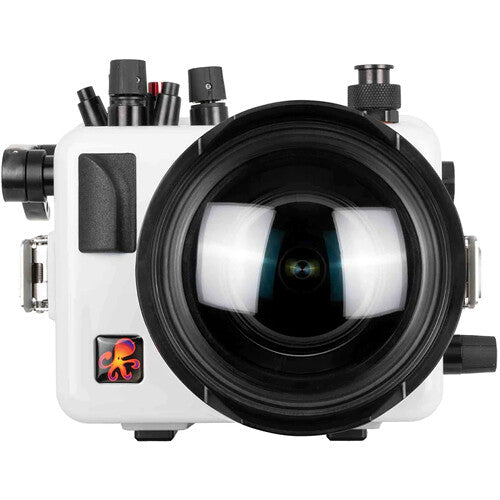

The Ikelite 200DLM Underwater Housing for Canon EOS R7 Camera is designed for the most streamlined form factor possible and provides ergonomic access to all important camera functions at depths down to 200'. The 200DLM housing is approximately half the size and weight of housings for full-frame cameras like the Sony a7 IV or Canon EOS R5. A built-in Ikelite bulkhead and manual flash hot shoe allow attachment of an underwater strobe out of the box, plus expandability to TTL exposure with the optional DL5 DS Link TTL Converter.
Add an optional Vacuum Kit with a 1/2" valve to test your housing's waterproof seals prior to entering the water. A compatible lens port is required for waterproof operation (sold separately). For the correct port components for your lens, consult the port chart.
Ikelite's signature open-groove design suspends the rear O-ring in a natural position that is easier to maintain and more reliable than forcing the O-ring into a channel. Once the housing is closed you can see the O-ring form a solid, waterproof seal. Ikelite recommends adding the optional Vacuum Kit with 1/2" Valve #47012 to pull a vacuum on the housing and check for leaks prior to entering the water.
The specially formulated ABS-PC blend housing is highly durable, yet significantly lighter than aluminum. The light color keeps your camera cooler when shooting in warm, sunny environments.
Most popular zoom lenses and select focus rings can be engaged using simple gearing that puts adjustment right at your fingertips. Lens ports and zoom gears are sold separately. Refer to the appropriate port chart for compatibility information.
Use the camera's built-in Wi-Fi feature to download photos to another device without removing the camera from the housing. The Wi-Fi feature is only usable above water within close proximity to the connected device.
In the Box
- Ikelite 200DLM Underwater Housing for Canon EOS R7 Camera
- Rear O-Ring
- Front O-Ring
- Ikelite 9104.7 Waterproof Bulkhead Cap (Aluminum)
- Silicone Lubricant Tube (1cc)
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- Pre-Dive Checks
- Construction
- Lens Support
- Wi-Fi Connectivity
Ikelite 200DL Specs
General
| Compatibility |
Canon EOS R7 |
Physical
| Color |
White |
| Material of Construction |
Polycarbonate, ABS |
| Dimensions |
7.5 x 6 x 5.9" / 19.1 x 15.2 x 15 cm |
| Weight |
3 lb / 1.4 kg |
Packaging Info
| Package Weight |
3.27 lb |
| Box Dimensions (LxWxH) |
8.2 x 6.9 x 6.9" |
