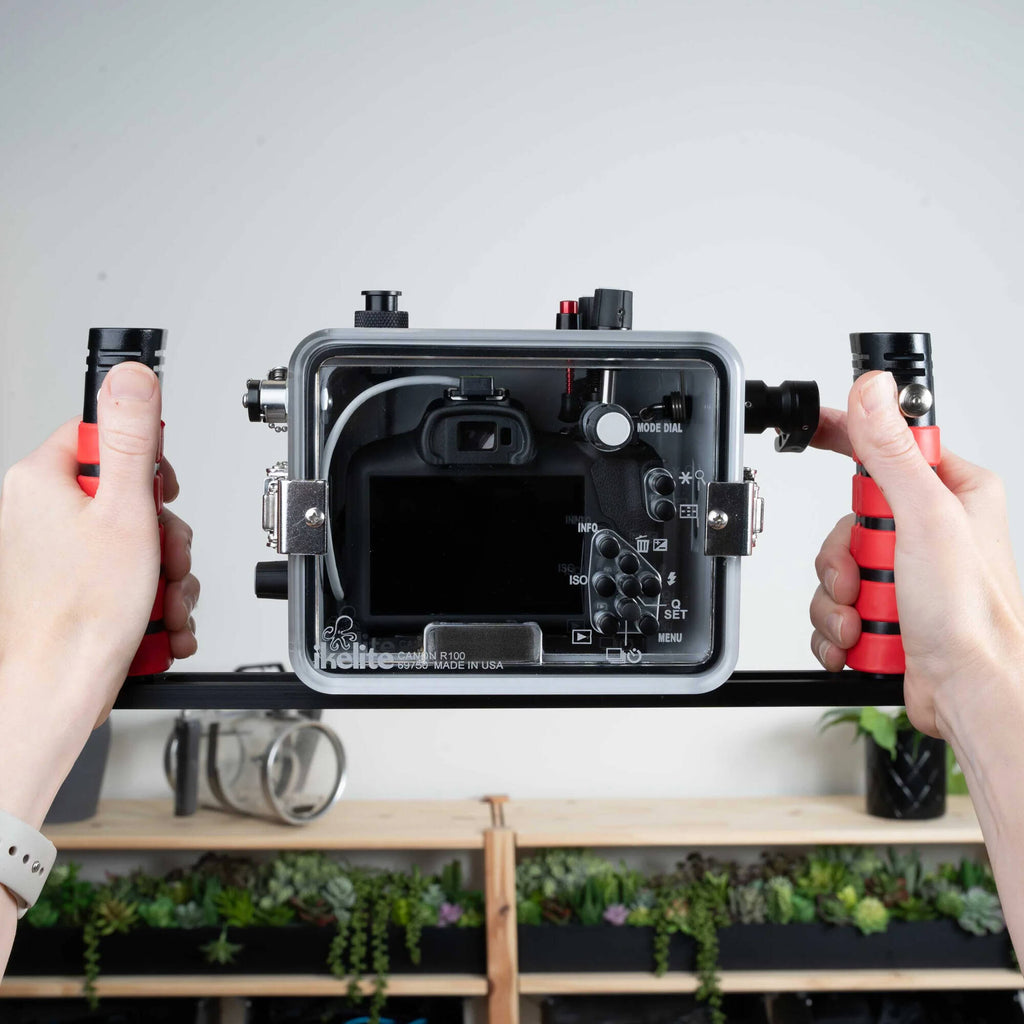

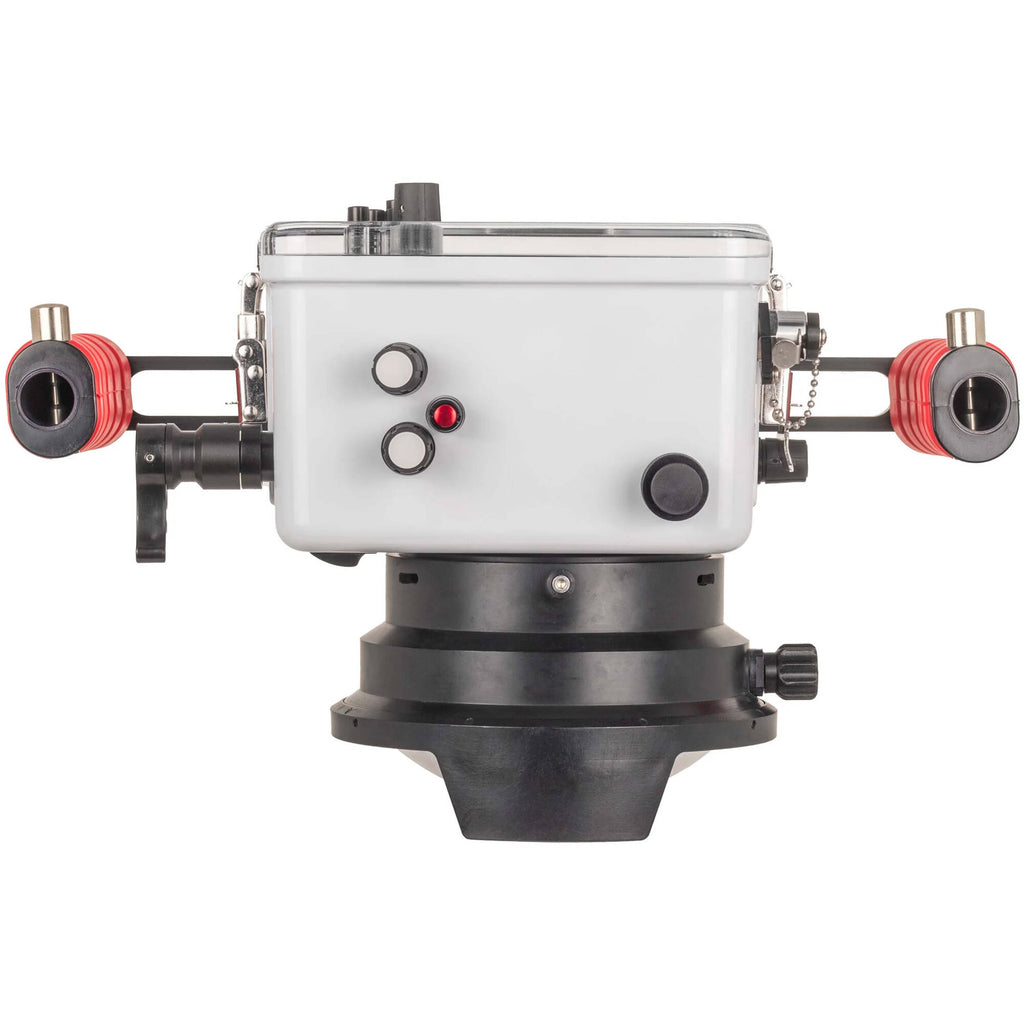

Ikelite 200DLM/D Housing for Canon EOS R100 with Port, Handles and Vacuum Kit

The Ikelite 200DLM Underwater Housing for Canon EOS R100 Camera is designed to have the most streamlined form factor possible and provides ergonomic access to all important camera functions at depths down to 200'. A built-in Ikelite bulkhead and manual hot shoe connector allow attachment of an underwater strobe, plus expandability to TTL exposure with the optional converter.

A compatible DLM (Dry Lock Micro) lens port is required for waterproof operation. For the correct port components, consult the port chart for your lens. The housing comes with a 1/2" accessory port, where you can add an optional vacuum valve. The valve is part of a vacuum kit, #47012, which is used to test your housing's waterproof seals prior to entering the water.

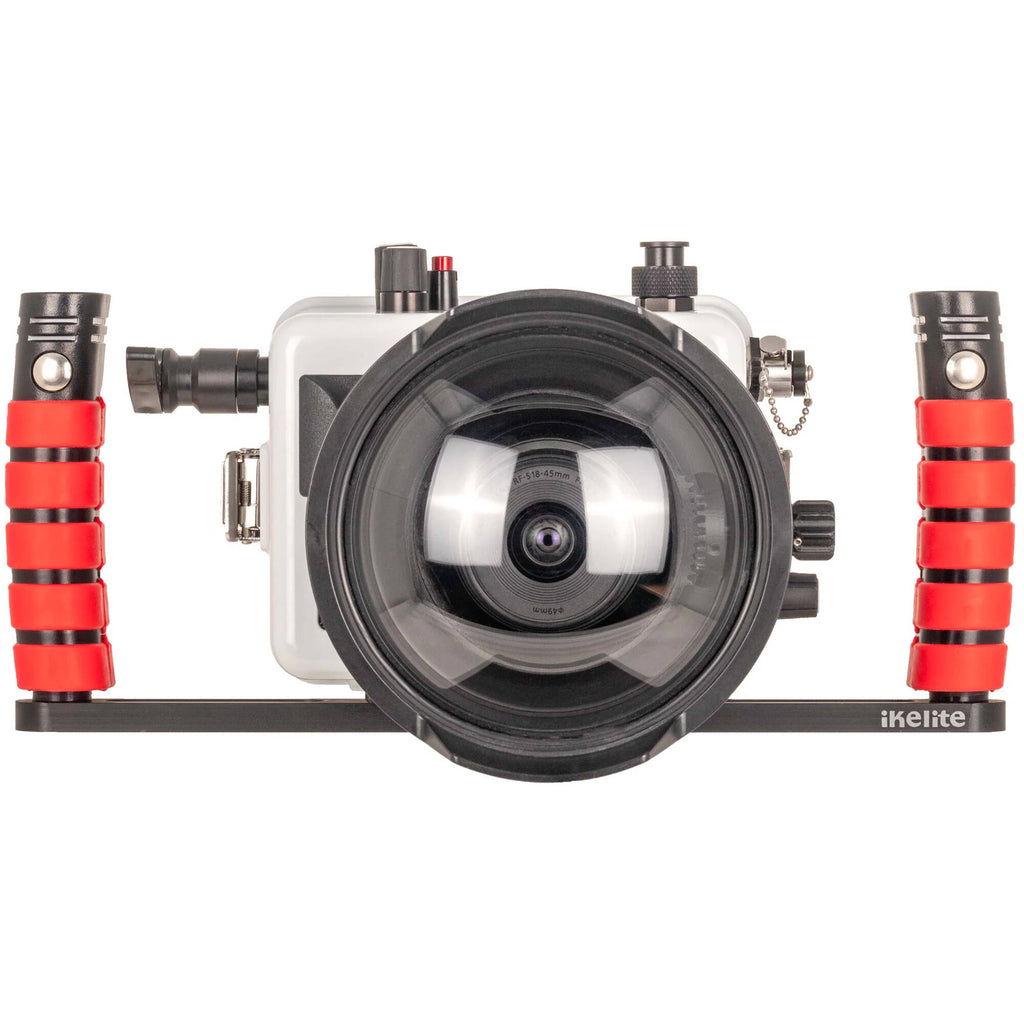

Capture images of coral reefs, parrot fish, and shipwrecks at depths as great as 200' with this DLM 6" Dome Port from Ikelite. It fits onto the brand's underwater camera housings with DLM mounts, and accommodates many wide-angle mirrorless lenses with the appropriate zoom gears. Compatible models include those from Canon, Olympus, Panasonic, Sony, Tokina, and Sigma. For a complete list of lenses, please see the DLM/A, DLM/B, and DLM/C port charts.

Built for durability, the port features a front element crafted from lightweight acrylic and a body made from Delrin acetyl resin, both of which are corrosion-resistant. The port's 6.0" dome magnifies images to a lesser degree than a flat port does, and corrects for the underwater size distortion that makes everything appear 25% larger and closer--thus helping to restore a wide angle of view. This broad coverage enables you to get close to your subject to increase clarity and detail, while still fitting everything in the frame.

Gain improved balance and attachment points for optional lighting arms with this Tray with Dual Release Handles for Compact Underwater Housings from Ikelite. This support system accommodates Ikelite Compact Digital and ULTRAcompact Digital Still camera housings, as well as non-Ikelite compact housings with standard, central, 1/4"-20 tripod mounts. It features two comfortable rubberized grip handles with quick-release connection points on top.

Built for durability, the tray and handles are made from aluminum that has been hard anodized for resistance to corrosion. To make it even more convenient for travel and handling, Ikelite made this system a 1/4 lb lighter than its previous #9523.62 Dual Tray with Handles. The central 1/4"-20 threaded mount allows you to connect your camera housing to the tray using the provided mounting hardware and also enables connection to an optional tripod. The supplied hardware is for mounting Ikelite housings that have female mounting points with 3" spacing. Housings below serial number 37100 with male threaded bolts on the bottom require the separate #9523.09 Tray Spacer. Attached lighting arms can be disconnected quickly at the push of a button.

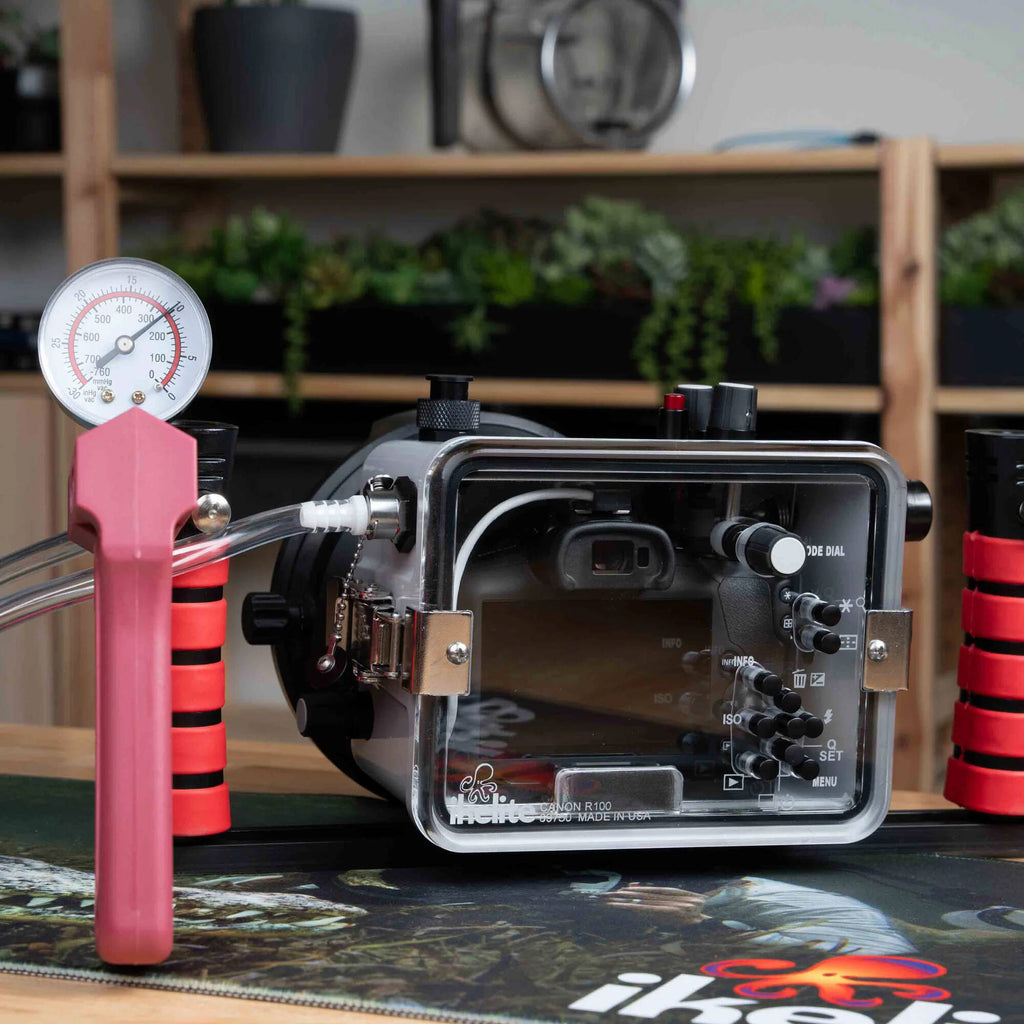

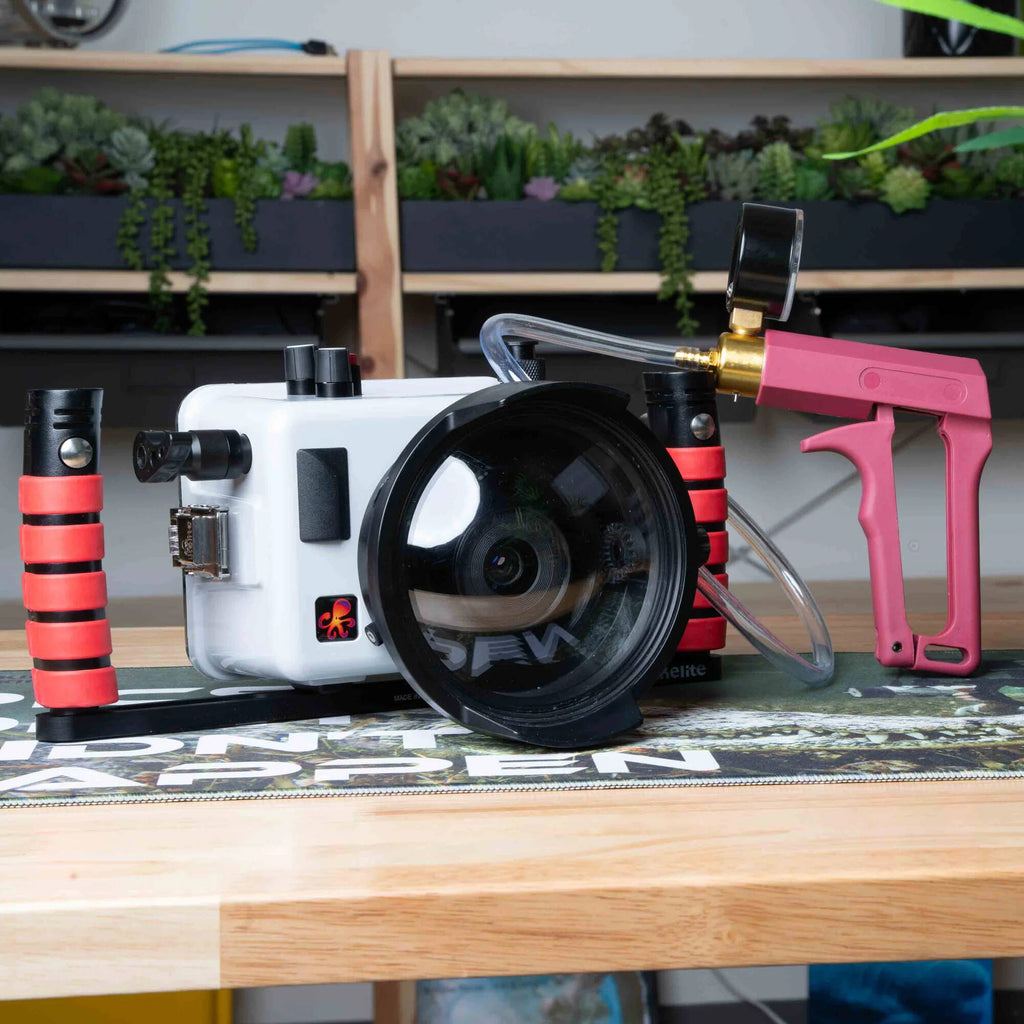

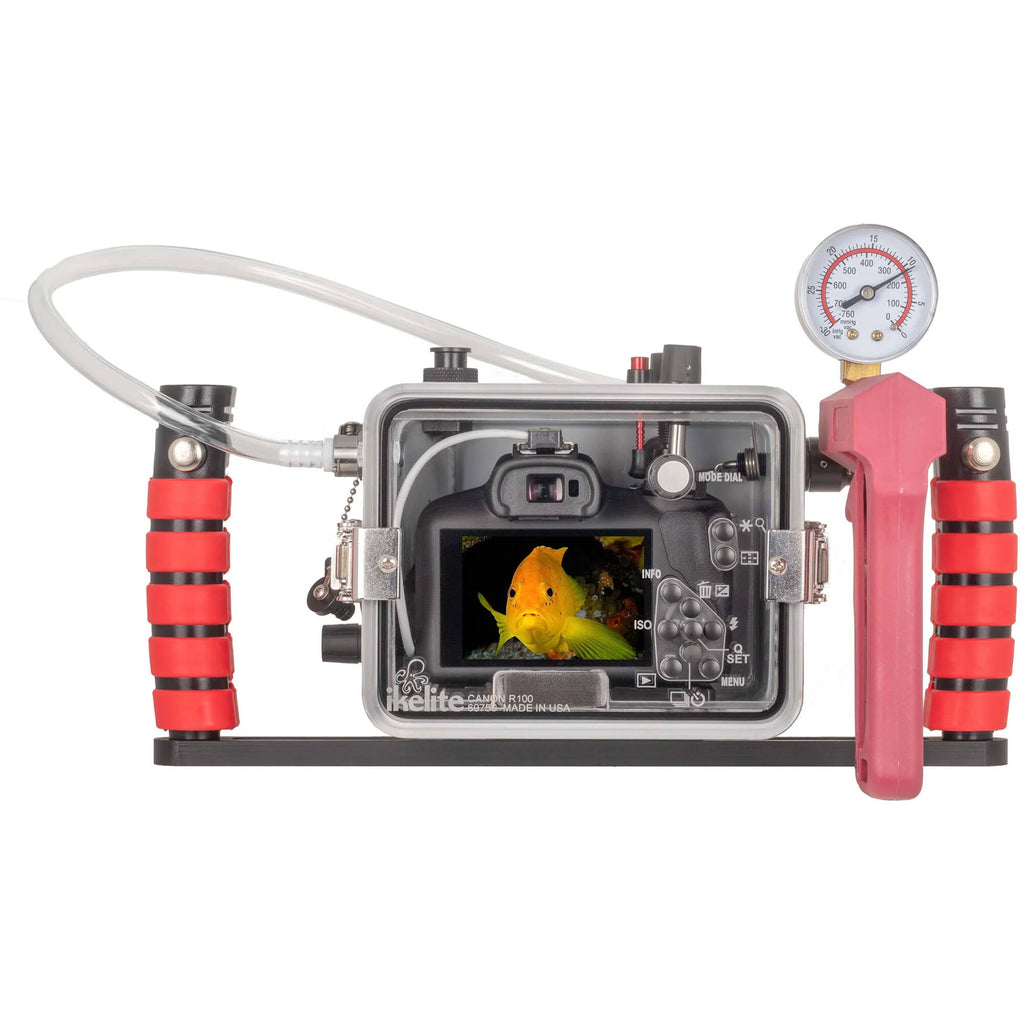

Confirm the integrity of the watertight seal on your Ikelite underwater camera housing with this Vacuum Kit for 1/2" Accessory Ports. The bundle includes a valve, a hand pump with a gauge, and a tubing insert. All together, these components allow you to check for leaks and create a vacuum inside your housing, in order to protect your camera and lens against water damage. The kit is compatible with all Ikelite enclosures that have spare 1/2"-20 accessory ports, including most models with opaque white fronts. Just remove the port's plug and replace it with the valve. The kit can also be installed in place of the 1/4"-20 top mount on all DSLR housings made since 2009.

Simply secure one nut inside the housing in order to complete the valve installation. To avoid interference with controls, the vacuum valve has been designed with a low profile. The supplied waterproof plug is attached to the fitting to prevent accidental loss.

This Ikelite Trigger Extension v2 for Shutter/Back Button Focus extends the lever away from the housing and closer to a right-hand handle. This extension brings the shutter button and/or back button focus controls out to the handle assembly for maximum comfort. The newer v2 style lever allows flexibility in positioning with 16 possible orientations. It is for use only with controls featuring a curved lever actuator above serial number 73600 or UC65140.

This 5515.14 Zoom/Focus Gear lets you adjust the focal length or focus of a lens used inside an Ikelite underwater camera housing. For lens and port compatibility, consult the Port Chart for your housing.
