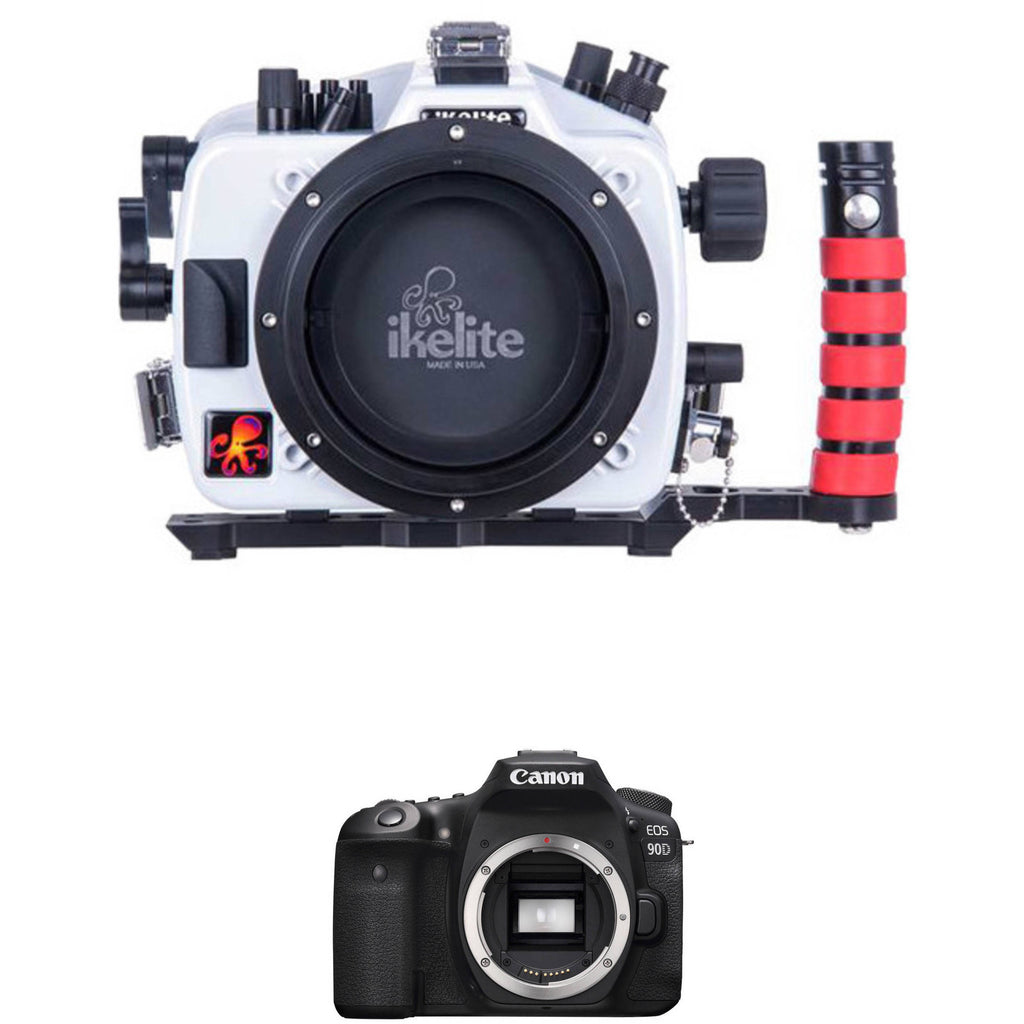

Ikelite 200DL Underwater Housing and Canon EOS 90D DSLR Camera Body Kit

Housing with 200' Depth Rating

Interchangeable DL Lens Port System

Camera with 32.5MP APS-C CMOS Sensor

UHD 4K30p & Full HD 120p Video Recording

Capture brilliant images of the undersea world with this Ikelite 200DL Underwater Housing and Canon EOS 90D DSLR Camera Body Kit from B&H . The durable ABS and polycarbonate housing allows you to descend to depths as great as 200'. Its mechanical controls afford access to most of the functions of the 32.5MP, APS-C 90D camera.

The waterproof enclosure's DL mount accepts various dome and flat ports to accommodate a broad array of lenses. Add an external strobe or video light to your system to ensure sufficient illumination and color accuracy on cloudy days, and when diving beyond 20' or so on clear, sunny days.

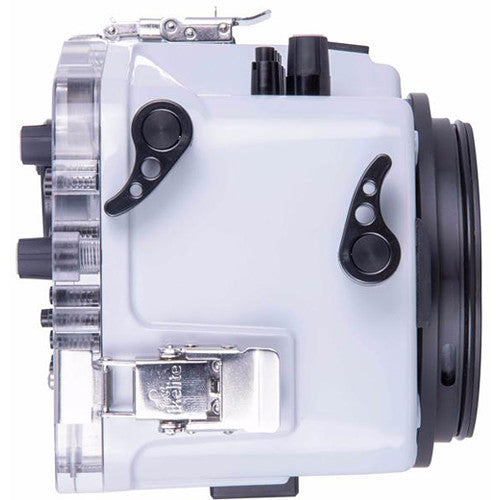

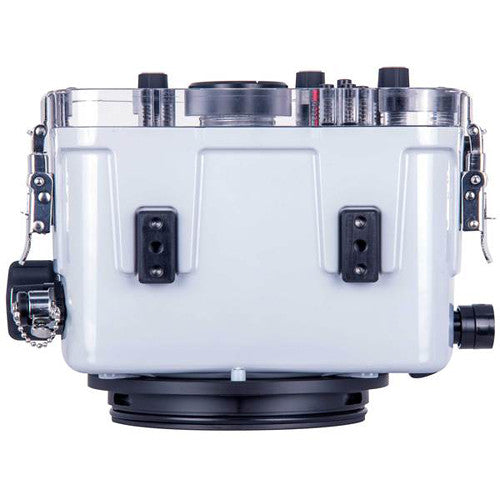

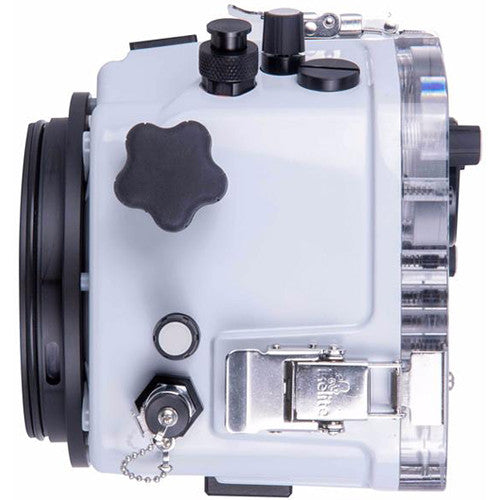

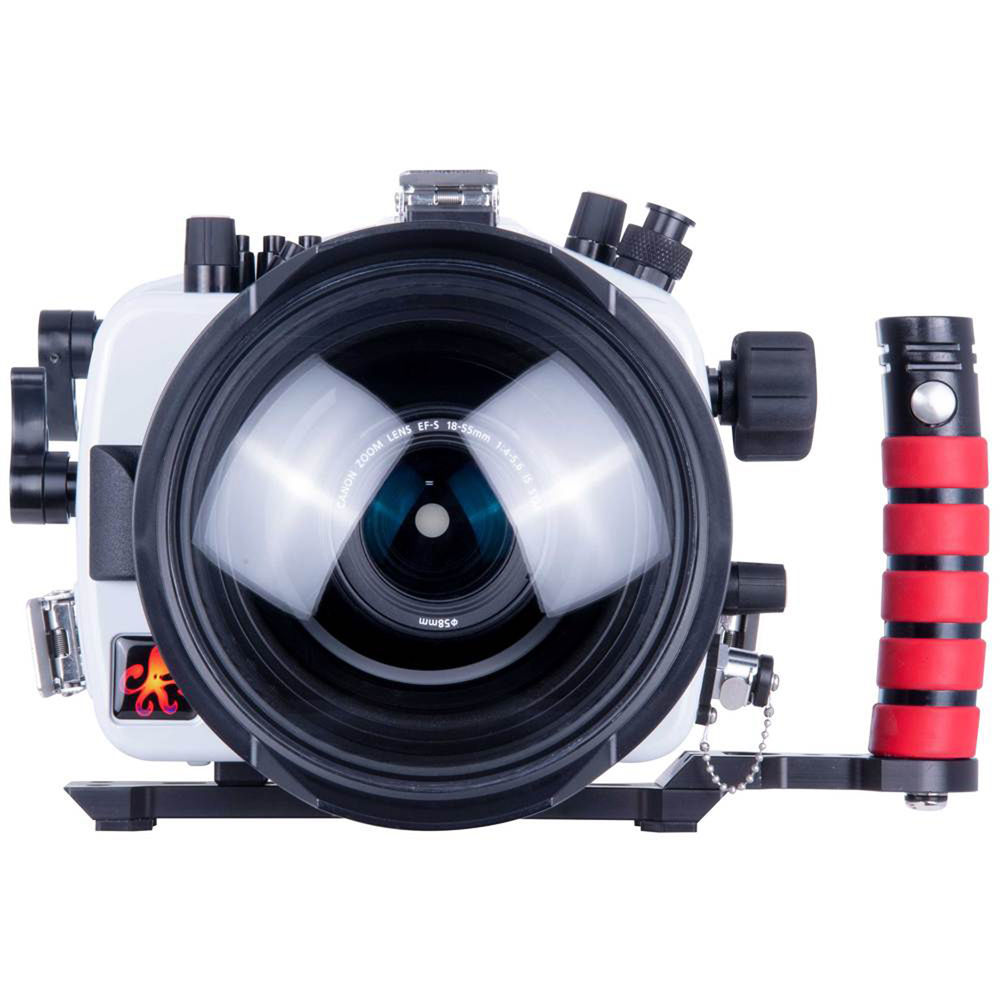

Ikelite 200DL Underwater Housing for Canon EOS 90D DSLR Camera

Capture sharp, detailed images at depths as great as 200' beneath the surface with your Canon EOS 90D DSLR camera, thanks to Ikelite's 200DL Underwater Housing with Dry Lock Port Mount . An Ikelite ICS-5 bulkhead with a manual hot shoe connection enables reliable electrical triggering of optional, external strobes. Use of an optional TTL hot shoe and circuitry will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes will still work in manual mode only.

Ergonomic mechanical controls, including push buttons, knurled knobs/dials, and levers afford access to most camera functions. Built for durability, the enclosure is made in the USA from a corrosion-resistant polycarbonate and ABS plastic blend. It's white on the front, top, sides, and bottom, but the clear acrylic back plate allows you to monitor the O-ring seal and maintain your view of the camera's rear controls. The supplied aluminum tray has a quick release grip to improve balance and handling, while also offering an attachment point for an optional lighting arm.

The housing ships without a required lens port, and accepts various dome and flat ports for a broad array of zoom, macro, and wide-angle lenses. For full compatibility, see the Port Chart. Ikelite's Dry Lock (DL) Port System accommodates lenses with large diameters, and provides added security against leaks at the surface, thanks in large part to the included vacuum valve for checking watertight integrity before the dive. The DL port mount may be removed and replaced by an older one to allow you to use standard and modular ports from Ikelite's Four Lock system.

Construction Details

• Depth rating: 200'
• Made by hand in USA from corrosion-resistant polycarbonate and ABS plastic blend
• White on front, top, sides, and bottom to reflect sunlight and keep camera cool when shooting on or above water's surface

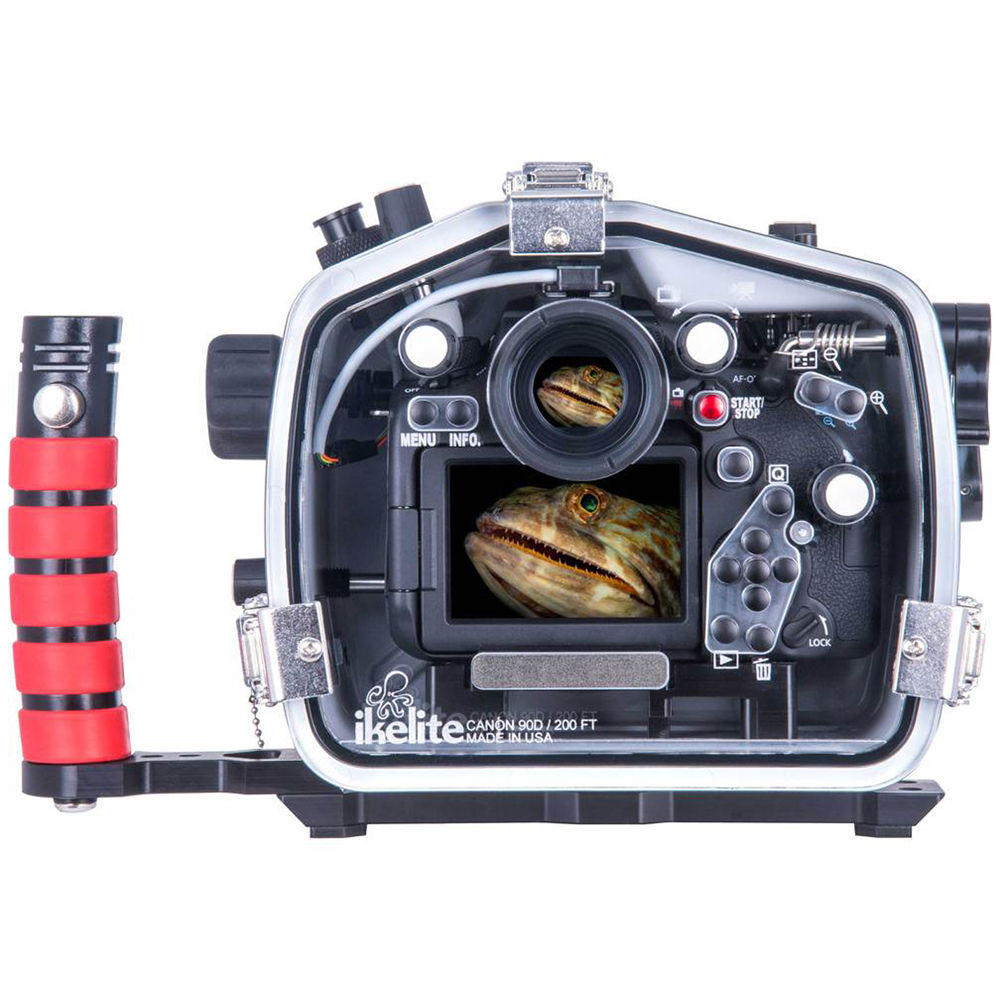

• Clear acrylic back, which is also corrosion resistant, allows you to monitor O-ring seal and maintain view of camera's rear controls
• Housing alone has nearly neutral buoyancy in fresh water; overall system buoyancy varies based on choice of lens and port
• Open-groove design suspends rear O-ring in natural position, allowing for easier maintenance and preventing accidental twisting or stretching of O-ring
• Front-loading camera mounting system makes installation and removal easy
• Camera mounting plate enables quick installation and does not need to be removed in order for you to gain battery or memory card access

Strobe Connection and Operation

• Ikelite ICS-5 bulkhead with manual hot shoe connection enables reliable electrical triggering of optional, external strobes via sync cords
• Optional CT2K Canon TTL Kit 46072 will allow for TTL operation with compatible Ikelite DS strobes; non-Ikelite strobes, such as Sea&Sea, Inon, and Nikonos models, will still work in manual mode only
• TTL exposure compensation adjustable in-camera

Controls and Handling

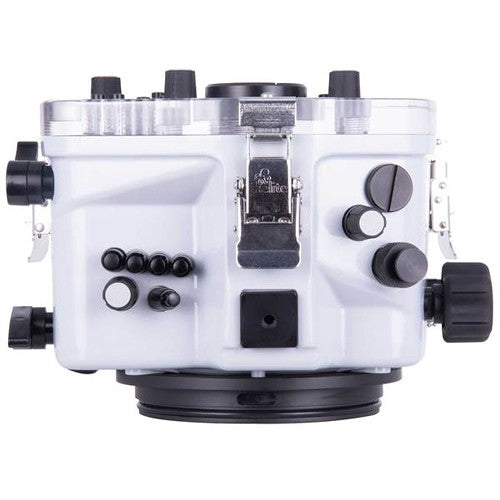

• Ergonomic mechanical controls, including push buttons, knurled knobs/dials, and levers
• Controls afford access to many camera functions
• Following functions inaccessible: Diopter adjustment, control wheel lock, LCD illuminating button, flash button, joystick up/down/left/right (joystick can be depressed)
• Control symbols laser-etched into rear of housing won't fade with time

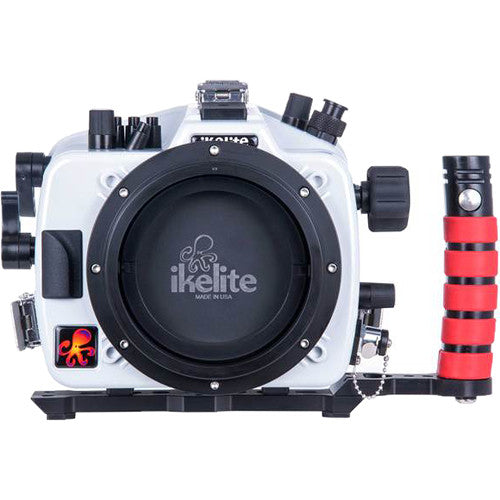

• Supplied anodized aluminum tray with a left-hand quick release grip affords improved balance and handling, while offering an attachment point for an optional lighting arm

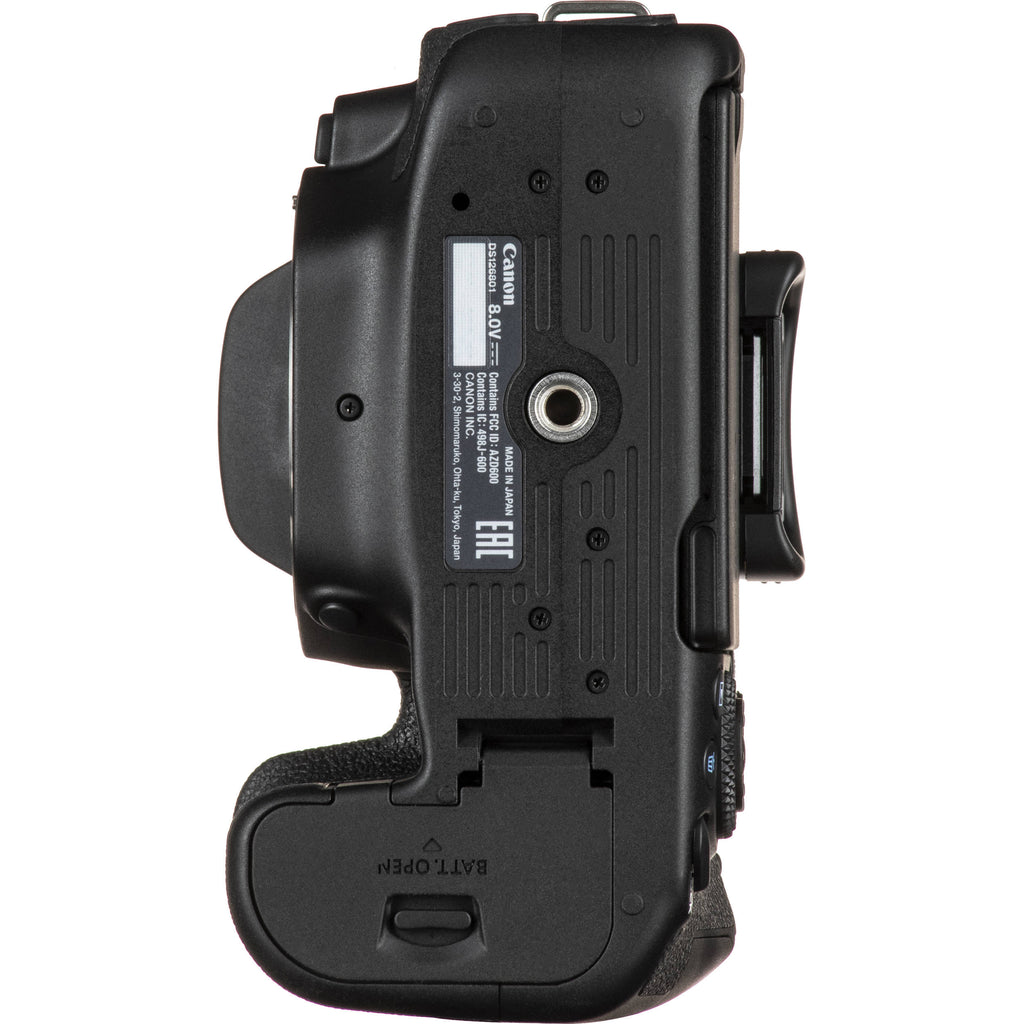

• Camera mounting plate has 1/4"-20 threaded hole for connection to optional tripod

Lens Port System

• Dry Lock (DL) Port System accommodates lenses with very large diameters

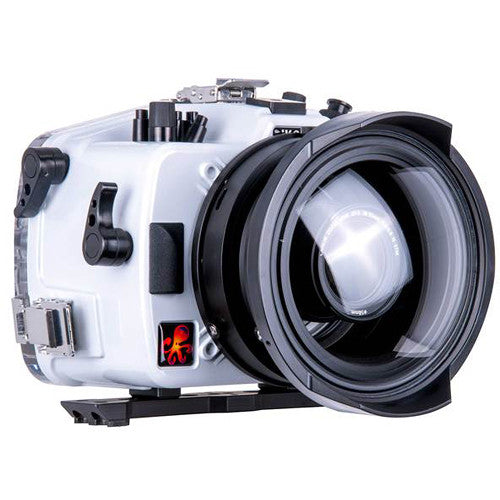

• Housing ships without a required lens port, and accepts interchangeable dome and flat ports for various zoom, macro, and wide-angle lenses
• For full compatibility, see Port Chart linked above
• Accepts array of zoom and focus gears for various lenses
• Large, soft-touch knob on side of housing makes small adjustments easy
• Provides added security against leaks at surface, thanks in large part to included vacuum valve for checking watertight integrity before dive
• #47011 Pump with Gauge required in order to remove excess air and actually create a vacuum

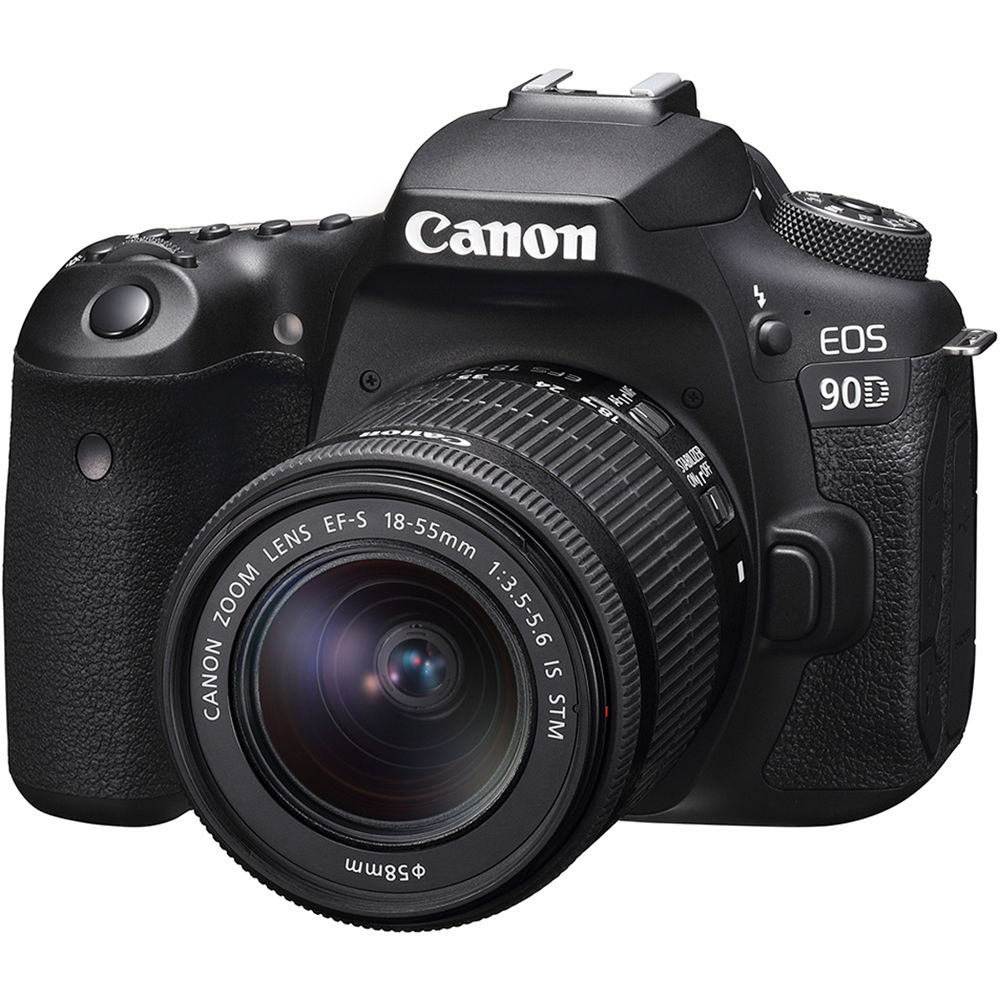

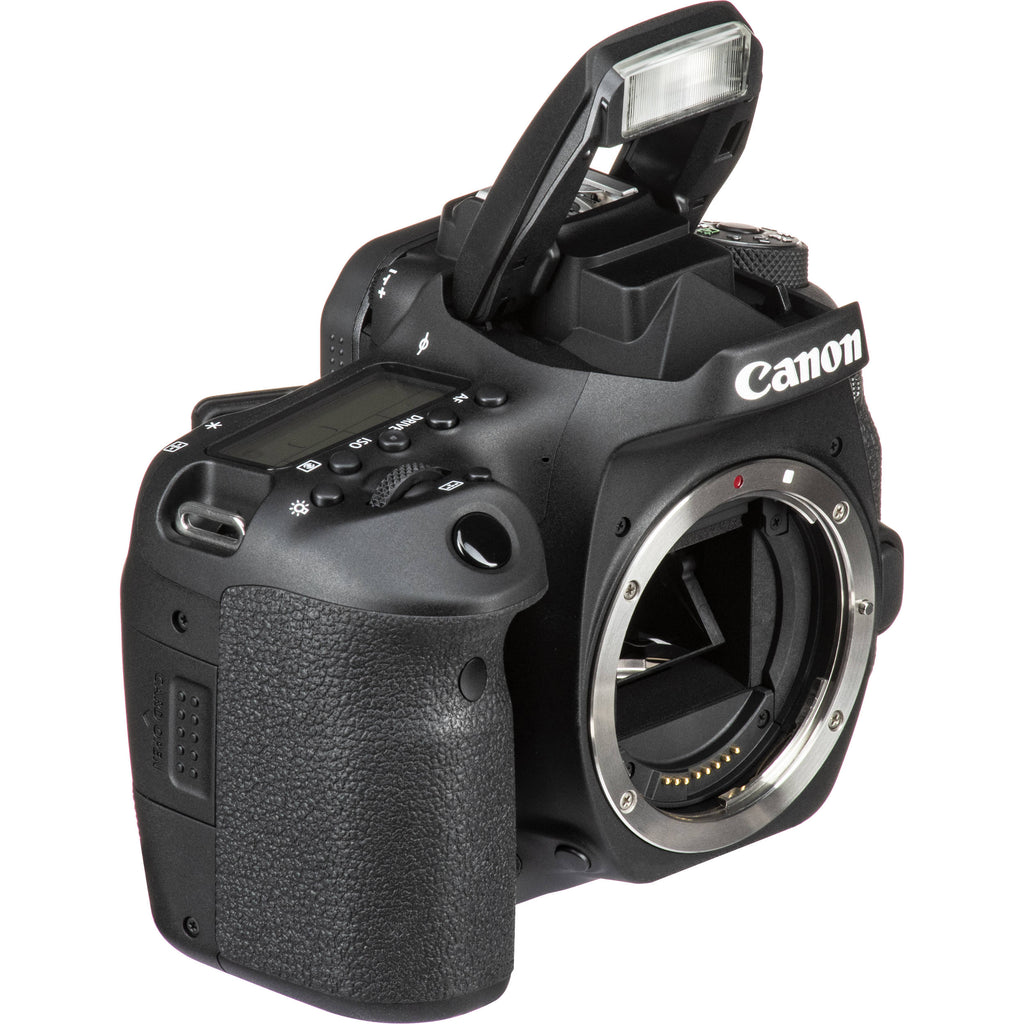

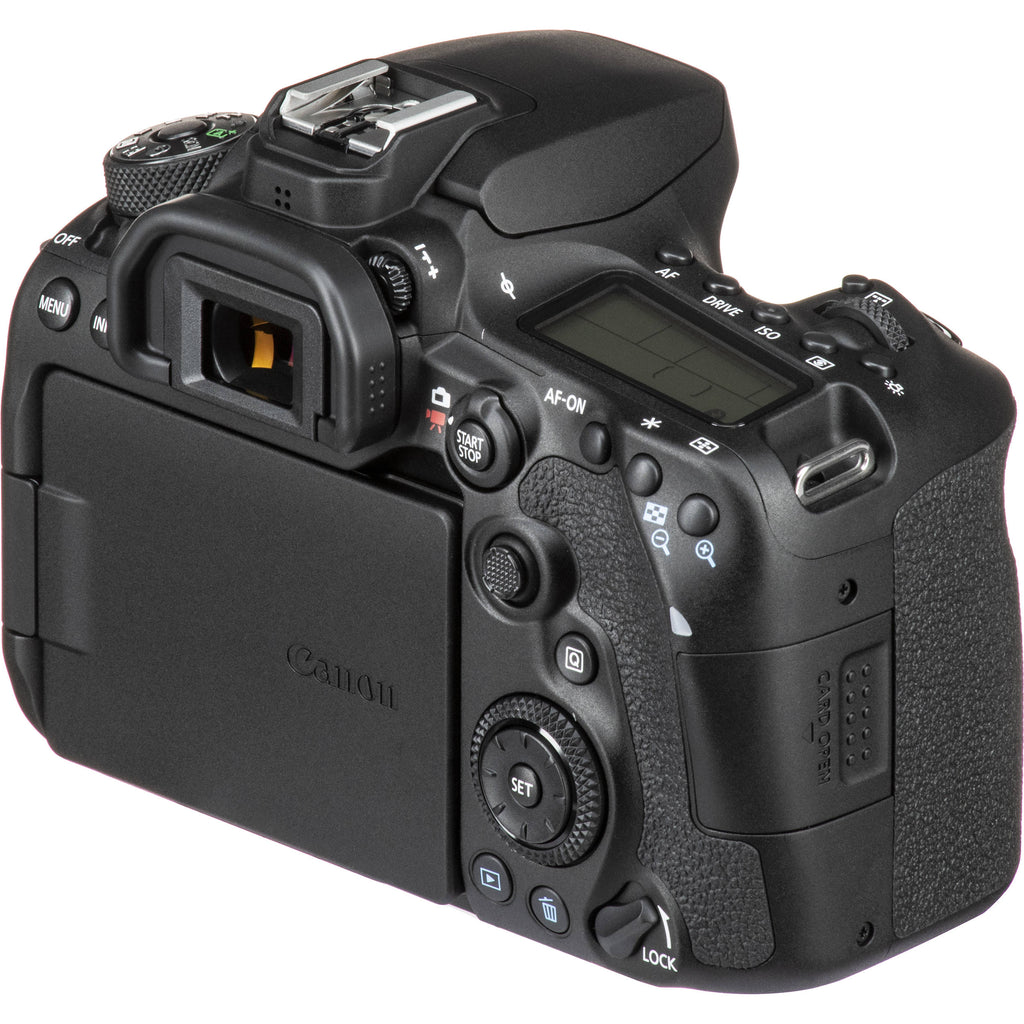

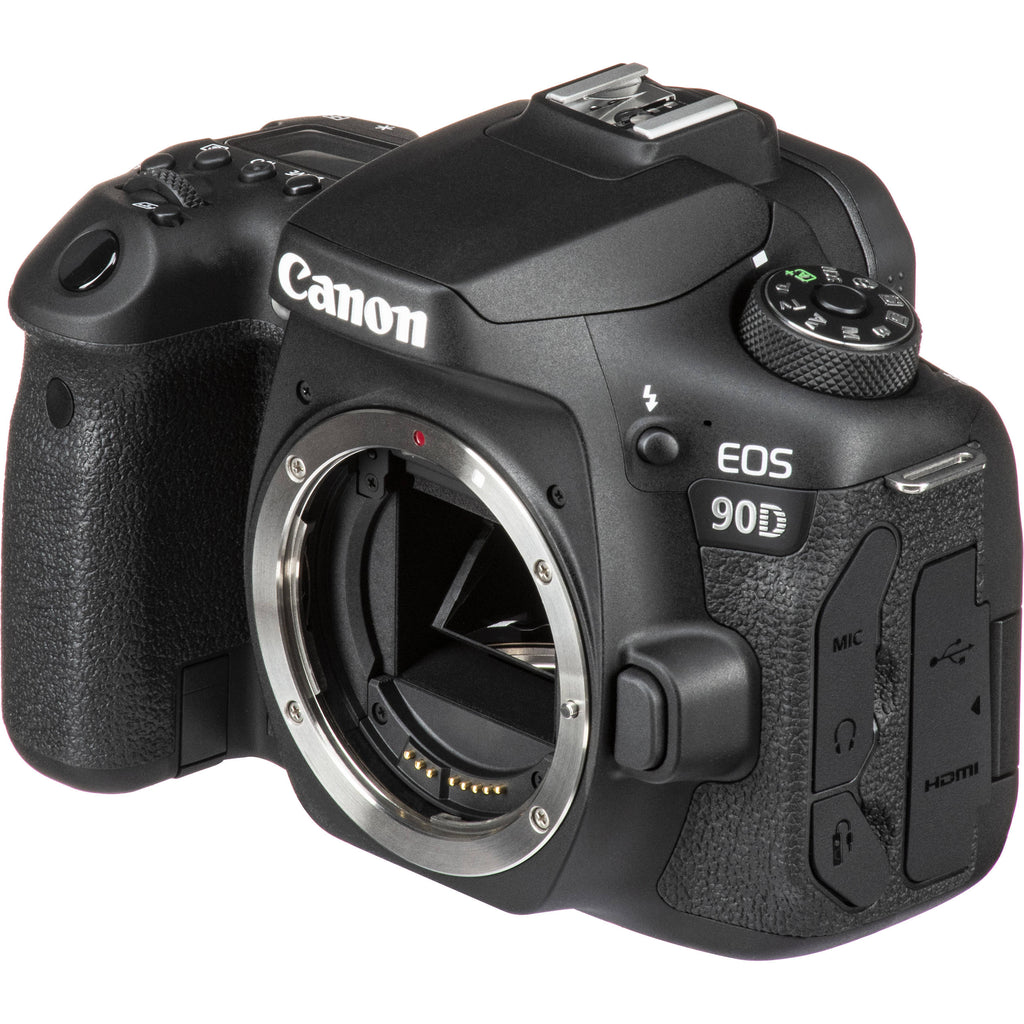

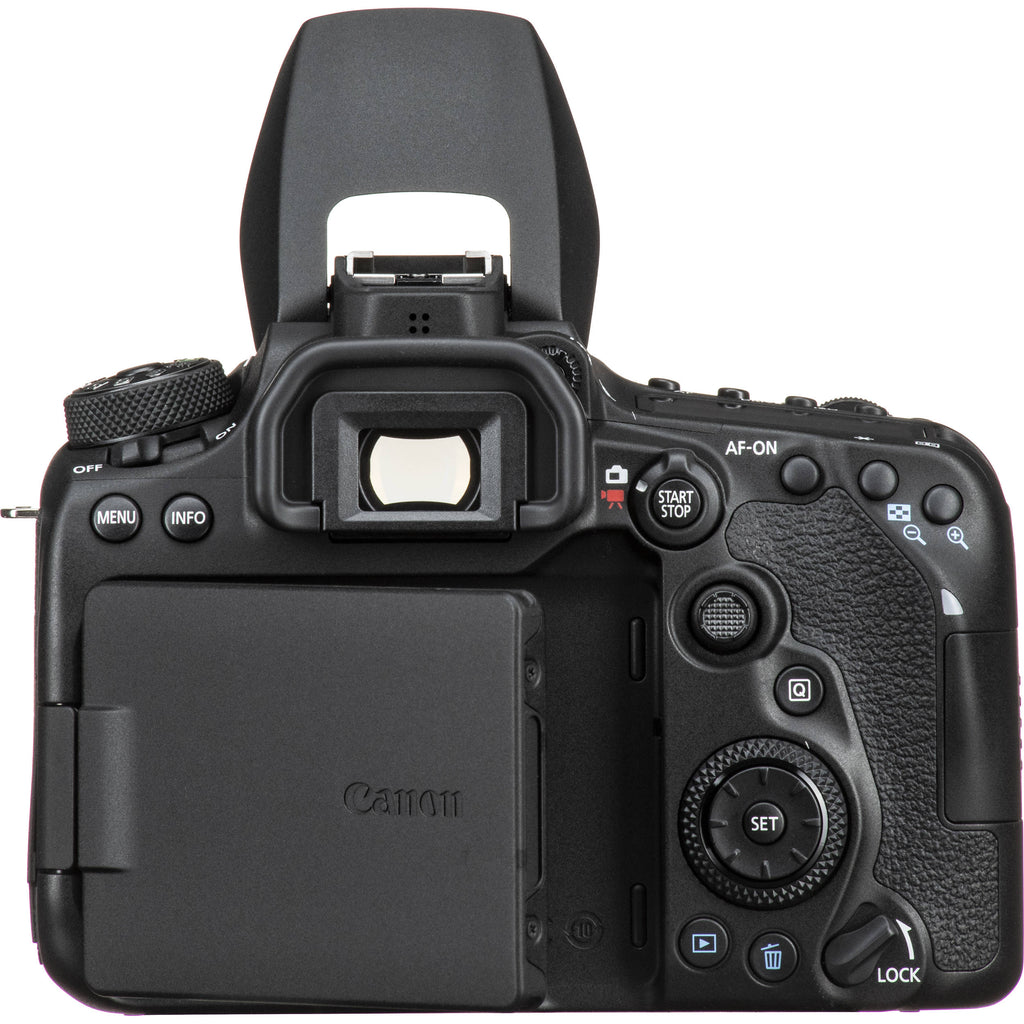

UPC: 883711058696 Canon EOS 90D DSLR Camera (Body Only)

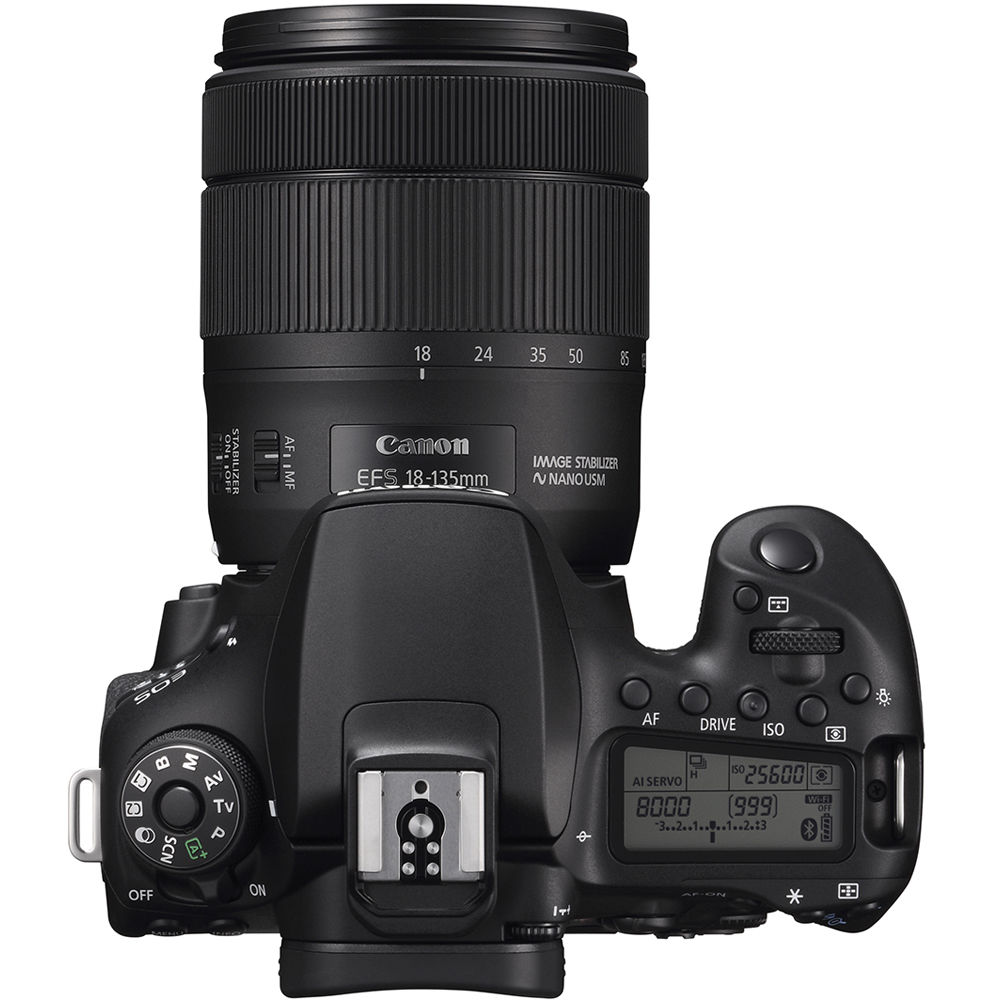

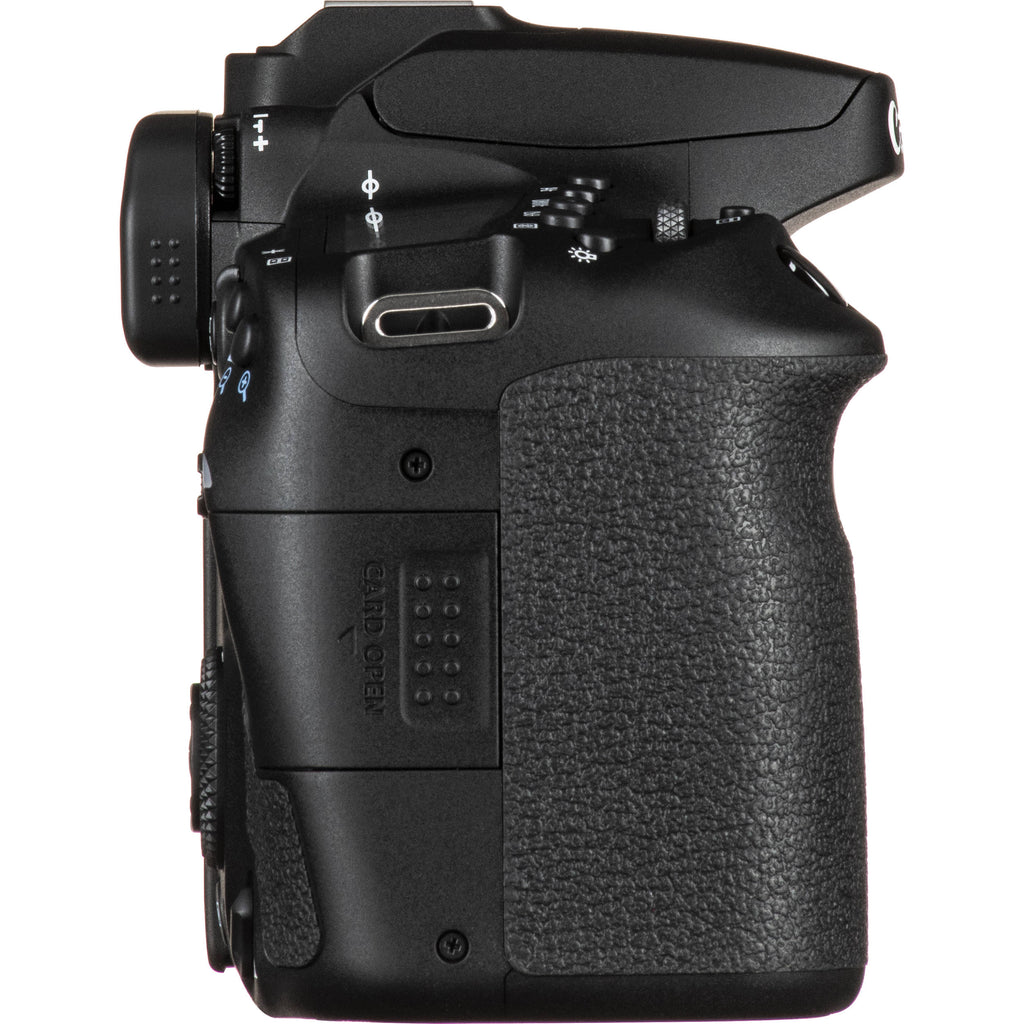

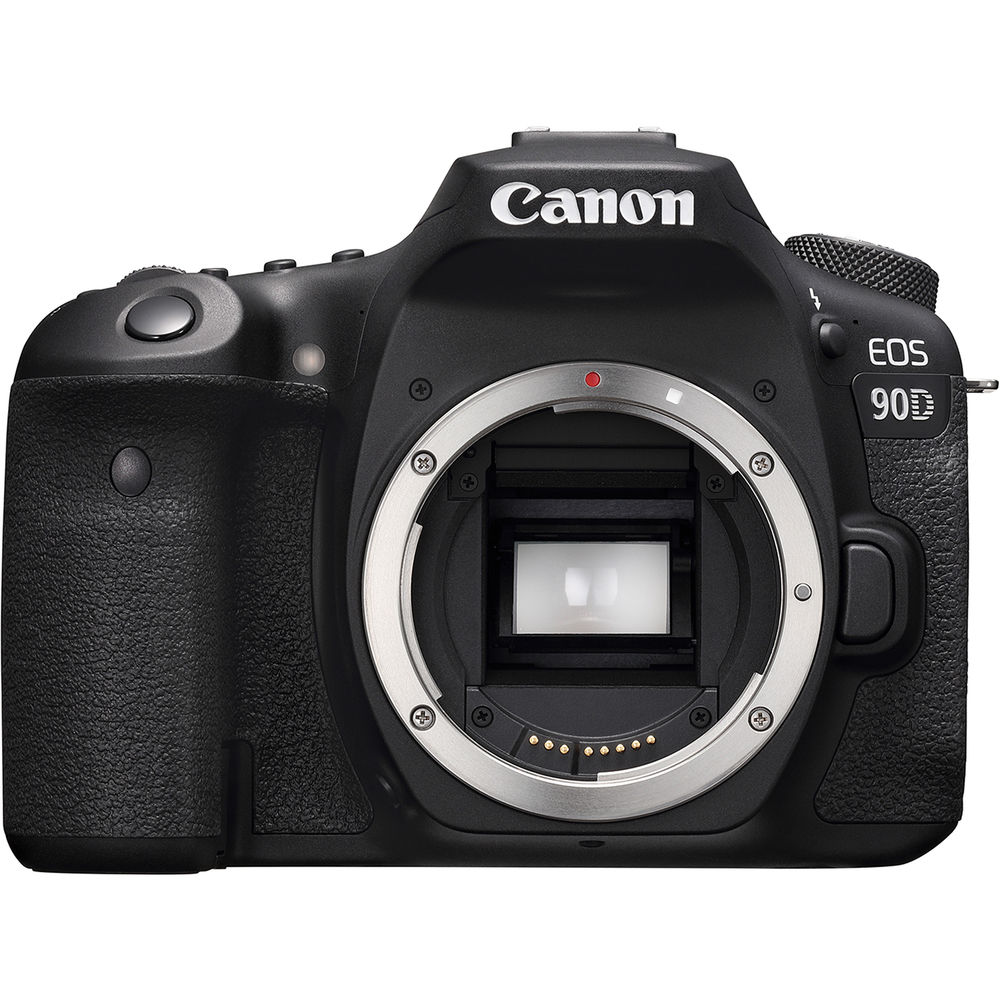

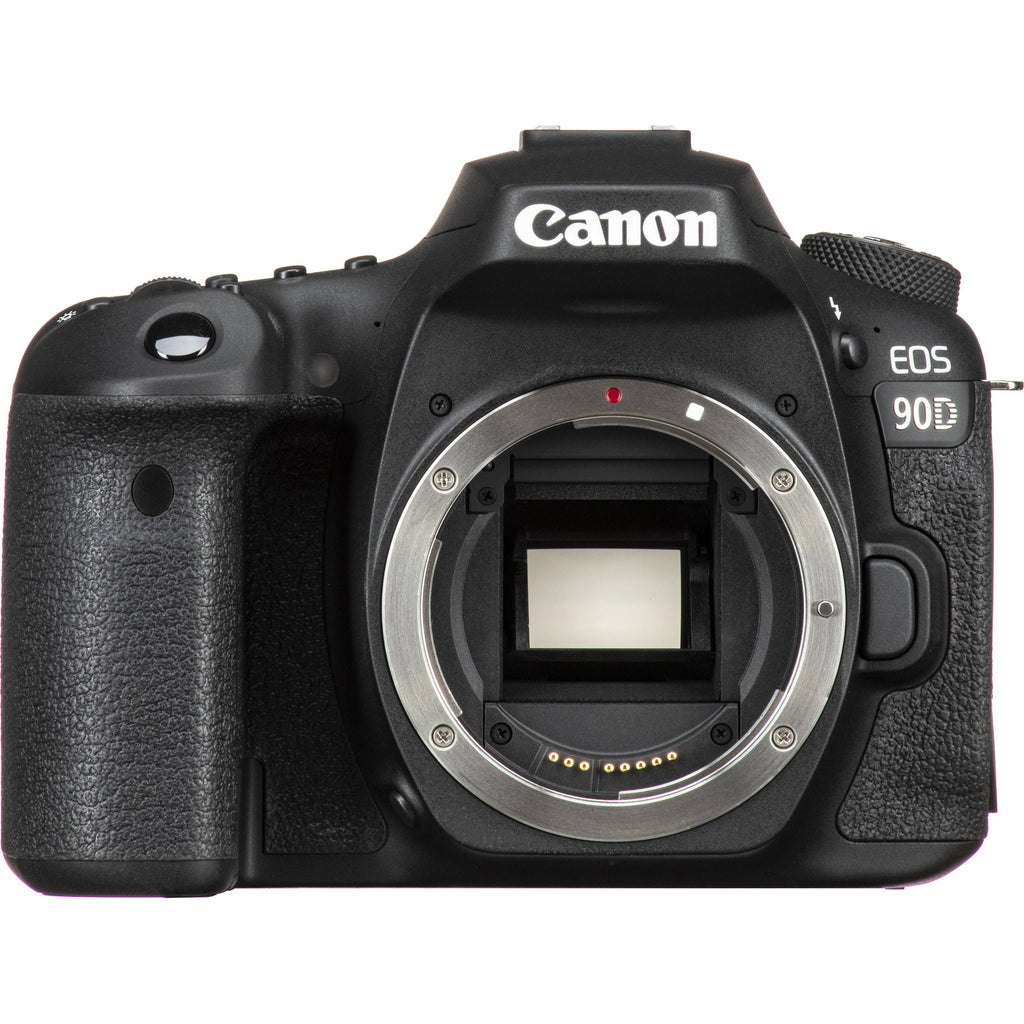

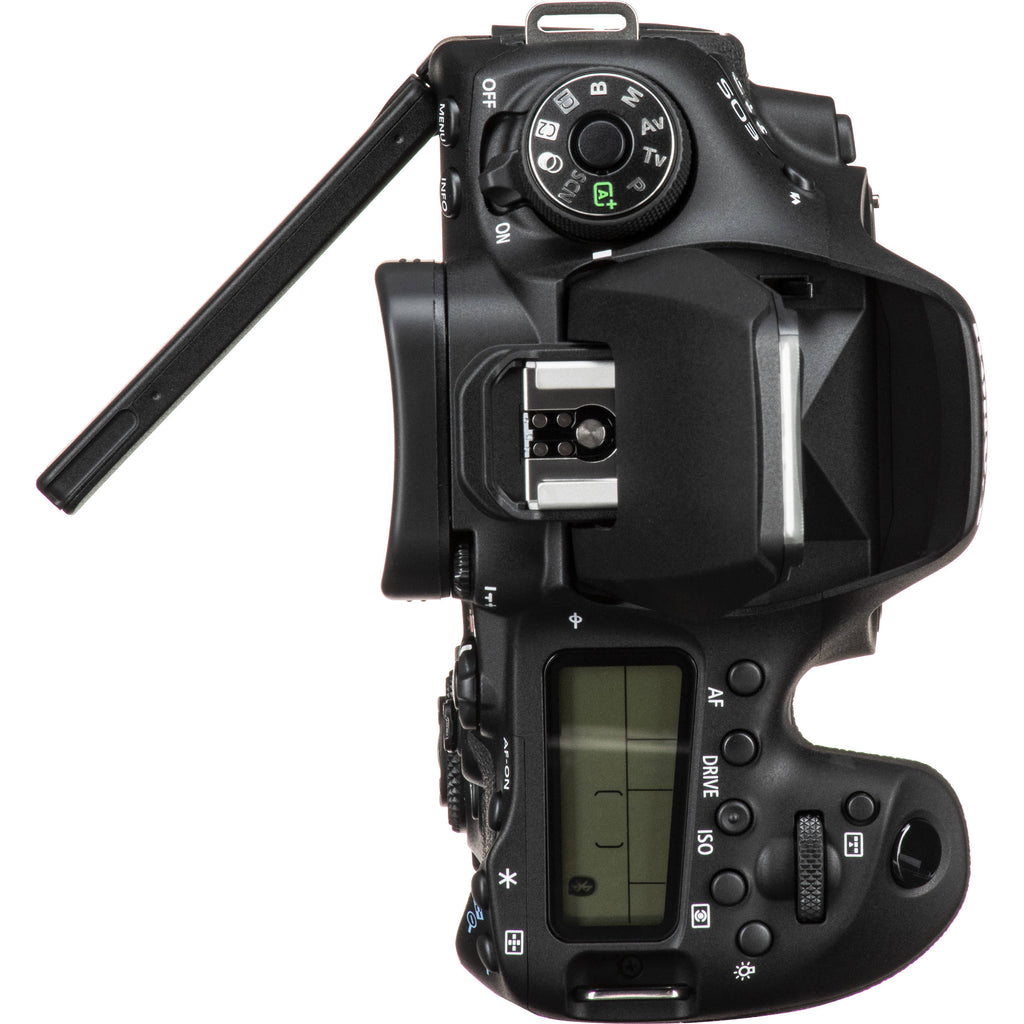

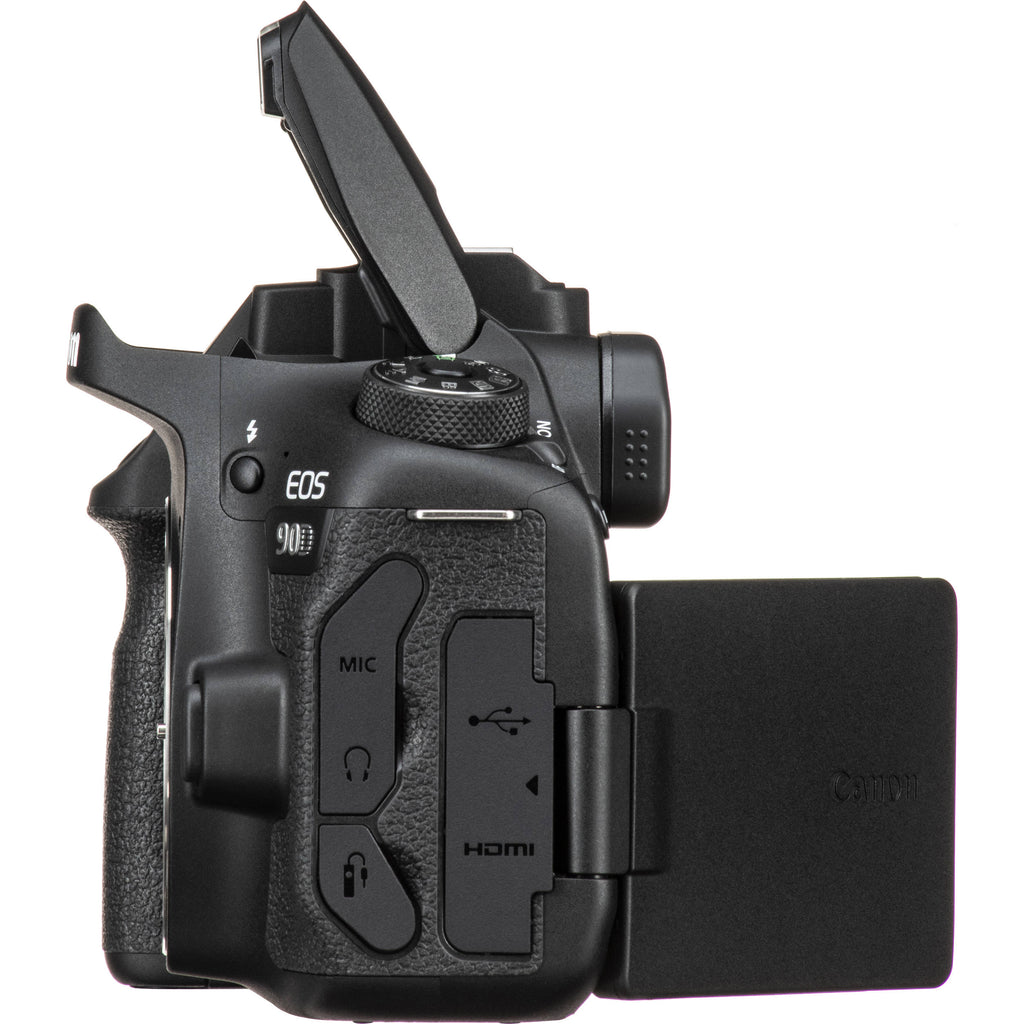

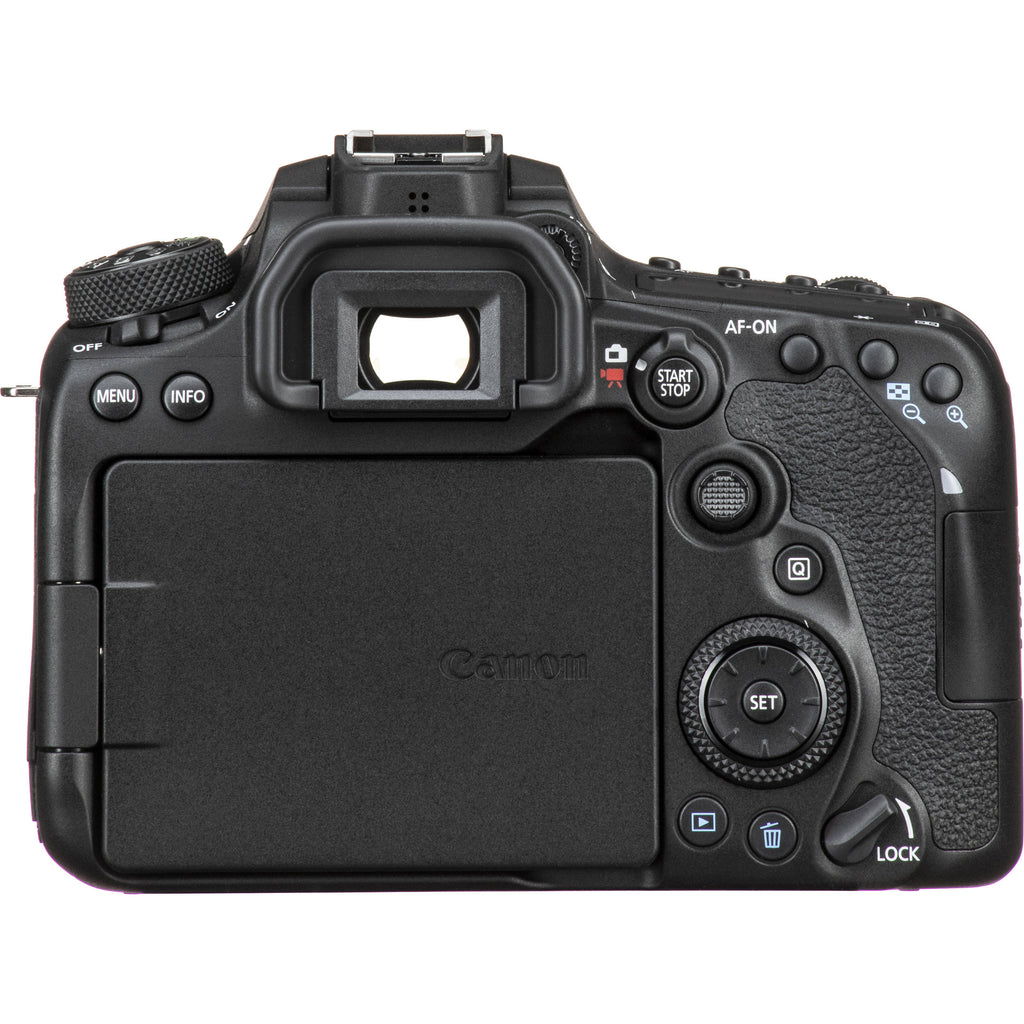

Situated as a versatile camera with capable photo and video traits, the Canon EOS 90D is a sleek DSLR also characterized by its high-resolution 32.5MP APS-C CMOS sensor. This updated sensor design achieves enhanced image clarity, resolution, and dynamic range, along with adept sensitivity to ISO 25600 and low noise to suit working in a variety of situations. Combined with advanced image processing, this sensor is also capable of outputting UHD 4K30p and Full HD 120p video, as well as supporting continuous stills shooting rates up to 10 fps. When working with the optical viewfinder, an apt 45-point all cross-type AF system affords fast performance in a range of lighting conditions for tracking moving subjects and working in low light, while the 5481-point Dual Pixel CMOS AF system benefits live-view shooting and movie recording by providing a smooth, natural focusing quality akin to the way a camcorder acquires focus. Complementing the imaging capabilities, the 90D sports a vari-angle touchscreen LCD for intuitive control and compositional freedom, and an optical pentaprism viewfinder provides a bright, clear, and realistic viewing means characteristic of the DSLR shooting experience. Additionally, built-in Wi-Fi and Bluetooth connectivity allow you to pair mobile devices with the camera to wirelessly transfer files for sharing your photos and movies online.

32.5MP APS-C CMOS Sensor Featuring an impressively high-resolution 32.5MP APS-C CMOS sensor, the 90D is capable of producing imagery with notable clarity and dynamic range, as well as a broad sensitivity range of ISO 100-25600 and low noise to support working in difficult lighting situations. The sensor and image processor also realize fast performance throughout the camera system, including the ability to shoot continuously at up to 10 fps, record UHD 4K30p video, or record high-speed Full HD 1080p video at 120 fps. 45-Point All Cross-Type AF and Dual Pixel CMOS AF Systems Benefitting stills shooting with the optical viewfinder, a wide-area 45-point all cross-type phase-detection autofocus system provides quick and precise focusing in difficult lighting conditions down to -3 EV. For working with telephoto lenses fitted with extenders, 27 of the points are capable of focusing down to f/8 and the center dual cross-type offers increased precision at brighter aperture values. The cross-type design of the sensors affords greater accuracy in low-contrast and mixed lighting conditions, and the broad coverage of the 45 sensors is ideal for tracking and maintaining focus on moving subjects. Making use of the 45-points is a series of four AF area selection modes, including single-point AF; Zone AF, where you can select from one of nine AF zones; Large Zone AF, which offers a choice of three selectable zones; and 45-point AF auto selection, which allows the camera to select a single point automatically.

When recording video or shooting in live view, a Dual Pixel CMOS AF system is employed that features 5481 selectable autofocus points. This focusing system offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. Dual Pixel CMOS AF integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery. Body Design and Wireless Connectivity

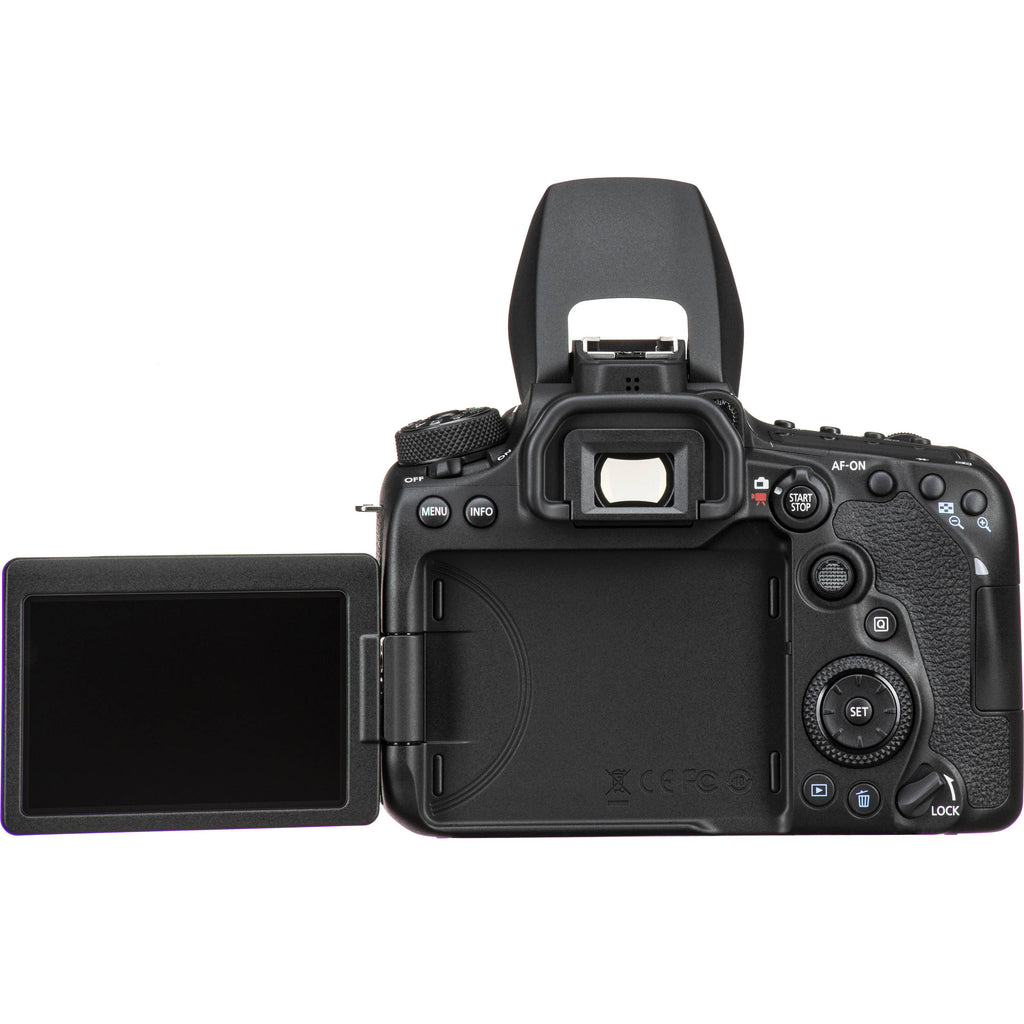

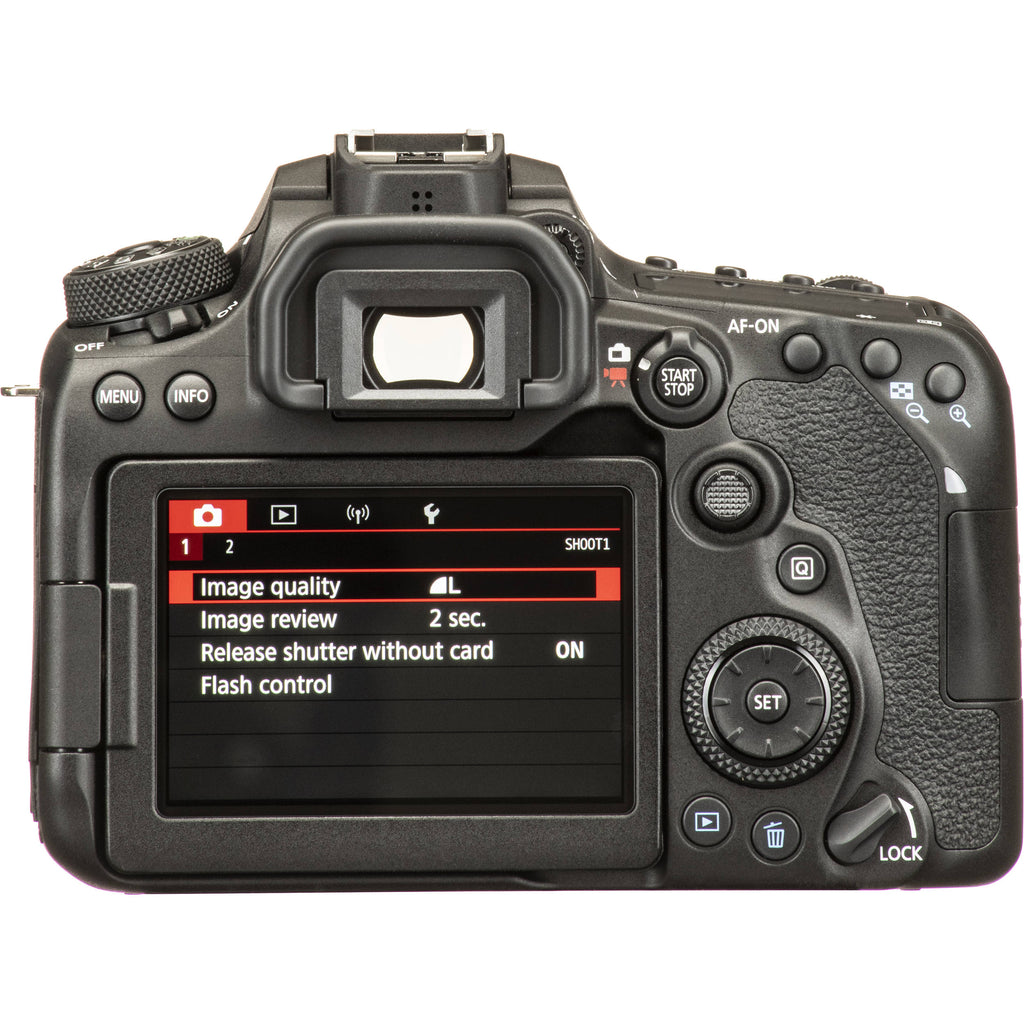

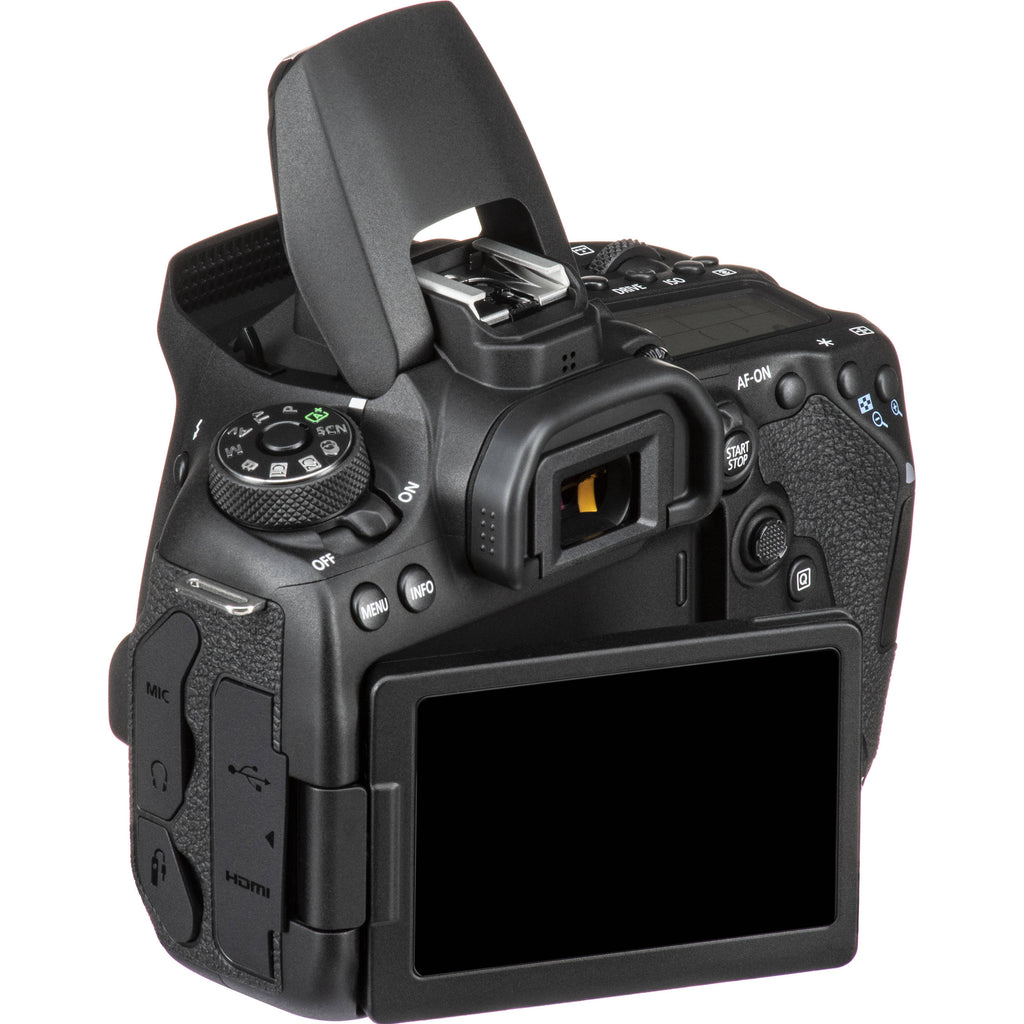

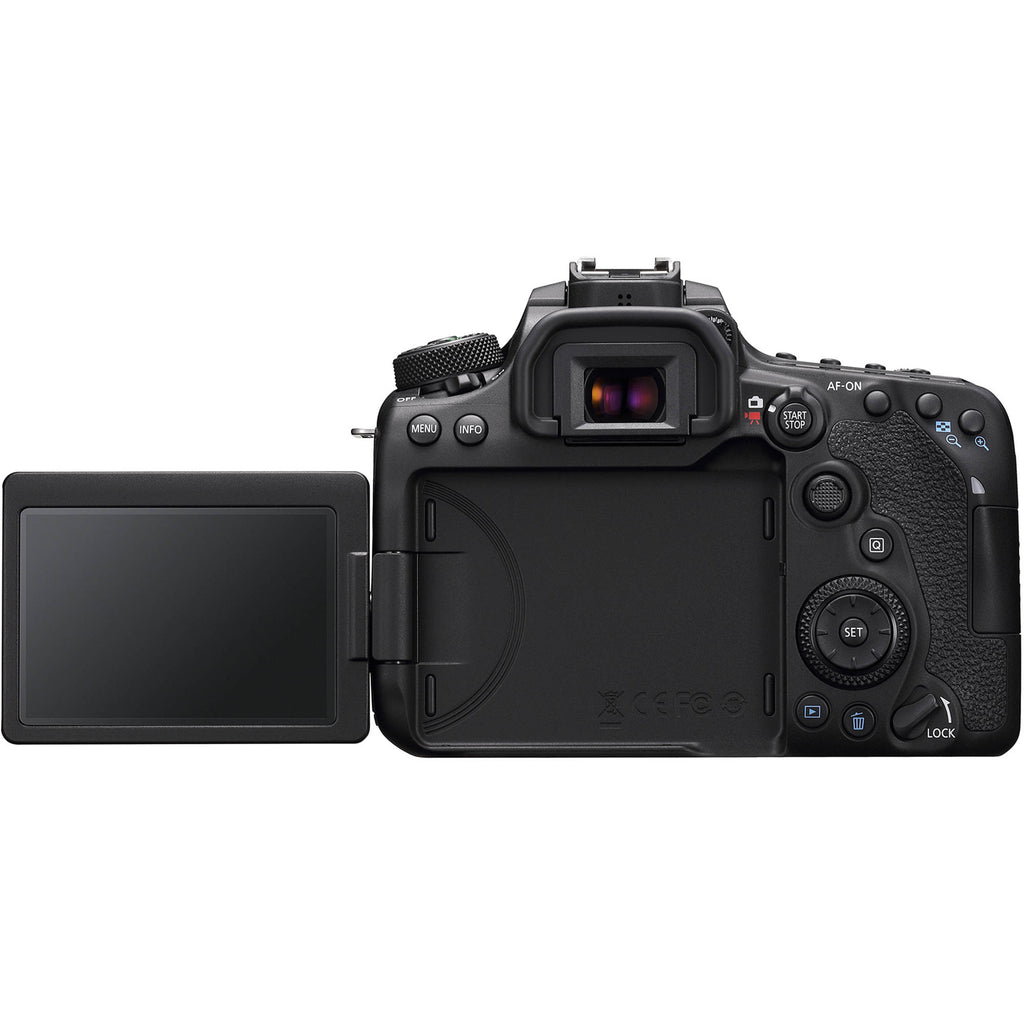

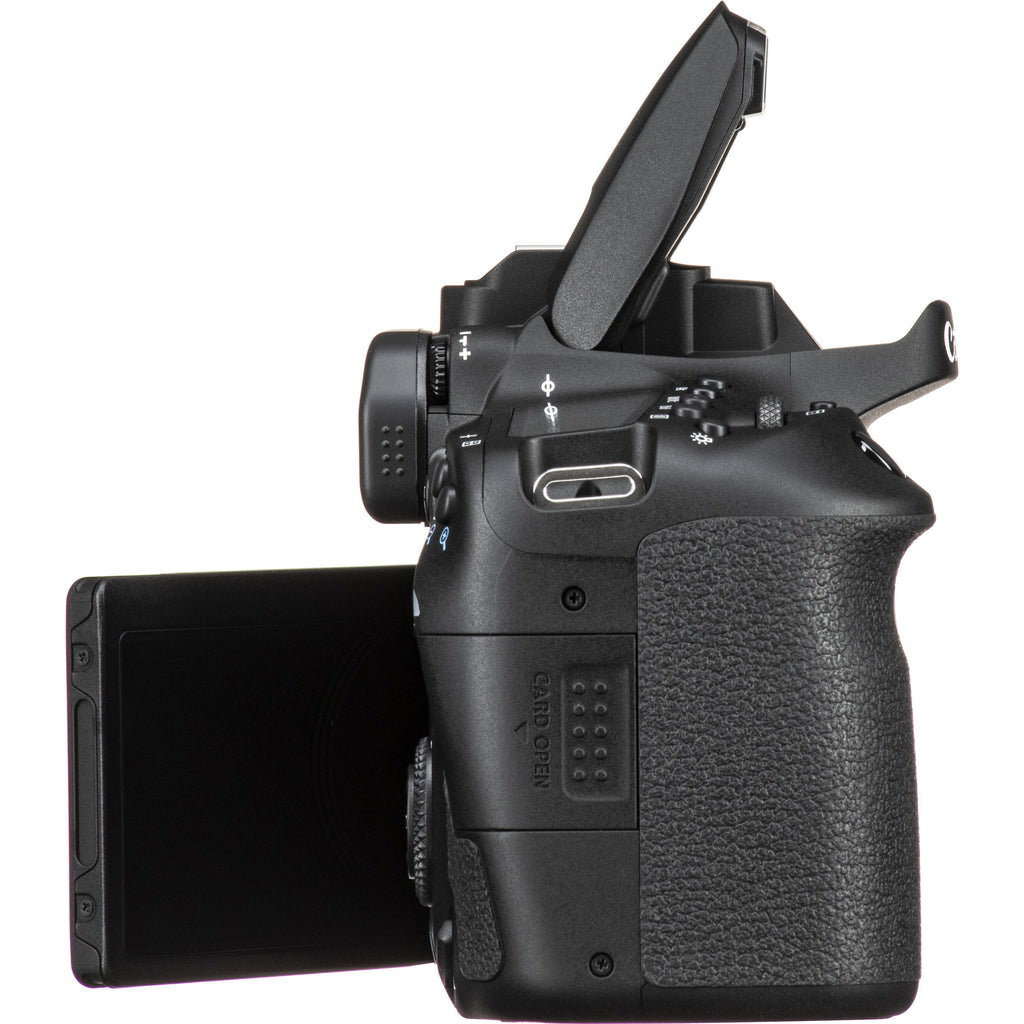

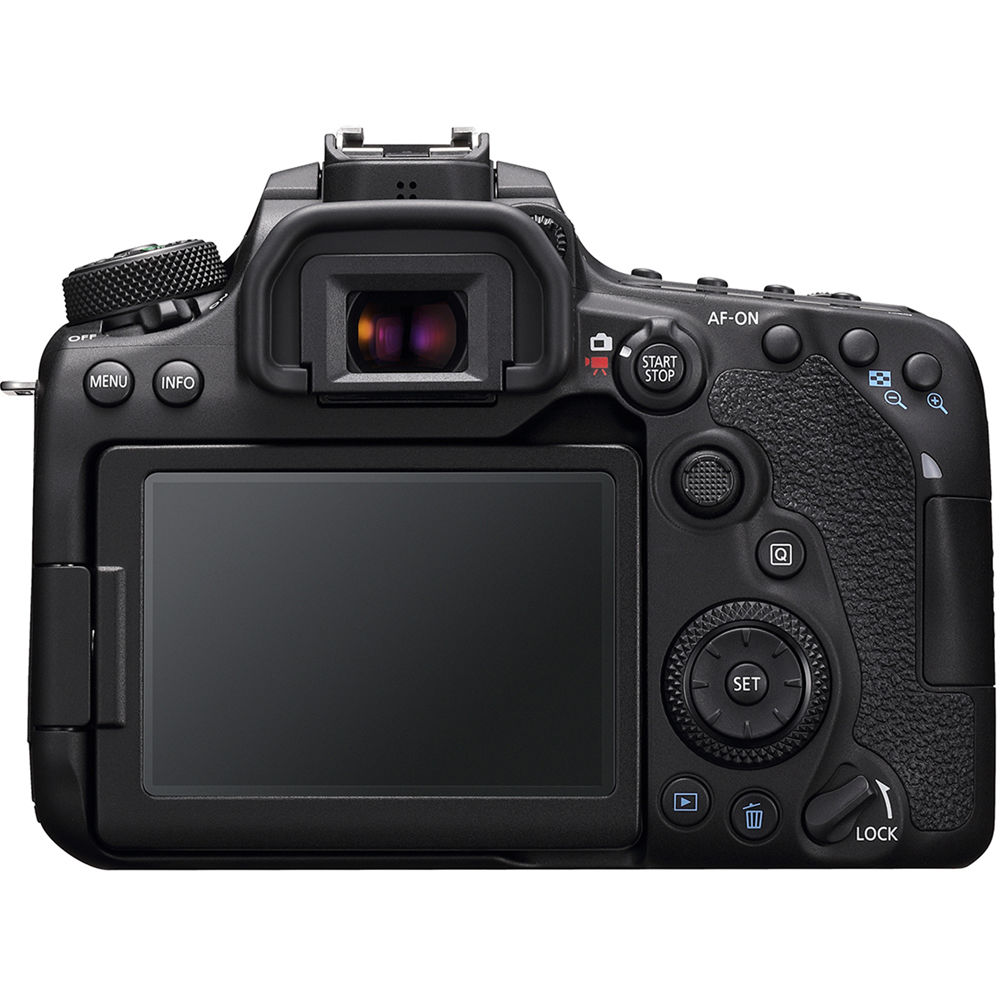

• Touchscreen 3.0" 1.04m-dot LCD monitor features a vari-angle design to permit working from high and low angles and the touchscreen design facilitates intuitive control over menu navigation and touch-to-focus operation.
• The pentaprism type optical viewfinder offers 100% frame coverage for high compositional accuracy when shooting at eye-level. Additionally, further aiding shooting with the viewfinder, AF points and mode, compositional grids, a horizontal electronic level, and other assistive features can be displayed during use.

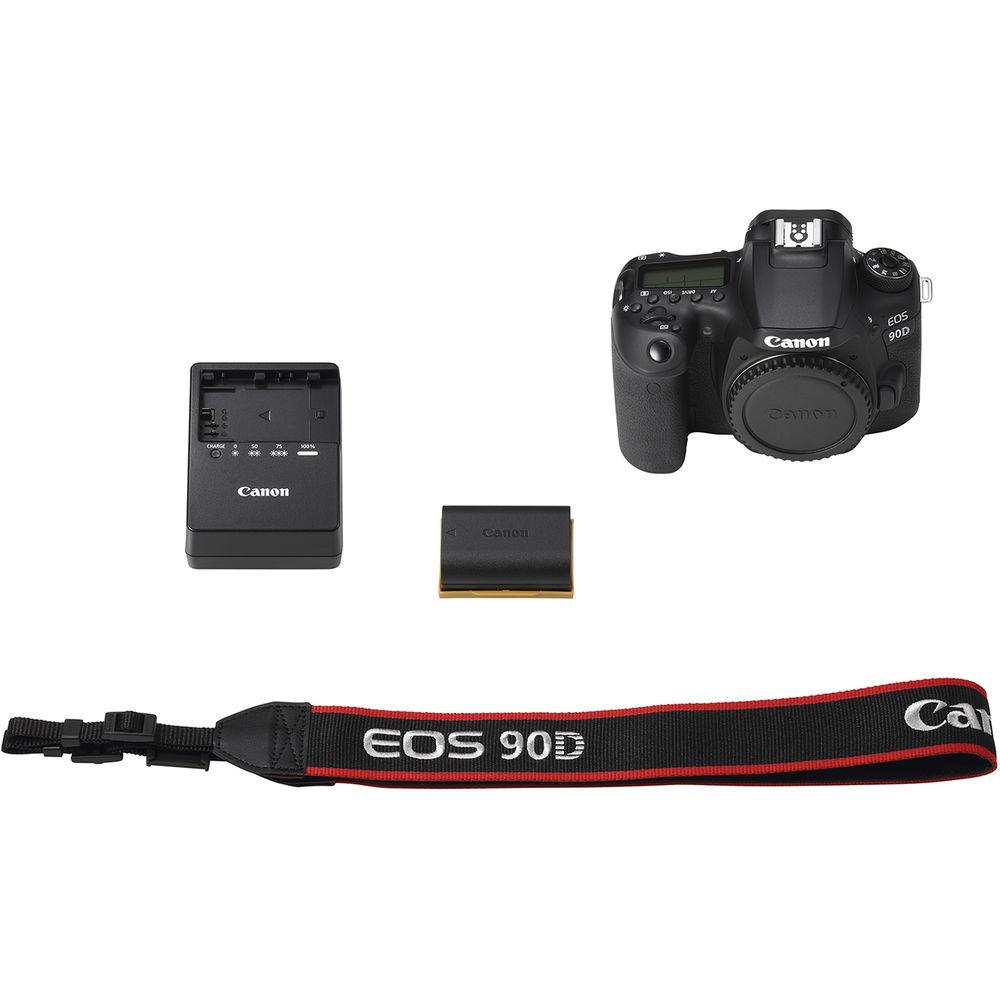

• Included LP-E6N battery provides approximately 1300 shots per charge.
• Built-in Wi-Fi allows for easy wireless sharing of both photos and movies to a linked mobile device and Bluetooth connectivity permits linking a smartphone or tablet for quick image sharing between devices as well as remote control capabilities when using the Canon Camera Connect app. This app also enables a mobile raw-editing workflow for greater post-production freedom.

Other Camera Features

• In-camera 4K time-lapses can be produced, along with 4K frame grabs for effectively shooting 8MP stills at up to 30 fps.
• A revised 220000-pixel AE metering sensor benefits both autofocus and exposure metering precision and enables Color Tracking for more accurately detecting skin colors.
• EOS iTR autofocus provides face detection for refined focus control when shooting portraits.
• Electronic shutter function permits working with shutter speeds up to 1/16000 of a second.

UPC: 013803316186

Depth Rating	200' / 60 m
Controls	Access to All Camera Functions Except Diopter Adjustment, Control Wheel Lock, LCD Illuminating Button, Flash Button, Joystick Up/Down/Left/Right (Joystick Can Be Depressed)
Material of Construction	Polycarbonate and ABS Plastic
External Flash Connector	Ikelite ICS-5 Bulkhead with Manual Hot Shoe Connection
Mounting	1/4"-20 Threaded Mounts with 3.5" / 88.9 mm Spacing for Connecting Included Tray with Left QR Grip
Dimensions	9.0 x 7.0 x 6.5" / 22.9 x 17.8 x 16.5 cm
Buoyancy	Slightly Positive in Fresh Water Varies Depending on Choice of Lens and Port
Weight	4.7 lb / 2.1 kg

Package Weight	6.59 lb
Box Dimensions (LxWxH)	14.9 x 9.5 x 7.7"

Lens Mount	Canon EF-S
Camera Format	APS-C (1.6x Crop Factor)
Sensor Resolution	Actual: 34.4 Megapixel Effective: 32.5 Megapixel
Maximum Resolution	6960 x 4640
Aspect Ratio	1:1, 3:2, 4:3, 16:9
Sensor Type	CMOS
Sensor Size	22.3 x 14.8 mm
Image File Format	JPEG, Raw
Bit Depth	14-Bit
Image Stabilization	Digital (Video Only)

ISO Sensitivity	Auto, 100 to 25600 (Extended: 100 to 51200)
Shutter Speed	Mechanical Shutter 1/8000 to 30 Second Bulb Mode Electronic Shutter 1/16000 to 30 Second
Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
Metering Range	1 to 20 EV
White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
Continuous Shooting	Up to 10 fps at 32.5 MP for up to 25 Frames (Raw) / 58 Frames (JPEG) Up to 11 fps at 32.5 MP Up to 7 fps at 32.5 MP
Interval Recording	Yes
Self-Timer	2/10-Second Delay
Mirror Lock-Up	Yes

Recording Modes	MP4/H.264 UHD 4K (3840 x 2160) at 23.976p/25p/29.97p Full HD (1920 x 1080) at 23.976p/25p/29.97p/50p/59.94p/100p/119.88p HD (1280 x 720) at 50p/59.94p
External Recording Modes	4:2:2 8-Bit UHD 4K (3840 x 2160) up to 25p/29.97p
Recording Limit	Up to 29 Minutes, 59 Seconds
Video Encoding	NTSC
Audio Recording	Built-In Microphone (Stereo) External Microphone Input (Stereo)
Audio File Format	AAC

Focus Type	Auto and Manual Focus
Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
Autofocus Points	Phase Detection: 45 (45 Cross-Type) Phase Detection: 5481
Autofocus Sensitivity	-3 to +18 EV

Viewfinder Type	Optical (Pentaprism)
Viewfinder Eye Point	22 mm
Viewfinder Coverage	100%
Viewfinder Magnification	Approx. 0.95x
Diopter Adjustment	-3 to +1
Size	3"
Resolution	1,040,000 Dot
Display Type	Articulating Touchscreen LCD

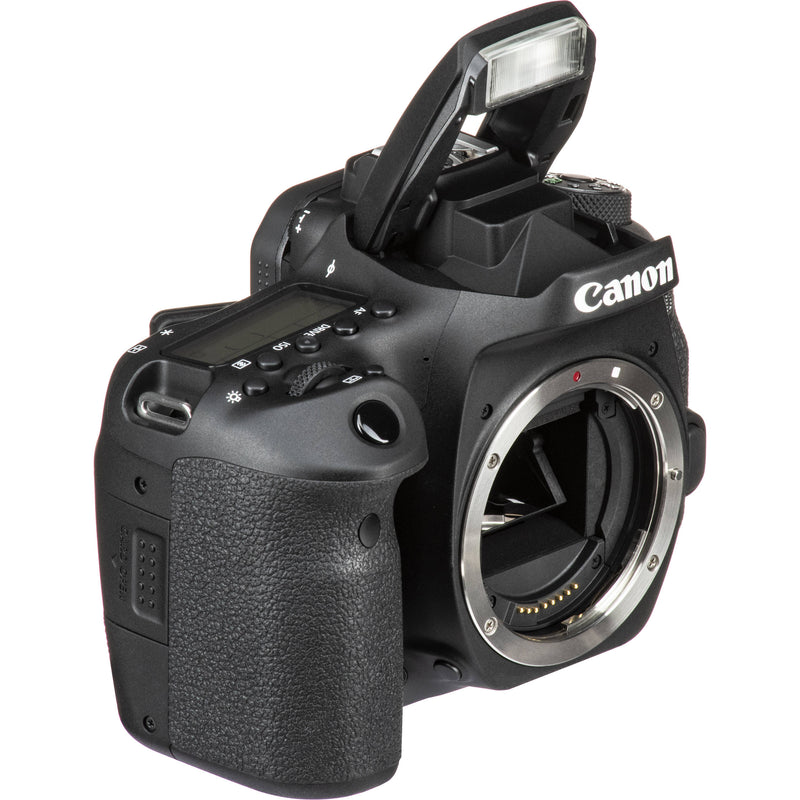

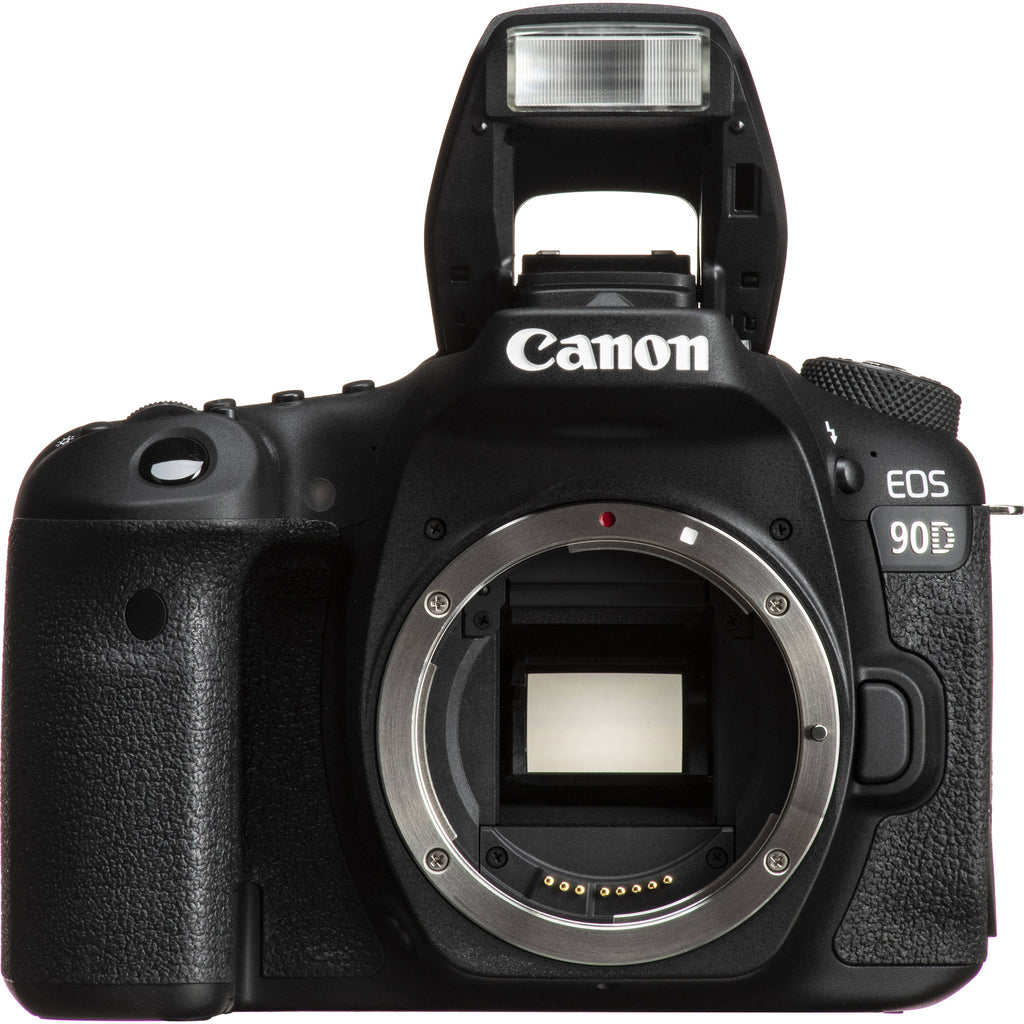

Built-In Flash	Yes
Flash Modes	Auto, Manual
Guide Number	39.37' / 12 m at ISO 100
Maximum Sync Speed	1/250 Second
Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
Dedicated Flash System	eTTL
External Flash Connection	Hot Shoe

Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC (UHS-II)

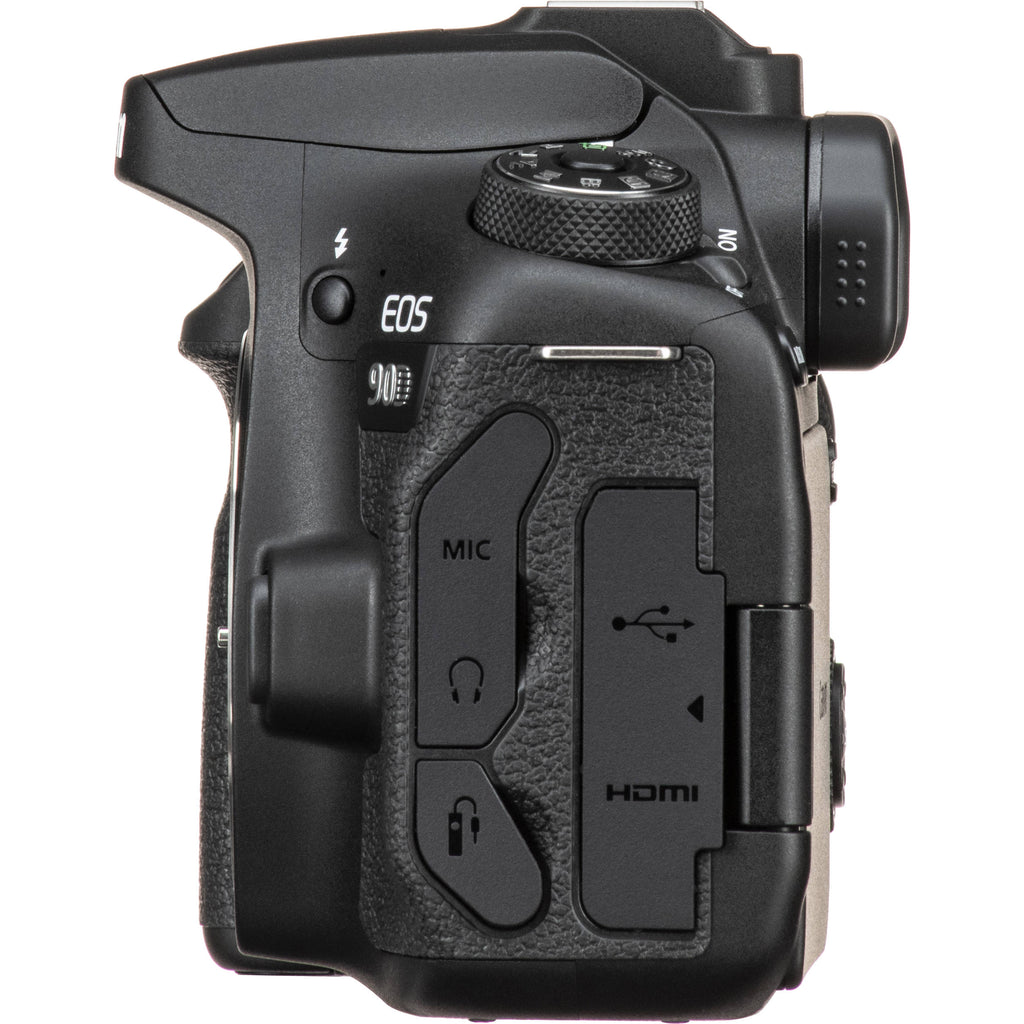

Connectivity	3.5mm Headphone , 3.5mm Microphone , HDMI C (Mini) , USB Micro-B (USB 2.0)
Wireless	Bluetooth Wi-Fi
GPS	None

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	0 to 85%

Battery	1 x LP-E6N Rechargeable Lithium-Ion, 7.2 VDC, 1865 mAh (Approx. 1300 Shots)
Dimensions (W x H x D)	5.54 x 4.13 x 3.02" / 140.7 x 104.8 x 76.8 mm
Weight	1.54 lb / 701 g (Body Only)

Package Weight	3.3 lb
Box Dimensions (LxWxH)	11 x 9 x 4.8"
