Description
Ikegami VFL-201A Overview

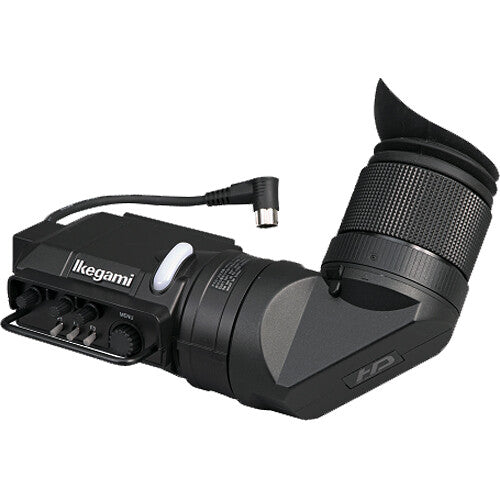

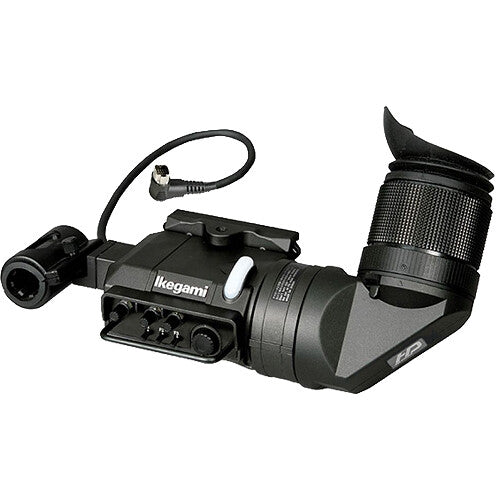

The 2" HDTV Color LCD Viewfinder for HDK Series Cameras from Ikegami supports HD video resolutions up to 1080i60 and 1080p30. It features a QHD LCD with 960 x 540 resolution and a built-in heater that eliminates image deterioration due to low ambient temperatures. An innovative sensor detects when a function switch is touched, displaying the function name on the screen for easier adjustments. Image controls include zoom-synced peaking, color peaking, 8-bit color, image magnification, and marker selection.
In the Box
- Ikegami 2" HDTV Color LCD Viewfinder for HDK Series Cameras
- Limited 1-Year Manufacturer Warranty
Ikegami VFL-201A Specs
Key Specs
| Panel Type |
LCD
|
| Display Size |
2.0" / 5.1 cm
|
| Screen Resolution |
960 x 540
|
| Image Controls |
Focus Peaking, Pixel Zoom, Screen Markers
|
| Power Consumption |
4.1 W
|
Display
| Color/Monochrome |
Color
|
| Panel Type |
LCD
|
| Display Size |
2.0" / 5.1 cm
|
| Active Area |
1.76 x 0.99" / 44.64 x 25.11 mm
|
| Screen Resolution |
960 x 540
|
| Aspect Ratio |
1.78:1
|
| Viewing Angle |
Horizontal: 45°
Vertical: 45° |
| Touchscreen |
No
|
| Maximum Brightness |
220 nits / cd/m2
|
| Contrast Ratio |
200:1
|
| Dot Pitch |
0.0155 x 0.0465 mm
|
| Bit Depth / Color Support |
8-Bit (16.7 Million Colors)
|
| Pixels Per Inch (ppi) |
551 ppi
|
| Color Gamut |
100% sRGB
|
| Image Controls |
Focus Peaking, Pixel Zoom, Screen Markers
|
Power
| DC Input Power |
10.5 to 18 VDC
|
| Power Consumption |
4.1 W
|
Environmental
| Certifications |
FCC Class-A, EN 55032 Class-A, EN 55103-2 E4, RoHS
|
| Operating Humidity |
20 to 85%
|
| Operating Temperature |
-4 to 113°F / -20 to 45°C
|
| Storage Humidity |
20 to 85% (Non-Condensing)
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
General
| Dimensions |
8.9 x 6.1 x 3" / 225 x 155 x 76 mm
|
| Weight |
1.7 lb / 780 g
|
