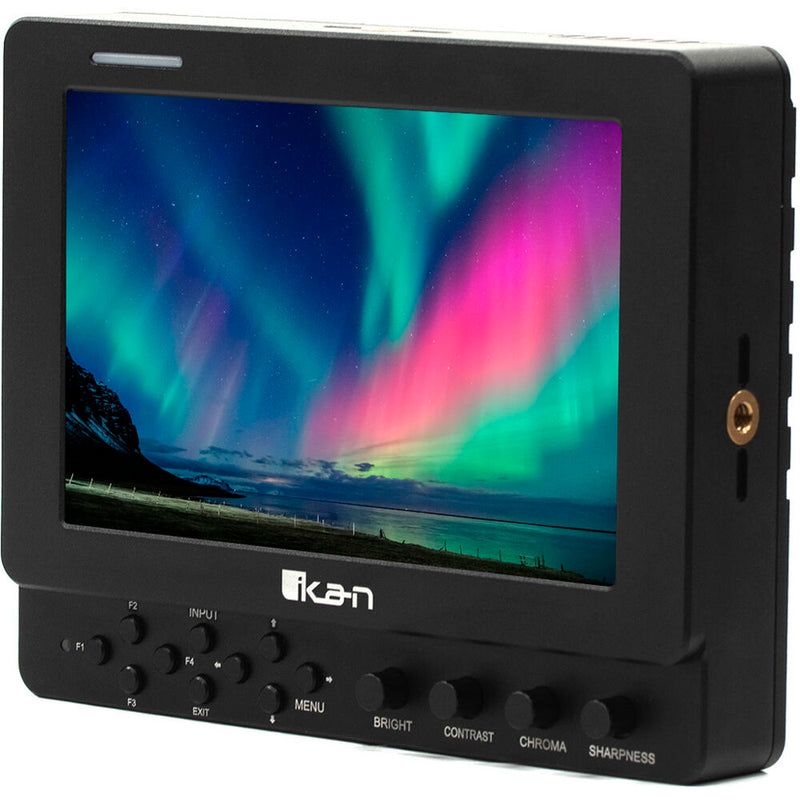

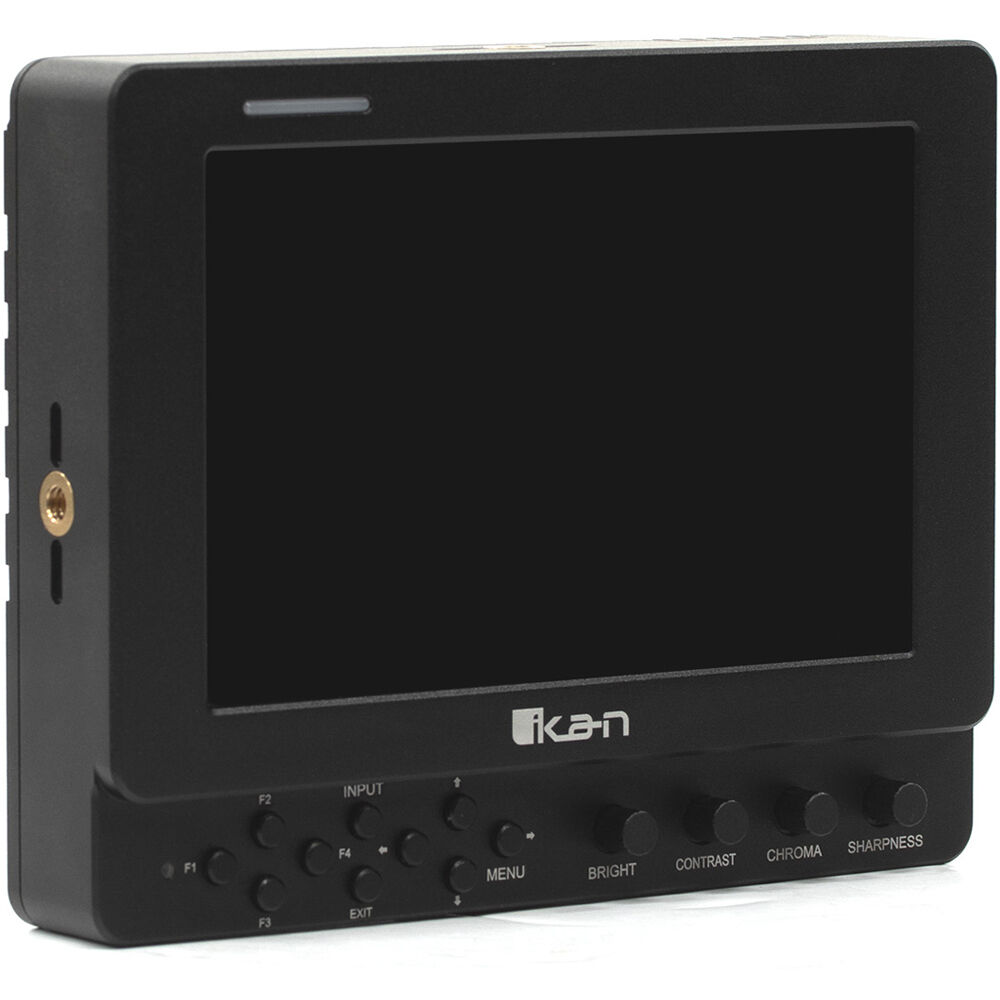

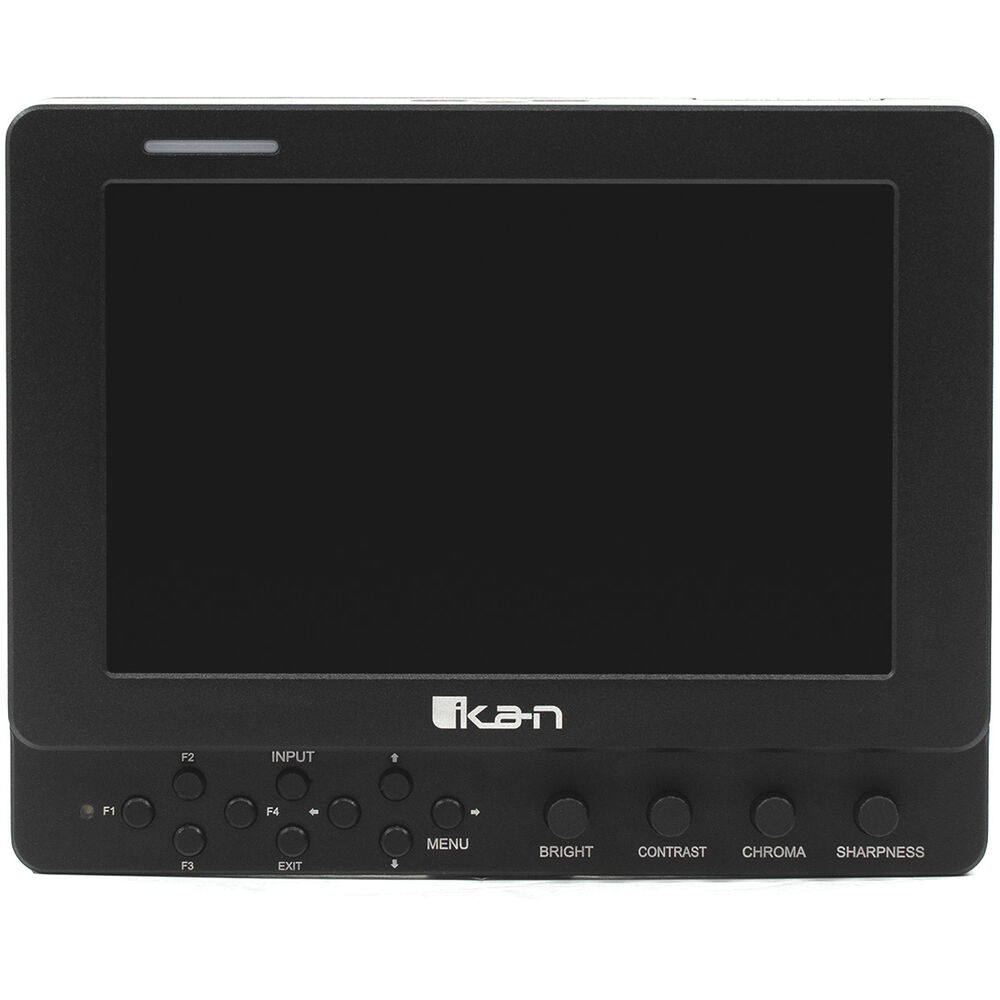

ikan VXF7 7" HDMI/SDI On-Camera Monitor V2 with Tally

7" 1920 x 1200 IPS LCD Display

RJ45 Tally Input with Front/Rear LEDs

3G-SDI and HDMI I/O, 3.5mm Audio Output

4K, HD, and SD Resolution Support

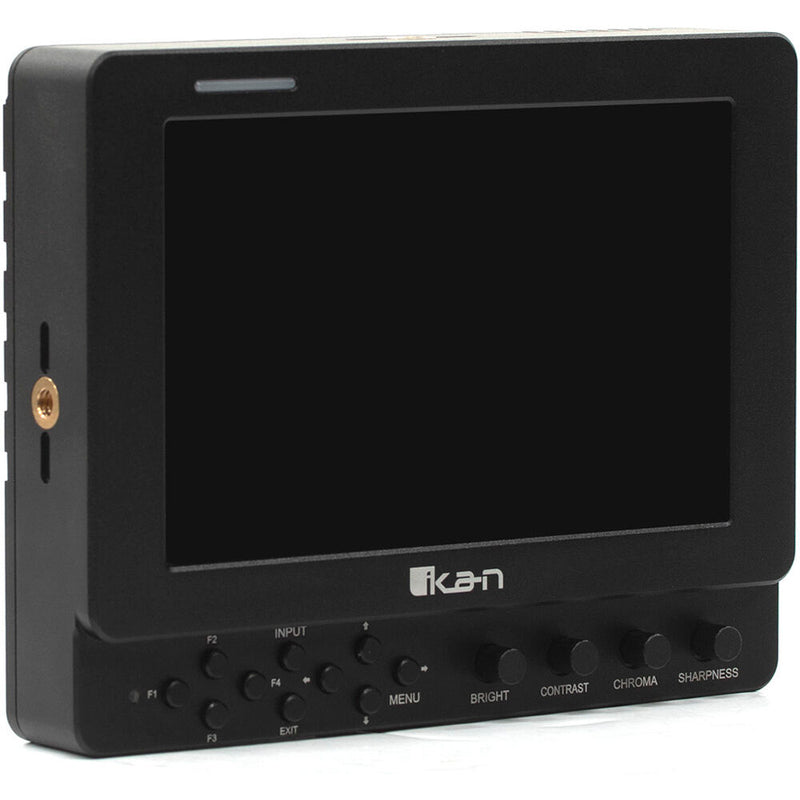

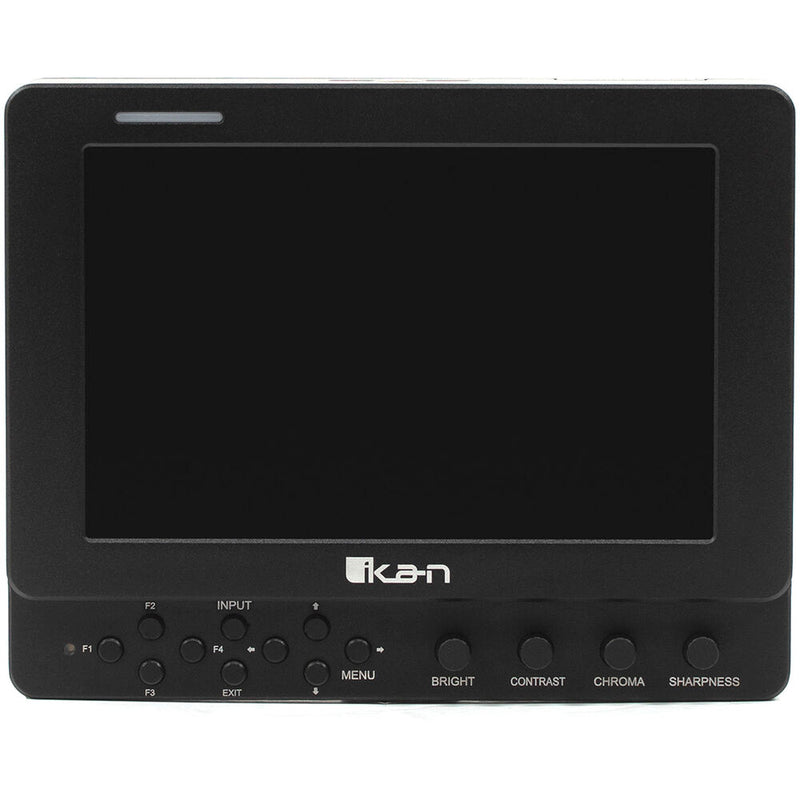

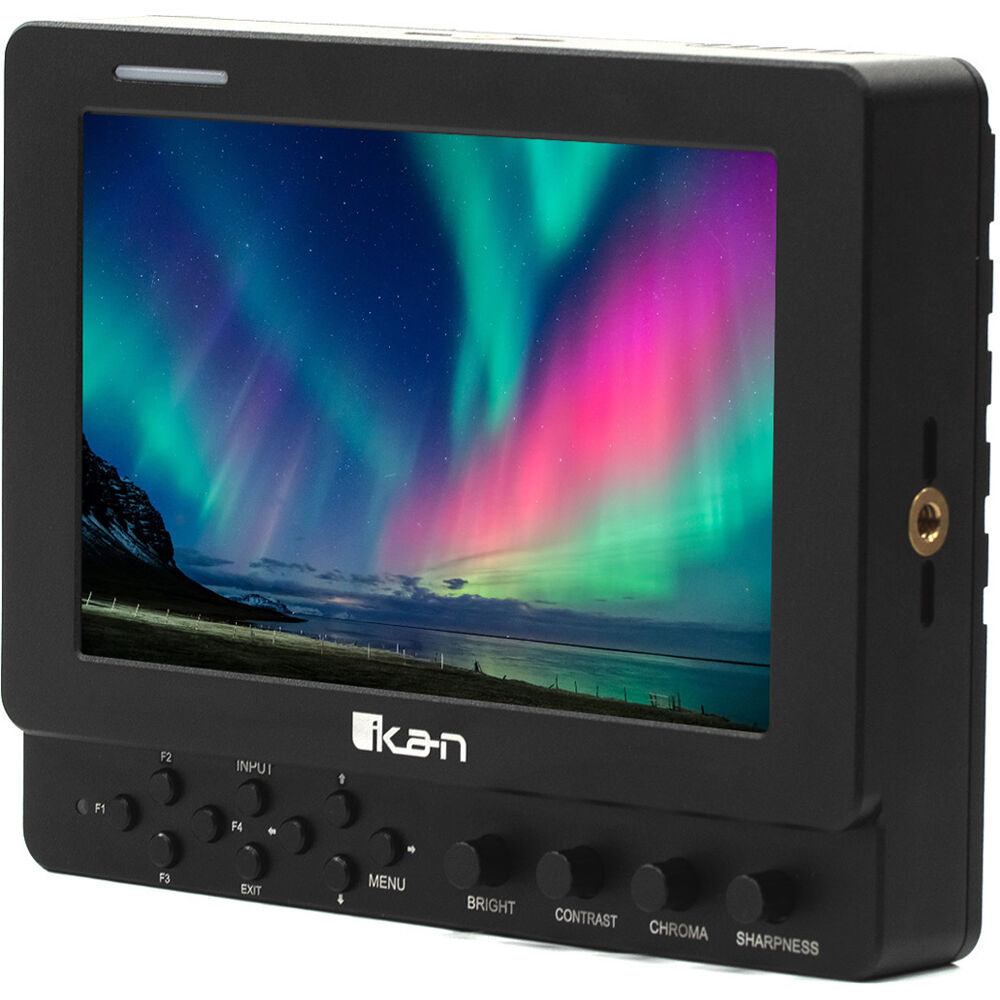

Supporting 4K and HD workflows, the VXF7 7" HDMI/SDI On-Camera Monitor V2 with Tally from ikan is a versatile on-camera monitor for any field production. The monitor features a 1920 x 1200 resolution LED LCD panel with 450 cd/m² brightness, an 800:1 contrast ratio, and a rugged aluminum housing. DCI and UHD 4K signals are supported via HDMI only, while HD or SD signals can be input through 3G-SDI and HDMI inputs. There are also HDMI and 3G-SDI loop-through outputs to send the signal onto another monitor or equipment.

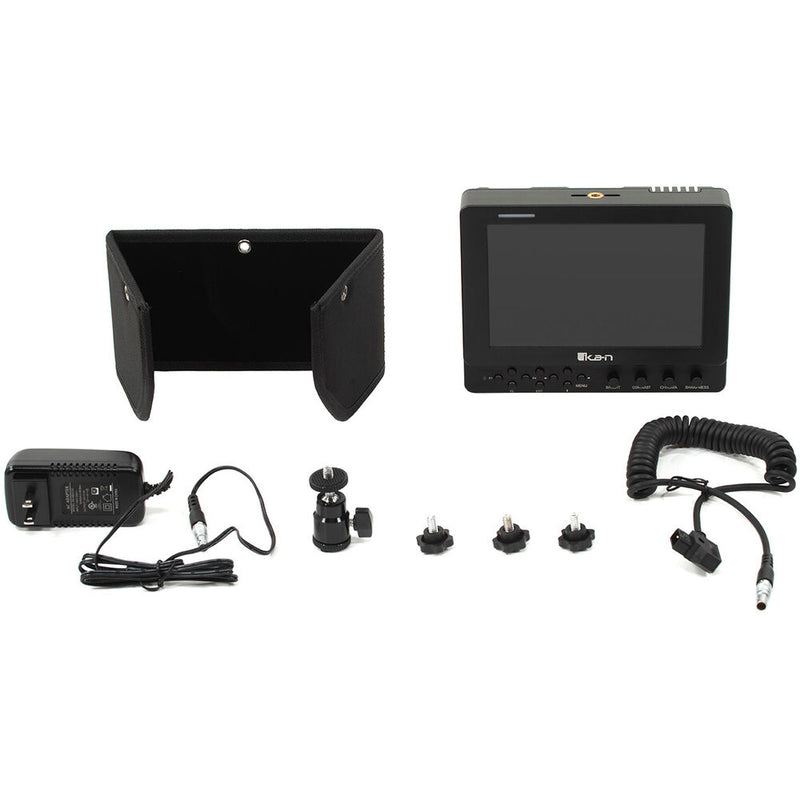

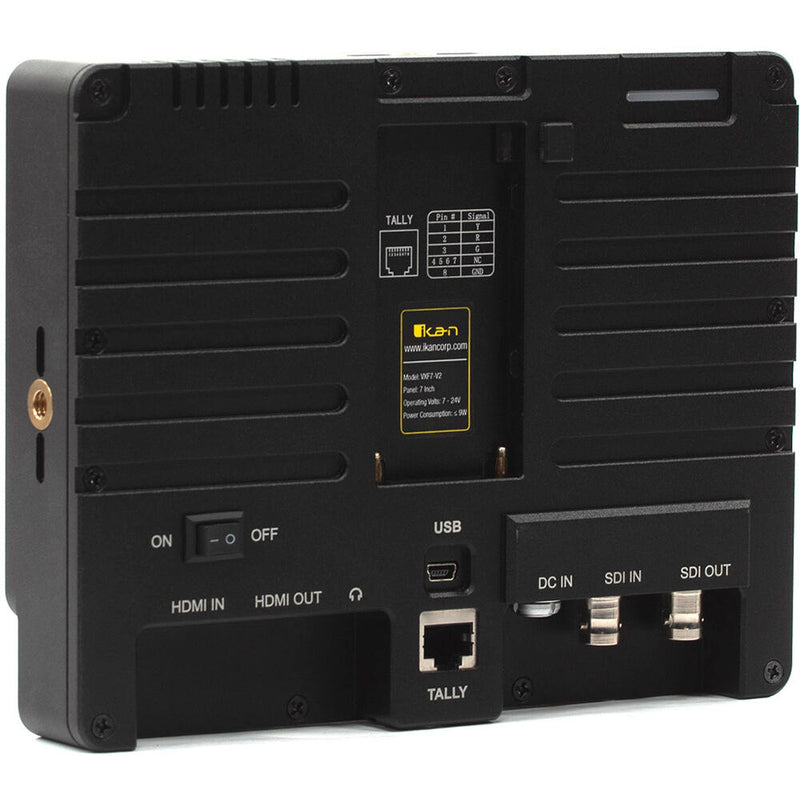

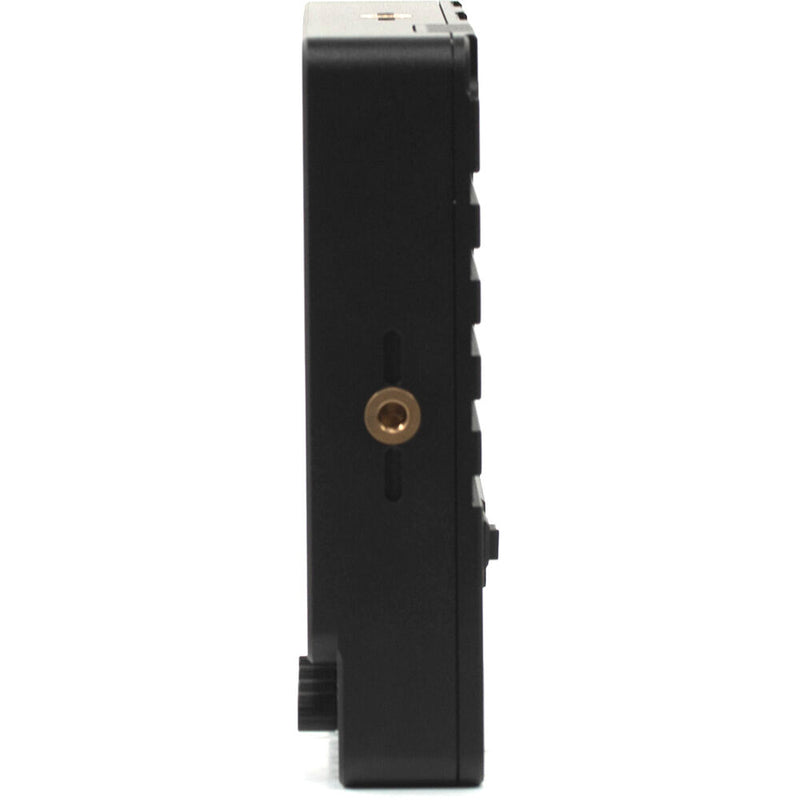

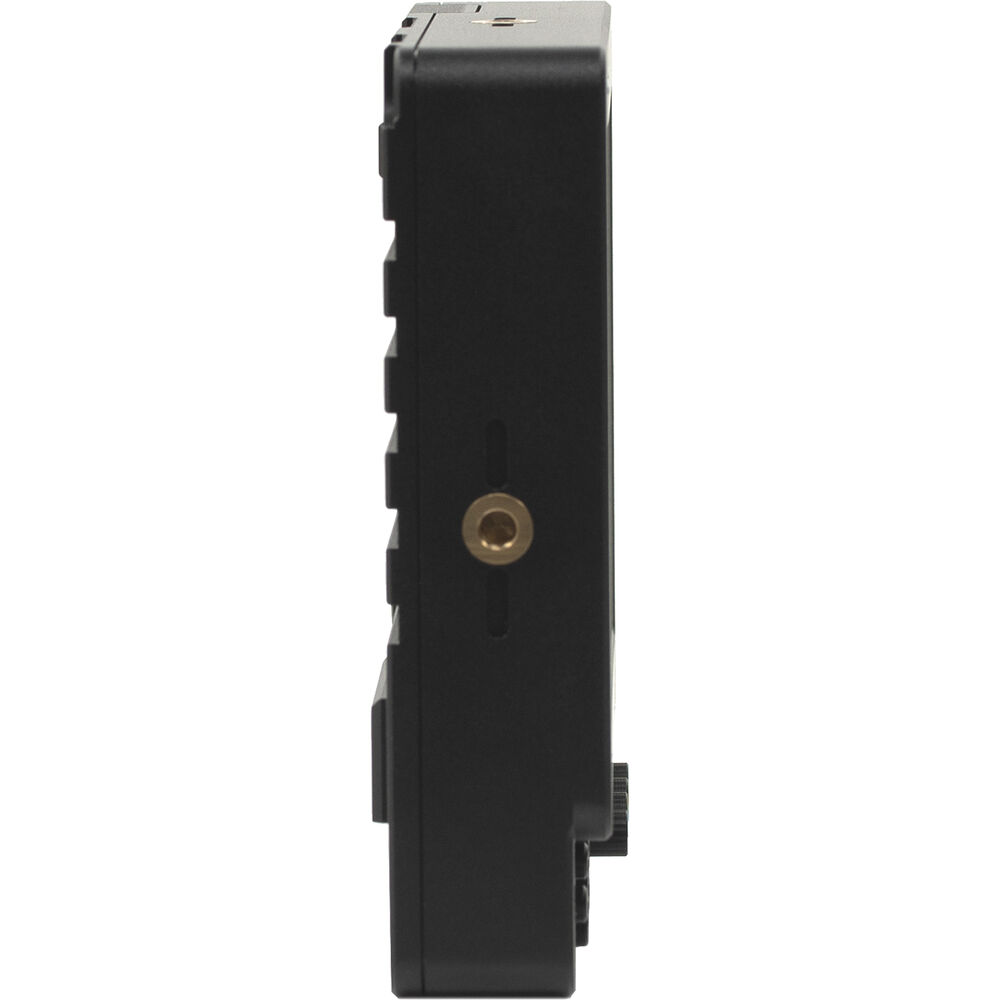

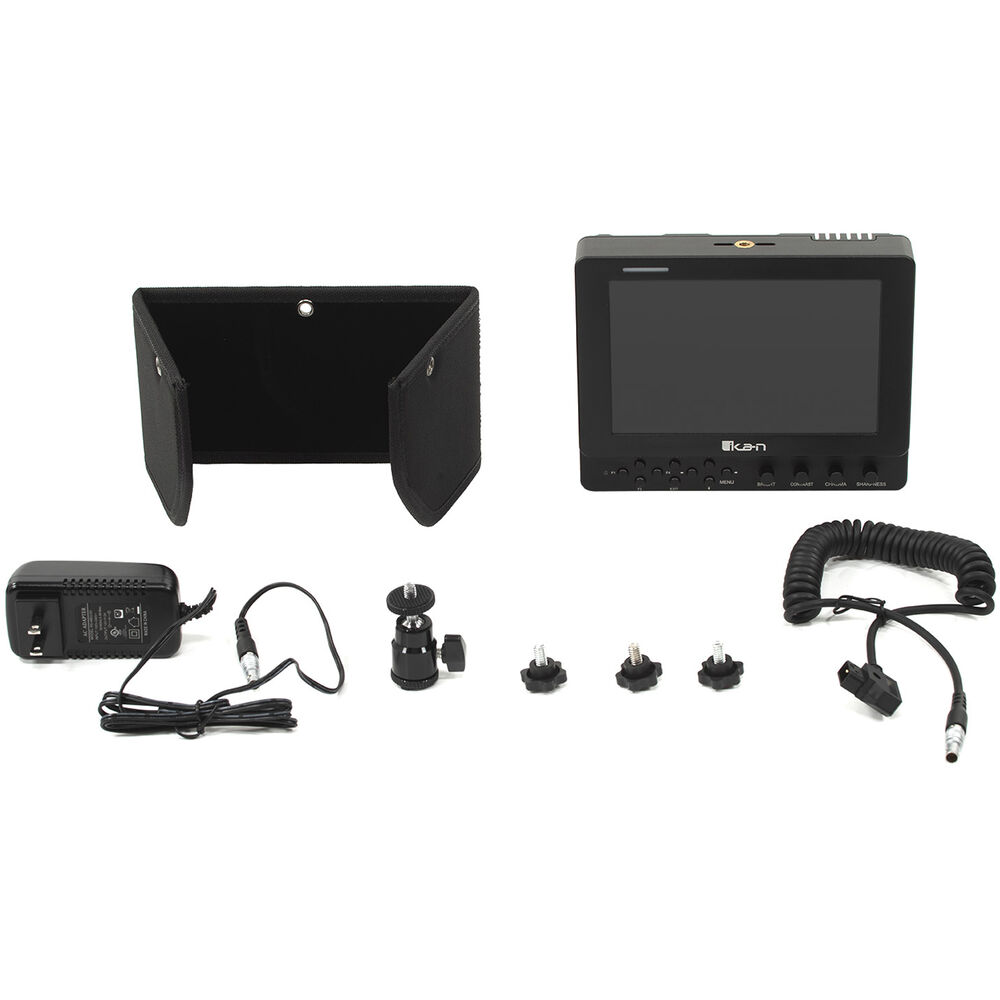

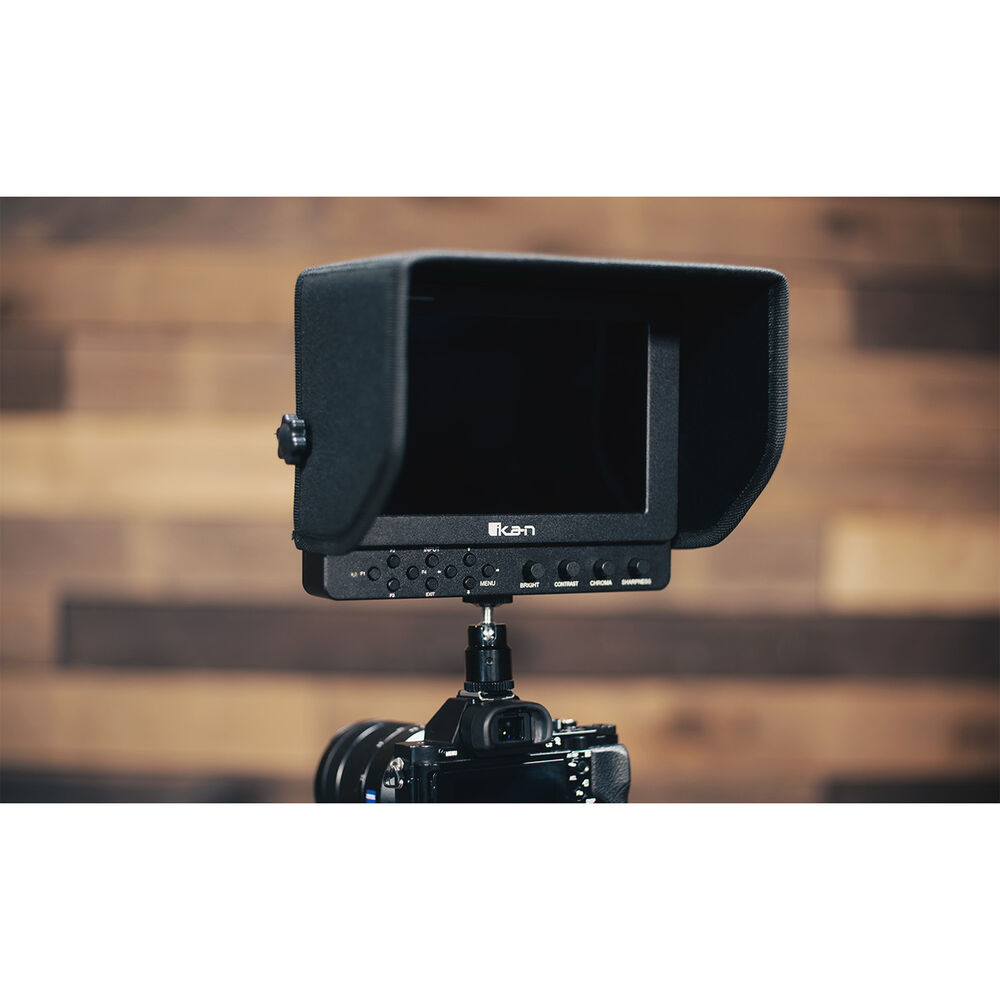

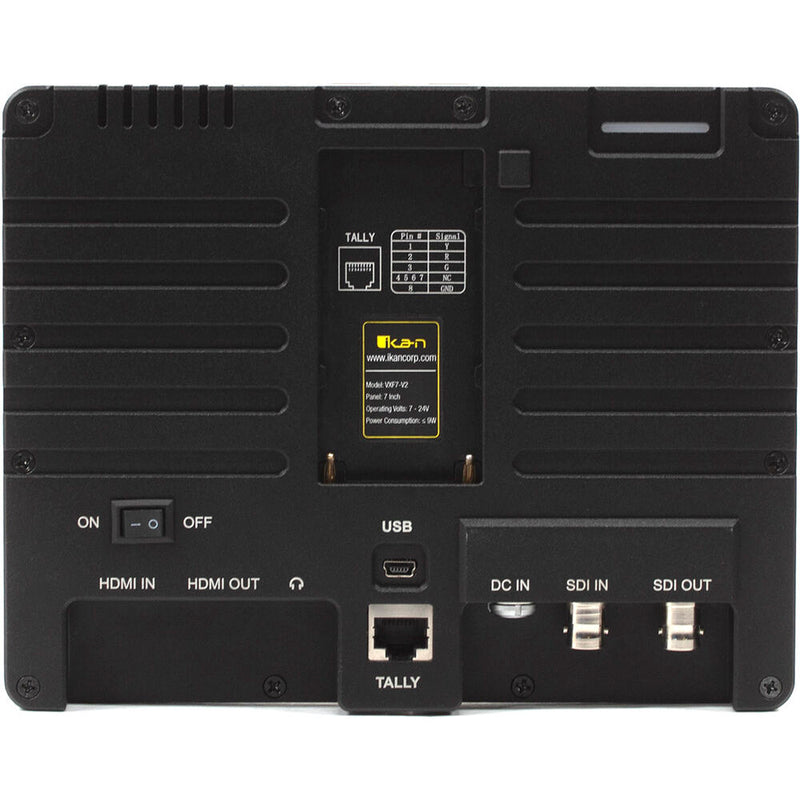

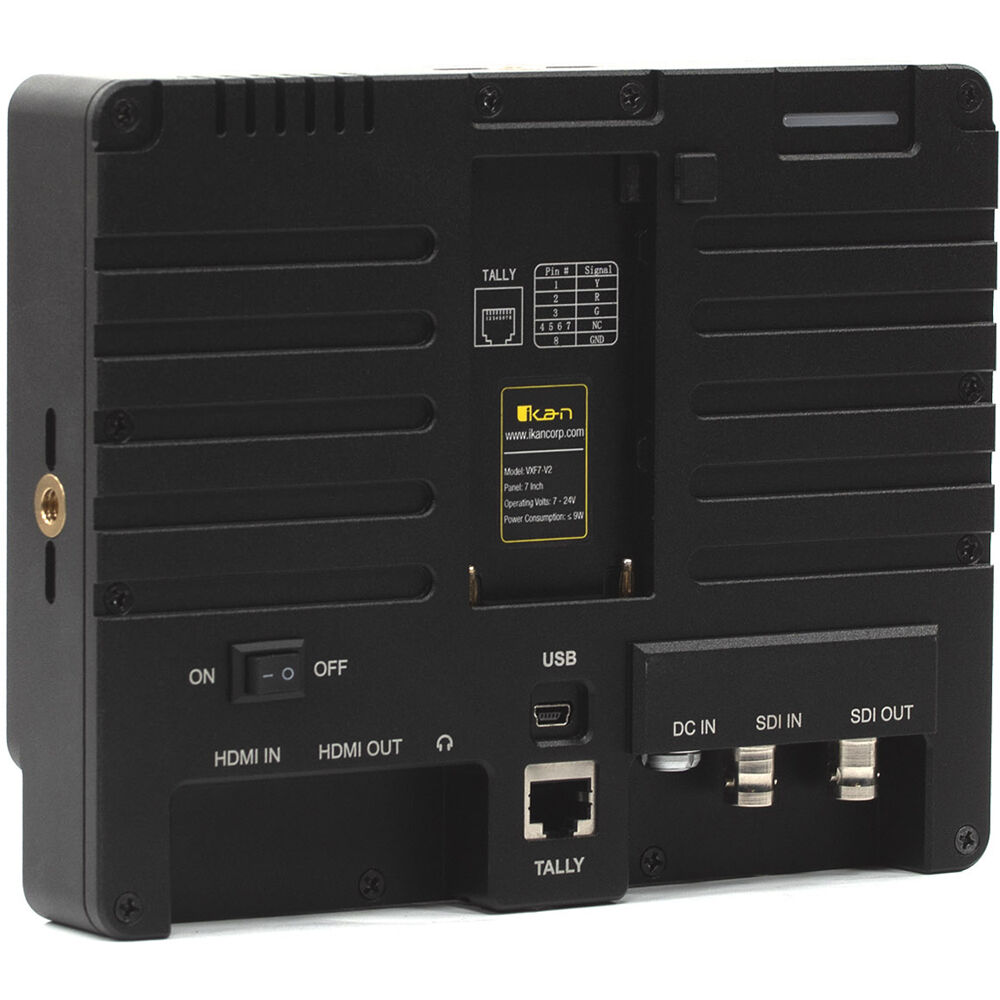

The VXF7 V2 supports tally lights via its RJ45 connector, and it has three LEDs on the front and rear that display red, green, and yellow tally lights. It can be powered via the included AC adapter, via a D-Tap power source with the included D-Tap cable, or by using a separately available L-series battery via the plate on the rear of the monitor. There are four 1/4"-20 threads around the monitor, so you can mount it in a variety of configurations. A shoe adapter is included for mounting the monitor on top of your camera, rig, or cage that features a shoe mount.

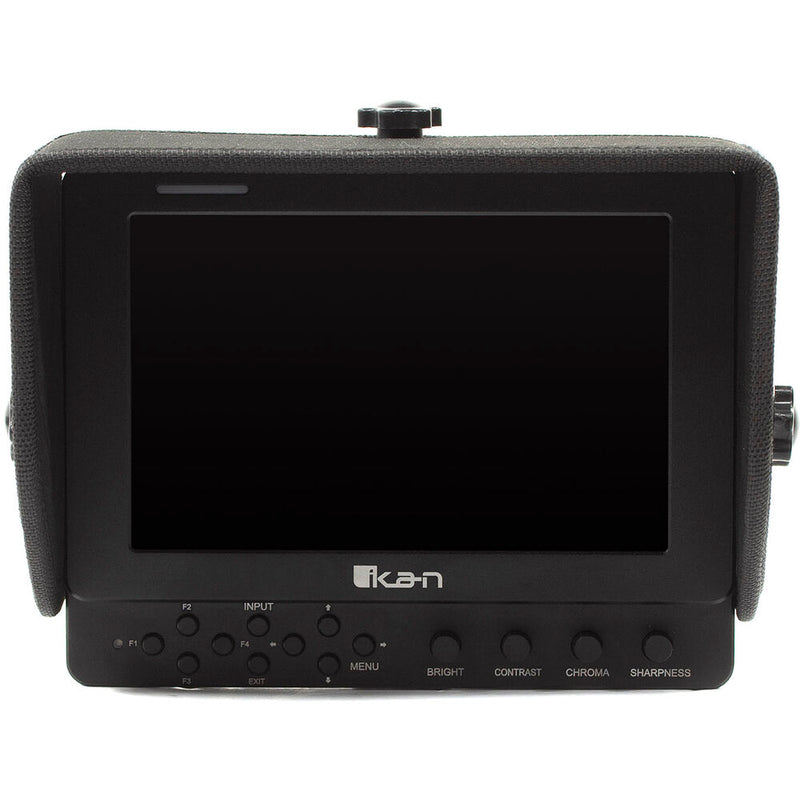

The 3.5mm audio headphone output allows you to monitor the embedded audio from your HDMI or SDI video. The monitor also features numerous image monitoring tools such as 1.33x anamorphic de-squeeze, waveform, histogram, peaking, pixel zoom, guides, markers, audio metering, and many more. A sun hood is also included with the monitor to prevent glare when using the monitor outdoors.

7" 1920 x 1200 IPS LCD on-camera monitor Three tally indicator LEDs on the front and rear (green, red, yellow) 4K input via HDMI, 1080p input via 3G-SDI HDMI and 3G-SDI loop-through output L-series battery plate on the back Supports real-time anamorphic de-squeeze with a squeeze of 1.33x Image features such as waveform, false color, peaking, zebra, pixel-to-pixel, zooming, clip guides, audiometer Constructed with durable aluminum Four 1/4"-20 threads around the body for mounting A shoe adapter, AC power adapter, and D-Tap cable are included UPC: 847983031627

Number of Displays	1
Panel Type	IPS-Type LCD
Display Size	7.0" / 17.8 cm
Screen Resolution	1920 x 1200
Aspect Ratio	16:10
Viewing Angle	Horizontal: 178° (89/89) Vertical: 178° (89/89)
Touchscreen	No
Maximum Brightness	450 cd/m 2
Contrast Ratio	800:1
Bit Depth / Color Support	8-Bit (16.7 Million Colors)
Pixels Per Inch (ppi)	323 ppi
Image Controls	False Color, Focus Peaking, Histogram, Image Flip, Marker Color, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra

Video	1 x BNC (3G-SDI) Output 1 x HDMI Type A Output 1 x BNC (3G-SDI) Input 1 x HDMI Type A Input
Embedded Audio	HDMI/SDI
Audio	1 x 3.5 mm Headphone Output
Built-In Speaker	None
Other I/O	1 x Tally (RJ45) Input 1 x USB 2.0 (Mini-USB) Input
Card Slot	None
Wi-Fi	None

Video Format

SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i 576i HDMI DCI 4K: 24 UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60 576i 480i

DC Input Power	7 to 24 VDC
Battery Type	1 x L-Series
Power Consumption	9 W

Mounting

4 x 1/4"-20 Female

Operating Temperature

32 to 122°F / 0 to 50°C

Material of Construction	Aluminum
Dimensions (W x H x D)	7.36 x 5.6 x 1.3" / 186.94 x 142.2 x 33 mm
Weight	1.5 lb / 680 g
Warranty Length	Limited 1-Year Warranty

Package Weight	3.82 lb
Box Dimensions (LxWxH)	11.7 x 8.8 x 2.8"
