Description
ikan VXF7 Overview

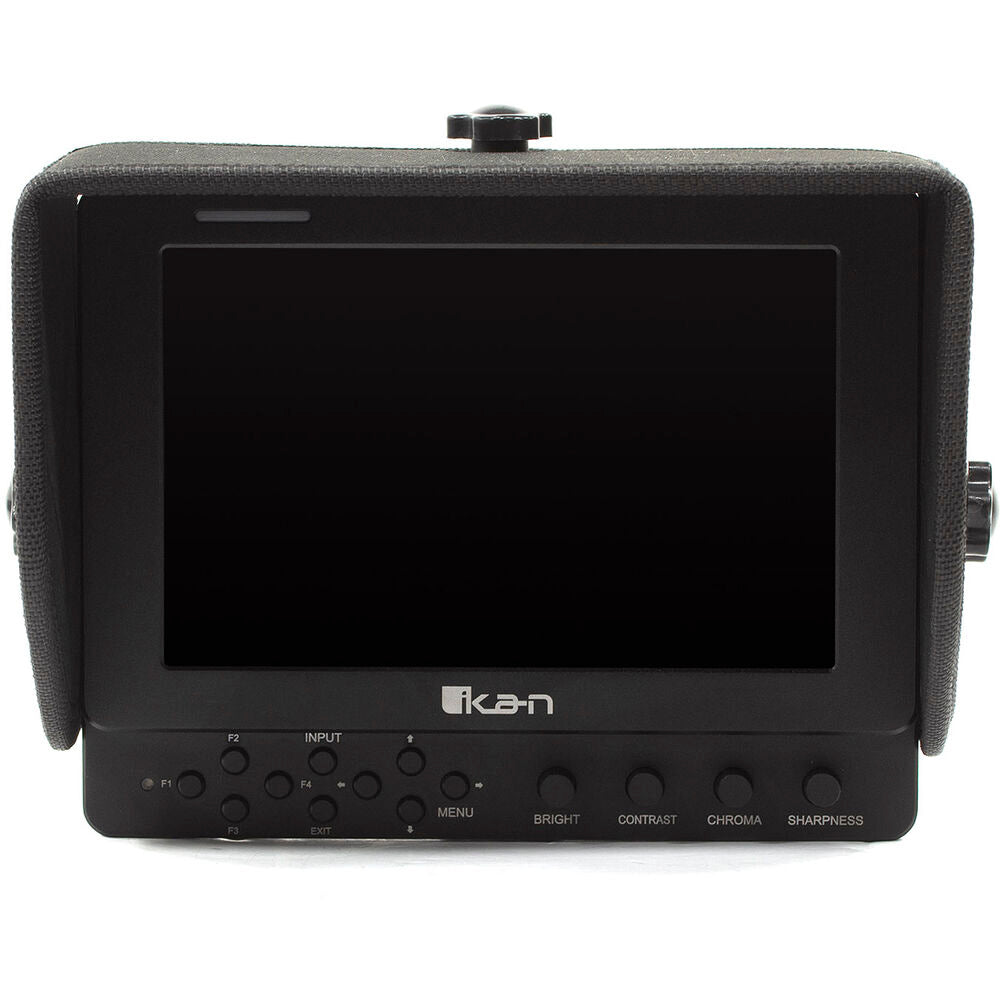

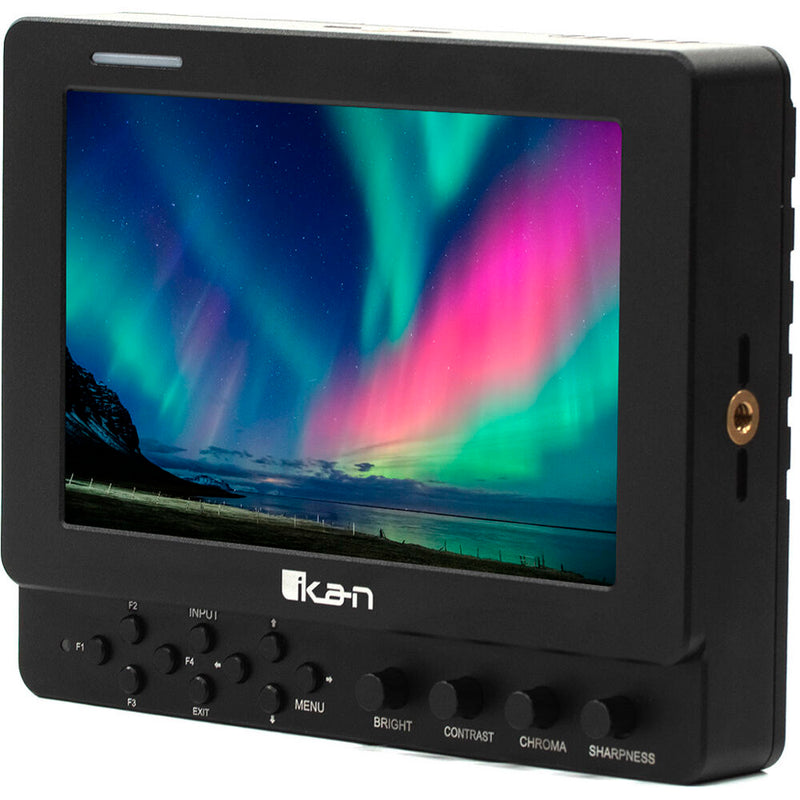

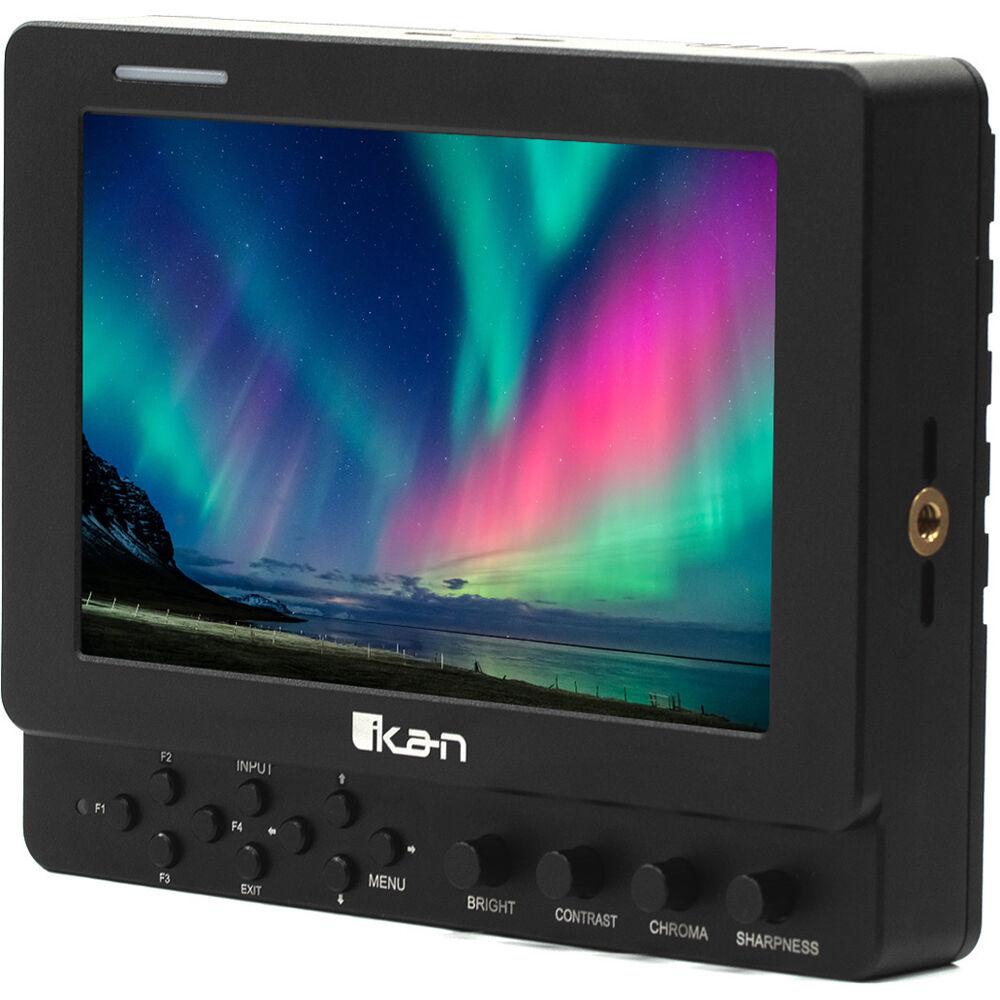

Supporting 4K and HD workflows, the VXF2-V2 4K HDMI/3G-SDI On-Camera Monitor with Tally Deluxe Kit v2 from ikan is a versatile on-camera monitor for any field production. The monitor features a 1920 x 1200 resolution LED LCD panel with 450 cd/m² brightness, an 800:1 contrast ratio, and a rugged aluminum housing. DCI and UHD 4K signals are supported via HDMI only, while HD or SD signals can be input through 3G-SDI and HDMI inputs. There are also HDMI and 3G-SDI loop-through outputs to send the signal onto another monitor or equipment.

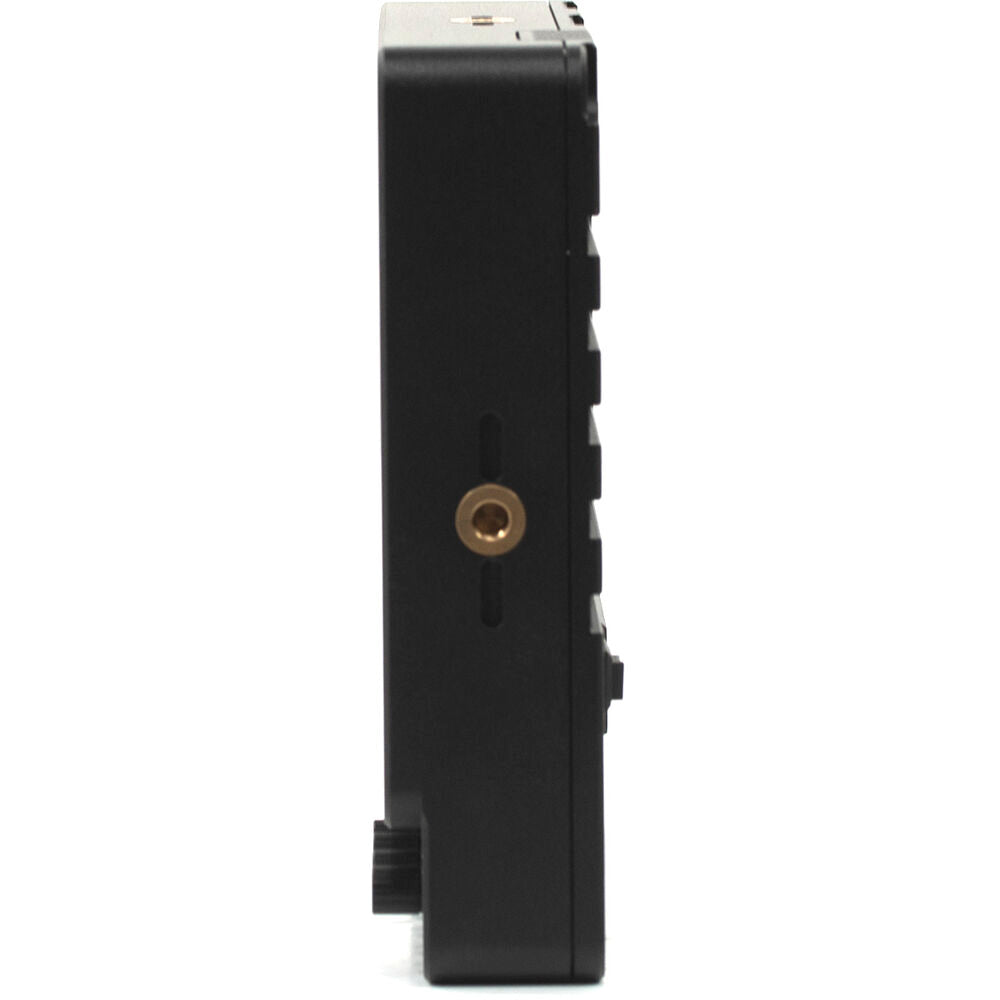

The VXF7 V2 supports tally lights via its RJ45 connector, and it has three LEDs on the front and rear that display red, green, and yellow tally lights. It can be powered via the included AC adapter, via a D-Tap power source with the included D-Tap cable, or by using a separately available L-series battery via the plate on the rear of the monitor. There are four 1/4"-20 threads around the monitor for you to mount it in a variety of configurations. A shoe adapter is included to mount the monitor on top of your camera, rig, or cage that features a shoe mount.
The 3.5mm audio headphone output allows you to monitor the embedded audio from your HDMI or SDI video. The monitor also features numerous image monitoring tools such as 1.33x anamorphic de-squeeze, waveform, histogram, peaking, pixel zoom, guides, markers, audio metering, and many more.

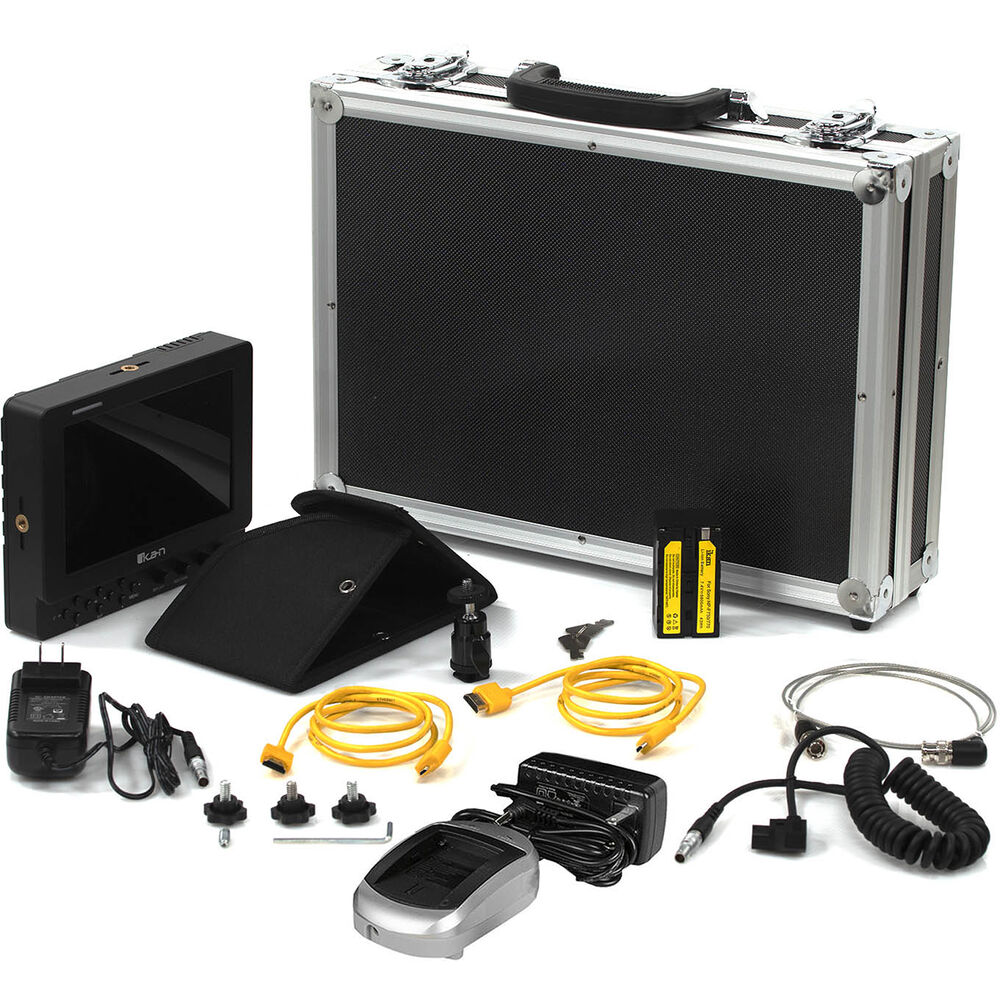

Other items in this Deluxe Kit include an IBS-750 L-series battery, an L-series battery charger, a slim 1.5' mini-HDMI to HDMI cable, a slim 1.5' micro-HDMI to HDMI cable, a slim 1.5' SDI cable, a hard-shell carry case, and a sun hood to prevent glare when using the monitor outdoors.

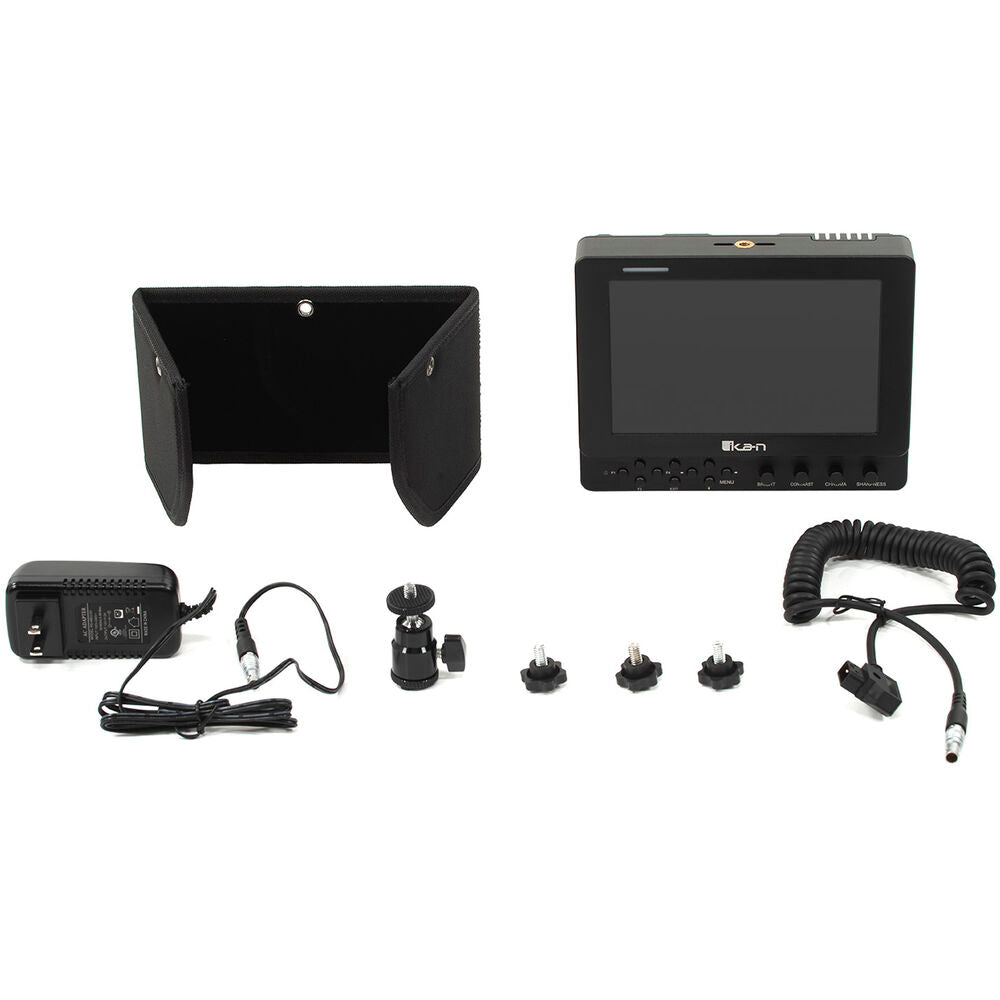

In the Box
- ikan VXF2-V2 4K HDMI/3G-SDI On-Camera Monitor with Tally Deluxe Kit v2
- ikan VXF7 7" HDMI/SDI On-Camera Monitor V2 with Tally
- ikan NP-F750 L-Series Compatible Battery (7.4V, 5800 mAh)
- L-Series Battery Charger
- Mini-HDMI to HDMI Cable (1.5')
- Micro-HDMI to HDMI Cable (1.5')
- SDI BNC Cable (1.5')
- Hard Carry Case
- Limited 1-Year Warranty
ikan VXF7 Specs
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 178° (89/89) Vertical: 178° (89/89) |
| Touchscreen | No |
| Maximum Brightness | 450 cd/m2 |
| Contrast Ratio | 800:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) | 323 ppi |
| Image Controls | False Color, Focus Peaking, Histogram, Image Flip, Marker Color, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra |
| Wi-Fi | None |

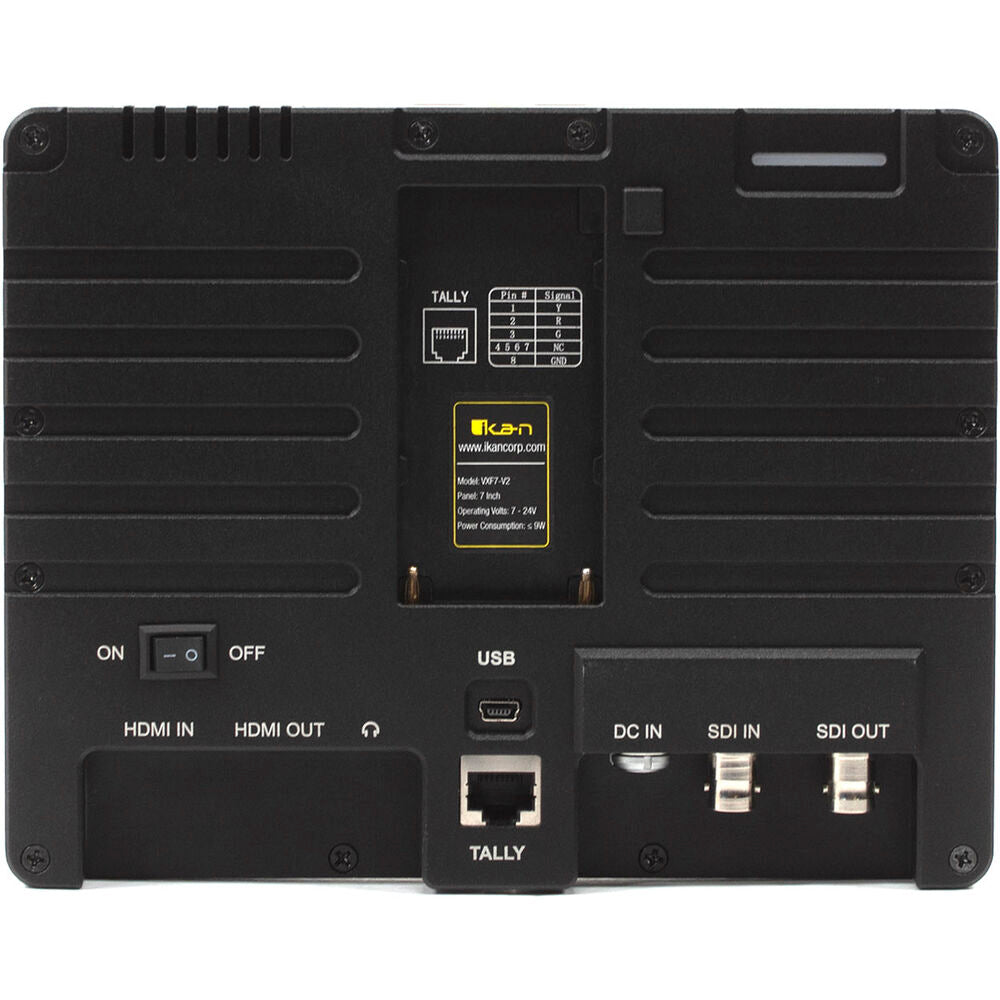

| Video | 1 x BNC (3G-SDI) Output 1 x HDMI Type A Output 1 x BNC (3G-SDI) Input 1 x HDMI Type A Input |
| Embedded Audio | HDMI/SDI |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Other I/O | 1 x Tally (RJ45) Input 1 x USB 2.0 (Mini-USB) Input |
| Card Slot | None |
| Video Format | SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i 576i HDMI DCI 4K: 24 UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60 576i 480i |
| Battery Type | 1 x L-Series |
| Power Consumption | 9 W |
| Mounting | 4 x 1/4"-20 Female |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Material of Construction | Aluminum |
| Dimensions | 7.36 x 5.6 x 1.3" / 186.94 x 142.2 x 33 mm |
| Weight | 1.5 lb / 680 g |
| Warranty Length | Limited 1-Year Warranty |
| Package Weight | 10 lb |
| Box Dimensions (LxWxH) | 16.7 x 13.4 x 4.7" |
