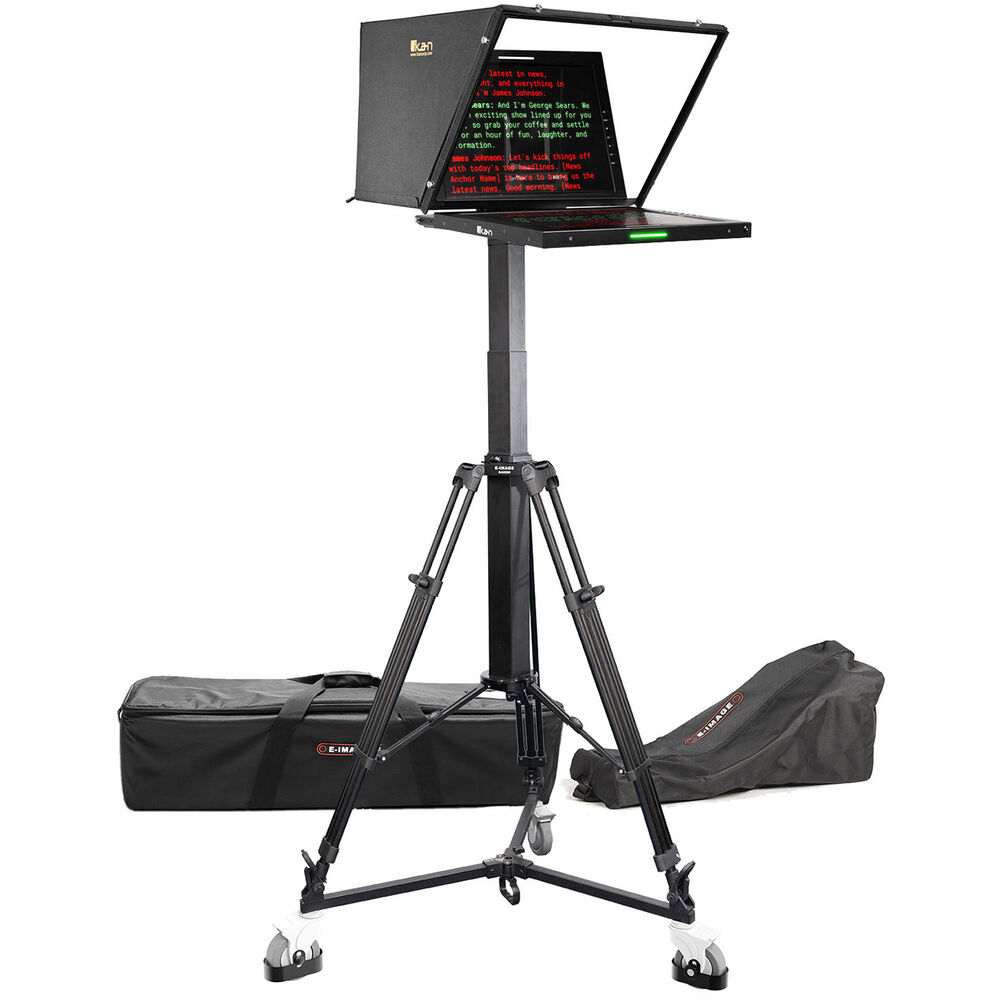

ikan PT419W 19" Widescreen PTZ 3G-SDI Teleprompter with Motorized Pedestal & Dolly Turnkey

This PT419W 19" Widescreen PTZ 3G-SDI Teleprompter with Motorized Pedestal & Dolly Turnkey from ikan bundles a 19" teleprompter monitor that boasts 1920 x 1080 resolution and high 1000 cd/m² brightness, a motorized pedestal, and a tripod dolly with cable guards. The prompter offers HDMI, VGA, and 3G-SDI connectivity, and it features a 65/35 reflective glass that enhances visibility for the presenter. Adjustment of the display's orientation can be easily switched via the intuitive image flip button. The system has a payload capacity of 42.4 lb.

Compatible with Most PTZ Cameras

• This teleprompter is designed, so you can use the pan, tilt, and zoom features of your camera.
• Easily pan between multiple speakers during the same presentation.

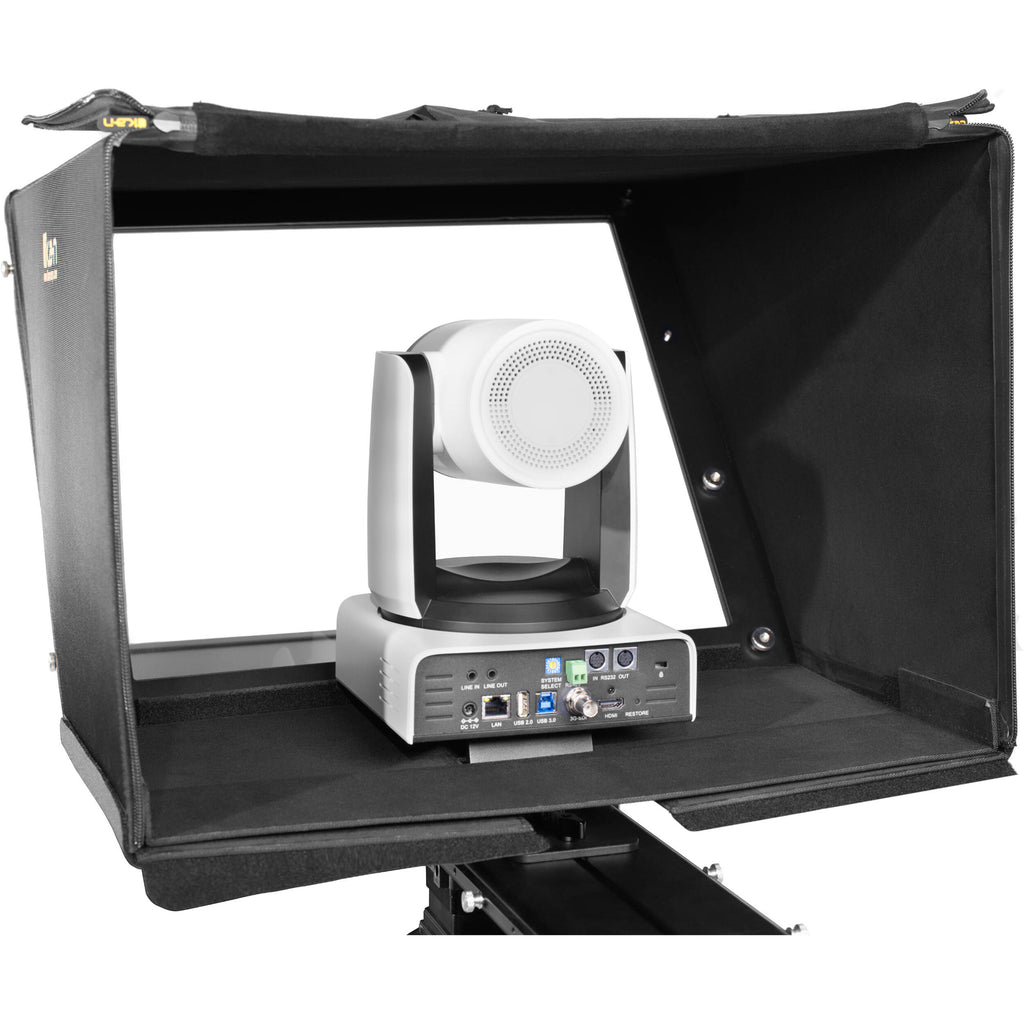

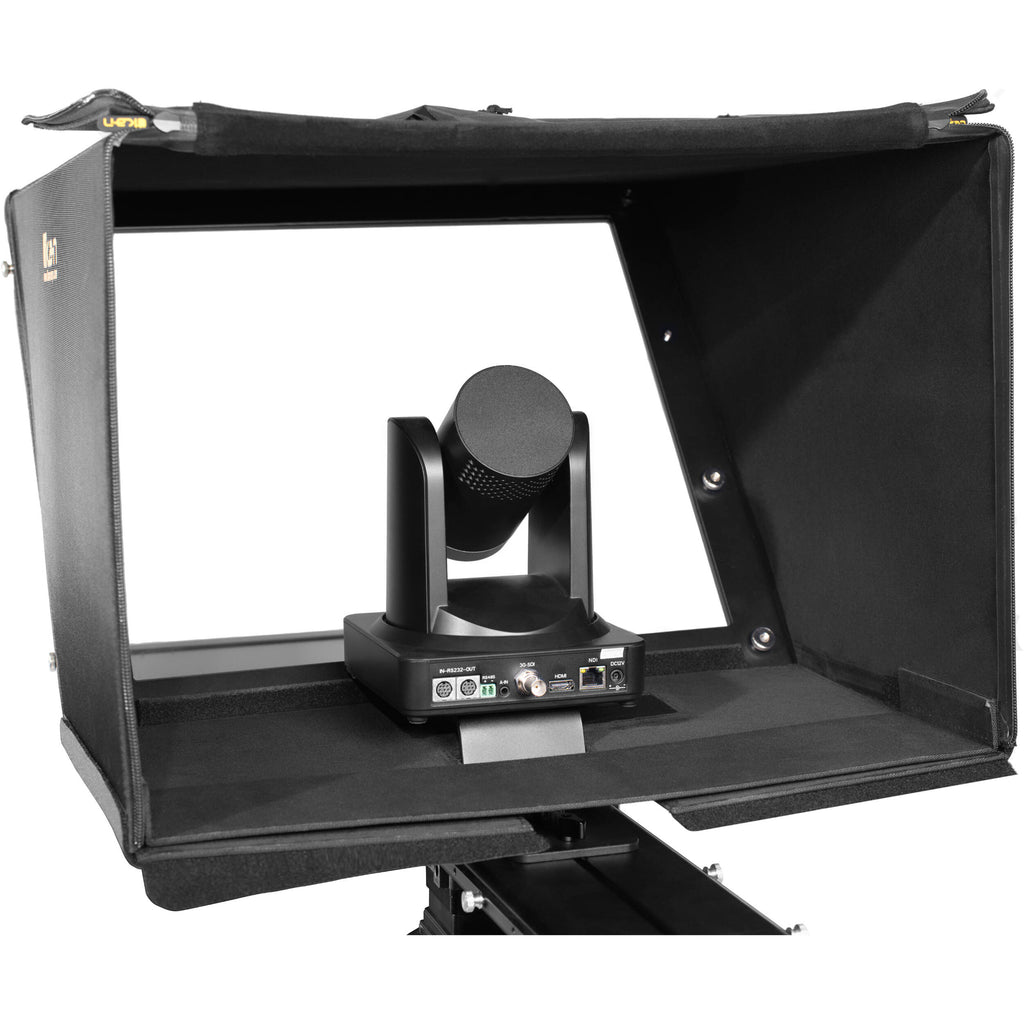

Secure Hood with Drawstring Access

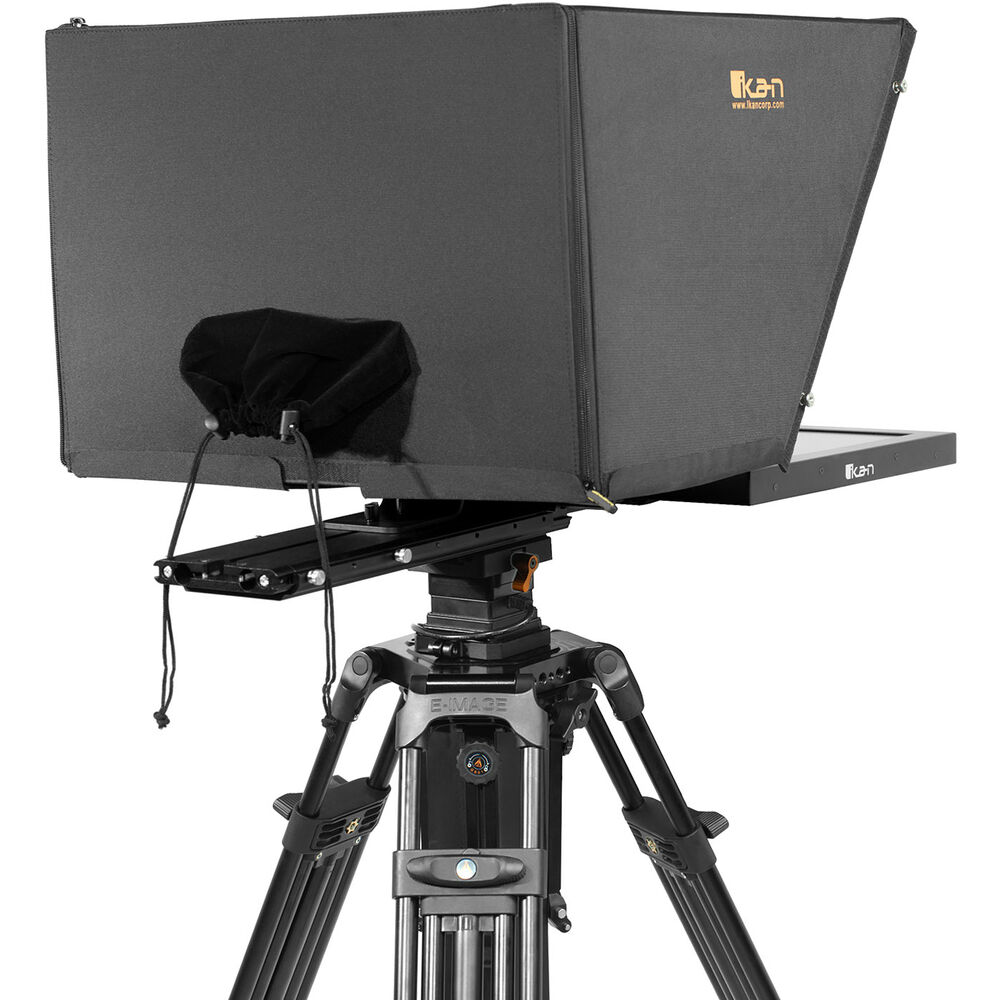

The PTZ teleprompter features a lightweight hood that fully encloses the PTZ camera, which allows its movement to remain unconstrained. The hood includes an opening in the back that gives you quick access to the PTZ cameras inputs and outputs. The opening can be closed with a drawstring, which removes the possibility of any light leaks.

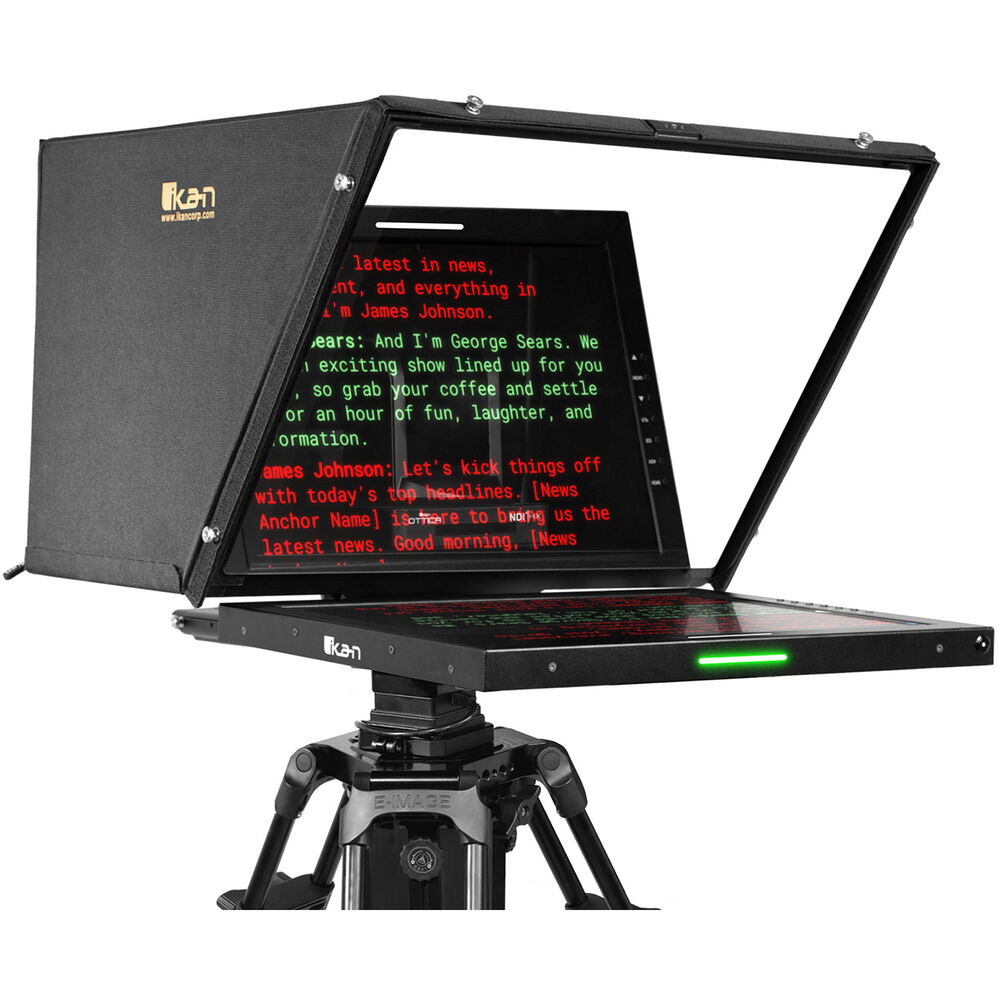

High-Bright Widescreen Teleprompter

The 1000 cd/m² high-bright screen is able to deliver clear and vivid text visibility in various lighting conditions and in environments with intense lighting, such as outdoor settings or brightly lit studios. This feature is particularly vital for outdoor teleprompting, where sunlight can wash out the display of a standard monitor. The widescreen monitor features 3G-SDI, HDMI, and VGA inputs, and the native resolution is 1920 x 1080. The OSD adjustment menu allows adjustment for contrast, brightness, backlight, tint, chroma, and sharpness. You can also adjust the intensity of each RGB color channel. Aspect ratio can be set as 16:9, 4:3, full, or it can be set to automatically detect the aspect ratio.

Easy Balancing

A long rail allows you to easily balance your entire teleprompter setup. The teleprompter base can be easily moved forward and backward until the perfect balance is set.

Ideal for Video Conferencing

A wide viewing angle is ideal for video conferencing scenarios. In such settings, the presenter or speaker often needs to maintain eye contact with the camera while simultaneously viewing another speaker or presentation data on the monitor. A 178° viewing angle ensures that the image presented on the monitor remains visible, especially when there are multiple speakers who are not positioned directly in front of the monitor.

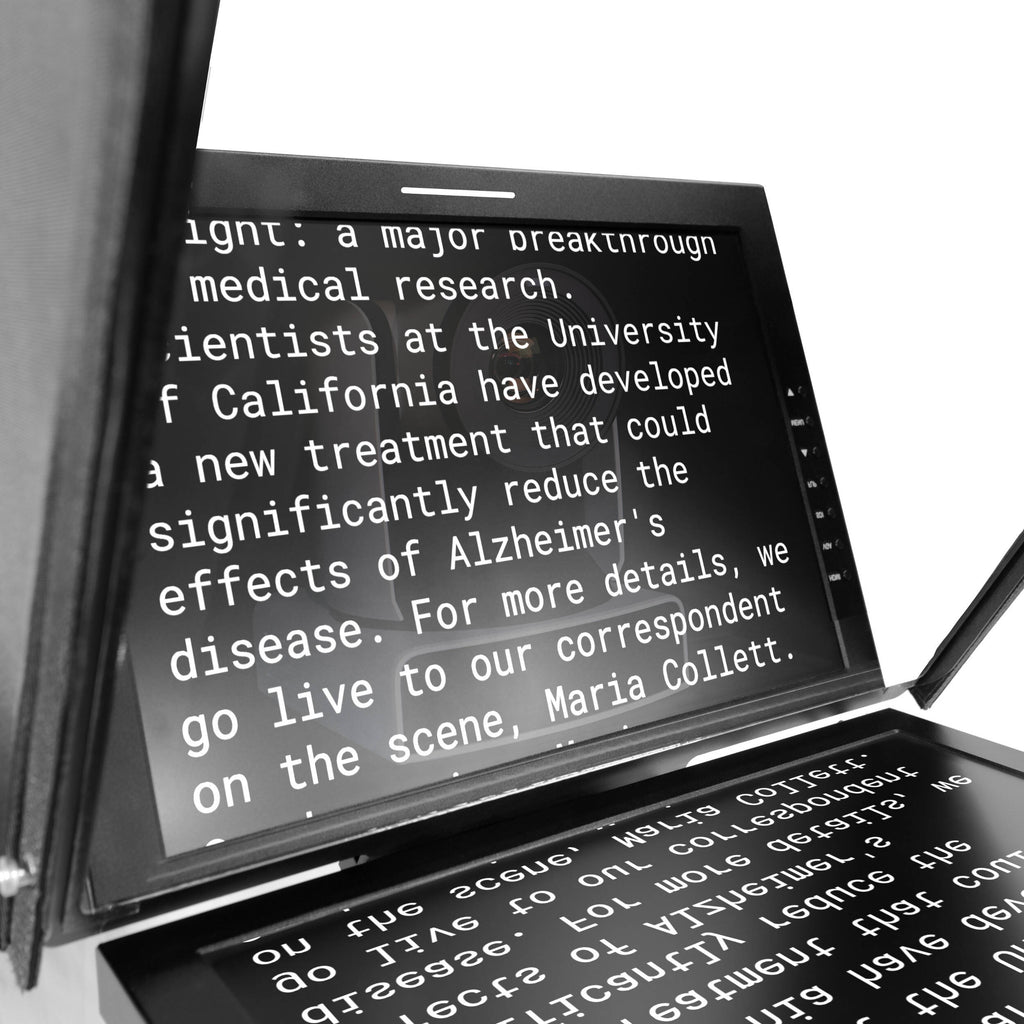

The glass is specially coated, so that it reflects 65% of the light projected onto it while allowing the remaining 35% to pass through. This unique characteristic enables the presenter to read the reflected script text clearly, projected from a monitor below or behind the glass, while simultaneously allowing the camera positioned directly behind the glass to record through it without capturing the reflected text. Angling the glass at 55° provides numerous benefits when teleprompting. It provides a wider field of view for the camera, allowing more room to pan, tilt, and zoom the camera.

Image Flip Button

Both monitors feature an image flip button that allows for both horizontal and vertical flipping of the displayed image. This feature is ideal for presenters who are video conferencing since it enables the presenters to view themselves as if they were looking into a mirror, giving a greater sense of comfort during the video conference or live stream.

Reusable Foam

The shipping foam has dedicated cutouts for the teleprompter components, enabling you to reuse it in the separately available ikan PT-CASE-4U waterproof hard case.

Motorized Pedestal

The motorized elevation system is designed specifically for PTZ cameras and teleprompters, offering smooth height adjustments and a high payload capacity of up to 66 lb. Its motorized column, controlled via a wired remote, allows precise real-time adjustments and features three preset height positions for quick repositioning. With a maximum working height of 9.2' when used with a dolly, and a motorized stroke of 23.6", it provides versatile shooting angles suitable for live broadcasts and studio applications. The system includes a mono-lock mechanism for fast leg adjustments, a quick-release adapter for secure camera mounting, and multiple accessory integration points for added flexibility. Enhanced stability is ensured through a quick release middle spreader.

100mm Flat Base

The 100mm flat base includes a 3/8"-16 mounting screw at the top and is designed to mount PTZ teleprompter systems or robotic PTZ heads. This flat base allows for leveling adjustment to ensure your PTZ camera straight and direct.

The included, high-capacity dolly features 3.9" locking rubber wheels with a capacity of 132.3 lb. This system has a working footprint of 39.4" and height-adjustable cable guards. Each dolly system is easy to fold with its handle and single wingnut for transport in the included carrying bag

ikan PT419W-PTZ-MPEDESTAL Specs

Reading Range	25' / 7.6 m
Size (Diagonal)	18.5" / 47 cm
Inputs/Outputs	1x 3G-SDI (BNC) Input 1x HDMI Unspecified Version (HDMI-A) Input 1x VGA Input
Self Reversing	Yes

Reading Range	25' / 7.6 m
Beamsplitter Ratio	65/35
Beamsplitter Shape	Rectangular
Beamsplitter Material	Glass
Anti-Reflective Coating	Yes

Size (Diagonal)	18.5" / 47 cm
Maximum Brightness	1000 nits / cd/m2
Native Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle (H x V)	178 x 178°
Inputs/Outputs	1x 3G-SDI (BNC) Input 1x HDMI Unspecified Version (HDMI-A) Input 1x VGA Input
Self Reversing	Yes
Input Power	12 VDC at 5 A
Power I/O	1x Barrel Female Input
Power Consumption	36 W
Dimensions	18.3 x 12.3" / 46.5 x 31.2 cm
Weight	5.73 lb / 2.60 kg

Material of Construction	Aluminum, Carbon Fiber
Rod Length	15.7" / 400 mm
Certifications	CE, UKCA
Casters	4x 3.9" / 9.9 cm Swivel
Height Adjustment	Yes, 39.2 to 109.8" / 99.6 to 278.9 cm
Weight	40.5 lb / 18.4 kg
