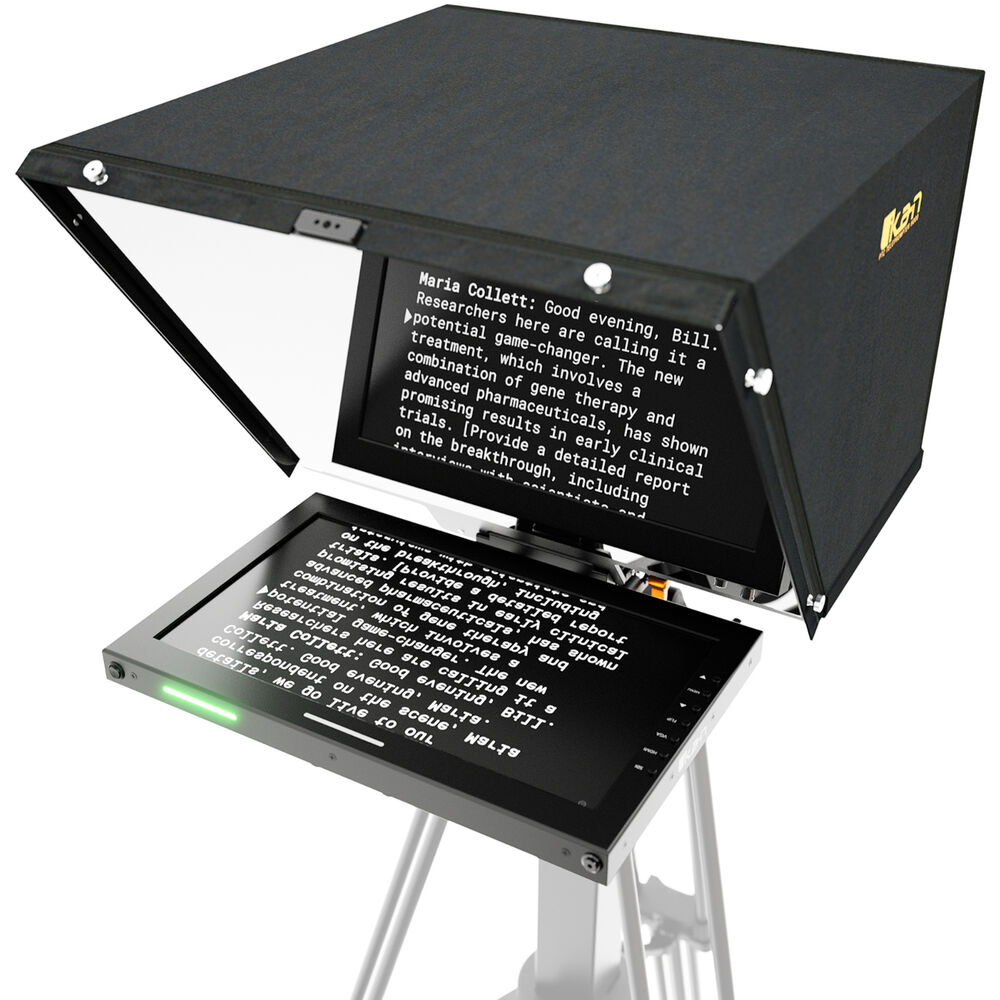

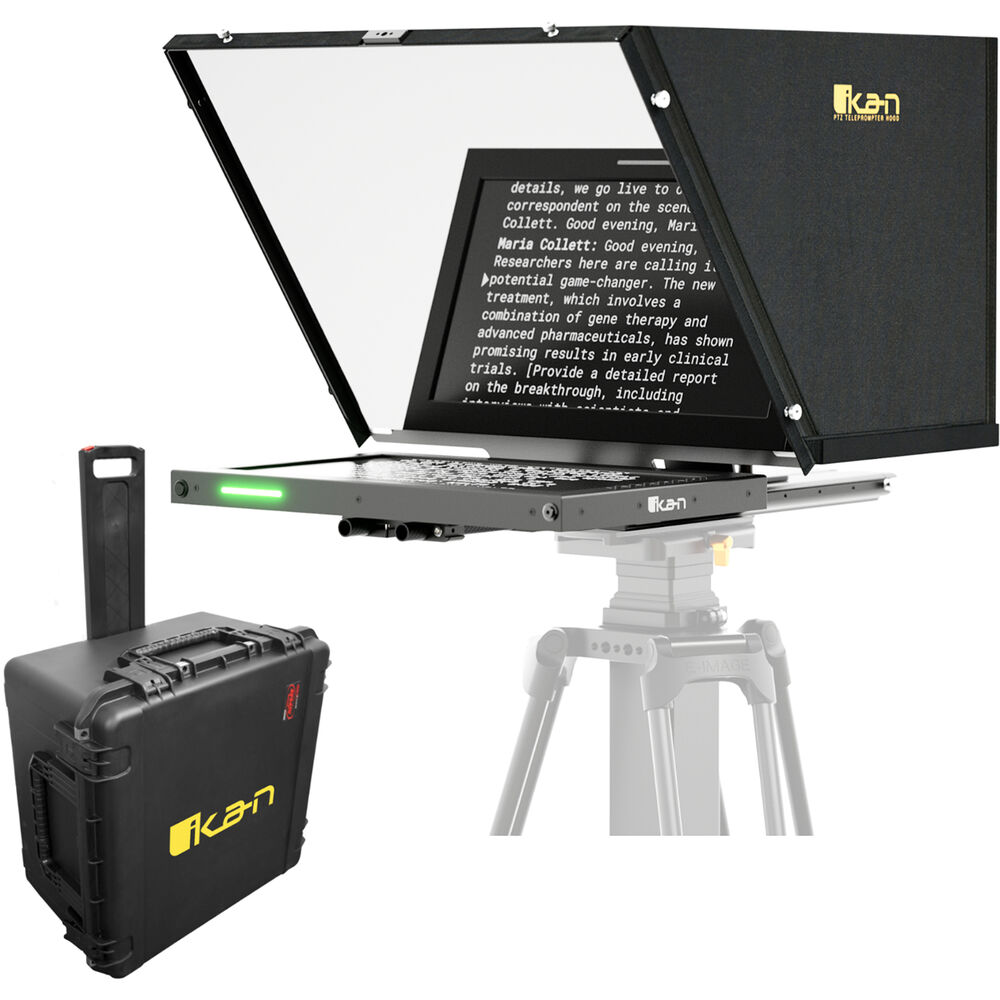

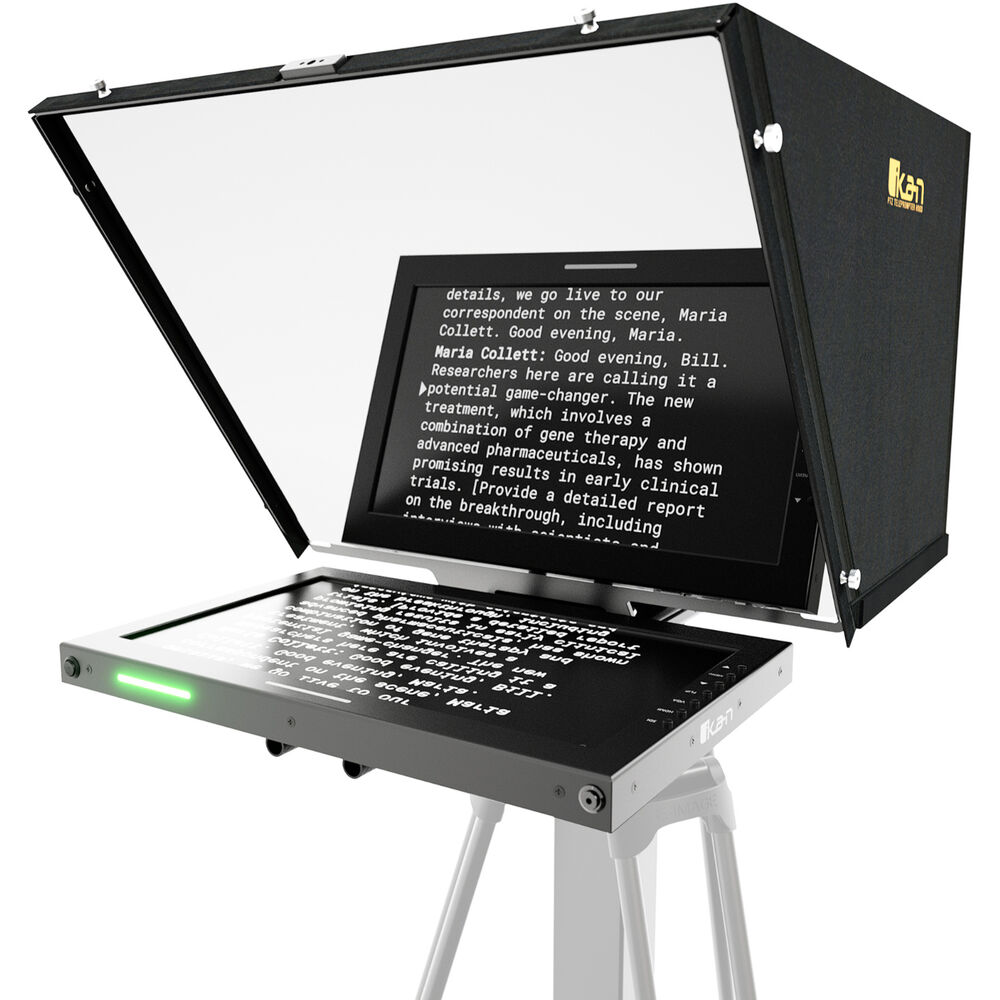

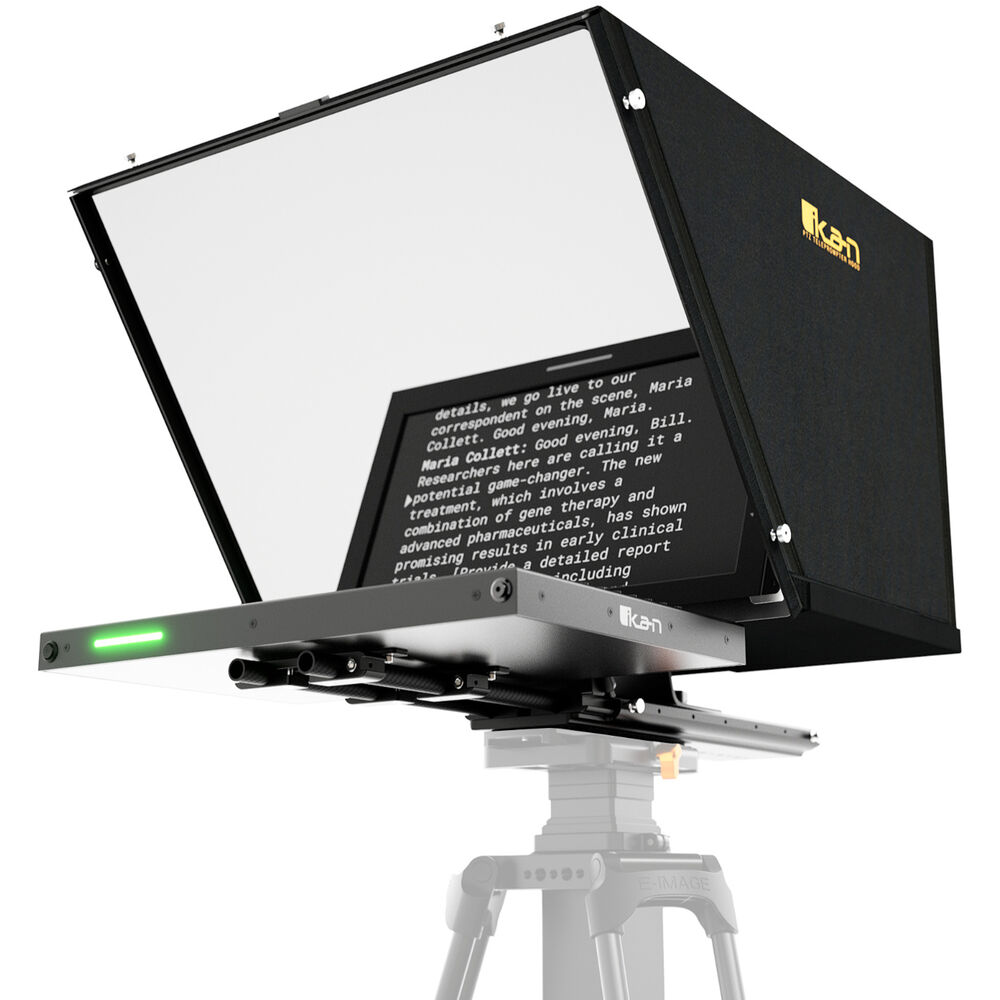

ikan Professional 15" SDI/HDMI PTZ Teleprompter Travel Kit

The Professional 15" SDI/HDMI PTZ Teleprompter from ikan is designed for quick and easy setup in studio or broadcast applications to film professional scripted content with a PTZ camera. The durable aluminum teleprompter includes a 15" monitor, 65/35 beamsplitter glass, fully enclosed PTZ teleprompter hood, and an improved base for better balancing. Multiple 1/4"-20 and 3/8"-16 threads on the teleprompter makes mounting it to a tripod or pedestal a breeze. HDMI, SDI, VGA, and Composite video inputs are compatible with most video equipment.

65/35 Beamsplitter Glass

The included beamsplitter glass features a front mirror coating with 65% transmission and 35% reflection along with an anti-reflection coating on the rear to prevent ghosting. This ensures clear, color-neutral images for the camera and easy-to-read text for the presenter. The component is 0.12" thick and constructed of optical-grade glass.

Wide Camera Compatibility

Included with the teleprompter are three different camera mount bases in varying heights for compatibility with professional ENG cameras, cinema cameras, mirrorless cameras, and camcorders. The tall riser measures 5.31", the short riser measures 2.06", and the DSLR riser measures 6.29". This version also comes with a PTZ riser and fully enclosed PTZ teleprompter hood, which allows the camera to facilitate pan, tilt, and zoom motions without constraints.

Versatile Monitor

The monitor features HDMI, SDI, VGA, and Composite video inputs. Its native resolution is 1920 x 1080 and its maximum brightness is 1000 cd/m². Use the OSD adjustment to view and change settings like brightness, contrast, backlight, tint, chroma, and sharpness. You can also adjust the intensity of the RGB. The native aspect ratio for the monitor is 4:3, but you can adjust it to be 16:9, full, or to automatically detect the ratio and set it accordingly. A 170° wide viewing angle ensures your talent can view the text from virtually anywhere. An image flip button allows you to horizontally or vertically flip the image. When plugged into a video switcher, two tally lights on the side and front of the monitor turn either green or red to indicate whether or not the camera is live.

Easy to Balance

The upgraded teleprompter base includes a rail to slide the entire rig forwards or backwards. This makes balancing more intuitive and does not require counterweights.

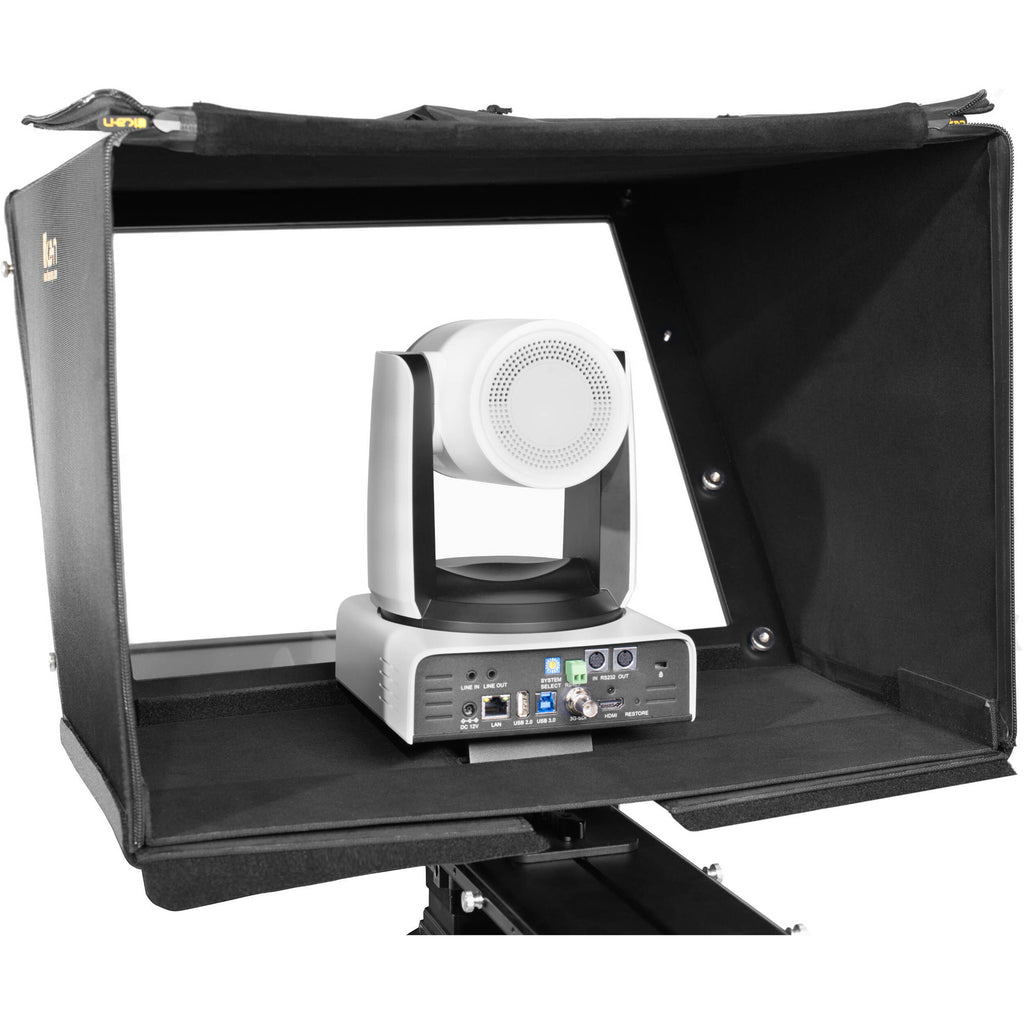

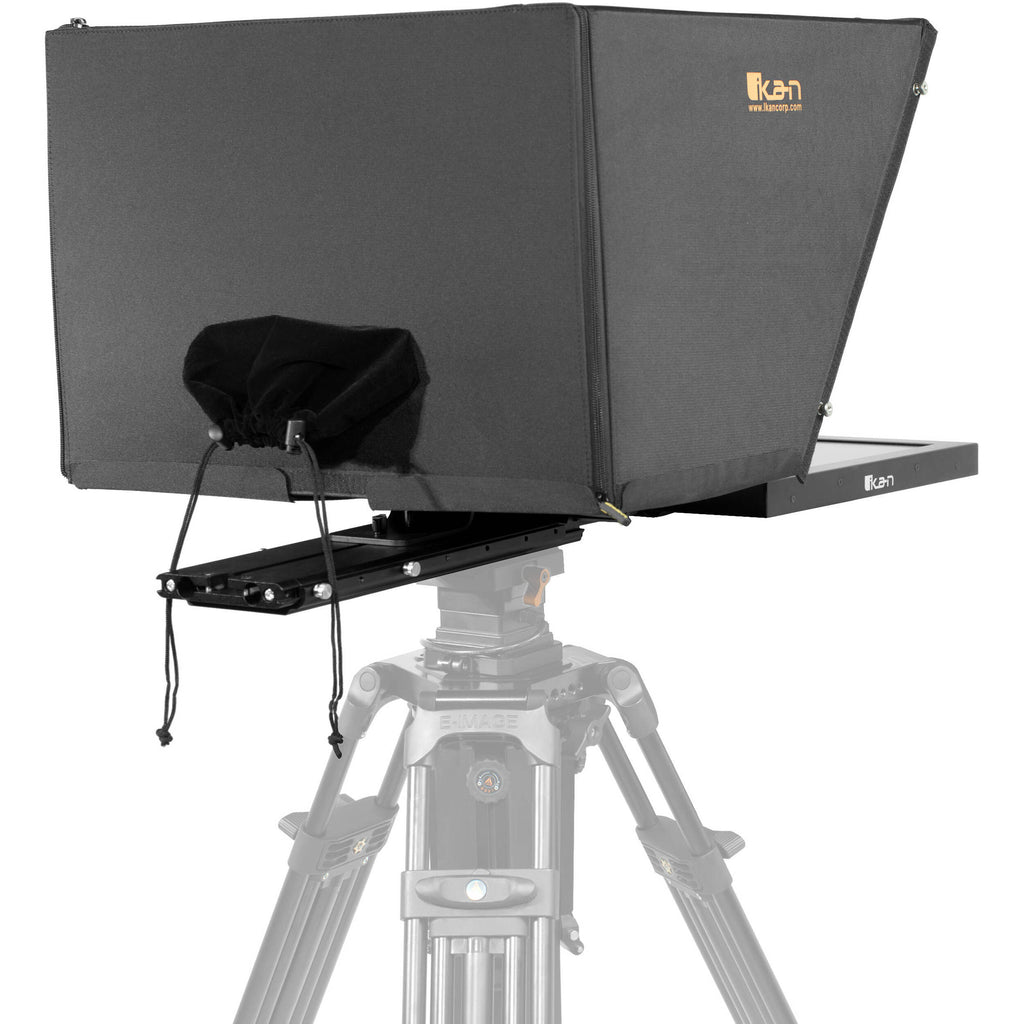

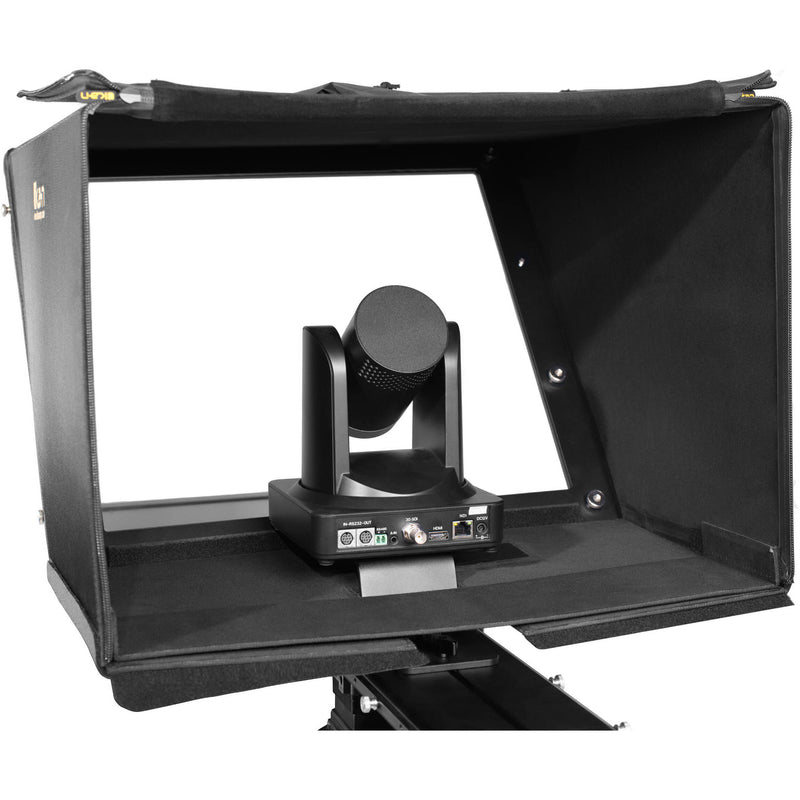

Updated Lens Hood

The new version of the adjustable lens hood is anchored to the frame and secured with magnets for extra stability. It is also designed to accommodate PTZ camera movements thanks to its wider opening. The back opening gives you quick access to the camera's ports and can be closed with a drawstring to eliminate light leaks. Compatible PTZ brands include Panasonic, JVC, Sony, Canon, BZB Gear, BirdDog, and PTZOptics.

ikan

• PT4900-V2, PT4700-V2 teleprompters
• PT4500-V2, PT419 teleprompters

Kit Contains:

ikan Professional 15" SDI/HDMI PTZ Teleprompter

Reading Range	24.9' / 7.6 m
Tripod Mount Type	11x 1/4"-20 Female 9x 3/8"-16 Female
Size (Diagonal)	15" / 38.1 cm
Inputs/Outputs	1x SDI Input 1x HDMI Unspecified Version Input 1x VGA Input 1x Composite Input
Self Reversing	Yes

Reading Range	24.9' / 7.6 m
Beamsplitter Ratio	65/35
Beamsplitter Shape	Rectangular
Beamsplitter Material	Glass
Tripod Mount Type	11x 1/4"-20 Female 9x 3/8"-16 Female

Size (Diagonal)	15" / 38.1 cm
Maximum Brightness	1000 nits / cd/m2
Native Resolution	1280 x 1024
Aspect Ratio	4:3
Viewing Angle (H x V)	160 x 170°
Inputs/Outputs	1x SDI Input 1x HDMI Unspecified Version Input 1x VGA Input 1x Composite Input
Self Reversing	Yes
Input Power	12 VDC at 4 A
Power I/O	1x Barrel Input
Power Consumption	28 W
Dimensions	12.1 x 14.3" / 30.7 x 36.3 cm
Weight	3.97 lb / 1.80 kg

Material of Construction	Aluminum, Carbon Fiber
Rod Length	15.7" / 400 mm
Height Adjustment	No
Weight	16 lb / 7.3 kg (Baseplate)
