Description
ikan OTTICA Overview

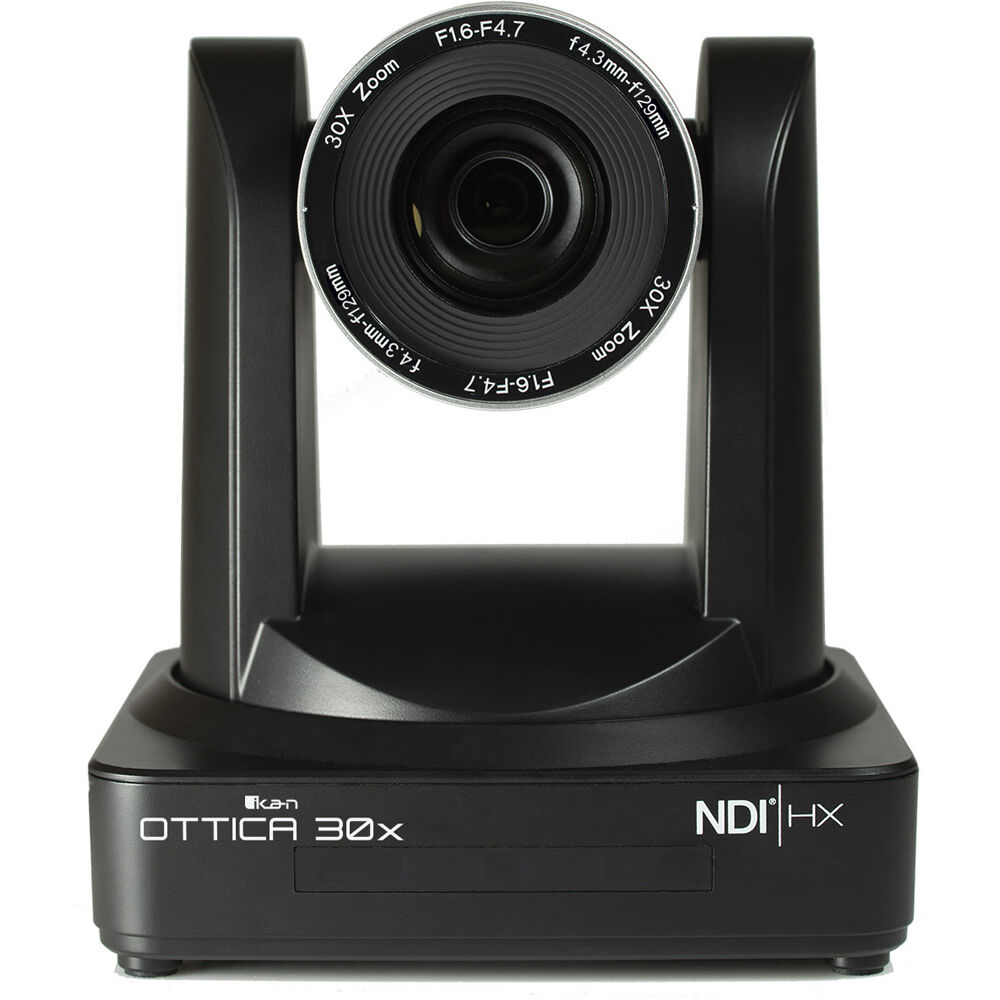

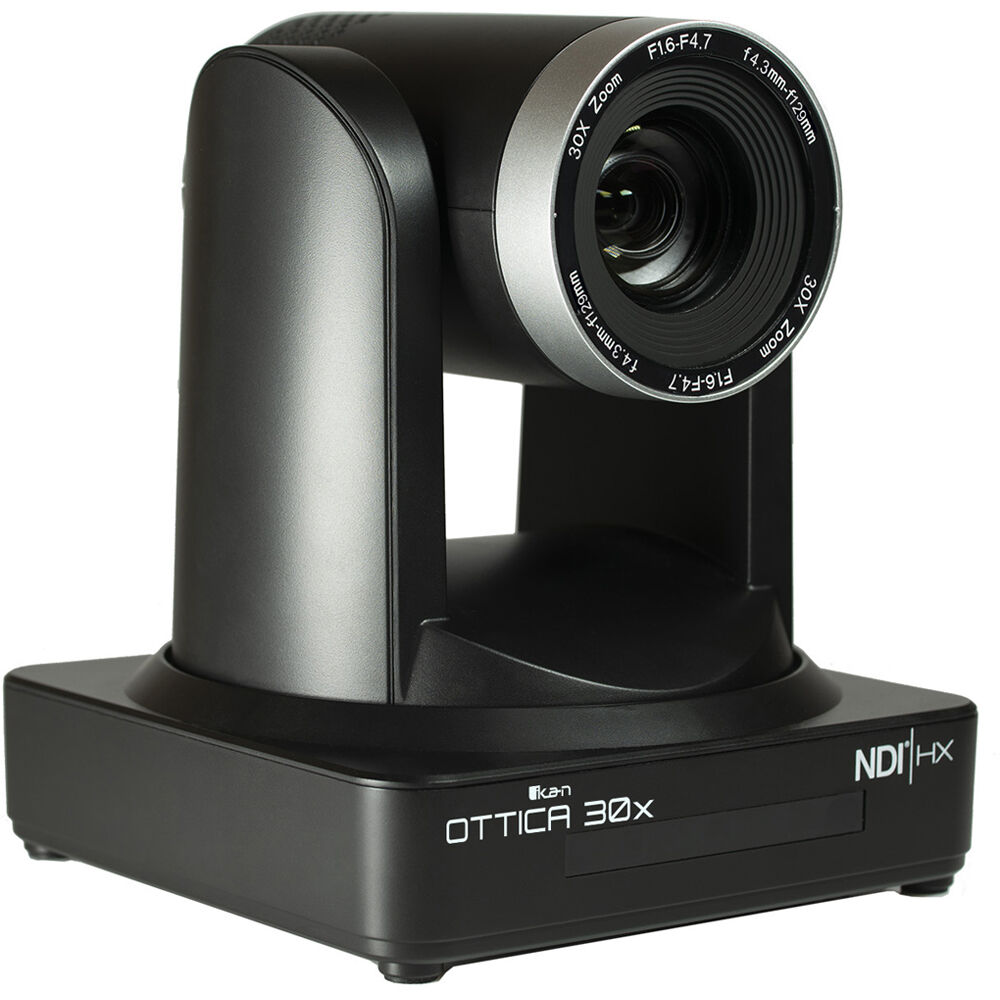

Add a versatile NDI|HX PTZ camera to your meeting room, house of worship, or studio with this black OTTICA NDI|HX PTZ Camera with 30x Optical Zoom from ikan. Boasting a 1/2.8" CMOS sensor, the OTTICA is fully licensed for NewTek's NDI|HX communication, which enables the utilization of NDI protocols with less bandwidth than NDI.
A 4.3 to 129mm lens provides a 30x optical zoom with a viewing angle ranging from 2.34 to 65.1°. With a color temperature range from 2400 to 7100K, the OTTICA captures vibrant, razor-sharp images that are supported by its 2D/3D noise-reduction capability. Video output occurs via HDMI, SDI, and RJ45 NDI connectivity, employing resolutions up to 1080p60. A 3.5mm audio input makes it possible for you to embed analog audio with the video outputs, and you can power the camera using the included power adapter or via PoE (Power over Ethernet) over the RJ45 port.
Employing a virtually silent motor during pan, tilt, and zoom operation, the OTTICA supports RS-232 and RS-485 serial connectivity, which when used with a separately available controller, allows you to store up to 255 presets or up to 10 presets when using the included IR remote control. Also in the box, are a cascade cable for daisy-chaining RS-232 serial control, an RS-232 cable, an RS-485 connector, a power adapter, and a wall-mount bracket.

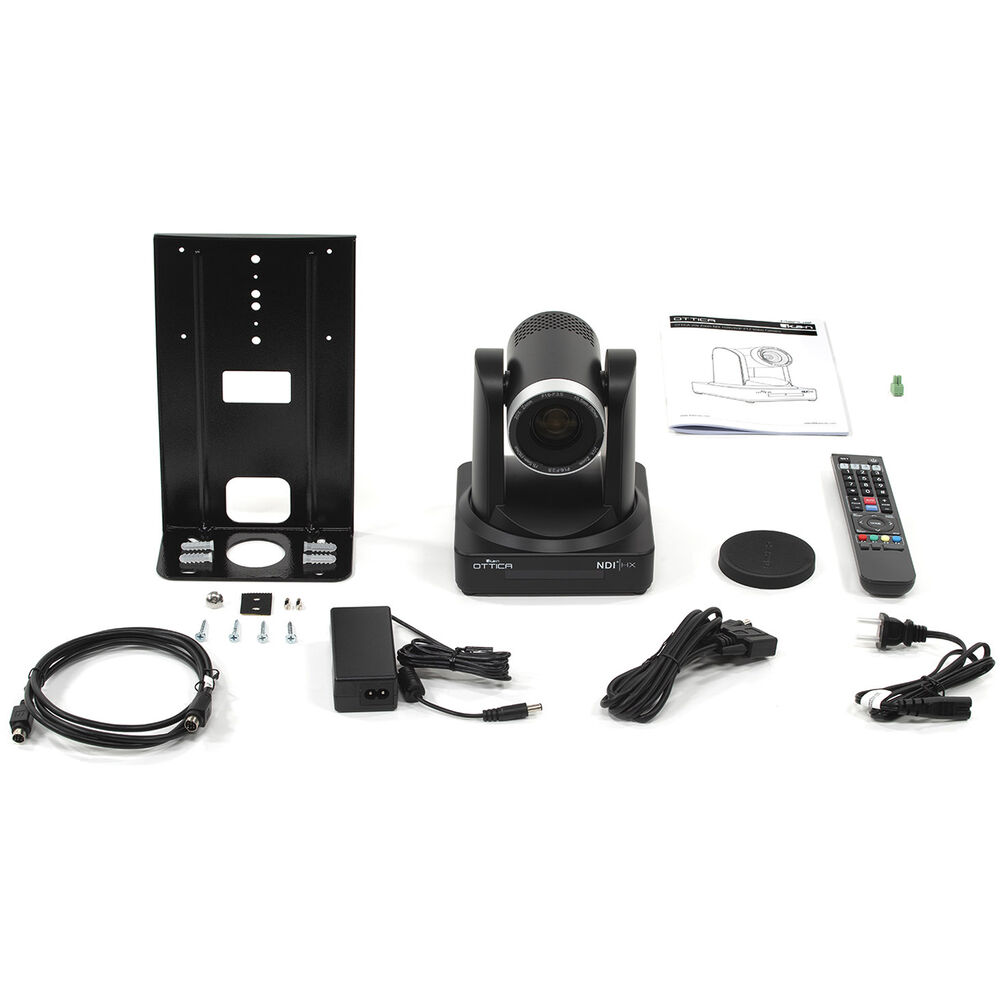

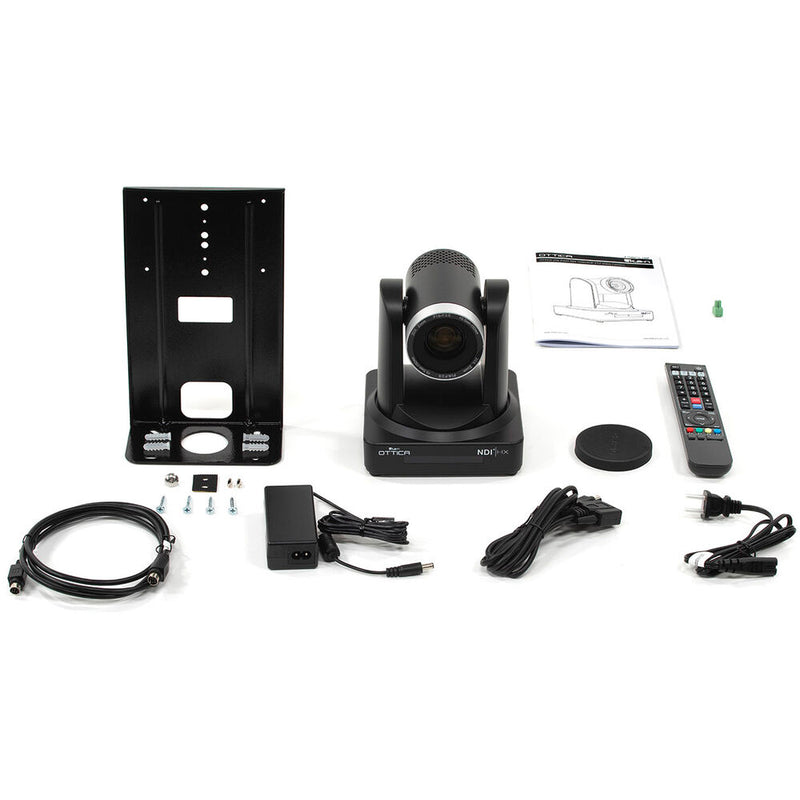

In the Box
- ikan OTTICA NDI HX PTZ Camera with 30x Optical Zoom (Black)
- Lens Cap
- Power Adapter
- IR Remote Control
- RS-232 Cable
- RS-485 Connector
- Cascade Cable
- Wall-Mount Bracket
- Set of Mounting Screws
- Limited 1-Year Manufacturer Warranty
ikan OTTICA Specs
| Image Sensor | 1/2.8"-Type CMOS |
| Sensor Resolution | Effective: 2.07 Megapixel (1920 x 1080) |
| Built-In ND Filter | None |
| Focus Control | Autofocus Manual Focus |
| Signal-to-Noise Ratio | 55 dB |
| Minimum Illumination | 0.5 Lux at 1/8 Shutter Speed |
| Flip / Mirror Support | Image Flip, Mirror (Vertical) |
| White Balance | 2400 to 7100K |
| Focal Length | 4.3 to 129mm |
| Optical Zoom Ratio | 30x |
| Max Digital Zoom | 10x |
| Field of View | 65.1 to 2.34° |
| Maximum Aperture | f/1.6 to 4.7 |
| External Recording Modes | SDI/BNC / HDMI / RJ45 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps 1920 x 1080i at 50/59.94/60.00 fps 1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps |
| Embedded Audio | HDMI/NDI |
| Broadcast Output | NTSC/PAL |
| IP Streaming | H.264, H.265, NDI, NDI|HX, ONVIF, RTMP, RTSP 1920 x 1080 |
| Presets | 255 via RS-232 10 via IR |
| Move Speed | Pan: 0.1 to 180°/sec Tilt: 0.1 to 80°/sec |
| Movement Range | Pan: 170° Tilt: -30 to 90° |
| Supported Control Protocols | NDI Pelco-D Pelco-P RS-232 RS-485 VISCA |

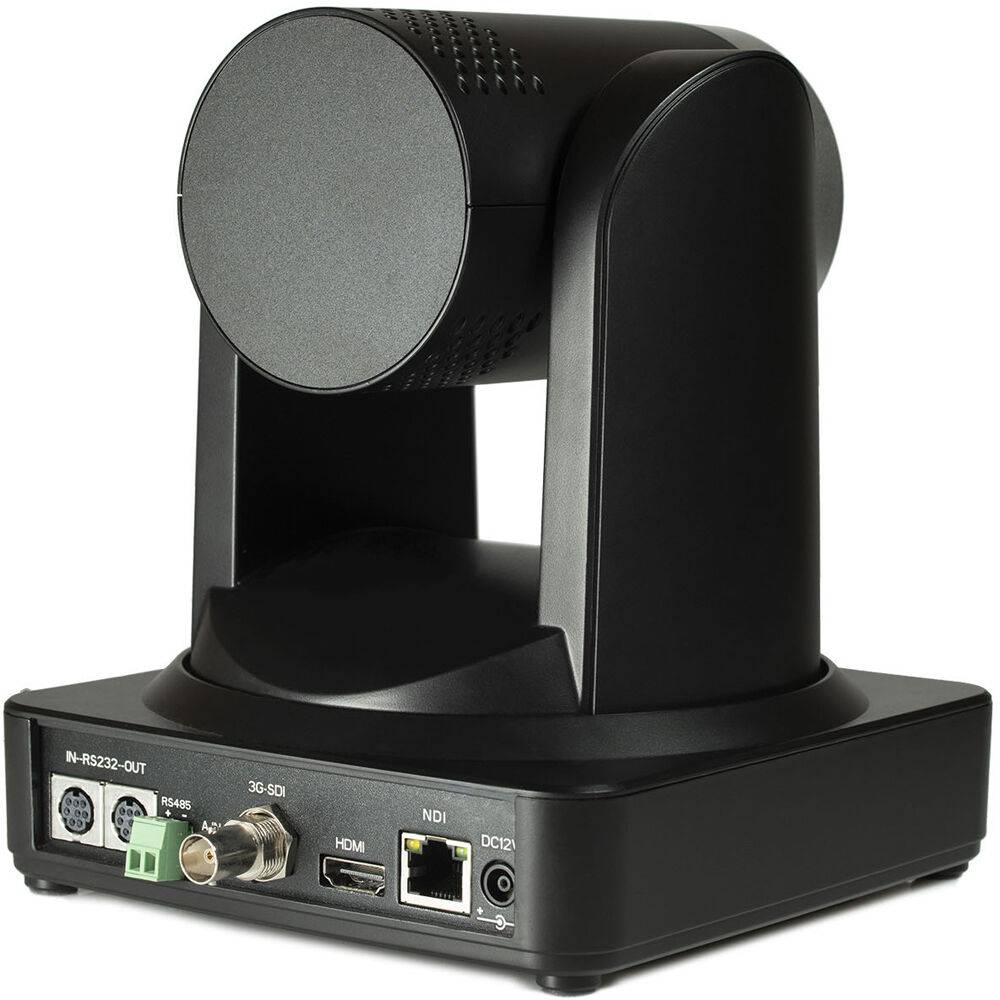

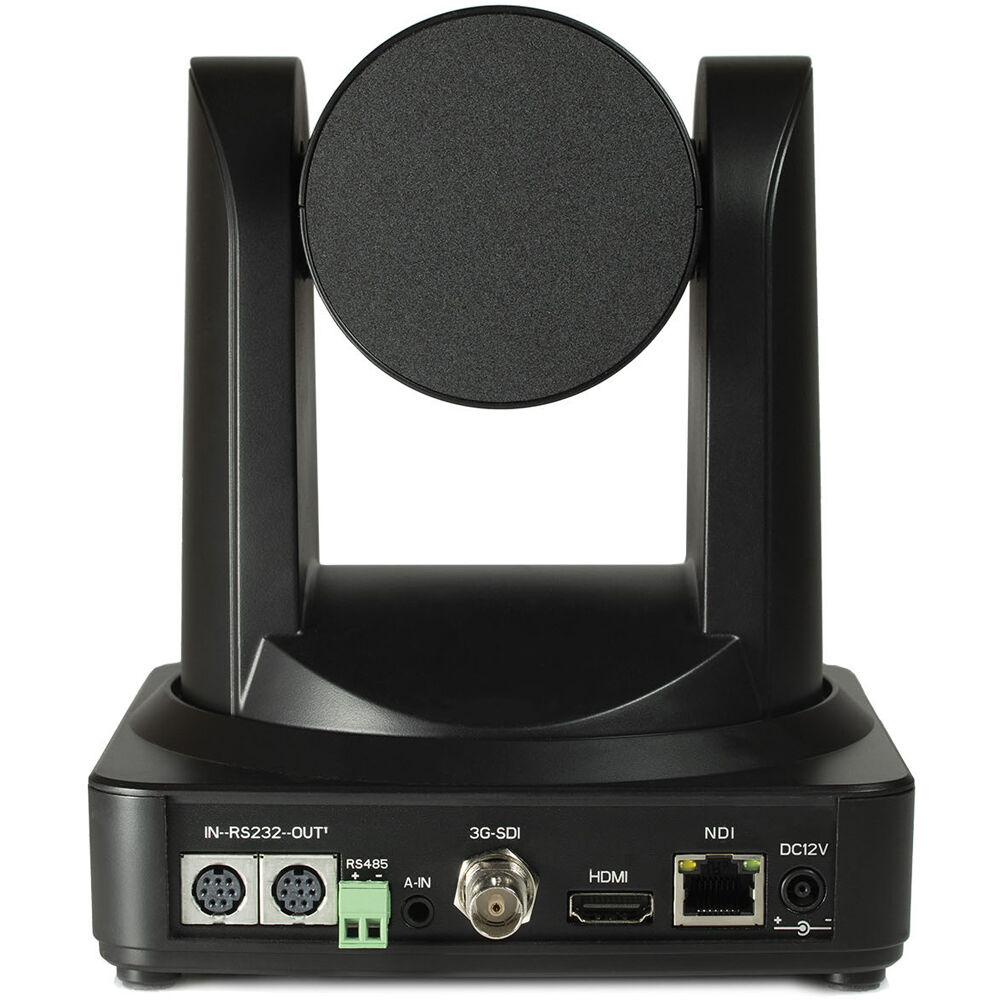

| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI Output 1 x RJ45 (NDI) Input/Output |
| Audio I/O | 1 x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1 x DIN 8-Pin (RS-232) Input/Output 1 x Block 2-Pin (RS-485) Input |
| PoE Support | PoE 802.3af |
| Power I/O | 1 x Barrel (12VDC at 1.5 A) Input |
| Power Consumption | Power Supply: 110 to 220 VAC 12 W |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 20 to 95% |
| Mounting | 1 x 1/4"-20 Female for Bracket |
| Dimensions (W x H x D) | 5.9 x 5.9 x 6.6" / 150 x 150 x 167.5 mm |
| Weight | 3.08 lb / 1.40 kg |
| Package Weight | 6.345 lb |
| Box Dimensions (LxWxH) | 10.7 x 10.5 x 9.1" |
