Description
ikan LBX8-POE Overview
From Manufacturer
Lyra POE Quick Unboxing and Overview
Lyra PoE Low Profile Bi-Color Soft Light (White) LBX8-POE-WH Unboxing
Built for use in a wide range of scenarios from TV studios to conference rooms, ikan introduces the white housing version of the Lyra LBX8-PoE Bi-Color LED Light Panel Unmanaged Switch 5-Light Kit ? a low-profile lighting solution for spaces with limited ceiling clearance. The kit includes five LBX8-PoE units with PoE technology to simplify connectivity by transferring power and data through a single cable. Each 24 x 7" panel may be mounted by its included yoke to a separately available light stand or hung very close to a ceiling using optional clamps. Forget about complicated wiring or additional power outlets. The LBX8-PoE is powered via PoE++ and DMX controlled via Art-Net or sACN protocols, as well as with onboard control. The kit ships with an unmanaged Netgear switch to ensure efficient power delivery over the network.
Bi-Color Punch & Consistent Light Levels
The LBX8-PoE offers a bi-color punch with a CCT range of 3200 to 5600K to give you the exact tweak needed to match a specific light situation. Match your subject's skin tone right from the fixture without the need for color correction filters. Designed to elevate your lighting productions, the light output stays consistent as you transition across the color temperature range.
Wraparound Lighting & Color Accuracy
The LBX8-PoE can output a strong, wraparound diffused light up to 1566 lux at 3.3' (5600K), making it ideal for broadcast applications. A high CRI rating of 97 and a TLCI rating of 99 assure faithful and accurate rending of colors and skin tones.
- The fixture's integrated 1/2-stop white diffuser provides extra softness, while its LEDs produce a 110? beam spread with precise color rendering.

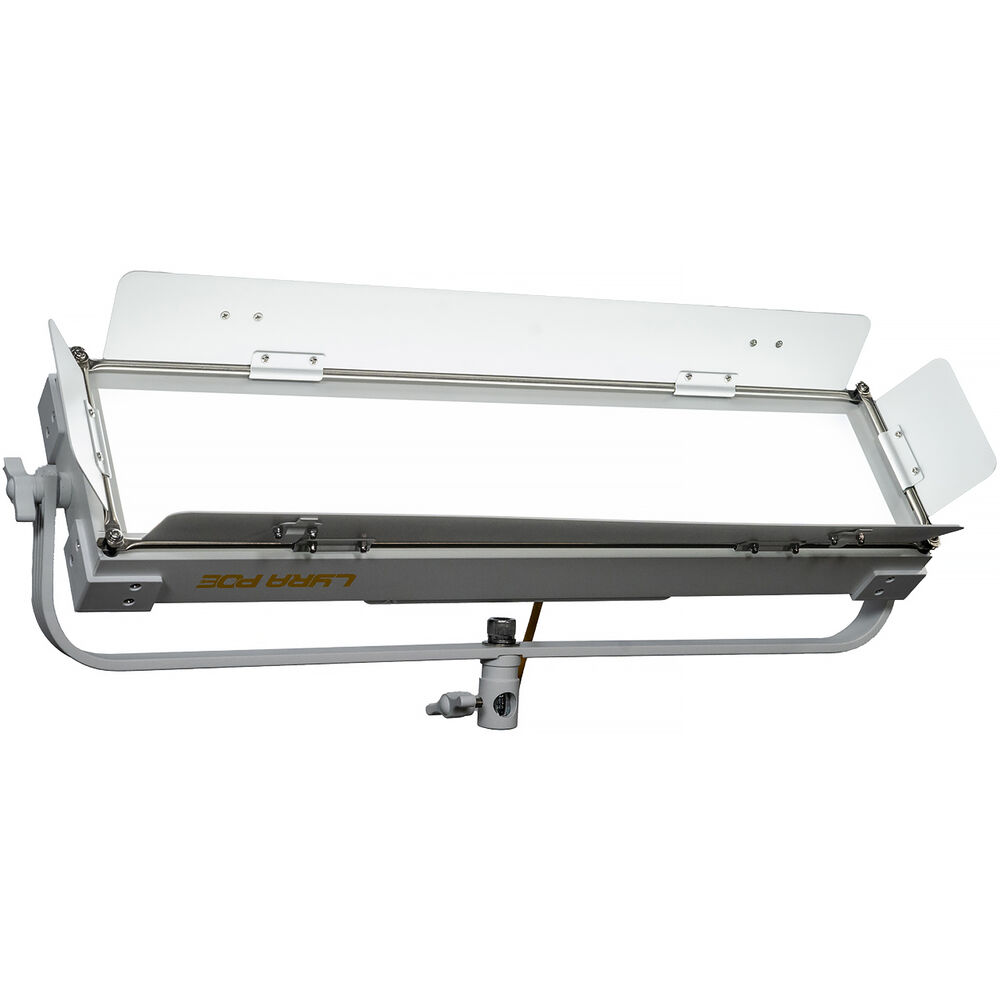

- The panel's chassis features built-in four-leaf barndoors that provide control over light.
Onboard Art-Net & sACN
- Easily adjust your brightness, CCT, and DMX settings using ikan's intuitive yellow knob and LCD screen.
- Art-Net and sACN protocols integrate the fixture seamlessly into DMX control systems.
- Users can access the web GUI to manage the IP address or Art-Net and sACN settings, such as DMX addresses and universes.
Power over Ethernet & Fanless Cooling
Designed to save you time and installation costs, the LBX8-PoE is powered through an optional Cat 6 RJ45 Ethernet 24 AWG cable. The kit includes an unmanaged Netgear switch equipped with PoE++ ports and a power budget of 380W. As it does not have a back end where you can adjust settings, the unmanaged switch has a more limited capability. The panel is passively cooled for silent operation.

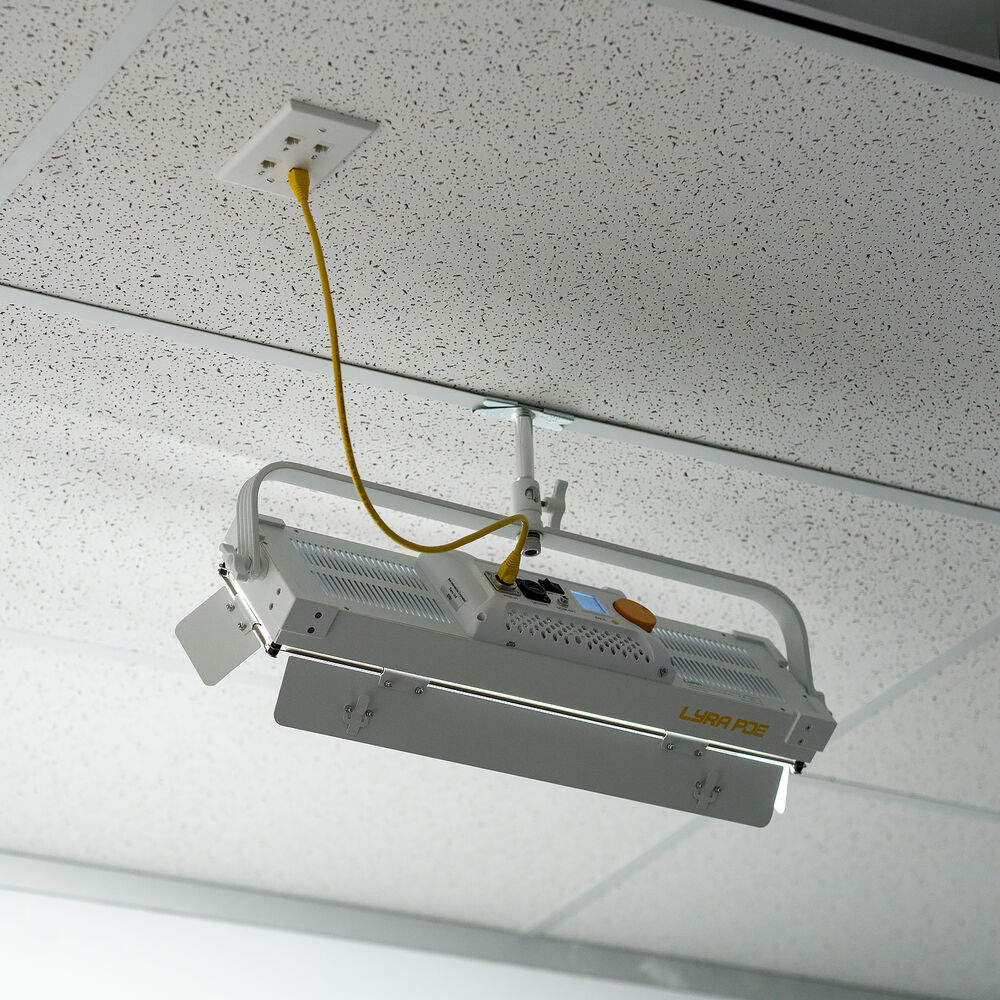

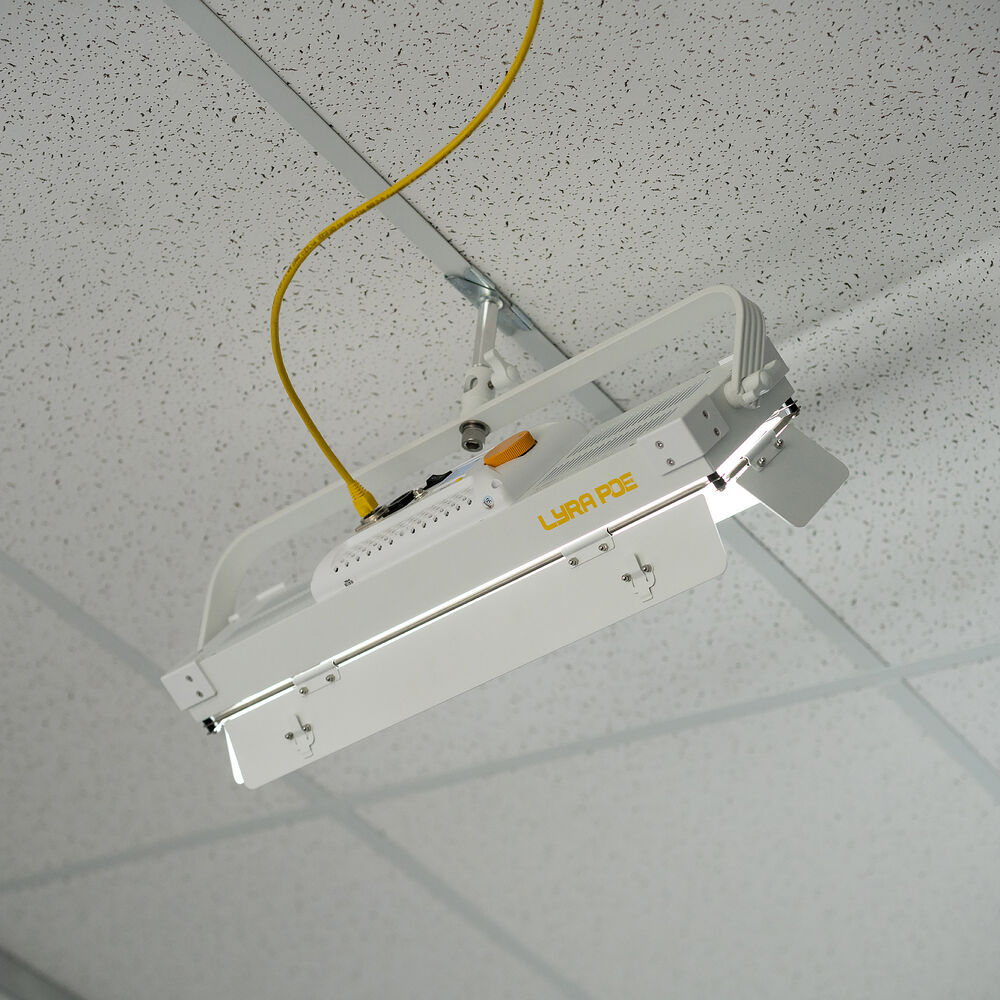

Yoke, Mounting & Full-Body Lighting
- The panel's yoke is ideal for studios, conference rooms, classrooms, and various other scenarios with low ceilings and limited space.
- The fixture also has a combo Baby receiver/Junior pin on the yoke so you can mount it on a separately available light stand or hang it from a grid with optional clamps.
- Thanks to the included adapter, you can even mount the light vertically to achieve full-body lighting.
UPC: 847983038176

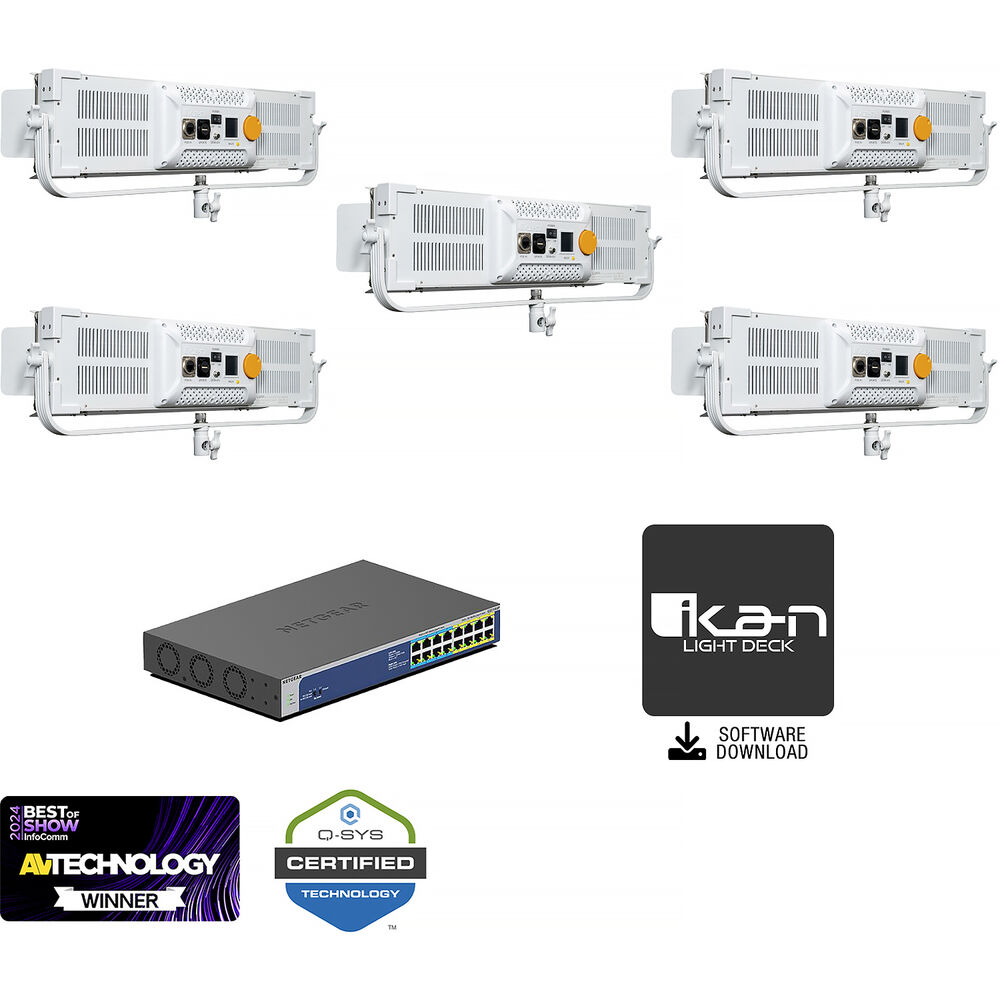

Items Included
- ikan Lyra LBX8-PoE Bi-Color LED Light Panel (White, Unmanaged Switch 5-Light Kit)
- 5 x LBX8-PoE with Barndoors
- 5 x Yoke
- 5 x TVMP Combo Pin
- 5 x Safety Wire
- Netgear PoE++ 380W Unmanaged Switch
- Limited 1-Year Manufacturer Warranty
Additional Resources
ikan LBX8-POE Specs
Key Specs
| Item Type |
5x LED Light Panel
|
| Included Light Modifier |
5x Barndoors (Built-In)
|
| Photometrics |
3200K: 127 fc / 1370 Lux
5600K: 145 fc / 1566 Lux |
| Color Temperature |
3200 to 5600K
|
| Color Modes |
Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 97
TLCI 99 |
| Dimming |
Built-In Dimmer / DMX
? 0 to 100% |
| Front Accessory Mount |
Proprietary
|
| Power Source |
Power Over Ethernet (PoE)
AC to DC Adapter (Not Included) |
| Input Power |
48 VDC
|
| Power Consumption |
50 W
|
| Fixture Mounting |
1x 1-1/8" Stud with 5/8" Receiver
|
Light Fixture
| Item Type |
5x LED Light Panel
|
| Included Light Modifier |
5x Barndoors (Built-In)
|
| Included Filters |
Diffusion (Built-In)
|
| Photometrics |
3200K:
127 fc / 1370 Lux at 3.3' / 1 m* 16 fc / 178 Lux at 9.8' / 3 m 8 fc / 88 Lux at 14.8' / 4.5 m 5600K: 145 fc / 1566 Lux at 3.3' / 1 m* 18 fc / 204 Lux at 9.8' / 3 m 9 fc / 104 Lux at 14.8' / 4.5 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
3200 to 5600K
|
| Color Modes |
Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 97
TLCI 99 |
| Dimming |
Built-In Dimmer / DMX
? 0 to 100% |
| Cooling System |
Passive
|
| Expected Lamp Life |
70,000 Hours
|
| Beam Angle |
110?
|
| Built-In Flash |
No
|
| Preprogrammed Effects |
No
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
Power & I/O
| Power Source |
Power Over Ethernet (PoE)
AC to DC Adapter (Not Included) |

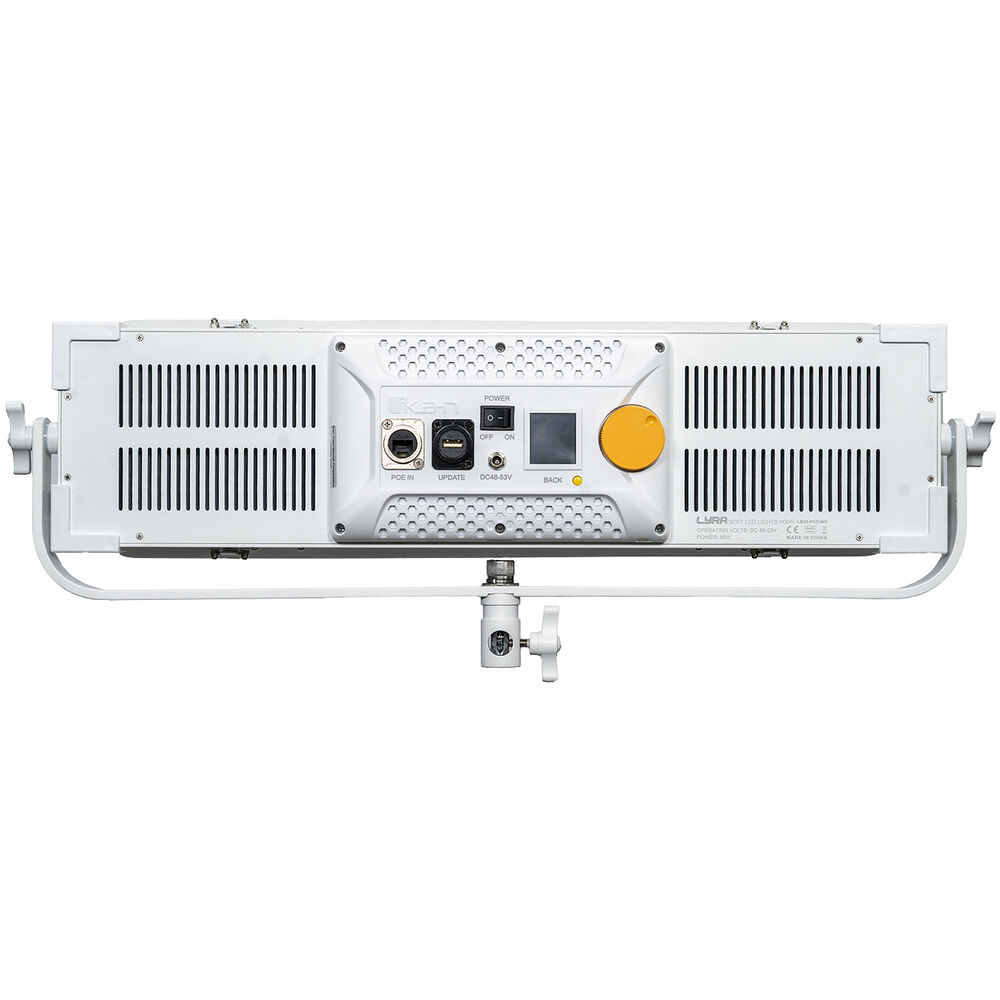

| Inputs/Outputs |
1x RJ45 Network/PoE Input
1x USB-A Firmware Input 1x Barrel / Coax Power Input |
| Input Power |
48 VDC
|
| Inline Switch |
No
|
| Power Pass-Thru |
No
|
| Power Consumption |
50 W
|
Mounting
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
1x 1-1/8" Stud with 5/8" Receiver
|
General
| Display |
LCD
|
| Environmental Resistance |
No
|
| Operating Conditions |
10 to 110?F / -12 to 43?C
|
| Certifications |
CE, UKCA
|
| Materials |
Metal, Plastic
|
| Dimensions |
24.5 x 7 x 1.9" / 62.2 x 17.8 x 4.8 cm
|
| Weight |
4.9 lb / 2.2 kg
|
