Description
ikan LBX20 Overview
From Manufacturer
Lyra Bi-Color Studio Soft Panel LED Light w/ DMX Control | Ikan Tech Corner
Lyra PoE 1 x 2 Bi-Color Soft Light LBX20-POE Unboxing and Overview

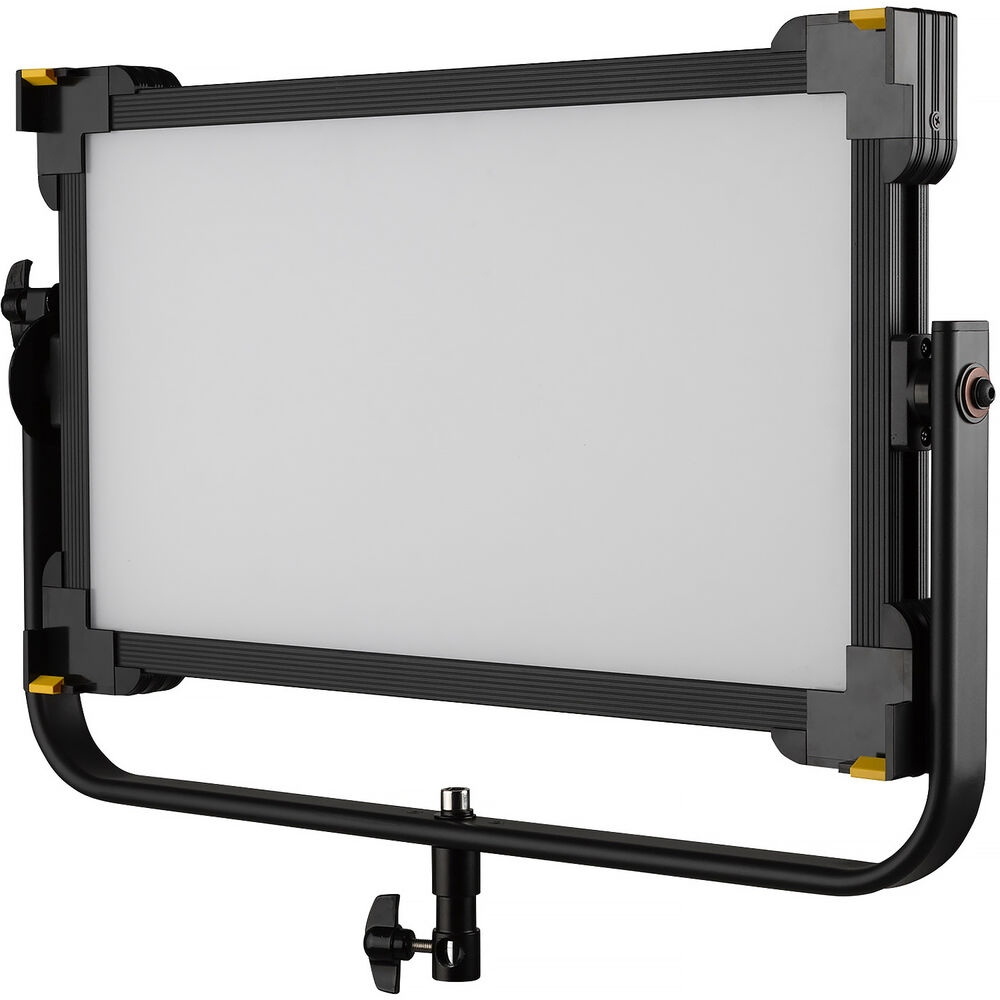

Combining high 97 CRI LEDs with a 1/2-stop integrated soft panel and PoE technology, the Lyra LBX20-PoE Bi-Color LED Light Panel Switch 3-Light Kit from ikan packs three LBX20-PoE fixtures designed to deliver soft, wrapping light with clean shadows at a wide beam angle of 110?. Each 1 x 2' panel may be mounted by its included yoke to a separately available light stand. The LBX20-PoE features dual PoE++ ports for 170W power delivery. It is powered via AC power or PoE++ and controlled via Art-Net or sACN protocols, as well as with traditional onboard control and wired DMX512. Optional RJ45 cables can be used for both power and DMX. The kit ships with a Netgear switch to ensure efficient power delivery over the network. It also includes the brand's convenient Light Deck controller program.
Bi-Color Punch & Consistent Light Levels
The LBX20-PoE offers a bi-color punch with a CCT range of 3200 to 5600K to give you the exact tweak needed to match a specific light situation. Match your subject's skin tone right from the fixture without the need for color correction filters. Designed to elevate your lighting productions, the light output stays consistent as you transition across the color temperature range.
Wraparound Lighting & Color Accuracy

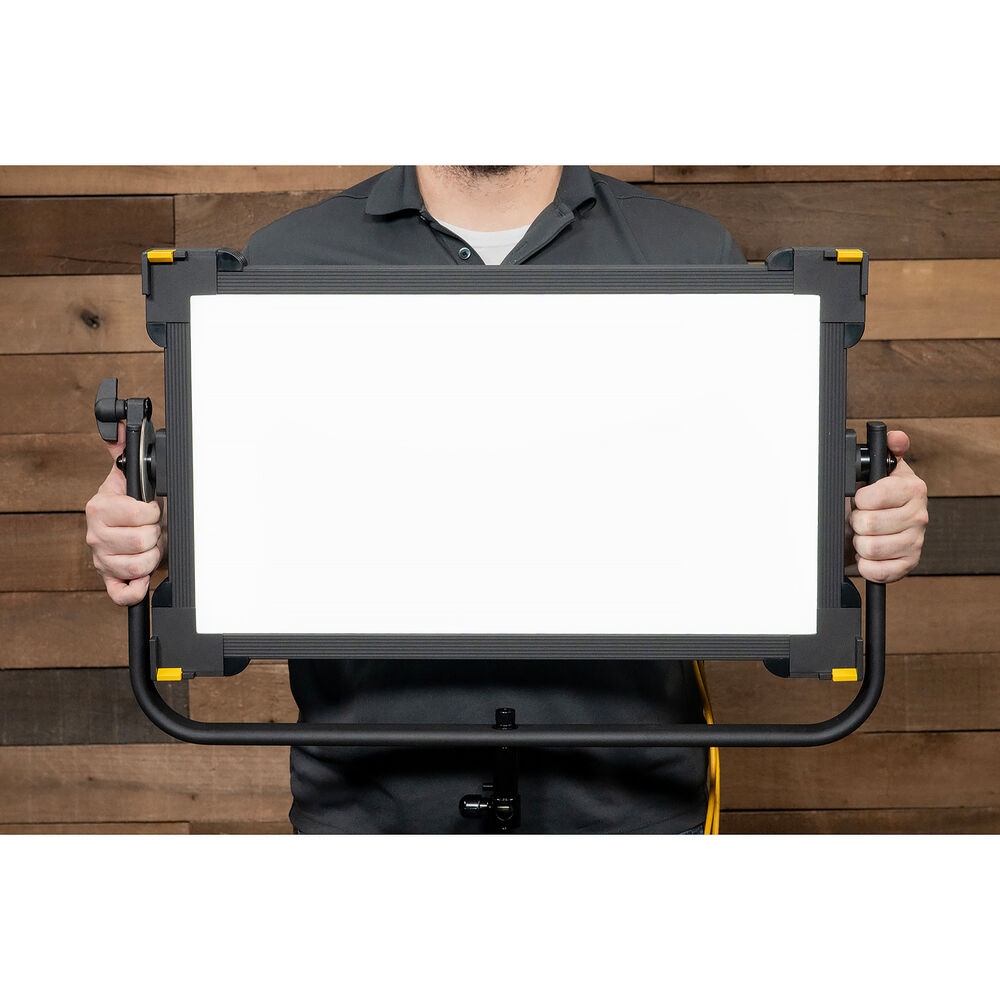

The fixture's integrated 1/2-stop white diffuser provides extra softness, while its LEDs produce a 110? beam spread with precise color rendering. A high CRI rating of 97 and a TLCI rating of 99 assure faithful and accurate rendering of colors and skin tones. The LBX20-PoE can output a strong, wraparound diffused light up to 5074 lux at 3.3' (5600K), making it ideal for broadcast applications.
Onboard, DMX Control, Art-Net & sACN

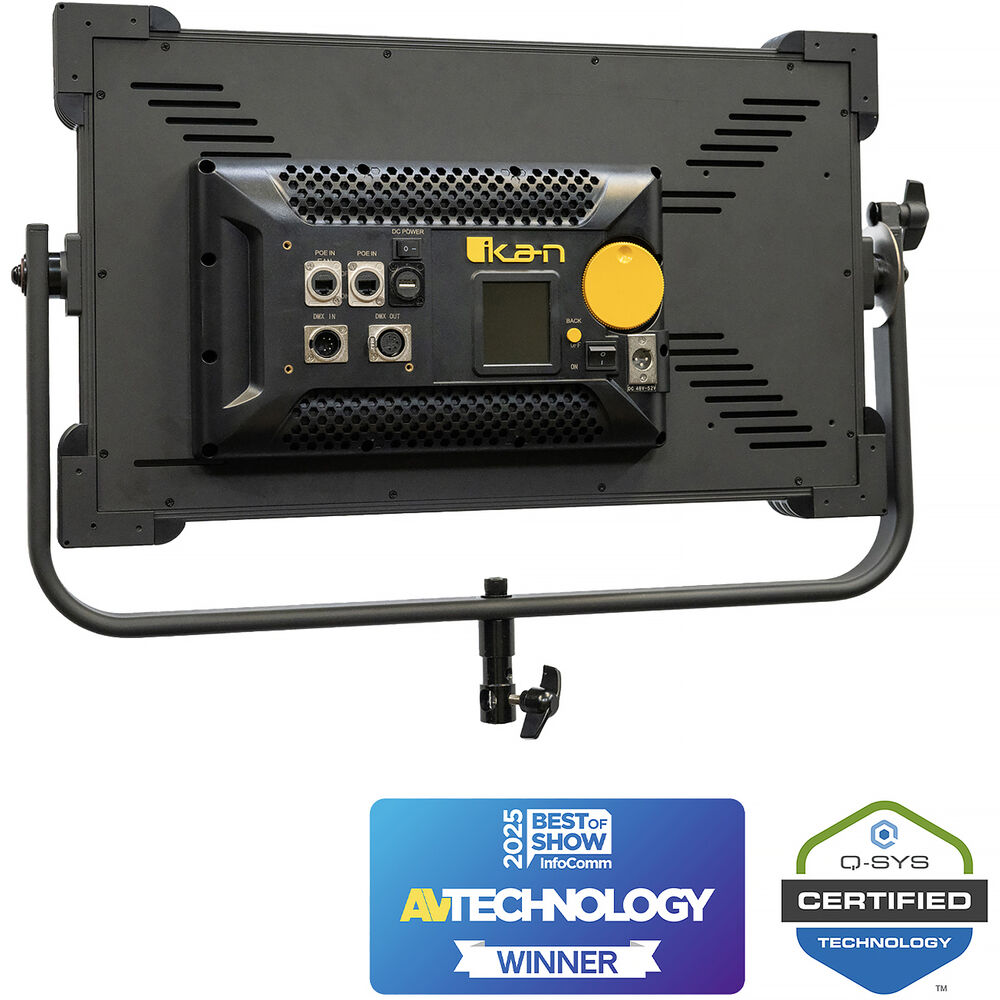

- Easily adjust your brightness, CCT, and DMX settings using ikan's intuitive yellow knob and LCD screen. Standard DMX in/out 5-pin XLR ports allow remote control from a user-supplied DMX console.
- Art-Net and sACN protocols integrate the fixture seamlessly into DMX control systems. Users can access the web GUI to manage the IP address or Art-Net and sACN settings, such as DMX addresses and universes.
- The fixture seamlessly integrates into Q-SYS ecosystems via Q-SYS plugin to allow control of settings for up to 256 lights per universe.
Power over Ethernet & Passive Cooling

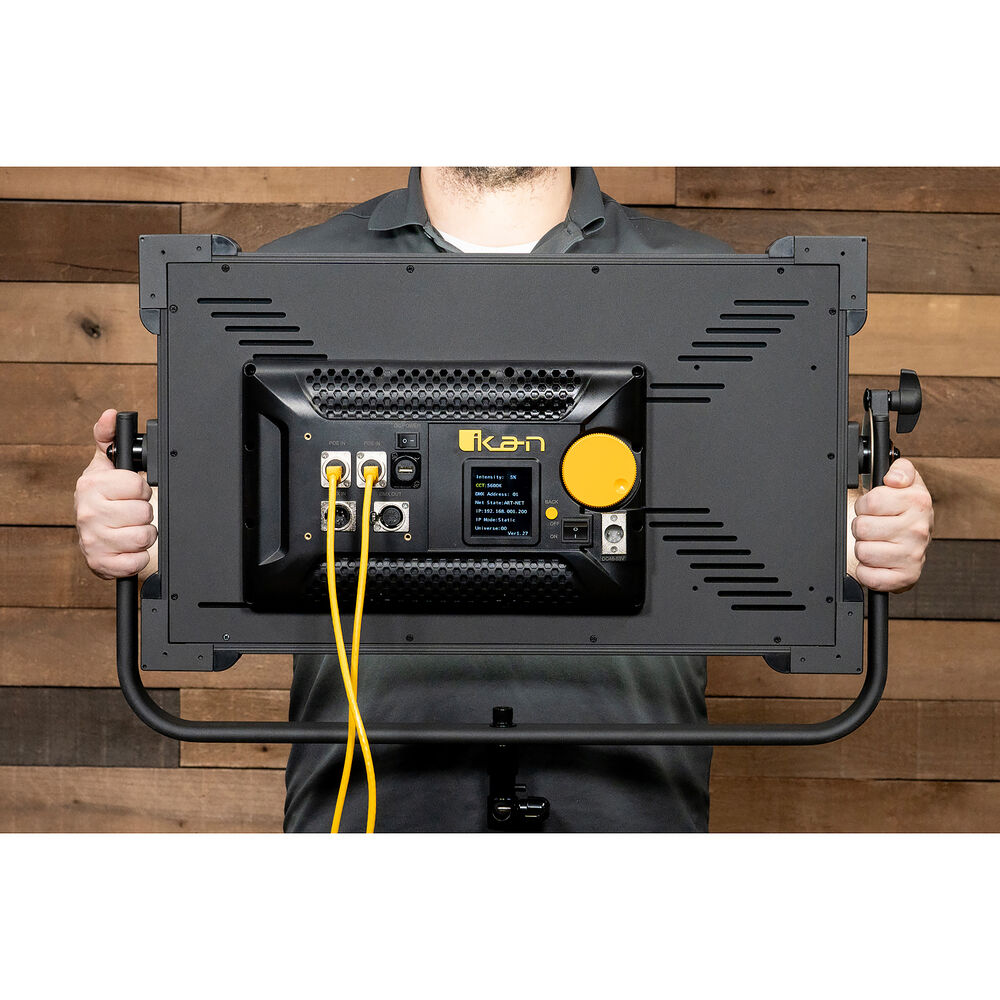

- Designed to save you time and installation costs, the LBX20-PoE is powered through two Ethernet Cat6 RJ45 cables (24AWG or above).
- The kit includes a Netgear PoE++ 802.3bt 720W switch.
- Passive cooling for silent operation.
Yoke & Mounting
Combo Baby receiver/Junior pins lets you mount the fixtures on separately available light stands. The LBX20-PoE works with separately available barndoors that provide control over light spill, as well as optional 30 or 60? honeycomb egg crates.
UPC: 847983038145

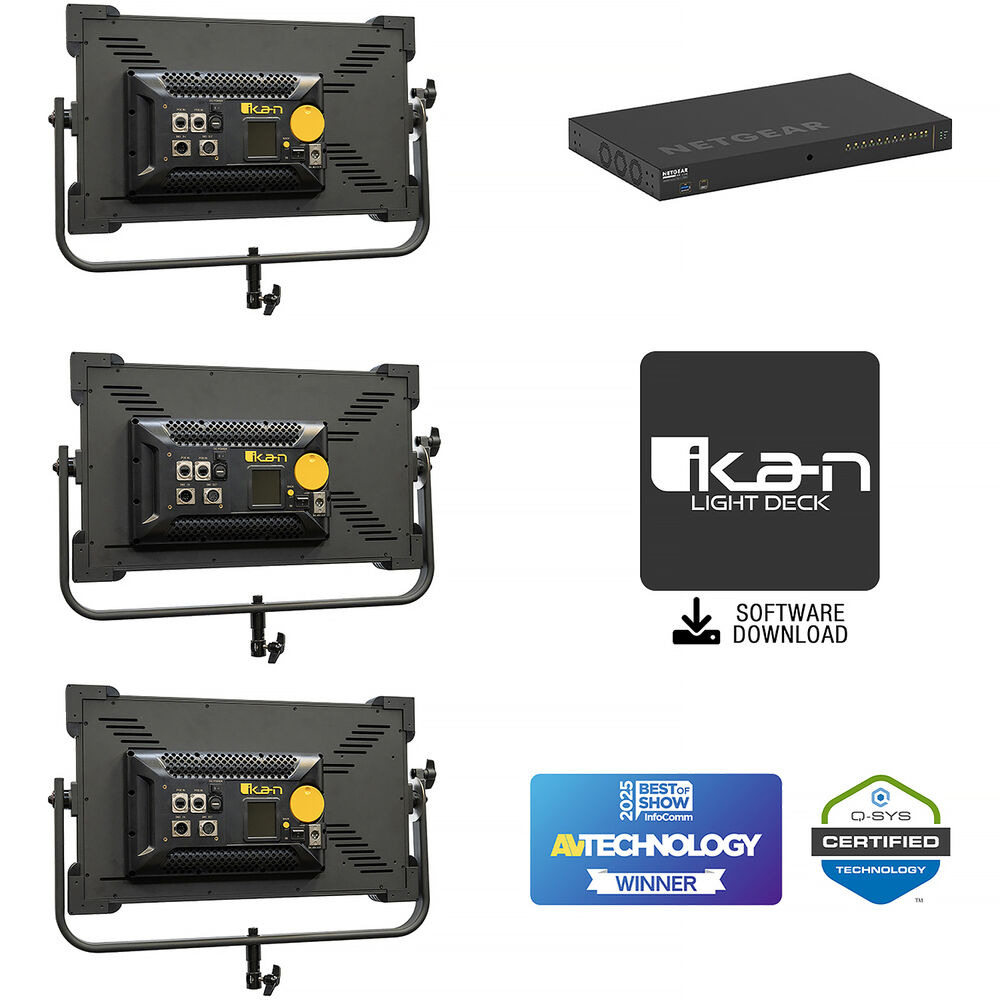

Items Included
- ikan Lyra LBX20-PoE Bi-Color LED Light Panel (Switch 3-Light Kit)
- 3 x LBX20-PoE
- 3 x Yoke
- 3 x TVMP
- PoE++ 720W Switch
- Light Deck
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
ikan LBX20 Specs
Key Specs
| Item Type |
3x LED Light Panel
|
| Included Storage Case |
No
|
| Photometrics |
5600K: 471 fc / 5074 Lux
3200K: 420 fc / 4531 Lux |
| Color Temperature |
3200 to 5600K
|
| Color Modes |
Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 97
TLCI 99 |
| Dimming |
App-Controlled / Built-In Dimmer / DMX
? 0 to 100% |
| Front Accessory Mount |
Proprietary
|
| Power Source |
Power Over Ethernet (PoE)
AC to DC Adapter (Not Included) |
| Input Power |
48 VDC at 5.2 A
|
| Power Consumption |
170 W (Maximum)
|
| Fixture Mounting |
1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
|
Light Fixture
| Item Type |
3x LED Light Panel
|
| Included Filters |
Soft Diffusion (Built-In)
|
| Included Storage Case |
No
|
| Photometrics |
5600K:
471 fc / 5074 Lux at 3.3' / 1 m* 57 fc / 618 Lux at 9.8' / 3 m 28 fc / 308 Lux at 16.4' / 5 m 3200K: 420 fc / 4531 Lux at 3.3' / 1 m* 51 fc / 549 Lux at 9.8' / 3 m 25 fc / 275 Lux at 14.8' / 4.5 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
3200 to 5600K
|
| Color Modes |
Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 97
TLCI 99 |
| Dimming |
App-Controlled / Built-In Dimmer / DMX
? 0 to 100% |
| Cooling System |
Passive
|
| Expected Lamp Life |
70,000 Hours
|
| Beam Angle |
110?
|
| Built-In Flash |
No
|
| Preprogrammed Effects |
No
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
Power & I/O
| Power Source |
Power Over Ethernet (PoE)
AC to DC Adapter (Not Included) |
| Inputs/Outputs |
2x RJ45 Network/PoE Input
1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 1x USB-A Service Input 1x XLR 3-Pin Power Input |
| Input Power |
48 VDC at 5.2 A
|
| Power Pass-Thru |
No
|
| Power Consumption |
170 W (Maximum)
|
Mounting
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)
|
General
| Display |
LCD
|
| Environmental Resistance |
No
|
| Operating Conditions |
10 to 110?F / -12 to 43?C
|
| Materials |
Metal, Plastic
|
| Dimensions |
31 x 26 x 7" / 78.7 x 66 x 17.8 cm (Fixture)
24 x 12" / 61 x 30.5 cm (Fixture Panel) |
| Weight |
25 lb / 11.3 kg (Fixture)
|
