Description
ikan LBF60Z-PoE Overview

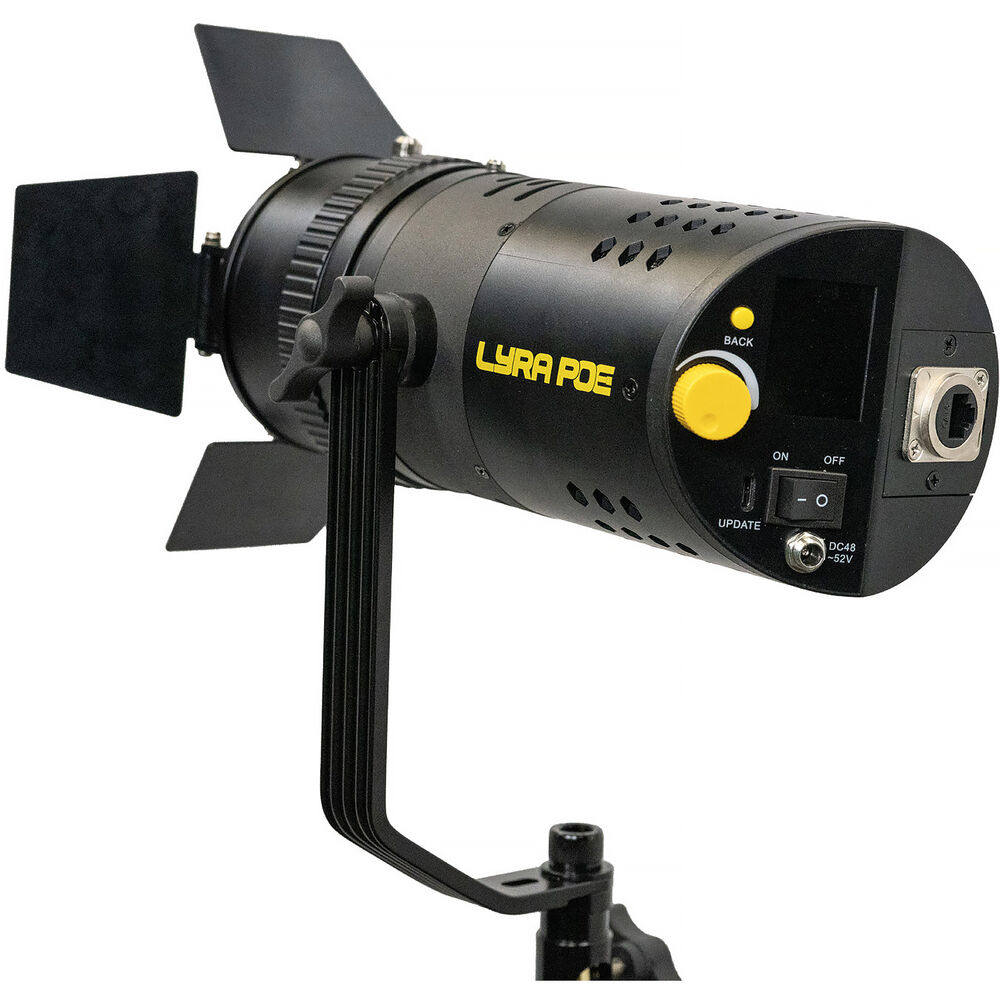

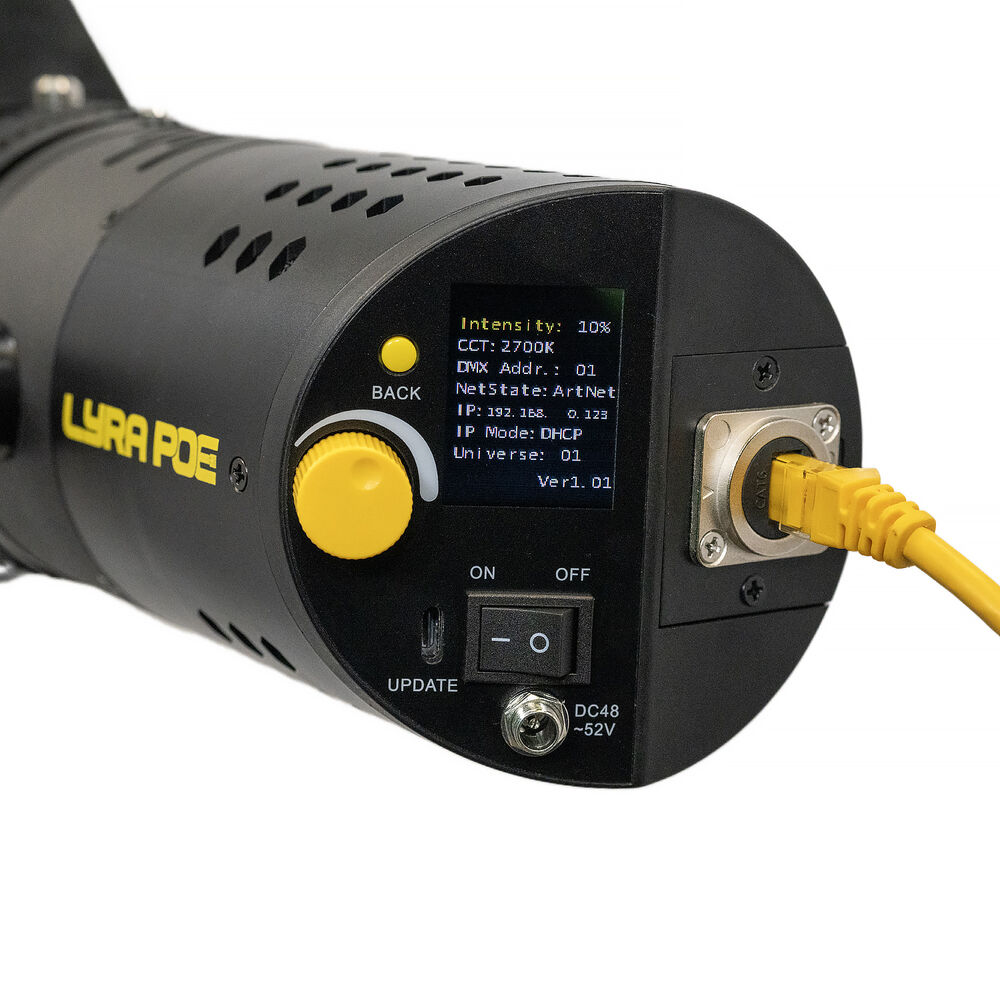

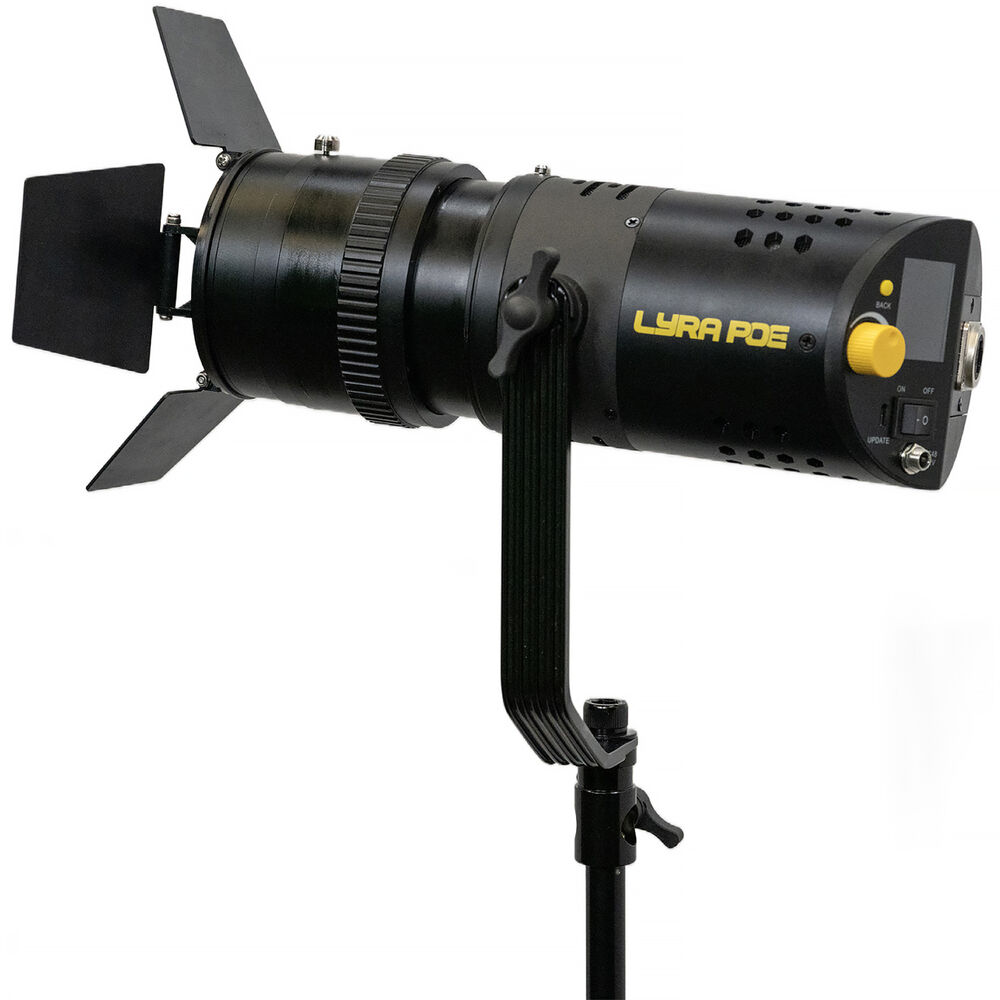

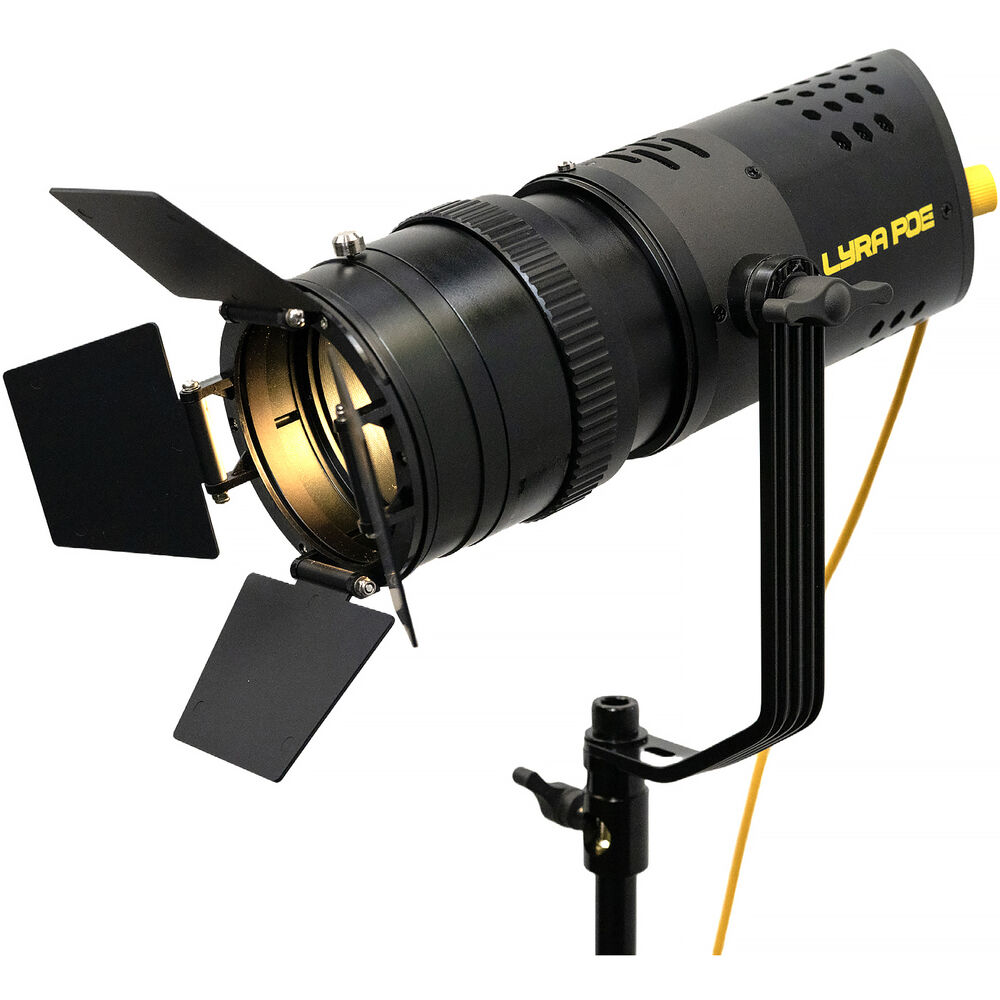

Designed for studio, film, and TV production, this Lyra LBF60Z-PoE Bi-Color LED Fresnel Zoom Light Kit from ikan includes three 60W PoE++ light and a Netgear 380W unmanaged Ultra60 PoE++ switch. Each bi-color light produces an output of 2710 lux at 5' at 3200K. The light's manual zoom Fresnel lens features an adjustable 30-60? beam angle for more creative lighting control with narrow spotlight and wide flood options for greater flexibility. Built with a passive cooling system, each fixture withstands long hours of power without overheating and its high 97 CRI and 98 TLCI ratings ensure accurate color temperatures. For ease of use, each light is compatible with Q-SYS plugin integration systems and uses a single RJ45 single ethernet cable for power and for its DMX connections, which include Art-Net and sACN options. For simple mounting options, each light includes a standard and low-profile yoke with combo pins to light tight spaces or large studio productions.
Items Included

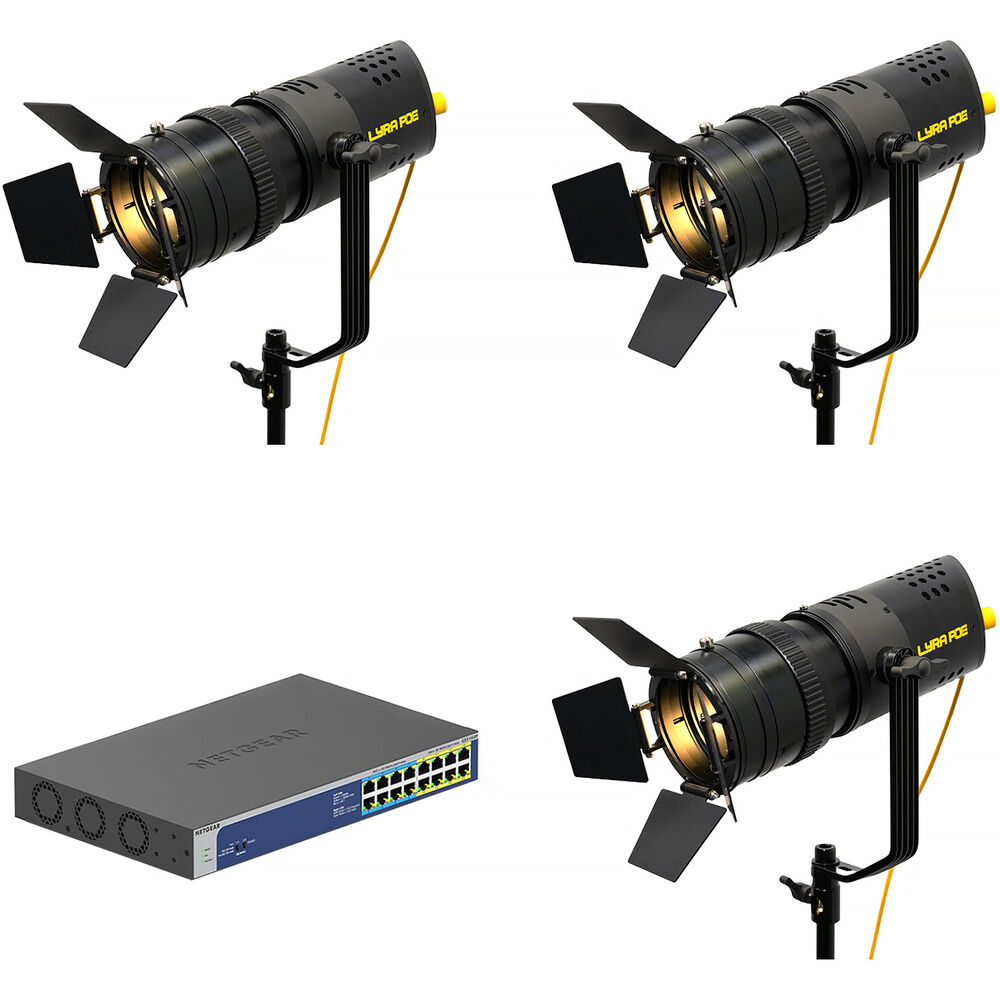

- ikan Lyra LBF60Z-PoE Bi-Color LED Fresnel Zoom Light (Unmanaged Switch, 3-Light Kit))
- 3 x LBF60Z-PoE
- 3 x Yoke
- 3 x Barndoors
- 3 x Combo Pin
- 3 x Safety Wire

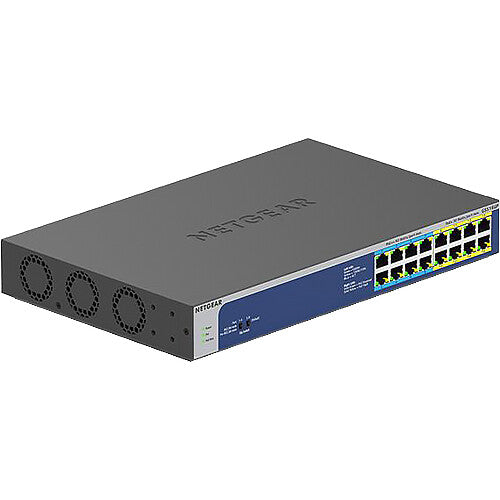

- PoE++ 380W Unmanaged Ultra60 Switch
- Limited 1-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
ikan LBF60Z-PoE Specs
| Item Type |
3x LED Fresnel
|
| Included Light Modifier |
3x Barndoors (Built-In)
|
| Included Storage Case |
No
|
| Photometrics |
60? at 3200K: 73 fc / 794 Lux
60? at 5600K: 86 fc / 931 Lux 30? at 3200K: 566 fc / 6097 Lux 30? at 5600K: 612 fc / 6592 Lux |
| Color Temperature |
2700 to 6500K
|
| Color Modes |
Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 97
TLCI 98 |
| Dimming |
Built-In Dimmer / DMX
? 0 to 100% |
| Front Accessory Mount |
Proprietary
|
| Power Source |
AC to DC Adapter (Not Included)
|
| Input Power |
48 VDC
|
| Power Consumption |
60 W
|
| Fixture Mounting |
1x 5/8" Receiver (Via Yoke Mount)
|
| Item Type |
3x LED Fresnel
|
| Included Light Modifier |
3x Barndoors (Built-In)
|
| Included Storage Case |
No
|
| Photometrics |
60? at 3200K:
73 fc / 794 Lux at 3.3' / 1 m* 9 fc / 102 Lux at 9.8' / 3 m 60? at 5600K: 86 fc / 931 Lux at 3.3' / 1 m* 10 fc / 117 Lux at 9.8' / 3 m 30? at 3200K: 566 fc / 6097 Lux at 3.3' / 1 m 68 fc / 740 Lux at 9.8' / 3 m 30? at 5600K: 612 fc / 6592 Lux at 3.3' / 1 m* 75 fc / 811 Lux at 9.8' / 3 m *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
2700 to 6500K
|
| Color Modes |
Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 97
TLCI 98 |
| Dimming |
Built-In Dimmer / DMX
? 0 to 100% |
| Cooling System |
Fan
|
| Expected Lamp Life |
70,000 Hours
|
| Beam Angle |
30 to 60?
|
| Built-In Flash |
No
|
| Preprogrammed Effects |
No
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
| Lens Type |
Fresnel
|
| Lens Diameter |
3.25" / 8.26 cm
|
| Power Source |
AC to DC Adapter (Not Included)
|
| Inputs/Outputs |
1x Barrel / Coax Power Input
1x RJ45 Network Input 1x USB-C Firmware Input |
| Input Power |
48 VDC
|
| Inline Switch |
No
|
| Power Pass-Thru |
No
|
| Power Consumption |
60 W
|
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
1x 5/8" Receiver (Via Yoke Mount)
|
| Display |
LCD
|
| Environmental Resistance |
No
|
| Operating Conditions |
10 to 110?F / -12 to 43?C
|
| Materials |
Metal, Plastic
|
| Dimensions |
14.3 x 5.8 x 4.2" / 36.3 x 14.7 x 10.7 cm
|
| Weight |
3.6 lb / 1.6 kg
|
