ikan Livecom1000 Wireless Intercom System with Base Station, Beltpacks & Headsets

For Wireless Comms in Production

Full Duplex 1.9 GHz System

1 Base Station, 4 Beltpacks & 5 Headsets

1000' Range

1000ft Wireless Intercom System from Ikan | Tech Tips

The Livecom1000 from ikan is a full-duplex, wireless intercom system suitable for film, theater, or production scenarios where communication is key. The system offers 1000' of transmission distance and operates on the 1.9 GHz frequency band.

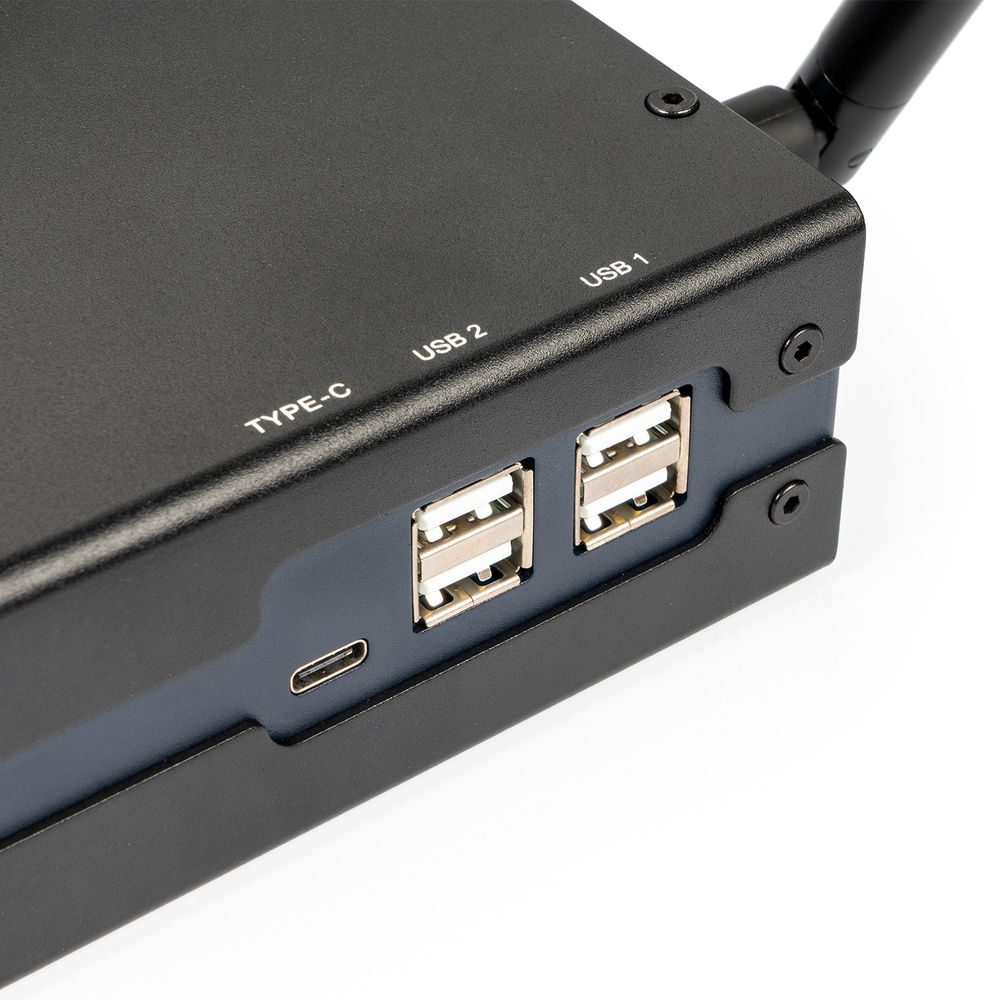

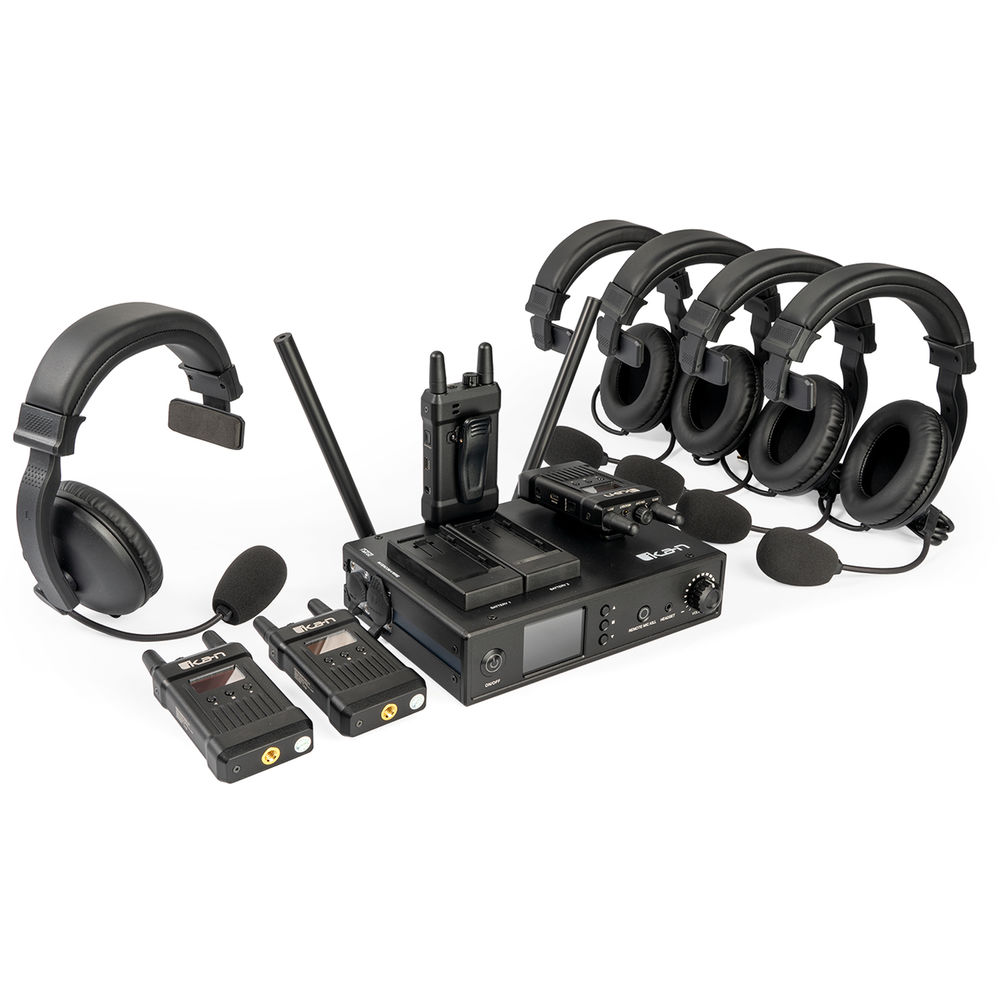

The system includes a base station, four beltpacks, and five headsets, allowing five people to communicate with each other. The base station offers a 3.5mm connection for one headset, four USB-A charging ports, and a USB-C debugging port. Connect to another Livecom1000 system via the RJ45 port and you can combine two systems together if your team is larger than five people.

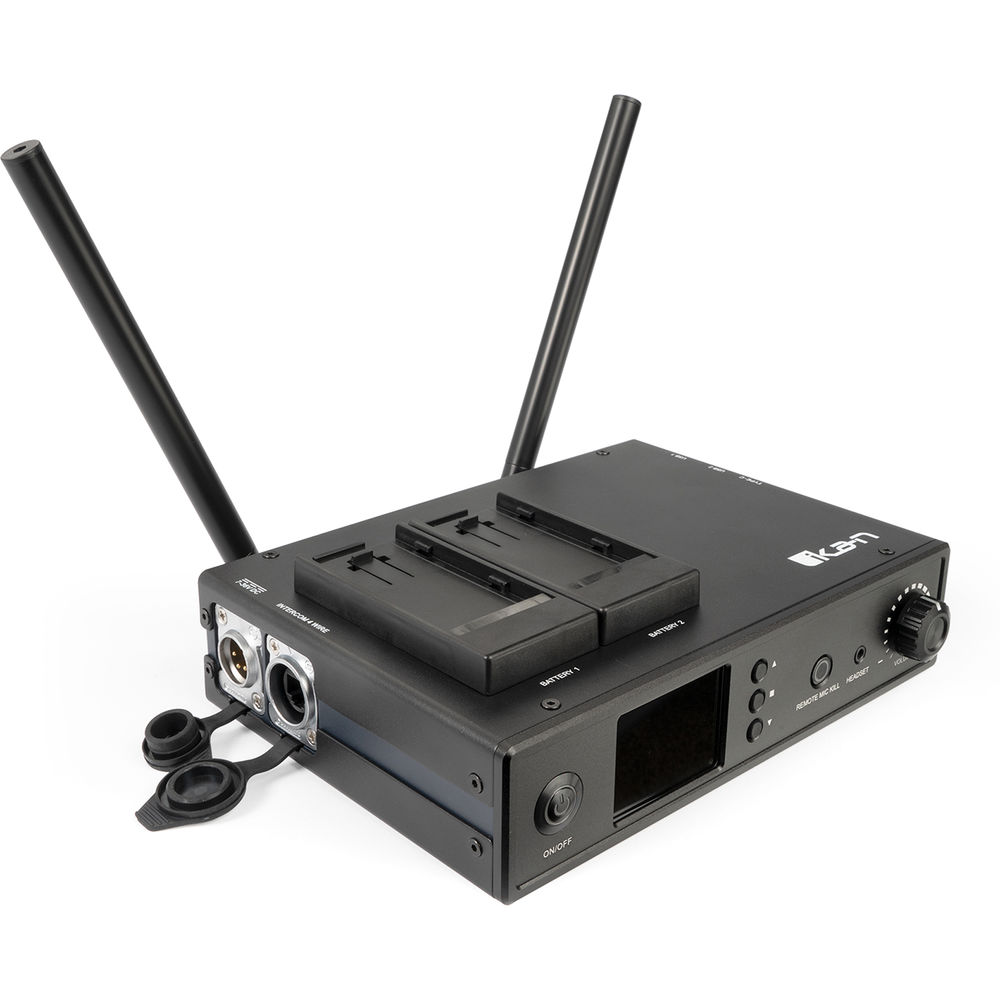

The base station can last up to 20 hours on a single charge of one (separately available) Lithium battery. However, the unit has two battery slots, so you can disengage one battery when it loses its charge without disrupting the system as a whole (it will stay powered from the other battery). This is a useful feature for mission-critical circumstances.

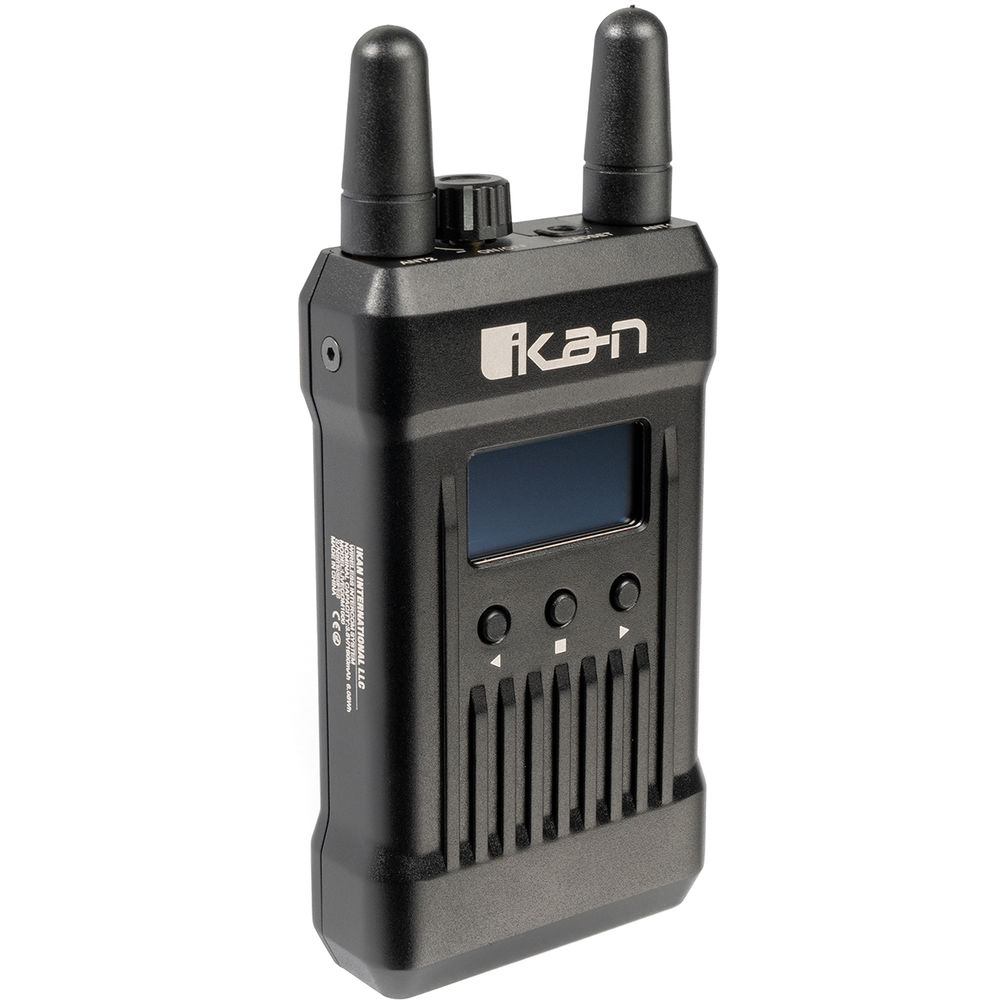

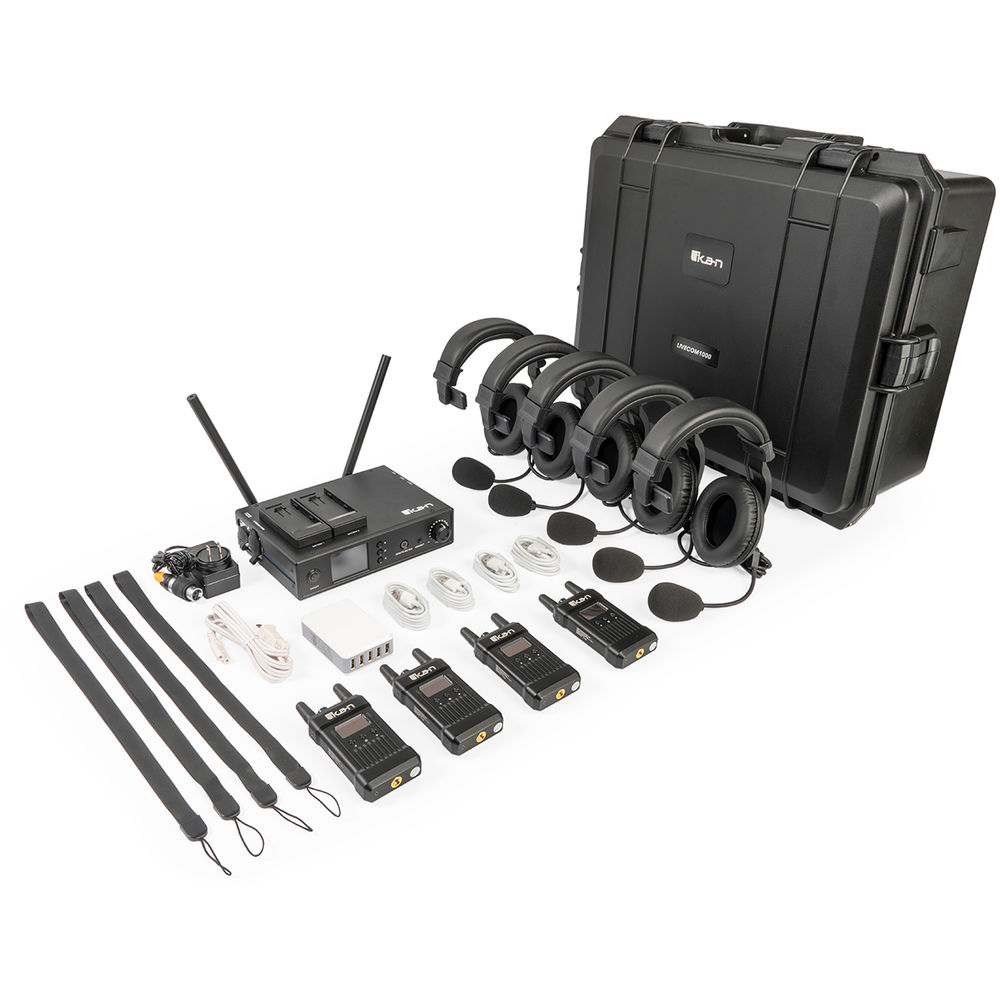

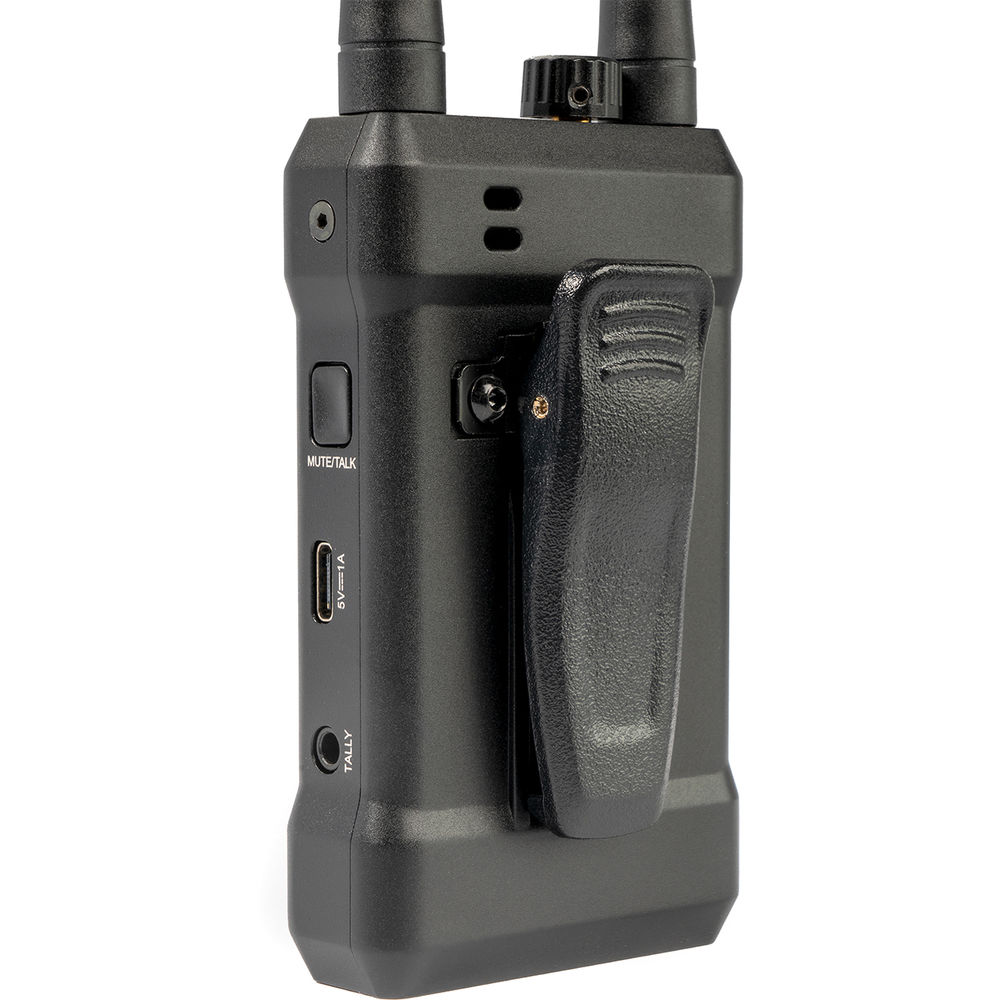

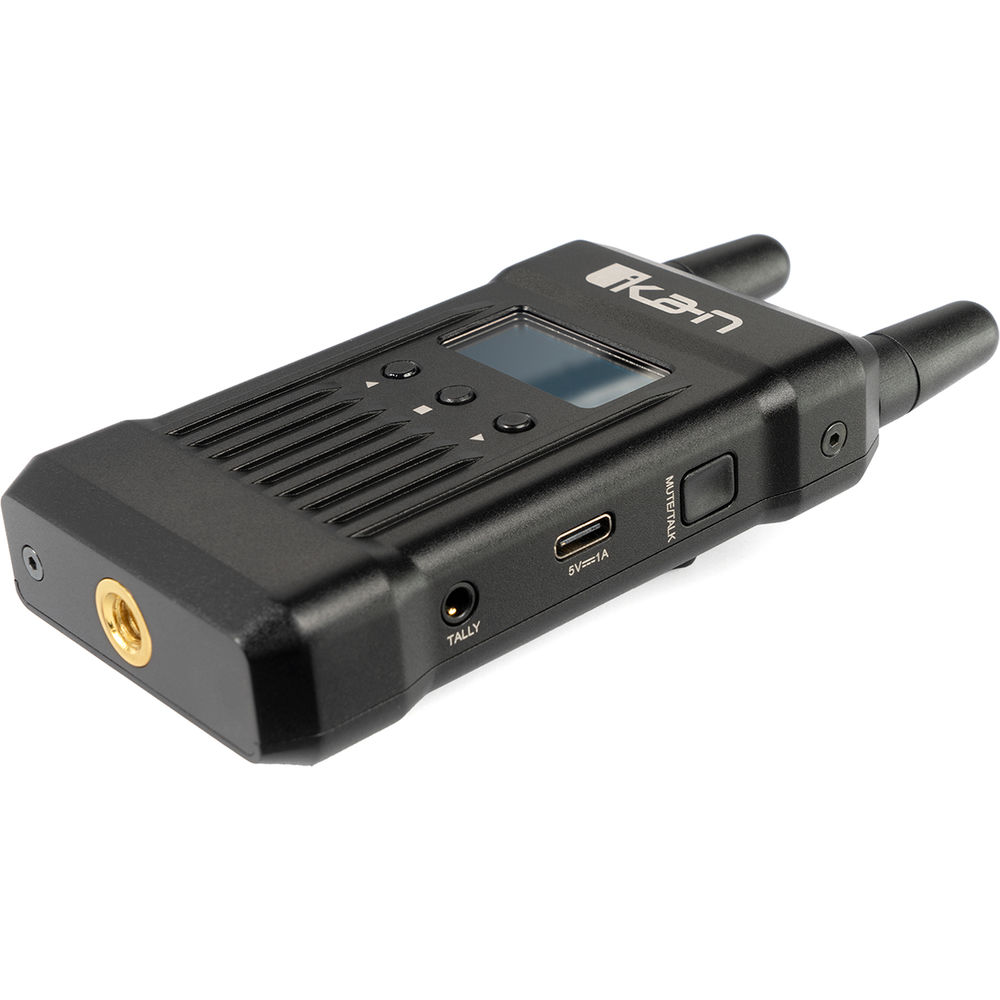

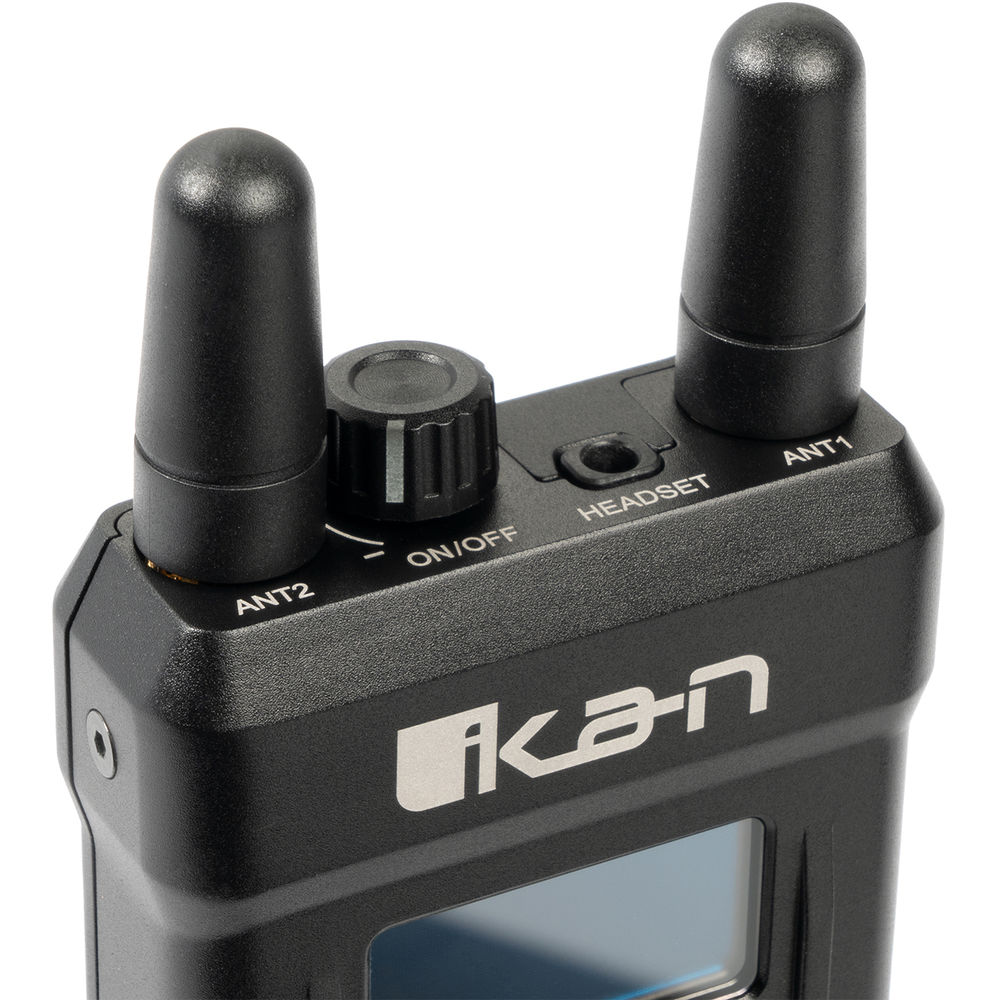

The four beltpacks have built-in batteries, and can each last up to eight hours. A multi-port USB-C charger is included, as is a power adapter for the base station, two base-station antennas, USB charging cables, and a hard carrying case to transport everything.

Clear Crisp Audio The full-duplex wireless transmission along with the noise cancellation headsets ensures everything said is heard loud and clear. Long Battery Life The built-in Lithium batteries on the beltpacks can run up to 8 hours on a single full charge. Beltpacks can be charged either through the base station or the included multiport USB wall charger. Portable Setup The base station can either be powered by the included power adapter, or by L-series-style batteries. The base station can be powered either by one or two batteries allowing you to swap batteries without the unit dying. Expandable Connect another Livecom1000 to increase the total beltpacks to 8 via the interface 4-wire port. An RJ45 T-568B cable can be used. UPC: 847983031160

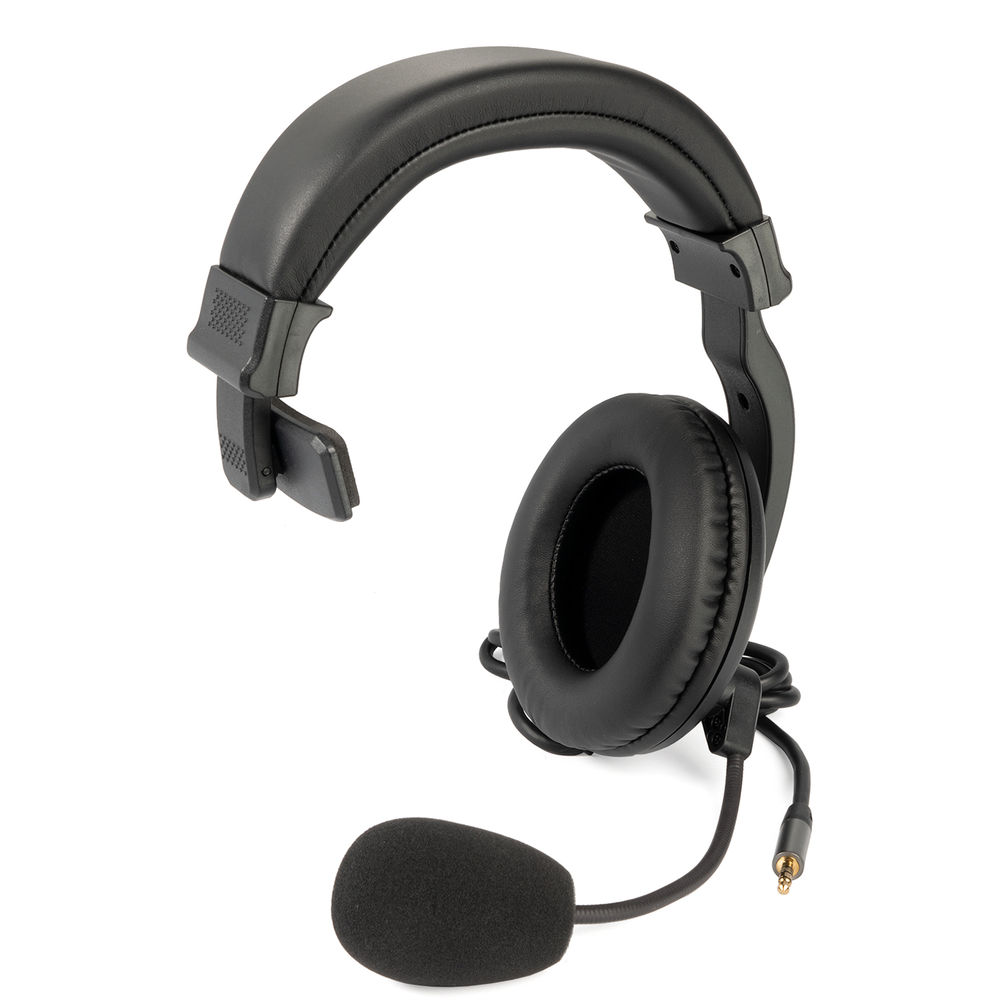

Number of Included Headsets	5 x Single-Sided Headset
Number of Included Transceivers	4 x Beltpack 1 x Base Station

Earpiece Design	Over-Ear (Circumaural), Closed-Back
Number of Earpieces	Single Earpiece (Left or Right Side)
Sound Field	Mono
Impedance	32 Ohms
Controls/Microphone Location	Microphone: Adjustable Boom

Type	Dynamic
Mic Boom Location	Interchangeable (Left or Right Side)
Impedance	600 Ohms

Wireless Transmission	Digital 1.9 GHz
Max Systems per Setup	2
Wireless Modulation	GFSK
Duplex Mode	Full-Duplex (FDX)
Wireless Range	984.3' / 300 m

Audio Connector to Source

1 x 1/8" / 3.5 mm TRRS Male Straight

Battery Chemistry	Base Station: Lithium-Ion Beltpack: Lithium-Ion Polymer (LiPo)
Capacity (mAh)	1600 mAh
Runtime	Base Station: 20 Hours Beltpack: 8 Hours

Users per System	5
I/O Connectors	4 x USB Type-A - Charging/Control Input/Output 1 x USB Type-C - Control Input/Output 1 x 1/8" / 3.5 mm - Audio Output
Antenna	Base Station: 2 x External, BNC
Number of Charging Ports	4
AC/DC Power Adapter	7 to 36 VDC (Included)

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C

Dimensions	Base Station: 8.66 x 6.69 x 1.97" / 220 x 170 x 50 mm Beltpack: 3.94 x 2.28 x 0.87" / 100 x 58 x 22 mm
Weight	Base Station: 3.1 lb / 1400 g Beltpack: 0.4 lb / 180 g (Each)

Package Weight	22.12 lb
Box Dimensions (LxWxH)	22 x 18.3 x 10.7"
