ikan Helia 150W Bi-Color LED Fresnel Light (2-Light Kit)

Better Control & Shape the Light Output

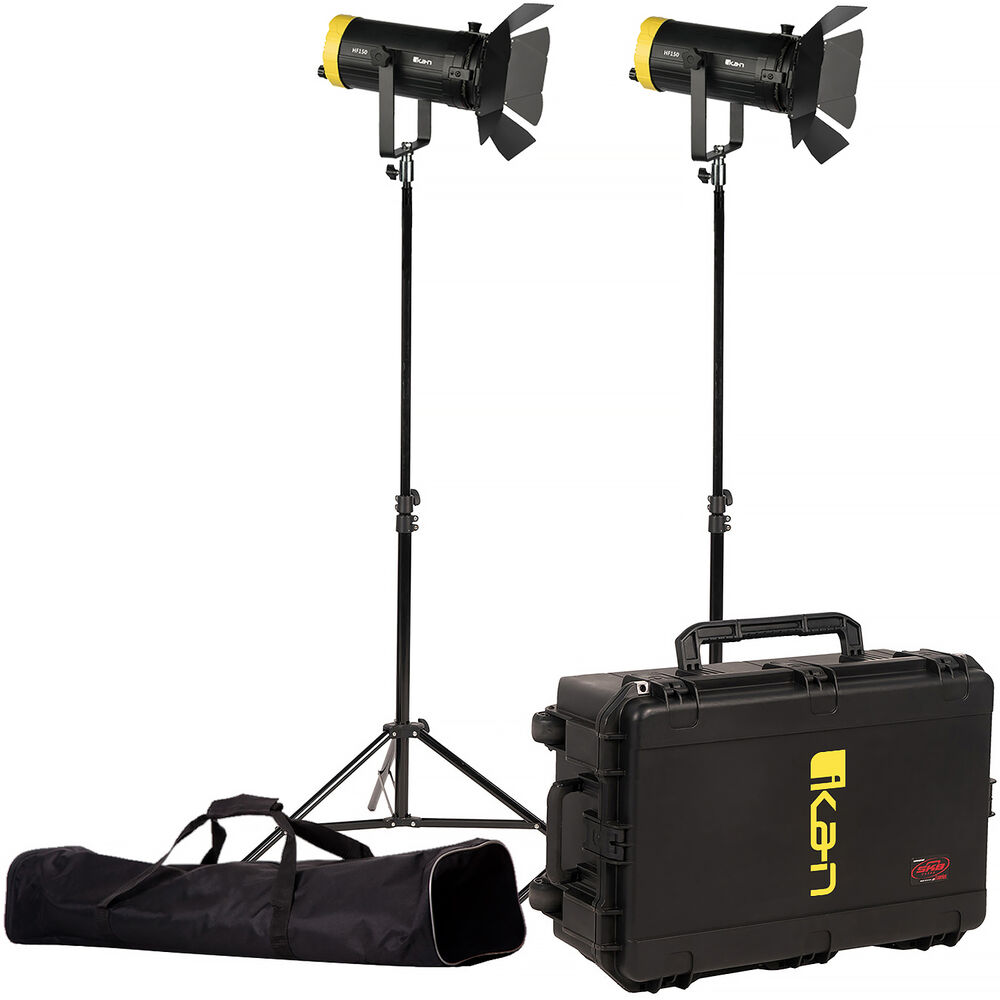

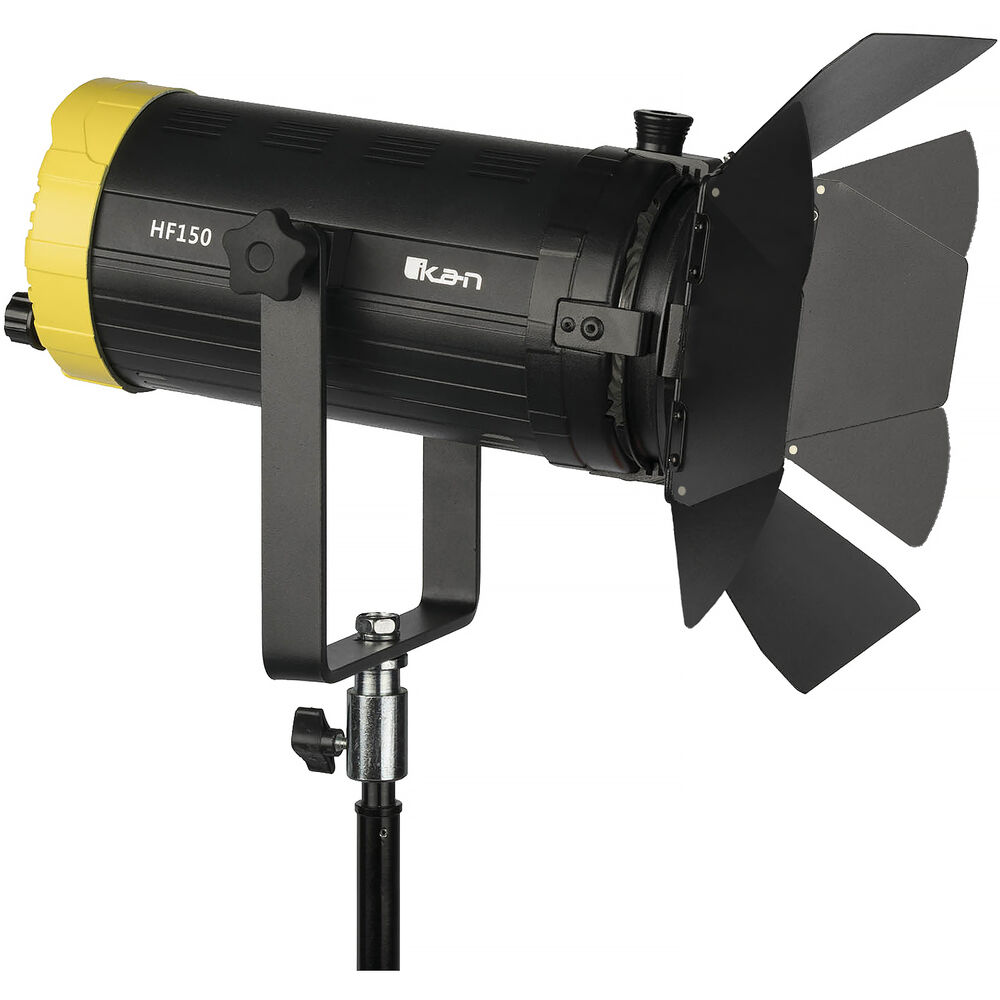

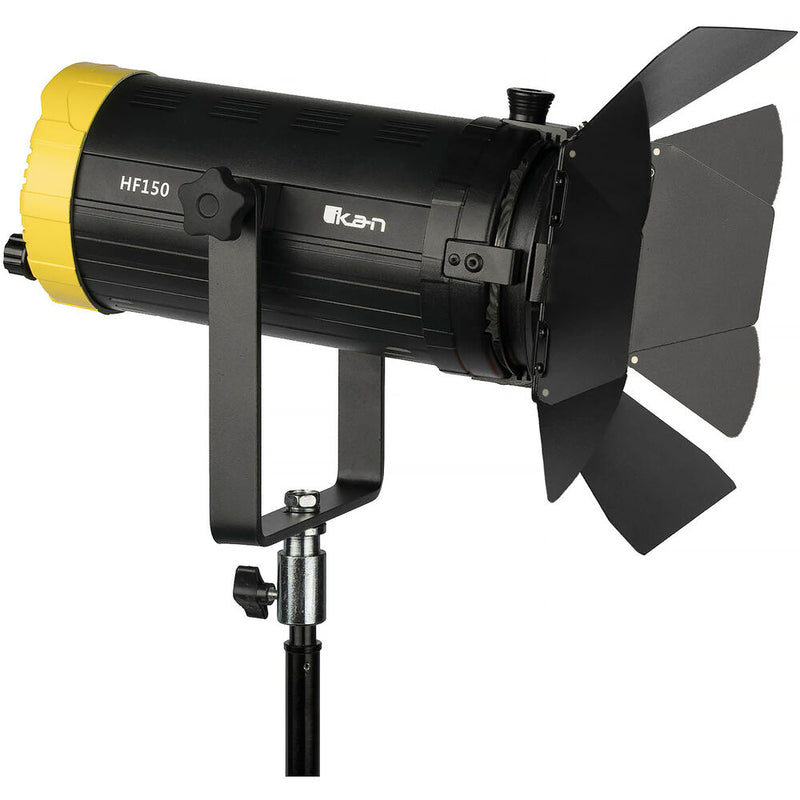

With versatile eight-way barndoors, the 2-light kit Helia 150W Bi-Color LED Fresnel Light from ikan features an upgraded design for enhanced light shaping and control. With extensive output options, users can easily adjust intensity, warmth, and beam spread for an ultra-refined output. Built with a durable aluminum housing and a 4" acrylic Fresnel lens, the Helia 150W is highly versatile and offers an adjustable beam angle from 20 to 70° for various spot and flood options. The light's bi-color capabilities produce a 3200-5600K color temperature range to simulate realistic tungsten and daylight outputs. This adaptable Fresnel light is designed to offer precise illumination and control that can be easily adjusted with the light's onboard control and LCD or DMX controls. Using the two included AC power cables, quickly power the Helia 150W lights to illuminate large productions, sets, and broadcasts. An all-in-one lighting solution, the 2-light kit includes two sets of barndoors, two gel frames, two power cords, two light stands, a light stand bag, and an SKB rolling hard case to safely and securely transport the lights to and from the set.

• The Fresnel lens is adjustable from a 70° flood for wide coverage to a tight 20° spot for long-throw work.
• The fixture is dimmable from 10 to 100% with flicker-free operation and a variable 3200-5600K CCT, while its CRI/TLCI rating of 97/98 is your assurance of superior color rendition. The Helia 150W outputs up to 21,622 lux at 3.3' with a spot beam.

Onboard & DMX Control

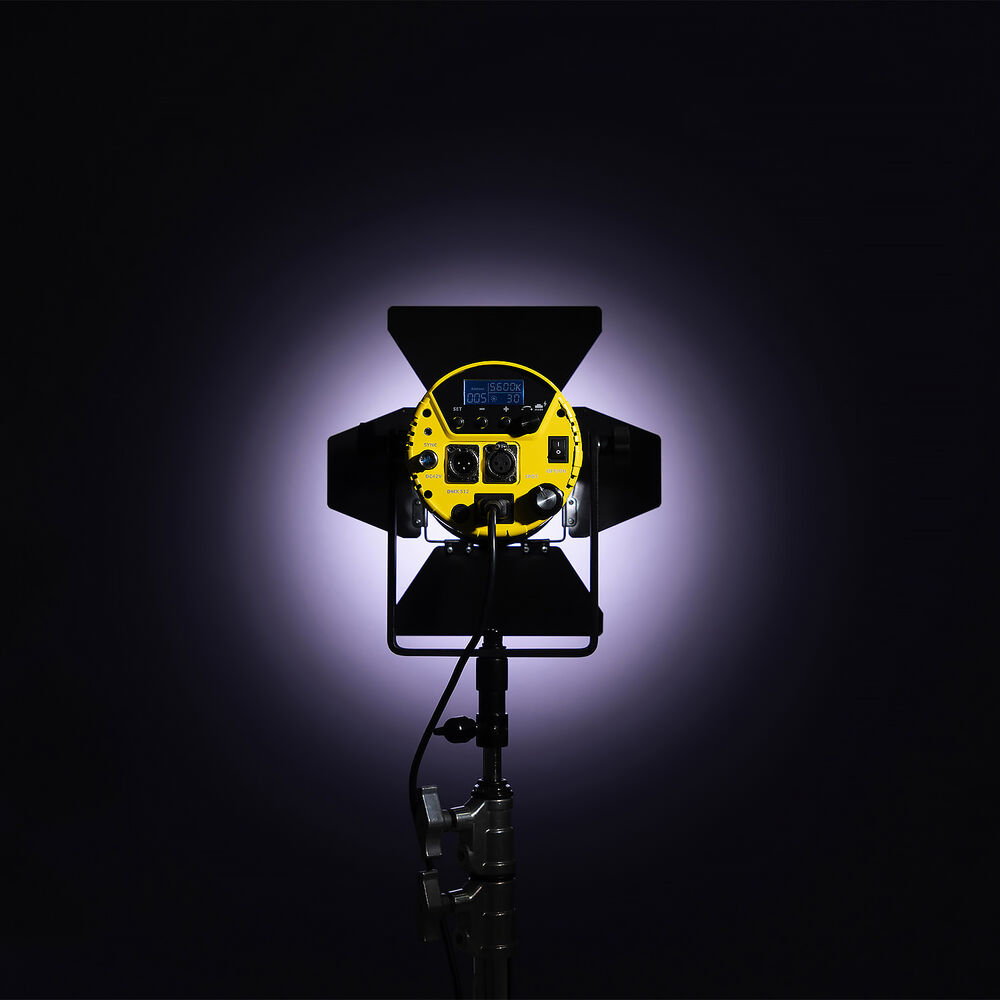

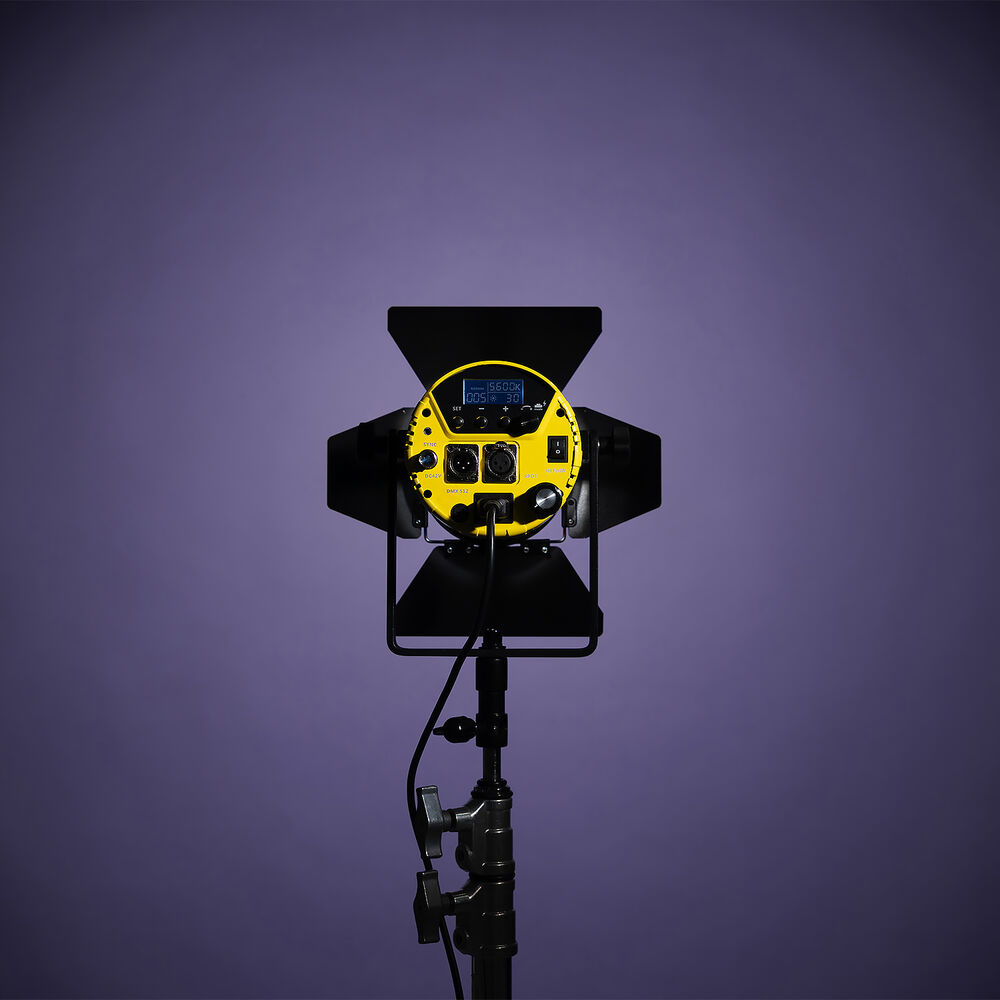

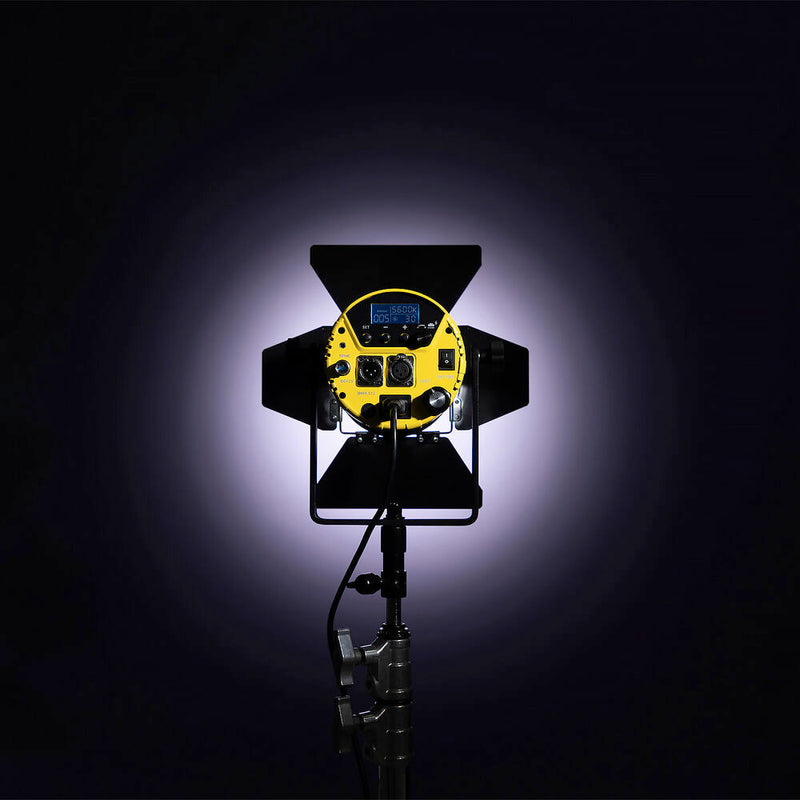

Quickly adjust the light via its back panel, featuring local controls, such as focusing and intensity knobs, along with an LCD screen for settings. If advanced control is needed, the Helia 150W also allows for wired DMX.

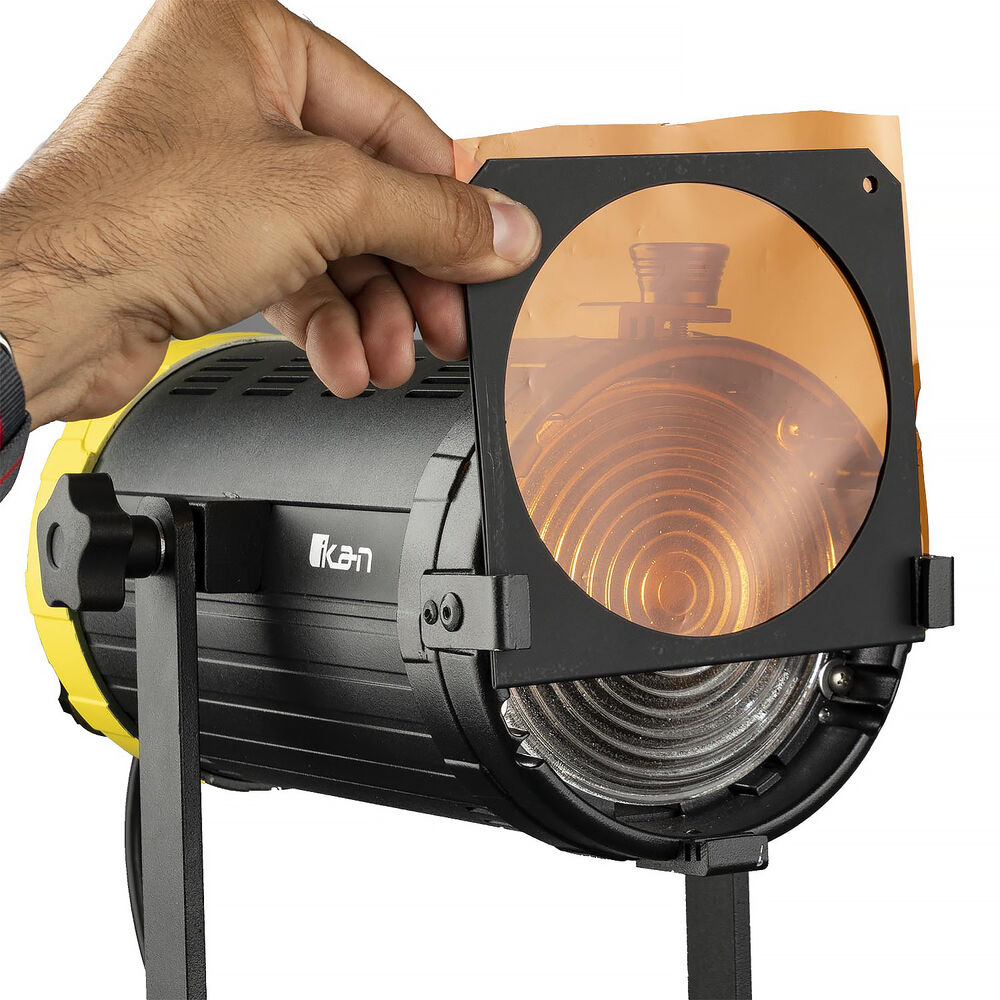

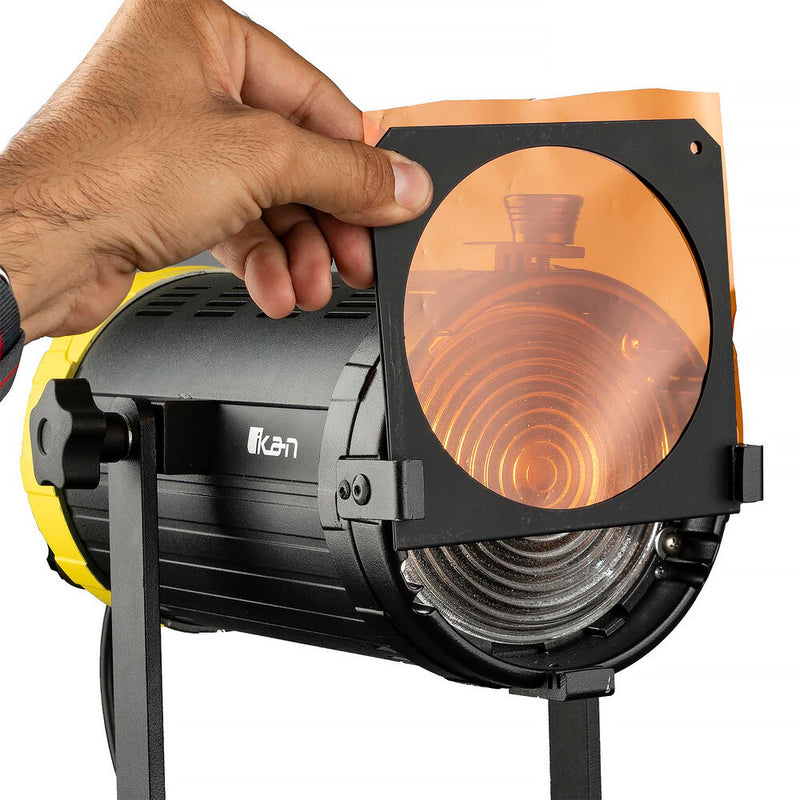

• Included in the package are eight-leaf barndoors and a gel frame for modifying your light.

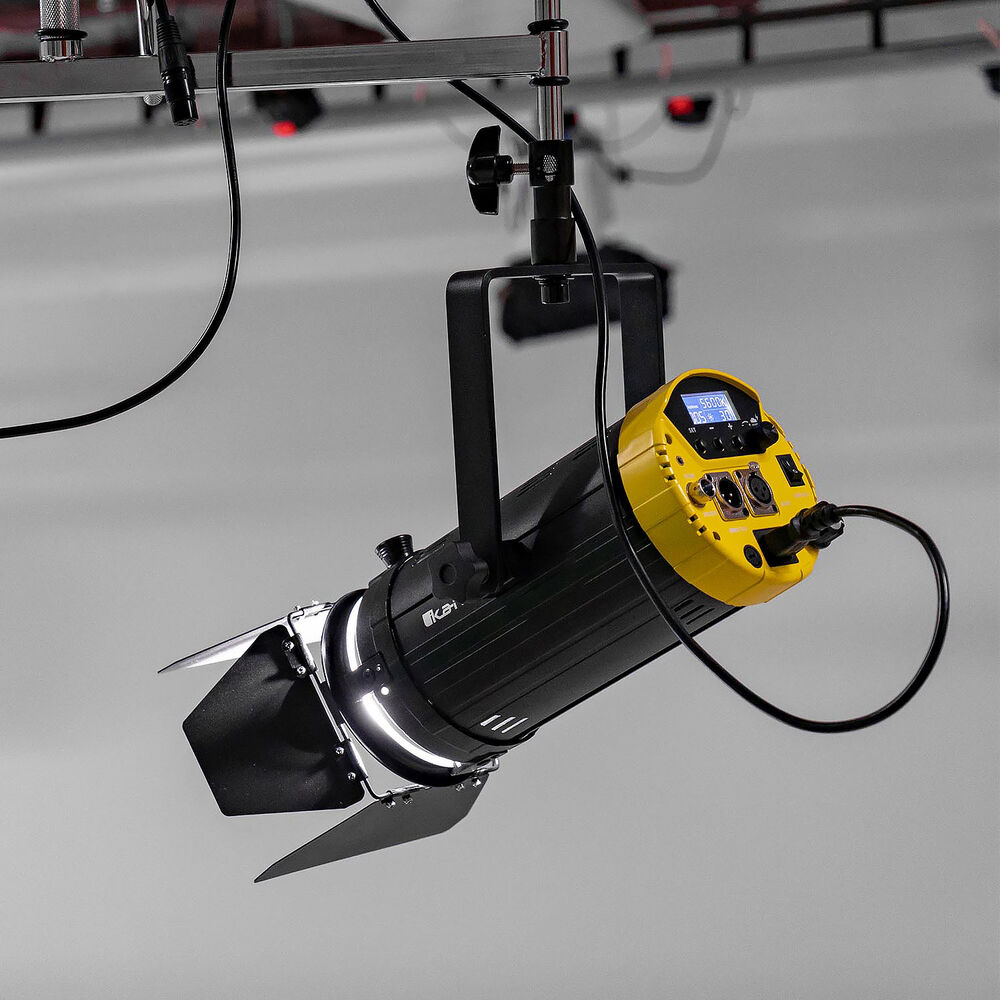

• The fixture's yoke can be mounted on either a 5/8" baby pin or a 1-1/8" junior receiver.
• The fixture runs on 120 VAC power and comes with a 6' long power cable.

Fan Cooled

The light's active cooling technology fan is quiet enough for sound-sensitive environments.

Additional Information

The fixture's DMX profile is available in the ETC EOS and Carallon databases.

ikan HF150B Specs

Item Type	2x LED Fresnel
Included Light Modifier	2x Barndoors 2x Gel/Filter Frame
Included Storage Case	Yes

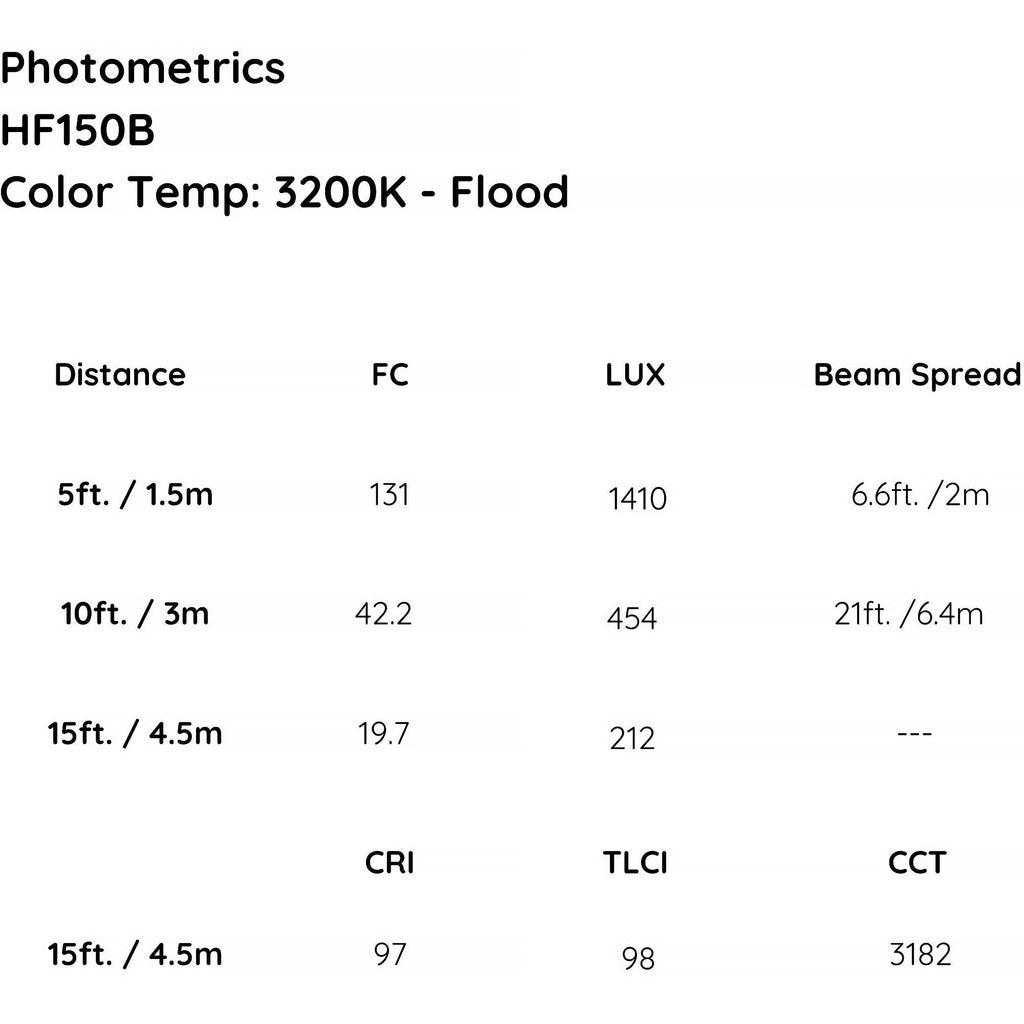

Photometrics	Flood Beam at 3200K: 294 fc / 3172 Lux at 3.3' / 1 m* 130 fc / 1410 Lux at 4.9' / 1.5 m 42 fc / 454 Lux at 9.8' / 3 m 19 fc / 212 Lux at 14.8' / 4.5 m Flood Beam at 5600K: 365 fc / 3937 Lux at 3.3' / 1 m* 162 fc / 1750 Lux at 4.9' / 1.5 m 48 fc / 526 Lux at 9.8' / 3 m 23 fc / 251 Lux at 14.8' / 4.5 m Spot Beam at 3200K: 160 fc / 1732 Lux at 3.3' / 1 m* 71 fc / 770 Lux at 4.9' / 1.5 m 213 fc / 2300 Lux at 9.8' / 3 m 96 fc / 1040 Lux at 14.8' / 4.5 m Spot Beam at 5600K: 2008 fc / 21,622 Lux at 3.3' / 1 m* 892 fc / 9610 Lux at 4.9' / 1.5 m 242 fc / 2610 Lux at 9.8' / 3 m 96 fc / 1040 Lux at 14.8' / 4.5 m *Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature	3200 to 5600K
Color Modes	Daylight, Tungsten
Color Accuracy Standard	CRI 97 TLCI 98
Dimming	Built-In Dimmer / DMX  � 10 to 100%
Front Accessory Mount	Proprietary
Power Source	AC Power (Cable Included)
Input Power	120 VAC, 60 Hz
Power Consumption	150 W
Fixture Mounting	1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

Item Type	2x LED Fresnel
Included Light Modifier	2x Barndoors 2x Gel/Filter Frame
Included Storage Case	Yes
Photometrics	Flood Beam at 3200K: 294 fc / 3172 Lux at 3.3' / 1 m* 130 fc / 1410 Lux at 4.9' / 1.5 m 42 fc / 454 Lux at 9.8' / 3 m 19 fc / 212 Lux at 14.8' / 4.5 m Flood Beam at 5600K: 365 fc / 3937 Lux at 3.3' / 1 m* 162 fc / 1750 Lux at 4.9' / 1.5 m 48 fc / 526 Lux at 9.8' / 3 m 23 fc / 251 Lux at 14.8' / 4.5 m Spot Beam at 3200K: 160 fc / 1732 Lux at 3.3' / 1 m* 71 fc / 770 Lux at 4.9' / 1.5 m 213 fc / 2300 Lux at 9.8' / 3 m 96 fc / 1040 Lux at 14.8' / 4.5 m Spot Beam at 5600K: 2008 fc / 21,622 Lux at 3.3' / 1 m* 892 fc / 9610 Lux at 4.9' / 1.5 m 242 fc / 2610 Lux at 9.8' / 3 m 96 fc / 1040 Lux at 14.8' / 4.5 m *Standardized Measurement Calculated Internally Based on Closest Distance
Color Temperature	3200 to 5600K
Color Modes	Daylight, Tungsten
Color Accuracy Standard	CRI 97 TLCI 98
Dimming	Built-In Dimmer / DMX  � 10 to 100%
Cooling System	Fan
Beam Angle	20 to 70°
Built-In Flash	No
Preprogrammed Effects	No
Umbrella Mount	No
Front Accessory Mount	Proprietary

Lens Type	Fresnel
Lens Diameter	4" / 10.16 cm
Lens Material	Acrylic

Power Source	AC Power (Cable Included)
Inputs/Outputs	1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output
Input Power	120 VAC, 60 Hz
Included Adapter / Cable	2x USA Type-A/B to IEC Cable (6' / 1.83 m)
Inline Switch	No
Power Pass-Thru	No
Power Consumption	150 W

Included Light Stand / Mount	2x Light Stand
Yoke Type	Manually-Operated Yoke
Fixture Mounting	1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount)

Display	LCD
Environmental Resistance	No
Materials	Aluminum (Housing)
Dimensions	19 x 12 x 6" / 48.3 x 30.5 x 15.2 cm (Fixture)
Weight	10 lb / 4.54 kg (Fixture)
