SP209 series logic analyzers and protocol decoders offer in depth analysis of logic signals and protocols with 200MHz (5ns) timing resolution. 9-channel logic analyzer allows 8-bit parallel data to be captured along with a clock or strobe signal. SP209 series logic analyzers rely on ScanaStudio software to capture, display, analyze and decode signals. Most industry standard protocols can be interpreted, among which: SPI, I2C, USART, 1-Wire, CAN, LIN, I2C, RS232, RS485, TWI.

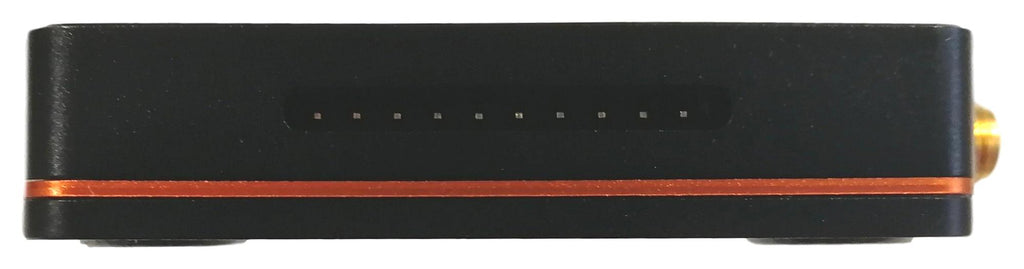

- 9 logic channels with adjustable thresholds (1.8V, 2.5V, 3.3V, 5V)
- State of the art input stage, with schmitt triggers that eliminate glitches on slow signals
- 200MHz sampling rate, with all 9 channels used.
- External clock option (state mode), up to 50MHz

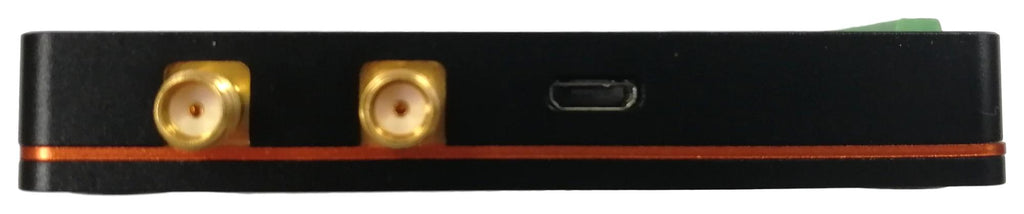

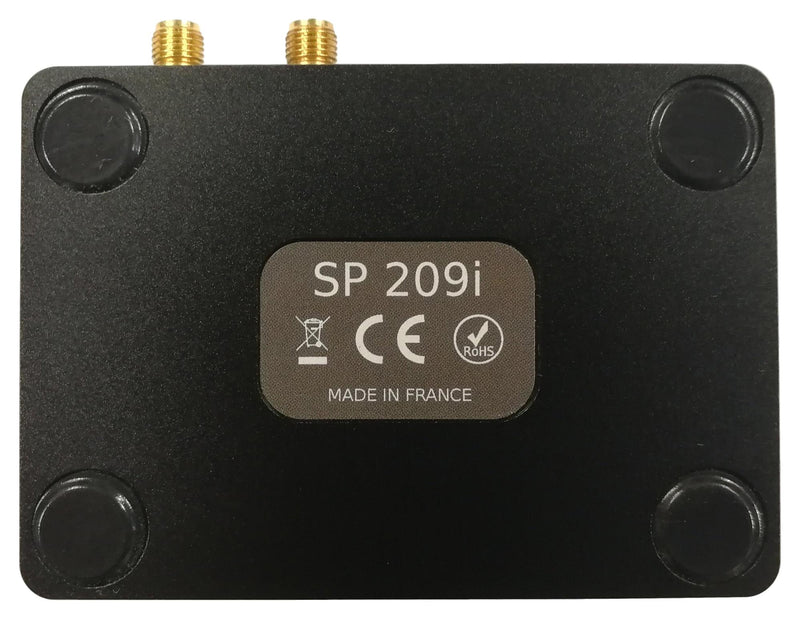

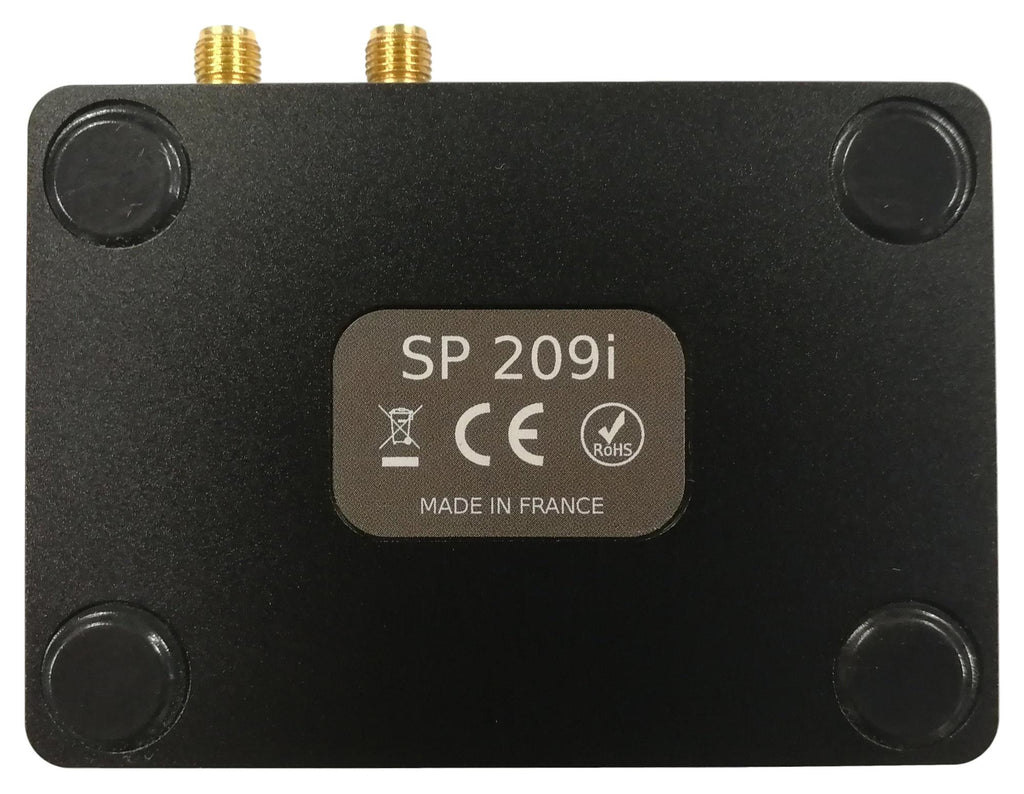

- Dedicated trigger-In and trigger-out interfaces on SMA ports
- Samples compression and streaming via USB
- 2Gb DDR-3 memory kicks-in when USB isn't fast enough

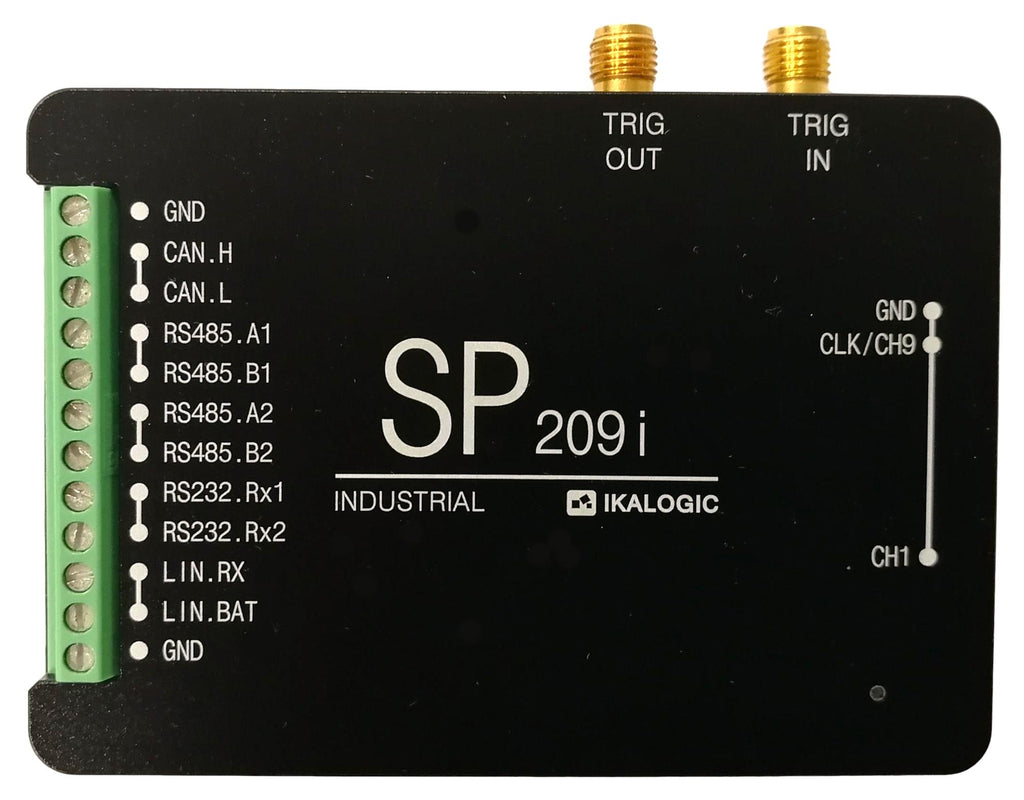

- RS232, CAN, LIN and RS485 embedded receivers
Applications
Industrial, Automotive, Embedded Design & Development, Robotics
Product details
| No. of Data Channels |
9 |
| No. of Clock Inputs |
1 |
| Data Memory Size |
2Gbit |
| Frequency |
200MHz |
| Power Consumption |
- |
| External Height |
13.1mm |
| External Width |
84.9mm |
| External Depth |
59.9mm |
| Weight |
105g |
| Product Range |
SP209 Series |
Other details
| Brand |
IKALOGIC |
| Part Number |
SP209I |
| Quantity |
Each |
| Safety Data Sheet EN |
 |
