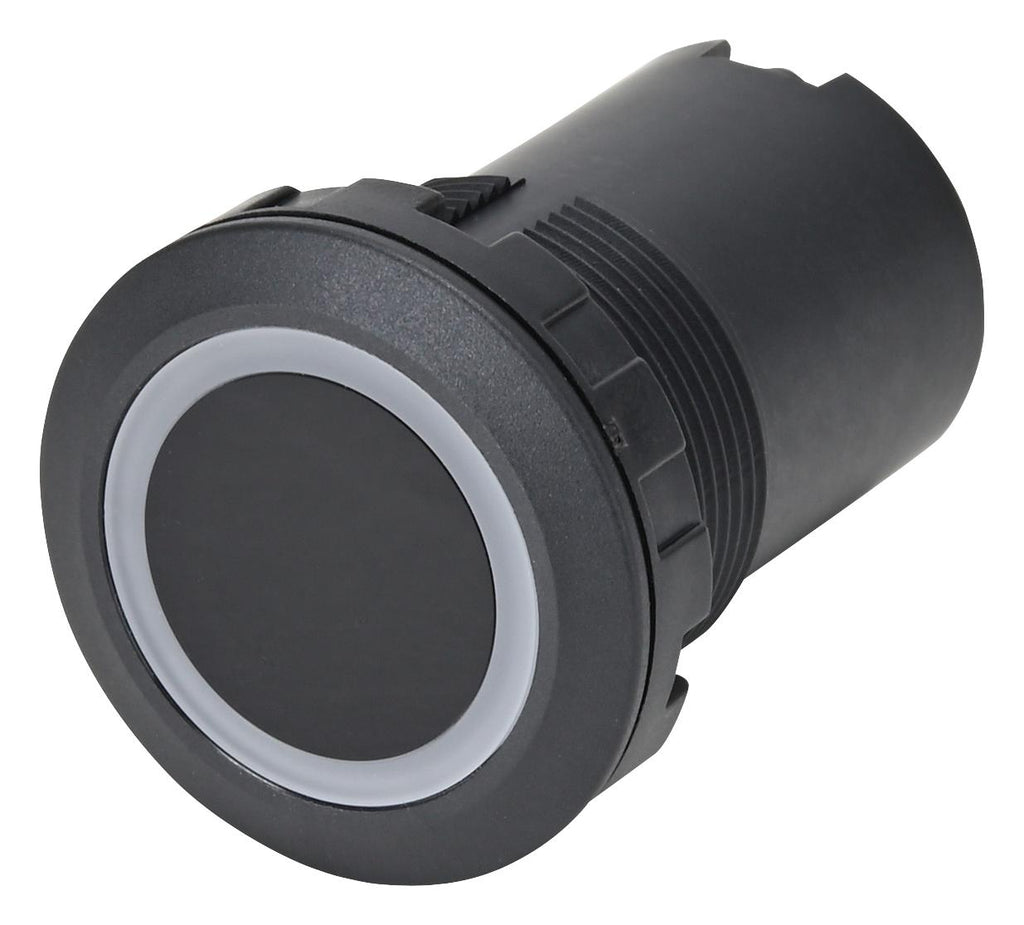

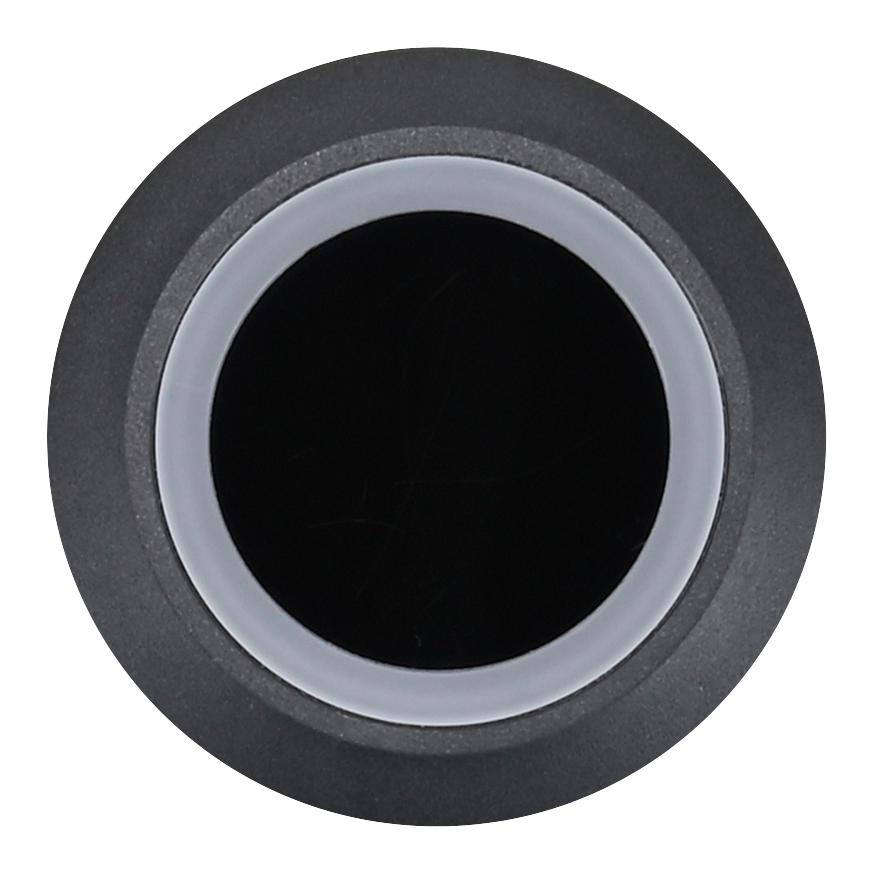

CW1H-DM1NGR-C is a CW series flush Silhouette touchless switch. The need for touchless switches to minimize the spread of viruses is increasing and is especially high when an unspecified number of people touch the same surface. It can be used in a wide range of applications as one of infection control measures. It includes power supply reverse connection protection.
- Degree of protection IP65/67 suitable for outdoor
- Diffuse-reflective sensing method, black plastic bezel specification
- Green / red illumination colour (LIGHT1 / LIGHT2)
- PNP illumination control method, without timer
- Adjustable detection distance, infrared LED light source
- Two-colour LED illumination enables identification of output and standby
- 12 to 24VDC allowable ripple rate ±10% rated voltage
- 35 to 95%RH operating humidity range (when in use)
- Diffuse reflection method, PA66 bezel black plastic, aluminium alloy metal main body
- Operating temperature range from -25 to +55°C (when in use)
Product details
| Light Source:
IR LED
|
| Detection Range:
350mm
|
| Illumination Colour:
Green, Red
|
| Timing Function:
-
|
| Voltage Rating:
24VDC
|
| Housing Material:
Polyamide 66 (PA66)
|
| Contact Rating:
40mA at 24VDC
|
| IP Rating:
IP65, IP67
|
| Product Range:
CW Series
|
| Operating Temperature Min:
-25°C
|
| Operating Temperature Max:
55°C
|
Other details
| Brand |
IDEC |
| Part Number |
CW1H-DM1NGR-C |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
