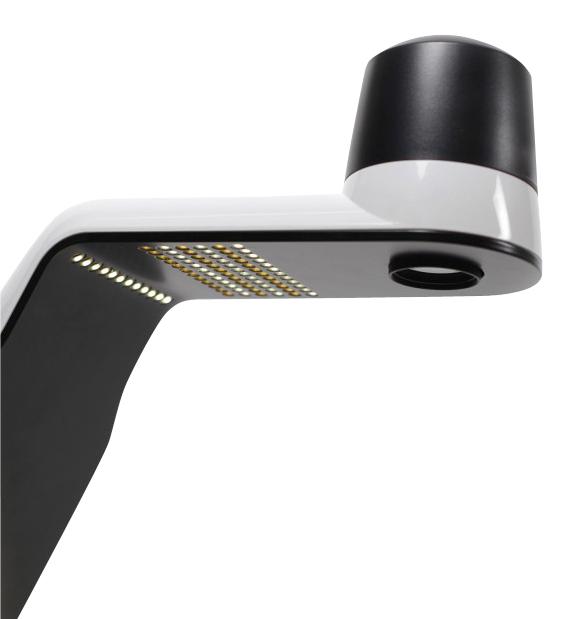

TEK-SCOPE PLUS auto focus FHD camera provides optical magnification of 46x (27" monitor) and digital magnification up to 460x (92x recommended - 27''monitor). TEK-SCOPE PLUS produces high quality distortion free up to 1080p FHD images with no delay and with excellent depth of field. LED lights give users shadow-free illumination. The large 310mm working distance enables inspection of a wide variety of objects.
- Auto focus free hands and allows quick inspection of objects at different heights & magnifications
- Adjustable focus
- Digital Zoom ON/OF

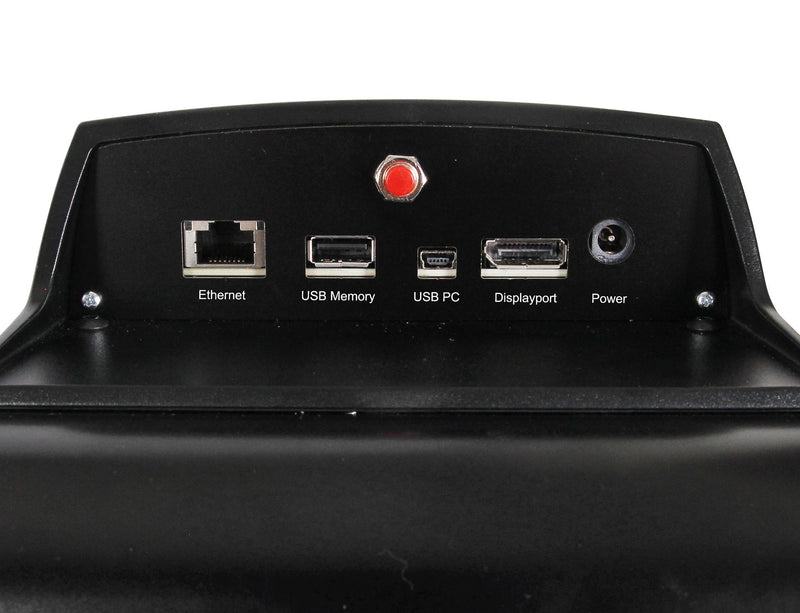

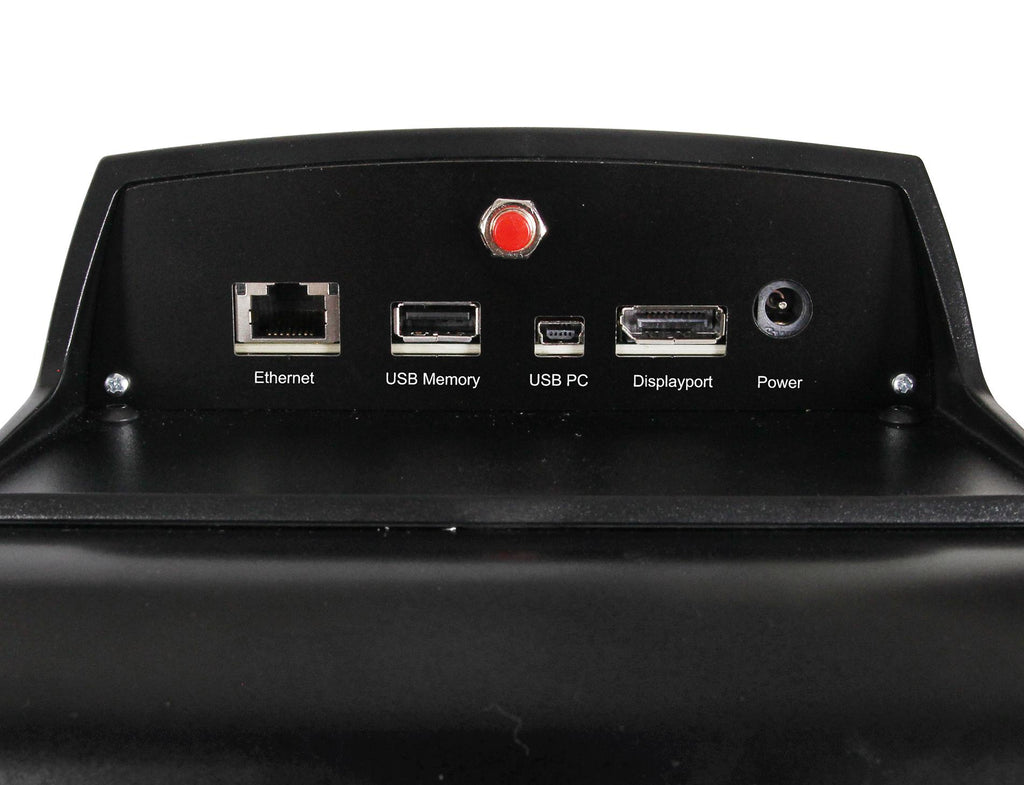

- Monitor connection via DisplayPort / HDMI port
- Direct image Storage on USB memory stick
- PC connection software via micro USB / USB port
- Measurement & drawing capabilities
- Larger depth of field for easier and quicker work
- Ethernet connection to share screens simultaneously
Contents

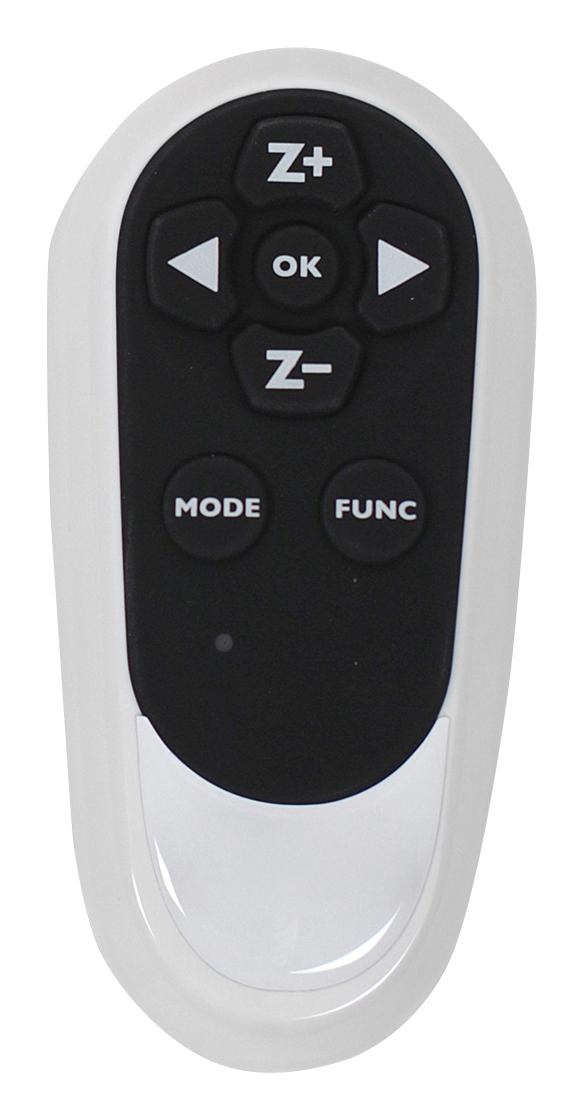

Inspection system unit, Remote control, Power supply, Monitor cable (DisplayPort-HDMI) - computer cable (USB - USB mini), TEK-SCOPE PLUS software and manual on USB memory stick, 3D lens.
Product details
| Magnification |
46x to 460x |
| For Use With |
Watchmaking & Jewellery |
| Working Distance |
310mm |
| Camera Type |
1920X1080 Pixels |
| Product Range |
- |
Other details
| Brand |
IDEAL-TEK |
| Part Number |
TEK-SCOPE-PLUS |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
