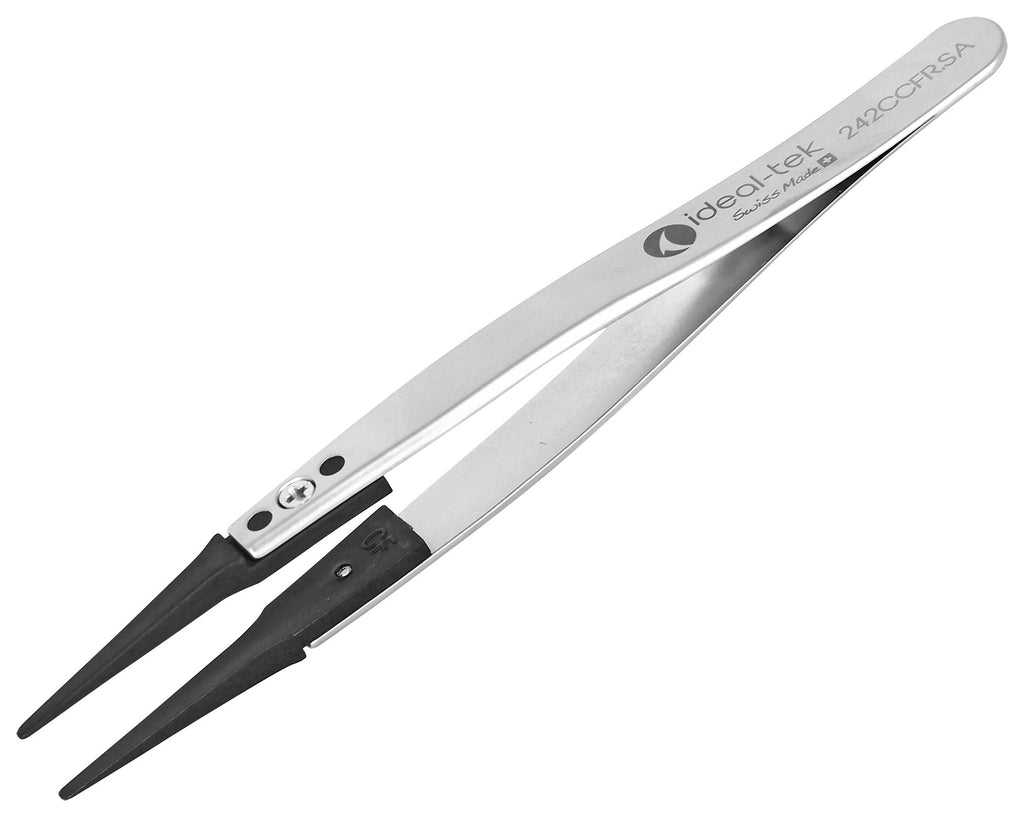

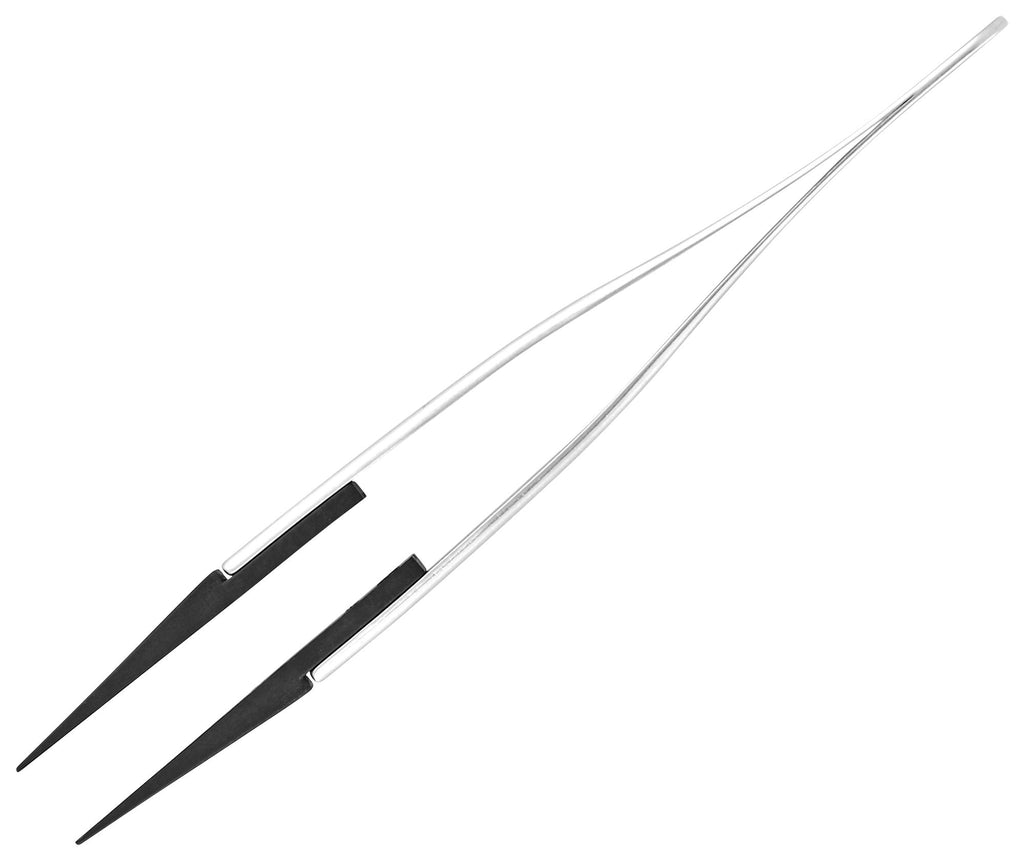

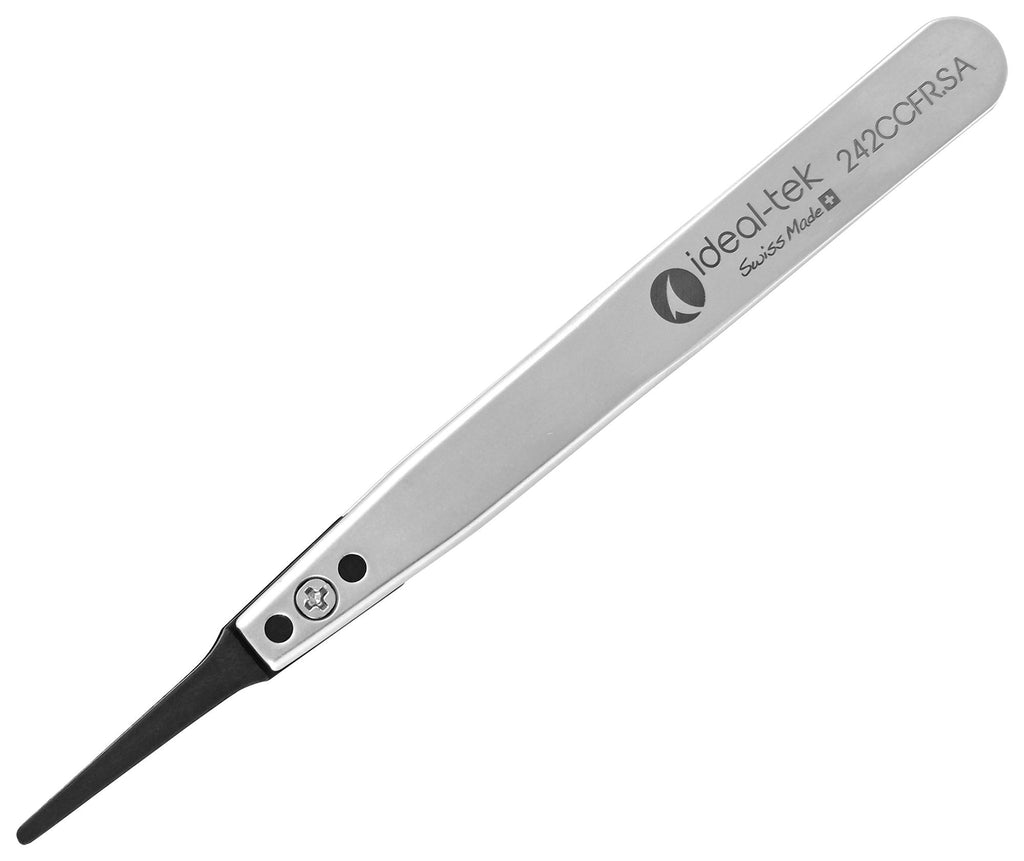

242CCFR.SA.1.IT is a plastic replaceable tip tweezer. This Type 242CF plastic replaceable tip tweezer is suitable to applications that require holding a small component firmly. The shorter body allows easy access to hard-to-reach areas under a microscope or in a cleanroom environment. The carbon fibre reinforced ESD plastic provides the tweezers with ESD and non-scratching properties.
- Straight, fine, round tip
- Plastic reinforced with carbon fibre (CF) tip material
- Sandblasted coating/finishing
- Anti-magnetic anti-acid stainless steel (SA) body material
- Overall length is 115mm, width is 10mm, height is 16mm
- 1.6mm tip width and 0.55mm thickness
Product details
| Tweezer Type |
Replaceable Tip, ESD Safe |
| Tweezer Tip Type |
Straight, Round |
| Overall Length |
115mm |
| Tip Style |
Style 242 |
| Tweezer Body Material |
Anti Magnetic, Anti Acid Stainless Steel |
| Tweezer Tip Material |
Carbon Fibre Reinforced Plastic Tip |
| Product Range |
- |
Other details
| Brand |
IDEAL-TEK |
| Part Number |
242CCFR.SA.1.IT |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
