Description

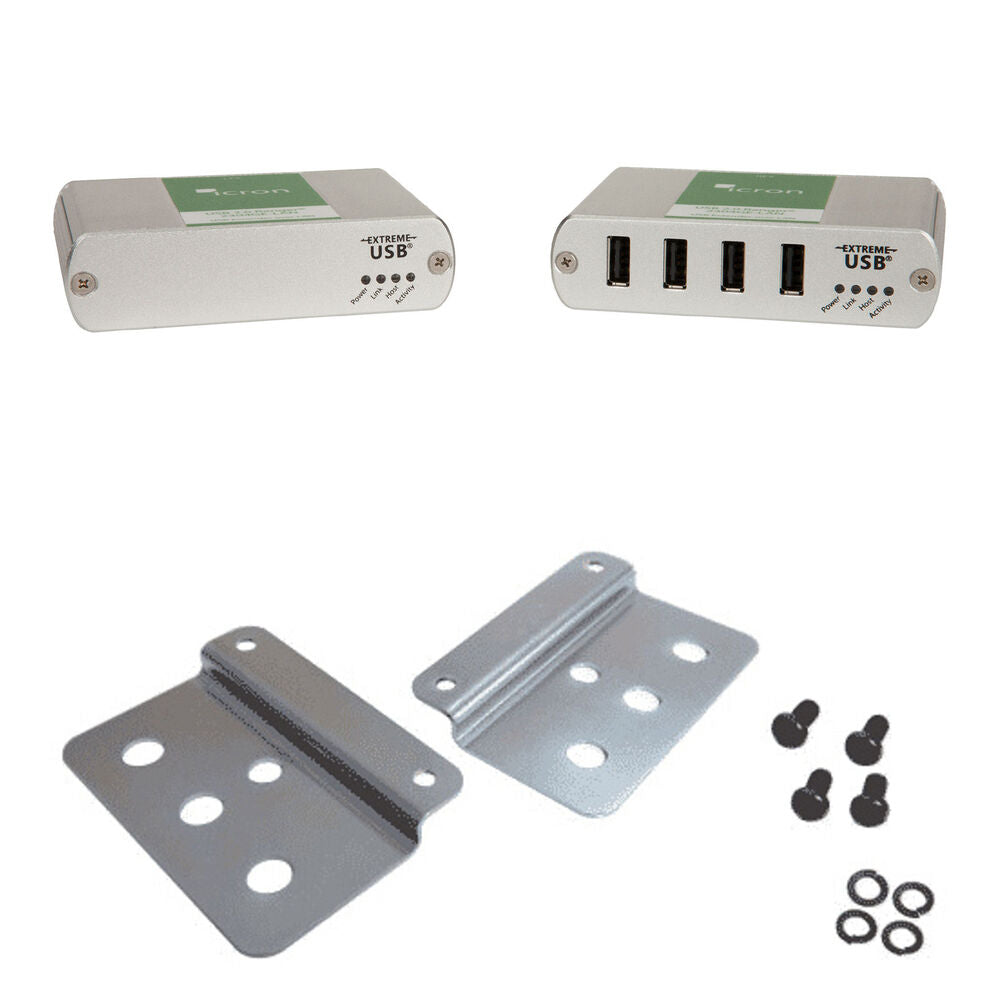

With the Icron USB 2.0 Ranger 2304GE-LAN 4-Port Extender System Kit with Mounting Kit from , you'll be able to extend USB through Gigabit Ethernet over large distances. The Ranger comes with four USB-A ports. The included mounting kit allows you to attach the Ranger to any flat surface or standard 19" racks.

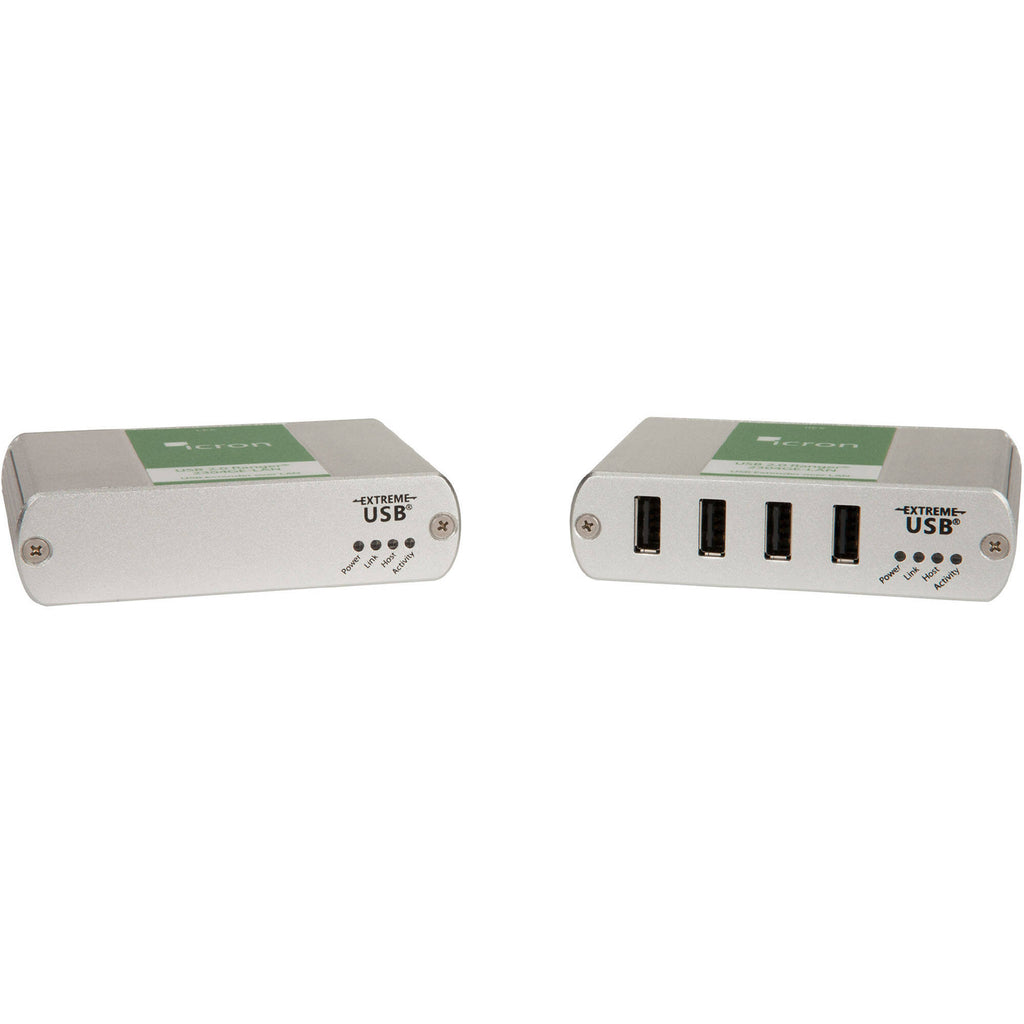

Stay connected to peripherals at a distance with the USB 2.0 Ranger 2304GE-LAN 4-Port Extender System from Icron. Capable of extending connectivity to 330' via Cat 5e, 6, and 7, the USB 2.0 Ranger 2304GE-LAN supports transfer speeds up to 480 Mb/s. Four USB-A female ports provide up to 600mA concurrently per port, or up to 1A when two or less ports are used at once. Pre-paired network configuration makes setup a breeze, while the included ExtremeUSB suite allows for transparent USB extension. This extender is plug and play; ExtremeUSB works with Windows, macOS, Linux, and Chrome OS.
- Extends USB through Gigabit Ethernet
- Supports connections up to 330' via Cat 5e, 6, and 7 cables
- Supports USB 2.0 throughput up to 480 Mb/s
- Pre-paired networked configuration for simple installation
- Supplies up to 600mA at each USB port concurrently or up to 1A per port when two or less are used

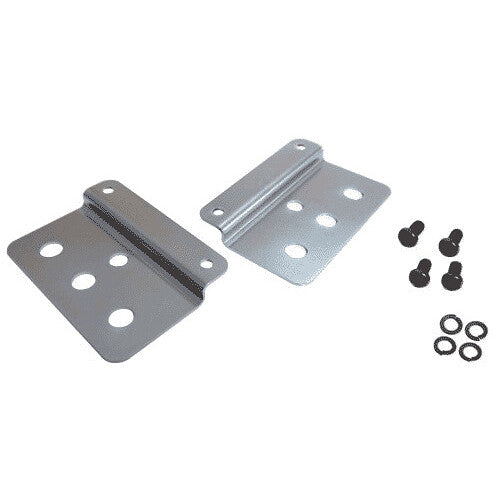

The silver Icron Mounting Kit for Ranger 2304, 2324, 2344, 2304GE-LAN, and Spectra 3022 allows you to mount a USB 2.0 or 3.0 extender transmitter (LEX) or receiver (REX) to any flat surface. Integrated screw holes are positioned for use with standard 19" racks, and mounting hardware is included.
Please note, this mounting kit fits a single module; to mount both units in a extender system, two mounting kits are required.
Items Included
- Icron USB 2.0 Ranger 2304GE-LAN 4-Port Extender System
- AC Power Adapter
- USB Cable (6.6')
- Limited 2-Year Manufacturer Warranty
- Icron Mounting Kit for Ranger 2304, 2324, 2344, 2304GE-LAN, and Spectra 3022
Additional Resources
Icron USB 2.0 Ranger 2304GE-LAN 4-Port Extender System
| Maximum Range |
USB 2.0: 328.1' / 100 m over Cat 5e Cable
|
| Receiver I/O |
4x USB-A (2.0) Output
1x RJ45 (Gigabit Ethernet) Input |
| Transmitter I/O |
1x USB-B (2.0) Input
1x RJ45 (Gigabit Ethernet) Output |
| Power Source |
Receiver: Power Adapter
Transmitter: USB Bus Power |
| Receiver I/O |
4x USB-A (2.0) Output
1x RJ45 (Gigabit Ethernet) Input |
| Transmitter I/O |
1x USB-B (2.0) Input
1x RJ45 (Gigabit Ethernet) Output |
| Power Source |
Receiver: Power Adapter
Transmitter: USB Bus Power |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| USB Output Current |
600 mA Total
|
| Cable Length |
6.6' / 2 m
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 80% Humidity
|
| Certifications |
CE Class B, EN 62368-1, FCC Class B, ICES-003 Issue 7, RoHS 2/3 (CE)
|
| Storage Conditions |
-4 to 158?F / -20 to 70?C at 10 to 90% Humidity
|
| Enclosure Material |
Aluminum
|
| Dimensions |
3.9 x 1.0 x 3.0" / 100.0 x 26.0 x 76.0 mm Each
|
| Package Weight |
1.99 lb
|
| Box Dimensions (LxWxH) |
10.6 x 7.7 x 3"
|
