Description

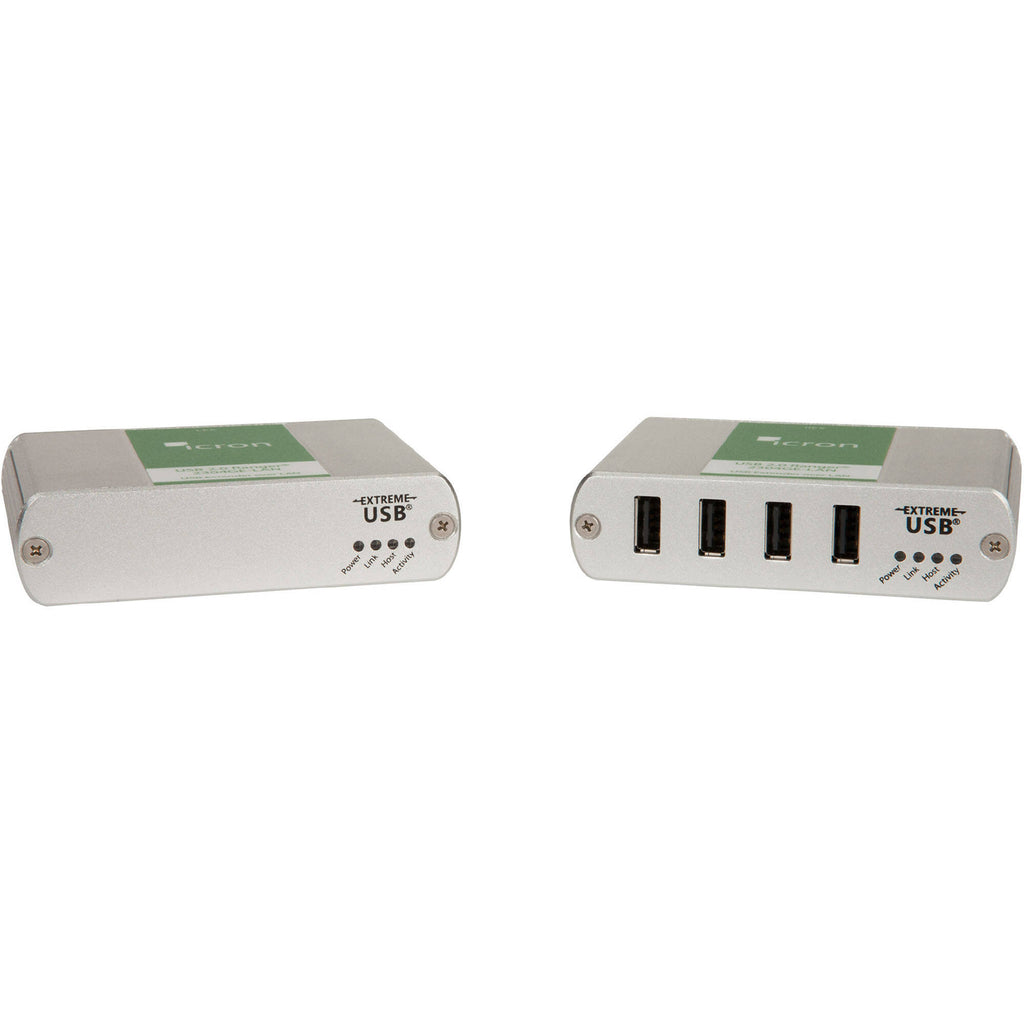

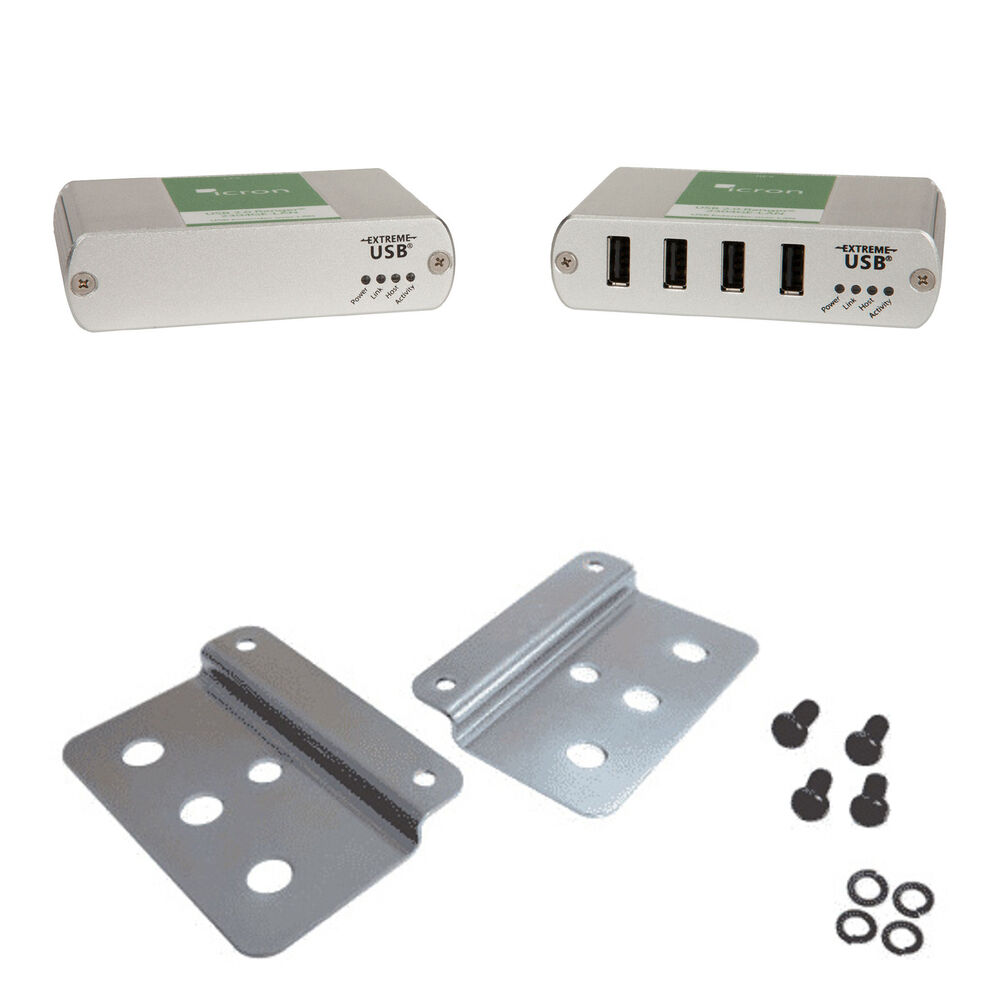

With the Icron 4-Port USB 2.0 Ranger 2304 Extender System Kit with Mounting Kit from , you can extend USB 2.0 connections over Ethernet with CAT 5e, 6, or 7 cabling. The Ranger 2301 features four USB-A ports with ExtremeUSB. The included mounting kit allows you to attach the Ranger to a flat surface or utilize the pre-drilled holes.
Keep critical peripherals connected at a distance with the 4-Port USB 2.0 Ranger 2304 Extender System from Icron. Designed to extend USB connectivity up to 328' via Cat 5e, Cat 6, or Cat 7, this extender system is optimized for use with remote storage, professional A/V setups, security and monitoring applications, or extending input peripherals. It features a USB-B to A host connector, RJ45 link connectors, and four USB-A ports. Each USB-A port provides up to 600mA of power per port, concurrently. Plus, a USB 2.0 interface ensures transfer speeds up to 480 Mb/s. RoHS, FCC, and CE compliant, this extender system utilizes a silver anodized aluminum construction for durable performance.
- Extends all USB 2.0 peripherals such as flash drives, keyboards, mice, webcams, and interactive whiteboards across a dedicated Cat 5e, Cat 6, or Cat 7 connection
- USB 2.0 interface with throughput up to 480 Mb/s
- Integrated hub provides ports for four USB devices; more ports can be added via extra hubs, available separately
- Supplies up to 600mA to each USB port concurrently
- Designed to operate with all USB controllers
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems including Windows, macOS, Linux, and Chrome OS

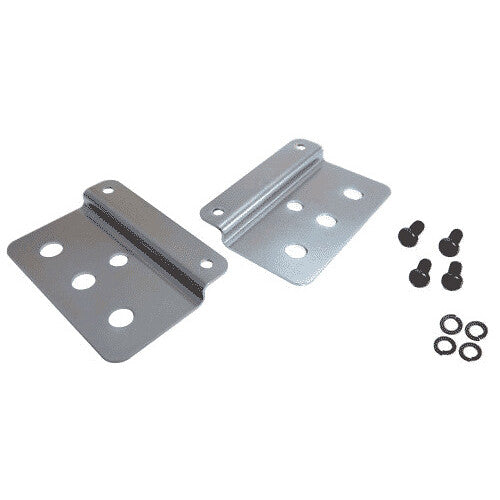

The silver Icron Mounting Kit for Ranger 2304, 2324, 2344, 2304GE-LAN, and Spectra 3022 allows you to mount a USB 2.0 or 3.0 extender transmitter (LEX) or receiver (REX) to any flat surface. Integrated screw holes are positioned for use with standard 19" racks, and mounting hardware is included.
Please note, this mounting kit fits a single module; to mount both units in a extender system, two mounting kits are required.
Items Included
- Icron 4-Port USB 2.0 Ranger 2304 Extender System (328')
- AC Power Adapter
- USB Cable
- Limited 2-Year Manufacturer Warranty
- Icron Mounting Kit for Ranger 2304, 2324, 2344, 2304GE-LAN, and Spectra 3022
Additional Resources
Icron 4-Port USB 2.0 Ranger 2304 Extender System (328')
| Maximum Range |
USB 2.0: 328.1' / 100 m over Cat 7 Cable
|
| Receiver I/O |
4x USB-A (2.0) Input
1x RJ45 Input |
| Transmitter I/O |
1x RJ45 Output
1x USB-B (2.0) Output |
| Power Source |
Receiver: Power Adapter
Transmitter: USB Bus Power |
| Receiver I/O |
4x USB-A (2.0) Input
1x RJ45 Input |
| Transmitter I/O |
1x RJ45 Output
1x USB-B (2.0) Output |
| Maximum Number of Devices |
4
|
| Power Source |
Receiver: Power Adapter
Transmitter: USB Bus Power |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| USB Output Current |
600 mA per Port
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 80% Humidity
|
| Certifications |
CE Class B, FCC Class B, RoHS2
|
| Storage Conditions |
-4 to 158?F / -20 to 70?C at 10 to 90% Humidity
|
| Enclosure Material |
Aluminum
|
| Dimensions |
3.0 x 1.0 x 3.9" / 76.0 x 26.0 x 100.0 mm Each
|
| Package Weight |
1.945 lb
|
| Box Dimensions (LxWxH) |
10 x 8.4 x 3"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
